Engine Block Mounting Parts replacement parts for 1990-1995 BMW K75 (K569)

OEM Parts Bmw 1990-1995 Bmw K75 (K569) Engine Block Mounting Parts

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	PLUG Part #: 11111460399 Required per assembly: 1 Currently Not Available
02	SCREW - M10X85 Part #: 11111460007 Required per assembly: 1 Currently Not Available
03	FILLISTER-HEAD SCREW - M8X50 Part #: 07119904436 Required per assembly: 4 Currently Not Available
04	FILLISTER-HEAD SCREW - M6X25 Part #: 11141460678 Required per assembly: 1 Currently Not Available
05	DOWEL - D=12,5MM Part #: 11111280594 Required per assembly: 4 Not Available
05	DOWEL - D=12,5MM Part #: 11121726241 Required per assembly: 4 Currently Not Available
06	SHAFT SEAL - 50X80X10 Part #: 11117666186 Required per assembly: 1 Note: ENGINE NO.112EA 3898 2039-112EA 5098 2091 Currently Not Available
07	O-RING - 15X2,5 Part #: 11111460391 Required per assembly: 1 Currently Not Available
08	O-RING - 27,3X2,4 Part #: 11111460392 Required per assembly: 1 Currently Not Available
09	VENT PIPE Part #: 11111460283 Required per assembly: 1 Not Available

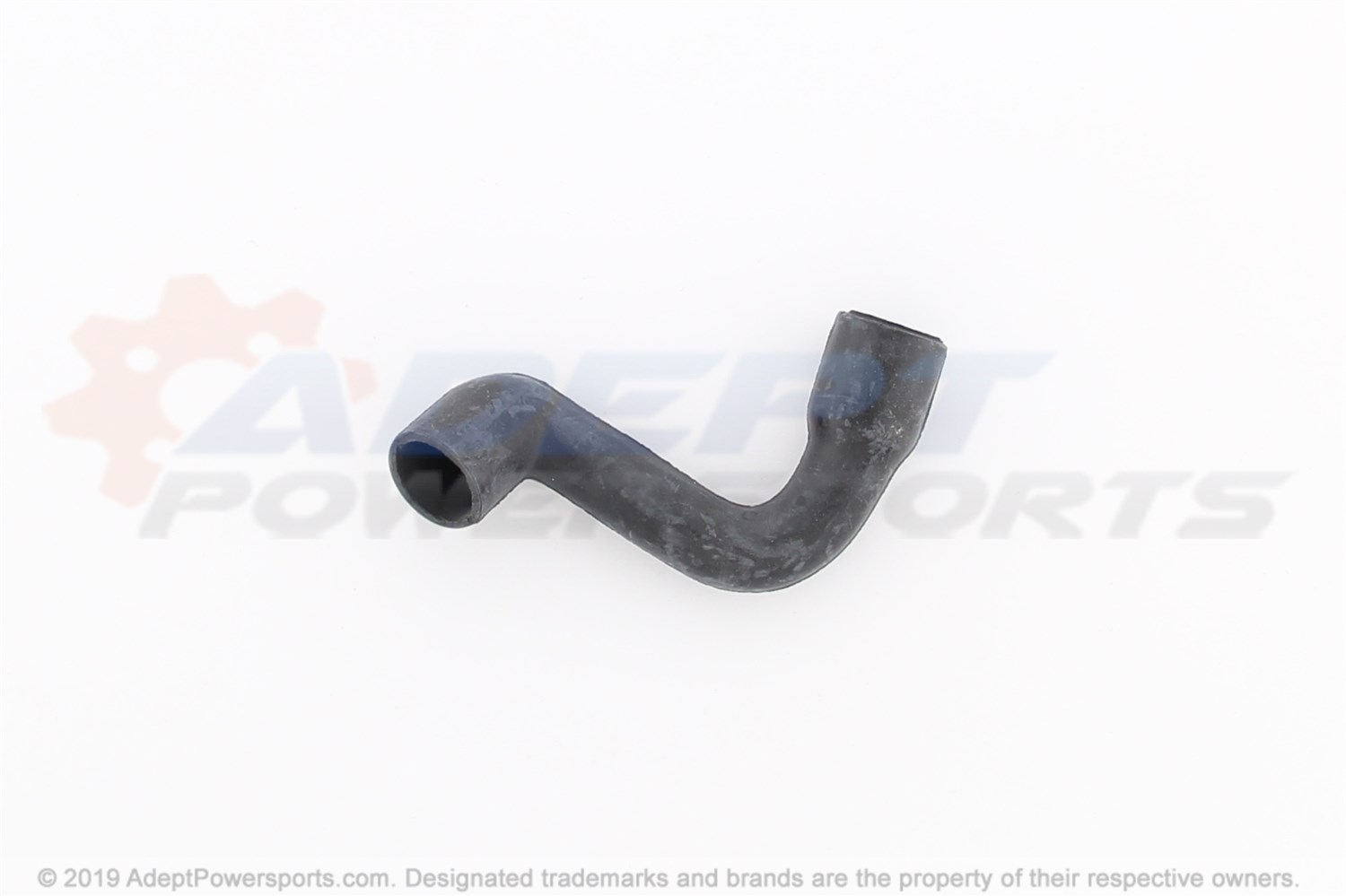

10	VENT HOSE Part #: 11151460480 Required per assembly: 1 Currently Not Available
11	HOSE CLAMP - D=19 (TO 09/80) Part #: 11151460935 Required per assembly: 2 Currently Not Available
12	BEARING BOLT Part #: 11111460854 Required per assembly: 2 Currently Not Available
13	DOWEL - D=8,5X9MM Part #: 11121726242 Required per assembly: 4 Currently Not Available
14	BLIND PLUG (TO 01/99) Part #: 11111460284 Required per assembly: 3 Currently Not Available
14	BLIND PLUG - D=10MM Part #: 11117653656 Required per assembly: 3 Currently Not Available
15	NEEDLE SLEEVE - 16X22X16 Part #: 11111460361 Required per assembly: 1 Not Available
16	SET: OIL LEVEL INDICATOR Part #: 11118523906 Required per assembly: 1 Note: PRIOR TO PRESSING IN THE OIL LEVEL INDICATOR, WET IT WITH TIRE FITTING PASTE. Currently Not Available
17	BLIND PLUG Part #: 11111460828 Required per assembly: 1 Currently Not Available
