Handle Unit Left replacement parts for 1990-1995 BMW K75 (K569)

OEM Parts Bmw 1990-1995 Bmw K75 (K569) Handle Unit Left

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	HANDLE UNIT LEFT Part #: 32721457069 Required per assembly: 1 Note: FOR VEHICLES WITH OFFICIAL VEHICLES Currently Not Available
02	CAP Part #: 32721451975 Required per assembly: 1 Currently Not Available
03	SAUCER-HEAD SCREW - M6X12 Part #: 07119907430 Required per assembly: 1 Currently Not Available
04	WASHER - 1,200MM Part #: 32721240791 Required per assembly: 1 Currently Not Available
05	LEVER FOR CHOKE Part #: 32721240792 Required per assembly: 1 Currently Not Available
06	SWITCH Part #: 61311459569 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
07	HOUSING Part #: 32721457962 Required per assembly: 1 Currently Not Available
08	SCREW Part #: 32721451749 Required per assembly: 1 Currently Not Available
09	WAVE WASHER Part #: 32721230871 Required per assembly: 1 Currently Not Available
10	NUT Part #: 32721238382 Required per assembly: 1 Currently Not Available
11	FILLISTER-HEAD SCREW - M5X16 Part #: 07119919906 Required per assembly: 1 Currently Not Available
12	HAND LEVER, BLACK, LEFT Part #: 32721451700 Required per assembly: 1 Currently Not Available
13	BUSH Part #: 32721451796 Required per assembly: 1 Currently Not Available

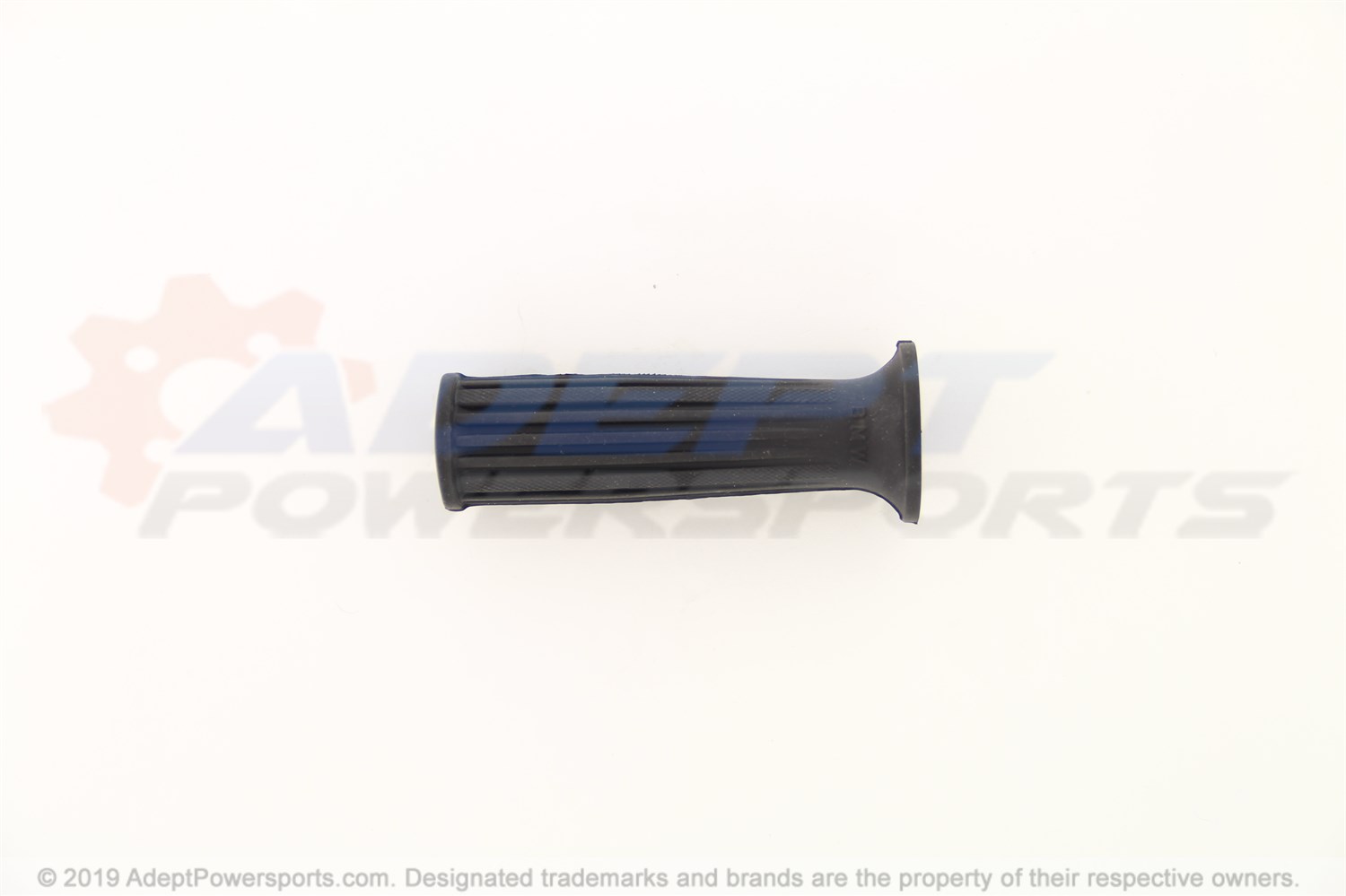

14	HANDLE LEFT Part #: 32721237811 Required per assembly: 1 Currently Not Available
14	HANDLE LEFT Part #: 32721453163 Required per assembly: 1 Currently Not Available
15	CAP LEFT Part #: 32721457399 Required per assembly: 1 Not Available
