Fork Slider replacement parts for 1990-1995 BMW K75 (K569)

OEM Parts Bmw 1990-1995 Bmw K75 (K569) Fork Slider

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	LEFT FORK SLIDER - D=41,0MM (FROM 08/91) Part #: 31422312295 Required per assembly: 1 Currently Not Available
01	RIGHT FORK SLIDER - D=41,0MM (FROM 08/91) Part #: 31422312296 Required per assembly: 1 Currently Not Available
02	GUIDE BUSH Part #: 31422312705 Required per assembly: 2 Currently Not Available
03	SHIM Part #: 31422312839 Required per assembly: 2 Currently Not Available

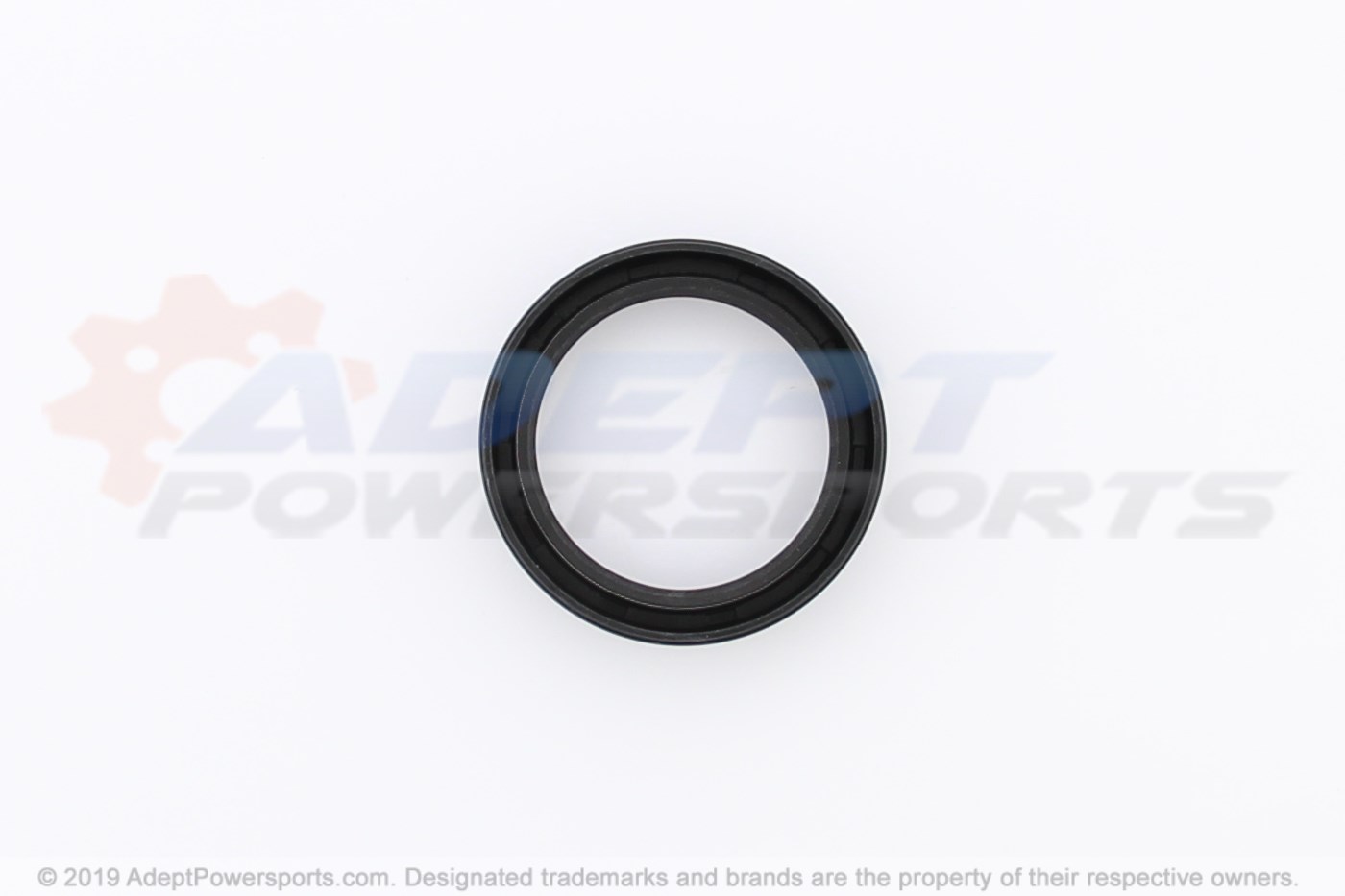

04	GASKET RING Part #: 31422312838 Required per assembly: 2 Currently Not Available
05	SUPPORTING RING Part #: 31422312837 Required per assembly: 2 Currently Not Available
06	CUP Part #: 31422312836 Required per assembly: 2 Currently Not Available
07	STABILIZER (FROM 08/91) Part #: 31422312299 Required per assembly: 1 Currently Not Available
08	WASHER - 8,4 Part #: 07119931684 Required per assembly: 4 Note: NOT FOR VEHICLES WITH AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available
09	FILLISTER-HEAD SCREW - M8X25 Part #: 31422312049 Required per assembly: 4 Currently Not Available
13	SCREW PLUG - M6X6 (FROM 08/91) Part #: 31422312842 Required per assembly: 2 Currently Not Available
14	GASKET RING - A6X10 Part #: 07119963030 Required per assembly: 2 Note: USE 1 454 969 + 970 AFTER USING UP Currently Not Available
15	FILLISTER-HEAD SCREW - M8X40 Part #: 31422312035 Required per assembly: 4 Currently Not Available
16	WASHER - 8,4 Part #: 07119931684 Required per assembly: 4 Note: NOT FOR VEHICLES WITH AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available
