Riser Pipe/Absorber replacement parts for 1990-1995 BMW K75 (K569)

OEM Parts Bmw 1990-1995 Bmw K75 (K569) Riser Pipe/Absorber

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CAP (FROM 08/91) Part #: 31422312712 Required per assembly: 2 Currently Not Available
02	O-RING (FROM 08/91) Part #: 31422312714 Required per assembly: 2 Currently Not Available
03	SNAP RING Part #: 31422312713 Required per assembly: 2 Currently Not Available
04	O-RING (FROM 08/91) Part #: 31422312833 Required per assembly: 2 Currently Not Available
05	SPRING RETAINER (FROM 08/91) Part #: 31422312832 Required per assembly: 2 Currently Not Available
06	SPACER TUBE (FROM 08/91) Part #: 31422312834 Required per assembly: 2 Currently Not Available
07	SHIM (FROM 08/91) Part #: 31422312835 Required per assembly: 2 Currently Not Available
08	COMPRESSION SPRING (FROM 08/91) Part #: 31422312706 Required per assembly: 2 Currently Not Available
09	PISTON RING (FROM 08/91) Part #: 31422312848 Required per assembly: 2 Currently Not Available
10	PIPE (FROM 08/91) Part #: 31422312707 Required per assembly: 2 Currently Not Available
11	COMPRESSION SPRING (FROM 08/91) Part #: 31422312708 Required per assembly: 2 Currently Not Available
12	STANCHION (FROM 08/91) Part #: 31422312831 Required per assembly: 2 Currently Not Available
13	GUIDE BUSH Part #: 31422312847 Required per assembly: 2 Currently Not Available

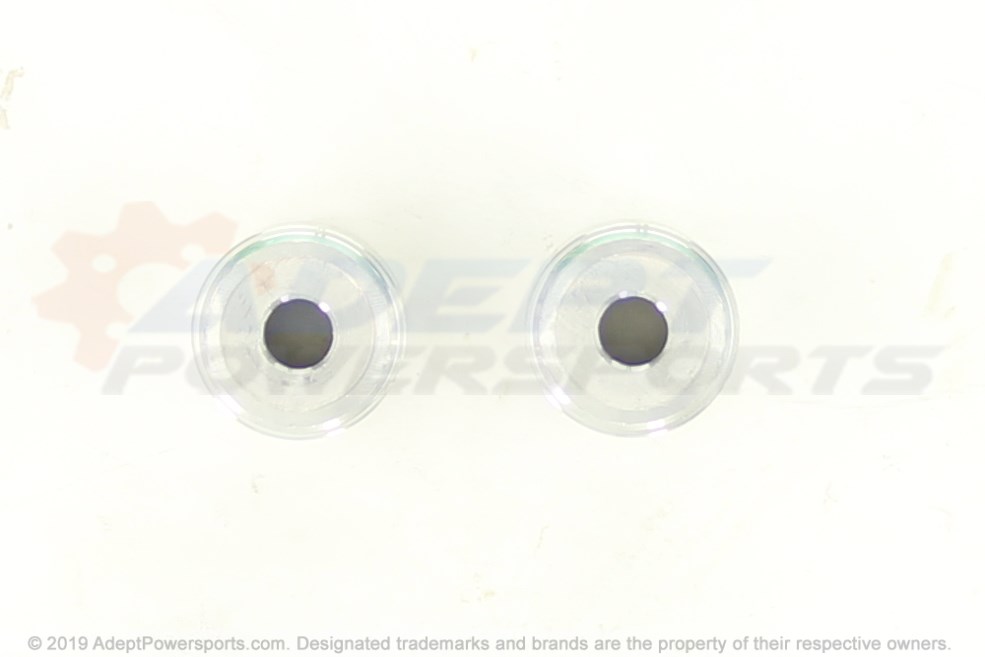

14	STOPPER (FROM 08/91) Part #: 31422312709 Required per assembly: 2 $12.00 $9.72 - + Add to cart
15	GASKET Part #: 31422312710 Required per assembly: 2 Currently Not Available
16	FILLISTER-HEAD SCREW - M8X18 Part #: 31422312711 Required per assembly: 2 Currently Not Available
