Turn Indicator replacement parts for 1990-1995 BMW K75 (K569)

OEM Parts Bmw 1990-1995 Bmw K75 (K569) Turn Indicator

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	BRACKET FRONT LEFT Part #: 63131459325 Required per assembly: 1 Currently Not Available
01	BRACKET FRONT RIGHT Part #: 63131459326 Required per assembly: 1 Currently Not Available
02	SCREW Part #: 46631235512 Required per assembly: 2 Currently Not Available
03	BRACKET REAR LEFT Part #: 63231459327 Required per assembly: 1 Currently Not Available
03	BRACKET REAR RIGHT Part #: 63231459328 Required per assembly: 1 Currently Not Available
04	SCREW - 30MM Part #: 63231453216 Required per assembly: 2 Currently Not Available
05	BUMP STOP Part #: 52531453213 Required per assembly: 2 Currently Not Available
06	LEFT PAD Part #: 63231453437 Required per assembly: 1 Currently Not Available
06	PAD RIGHT Part #: 63231453438 Required per assembly: 1 Currently Not Available

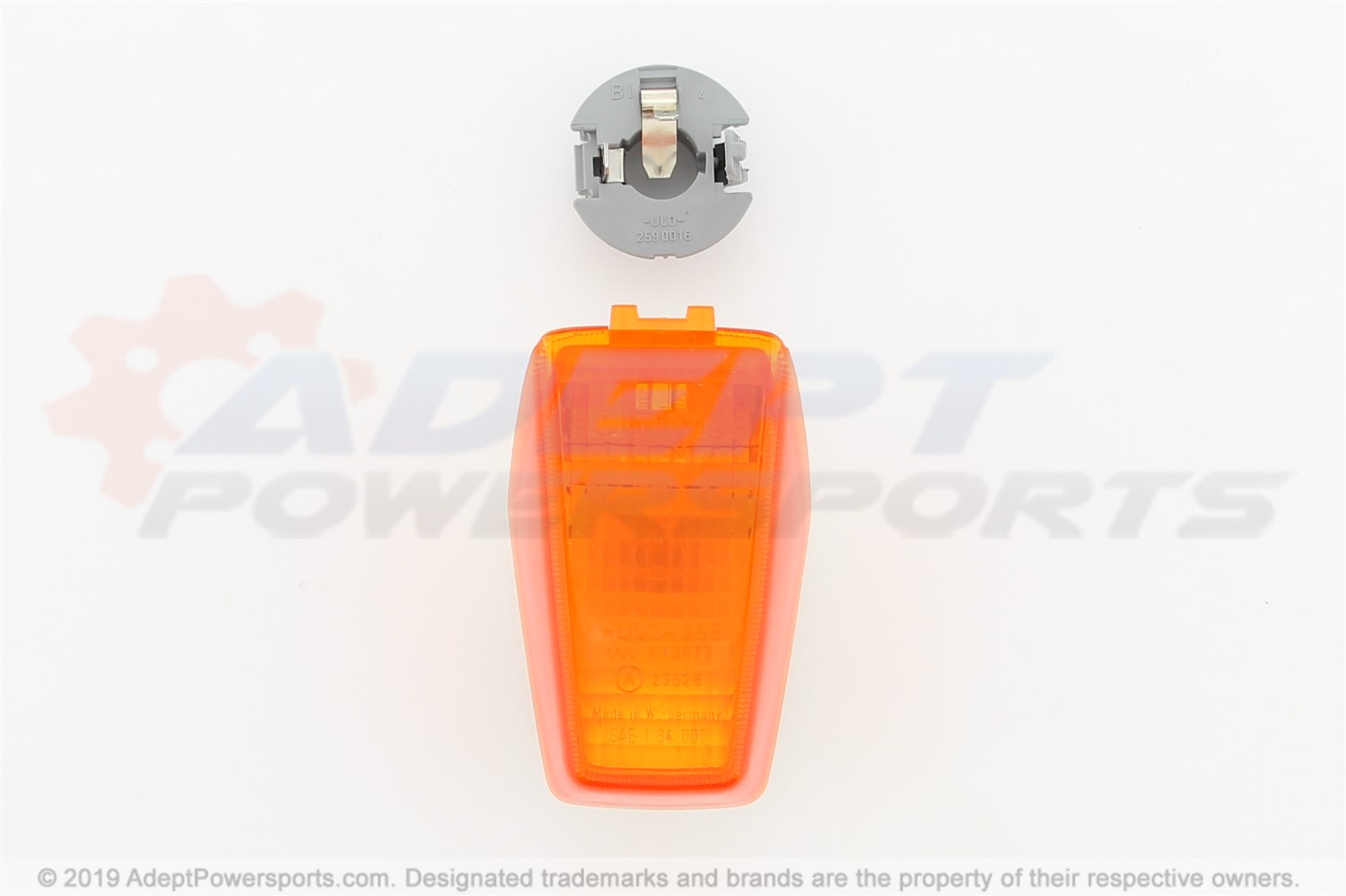

07	TURN INDICATOR - ULO Part #: 63231459050 Required per assembly: 4 Currently Not Available
08	BULB SOCKET - ULO Part #: 63231459107 Required per assembly: 4 Currently Not Available
08	BULB SOCKET - LIGHTA Part #: 63231459413 Required per assembly: 4 Currently Not Available

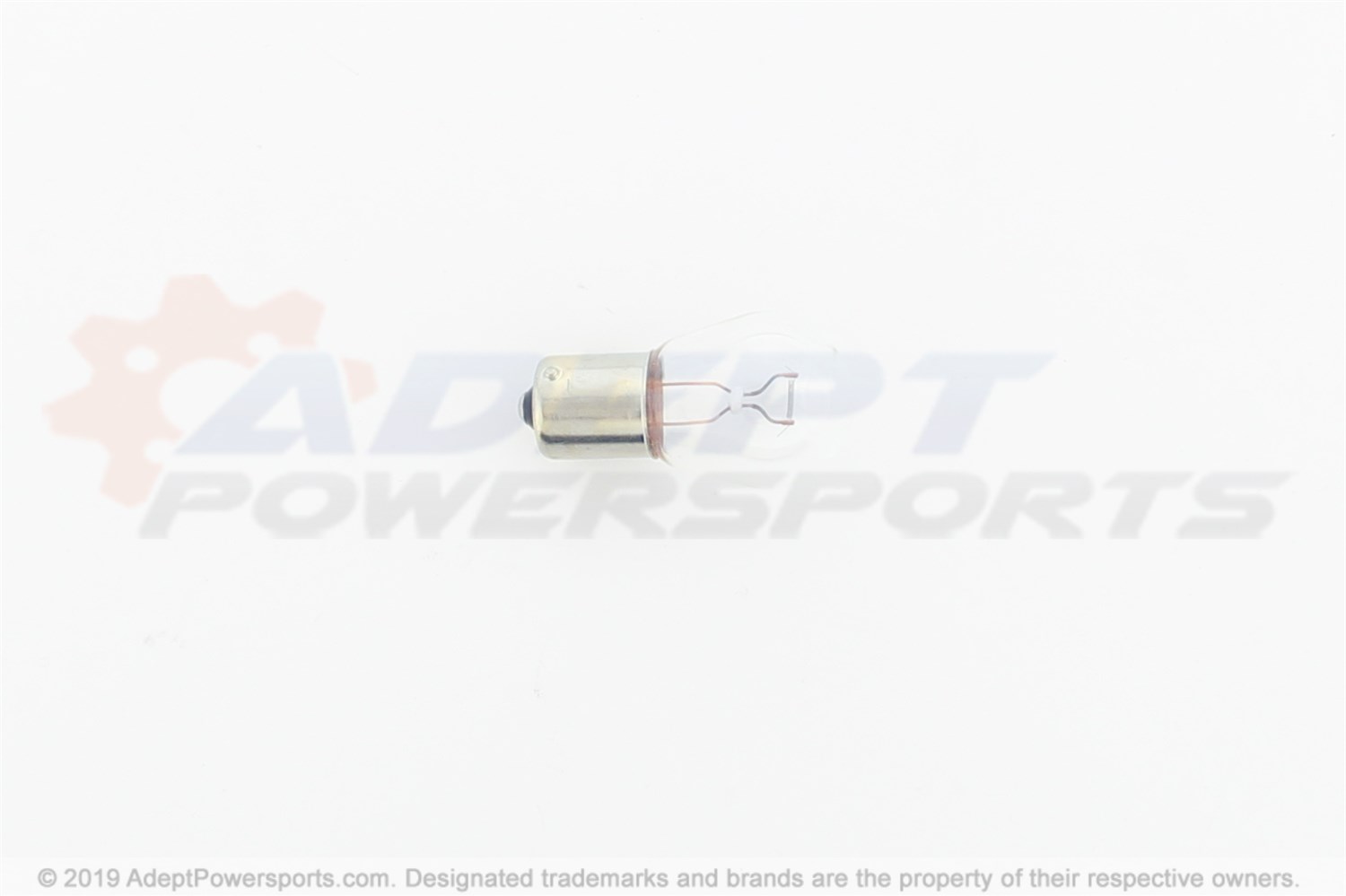

09	BULB - P12V/21W Part #: 63217160789 Required per assembly: 4 Currently Not Available
09	LONGLIFE BULB - 12V 21W Part #: 63217160790 Required per assembly: 4 Note: NOT FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) Currently Not Available
10	SCREW - M4X12 Part #: 63231459108 Required per assembly: 4 Currently Not Available
