Reflectors replacement parts for 1990-1995 BMW K75 (K569)

OEM Parts Bmw 1990-1995 Bmw K75 (K569) Reflectors

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	FILLISTER-HEAD SCREW - M6X45 Part #: 46612322495 Required per assembly: 4 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
02	BUSH Part #: 63141459169 Required per assembly: 4 Currently Not Available

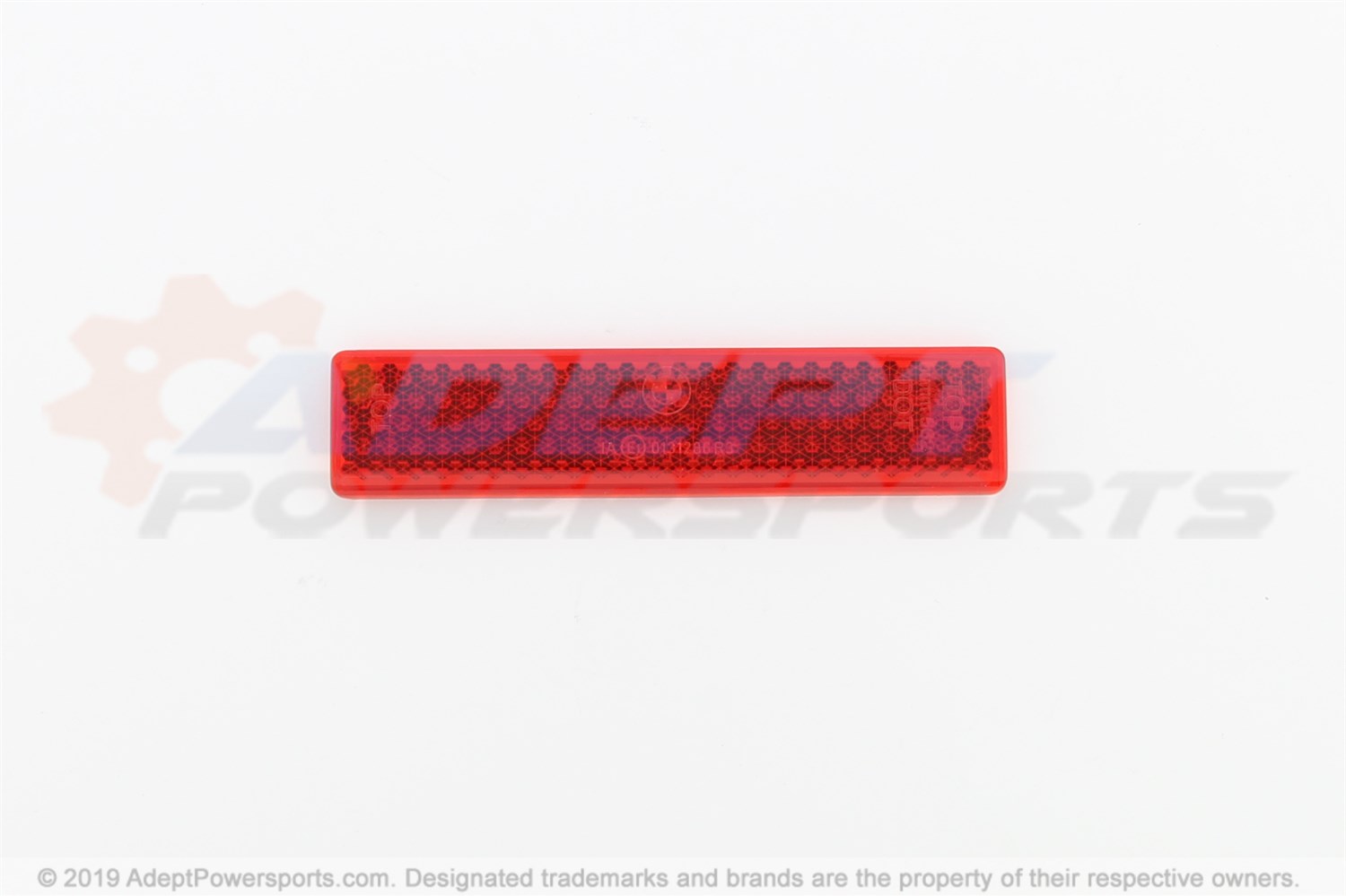

03	REFLECTOR, RED Part #: 63141459401 Required per assembly: 2 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
03	REFLECTOR, YELLOW Part #: 63141459035 Required per assembly: 2 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
04	BRACKET Part #: 63141459168 Required per assembly: 2 Note: ONLY APPLIES TO Currently Not Available
05	WASHER - A6,4-ZNS Part #: 07119931018 Required per assembly: 6 Currently Not Available
06	HEX NUT - M6-8-ZNNIV SI Part #: 07129905817 Required per assembly: 4 Currently Not Available
07	BRACKET LEFT Part #: 63142300073 Required per assembly: 1 Currently Not Available
07	BRACKET RIGHT Part #: 63142300074 Required per assembly: 1 Currently Not Available
08	BODY NUT Part #: 63176955207 Required per assembly: 2 Not Available
09	FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X16-Z2 Part #: 07117137416 Required per assembly: 2 Not Available
