OEM Parts Polaris 2012 Polaris Phoenix 200 (A12PB20AF) Brakes, Front

2012 Polaris Phoenix 200 (A12PB20AF) - Brakes, Front

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

BOLT, BANJO

Part #: 0452871 Required per assembly: 2
Currently Not Available
2

WASHER-COPPER

Part #: 0455187 Required per assembly: 6
$2.99
$1.73
-
+
Add to cart
3

LINE, FRONT, BRAKE, J/B, CRIMPED

Part #: 0453011 Required per assembly: 1
Currently Not Available
4

SCREW

Part #: 0453354 Required per assembly: 1
Currently Not Available
5

DISC, BRAKE, FRONT

Part #: 0453010 Required per assembly: 2 Note: Disc, Brake
Currently Not Available
6

BOLT

Part #: 0452904 Required per assembly: 8
Currently Not Available
7

BOLT-M8X34

Part #: 0455165 Required per assembly: 4
Currently Not Available
8

WASHER, FLAT

Part #: 0452325 Required per assembly: 4
Currently Not Available
9

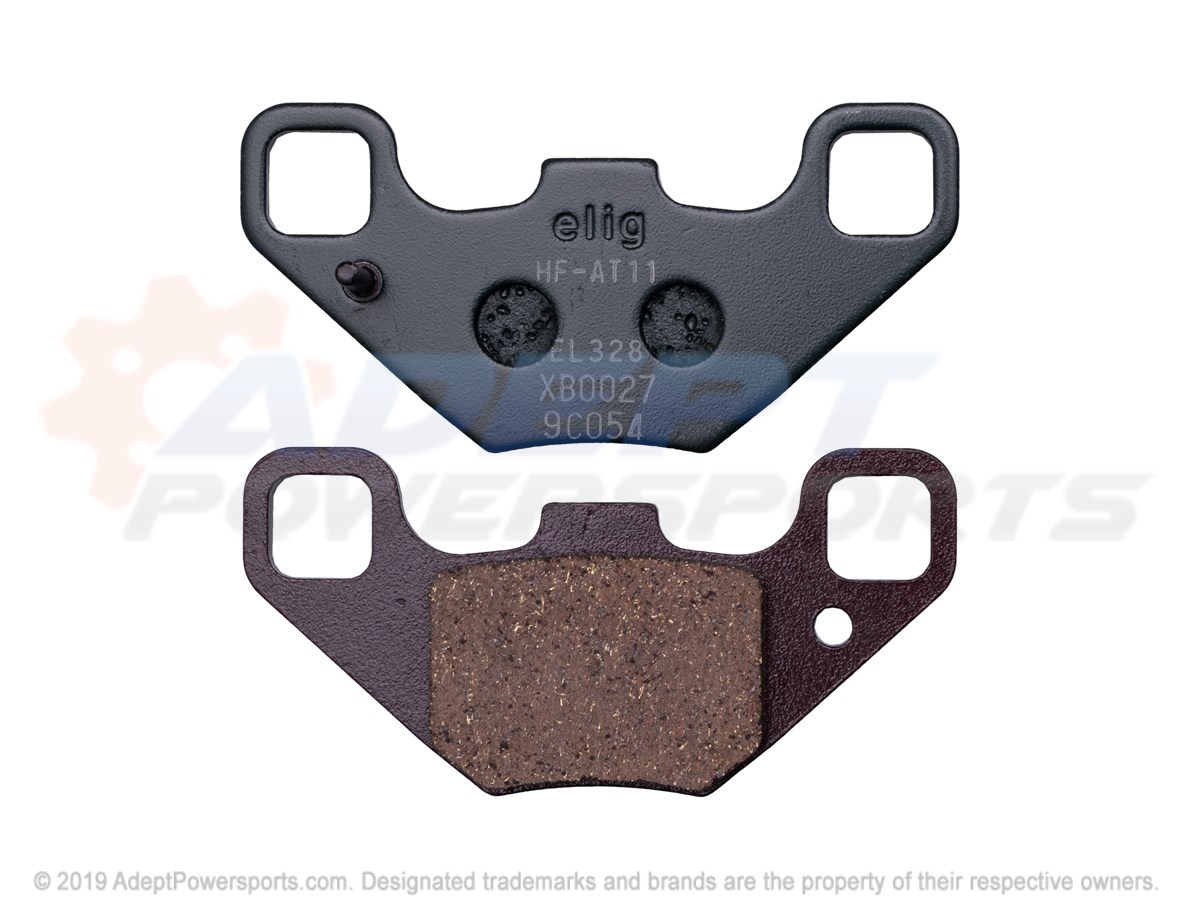

PAD, BRAKE, FRONT

Part #: 0454664 Required per assembly: 2
Currently Not Available
10

ASM-CALIPER RH PHX

Part #: 0454794 Required per assembly: 1
Currently Not Available
11

STRAP

Part #: 0450559 Required per assembly: 8
$1.99
$1.15
-
+
Add to cart
12

ASM-CALIPER LH PHX

Part #: 0454793 Required per assembly: 1
Currently Not Available
13

BLOCK, JUNCTION

Part #: 0453204 Required per assembly: 1
Currently Not Available
