Engine, Crankshaft And Piston replacement parts for 2012 Polaris Phoenix 200 (A12PB20AF)

OEM Parts Polaris 2012 Polaris Phoenix 200 (A12PB20AF) Engine, Crankshaft And Piston

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SHAFT, BALANCE Part #: 0452435 Required per assembly: 1 Currently Not Available
2	KEY, WOODRUFF Part #: 0452439 Required per assembly: 1 Currently Not Available
3	SPROCKET, OIL, PUMP Part #: 0452436 Required per assembly: 1 Currently Not Available
4	GEAR, BALANCE, DRIVEN Part #: 0452437 Required per assembly: 1 Currently Not Available
5	WASHER Part #: 0450264 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
6	NUT, LOCK Part #: 0452438 Required per assembly: 1 Currently Not Available
7	TUBE-OIL, CRANKSHAFT Part #: 0455475 Required per assembly: 1 Currently Not Available
8	SPRING, OIL Part #: 0452444 Required per assembly: 1 Currently Not Available
9	NUT, FLANGE Part #: 0452442 Required per assembly: 1 Currently Not Available
10	NUT, LOCK Part #: 0452441 Required per assembly: 1 Currently Not Available
11	WASHER, GEAR Part #: 0452440 Required per assembly: 1 Currently Not Available
12	GEAR, BALANCE Part #: 0452434 Required per assembly: 1 Currently Not Available
13	KIT, CRANKSHAFT Part #: 0453020 Required per assembly: 1 Currently Not Available
14	KEY, WOODRUFF Part #: 0452429 Required per assembly: 1 Currently Not Available
15	KEY, WOODRUFF Part #: 0452430 Required per assembly: 1 Currently Not Available
16	CLIP, PISTON, PIN Part #: 0452443 Required per assembly: 2 Currently Not Available

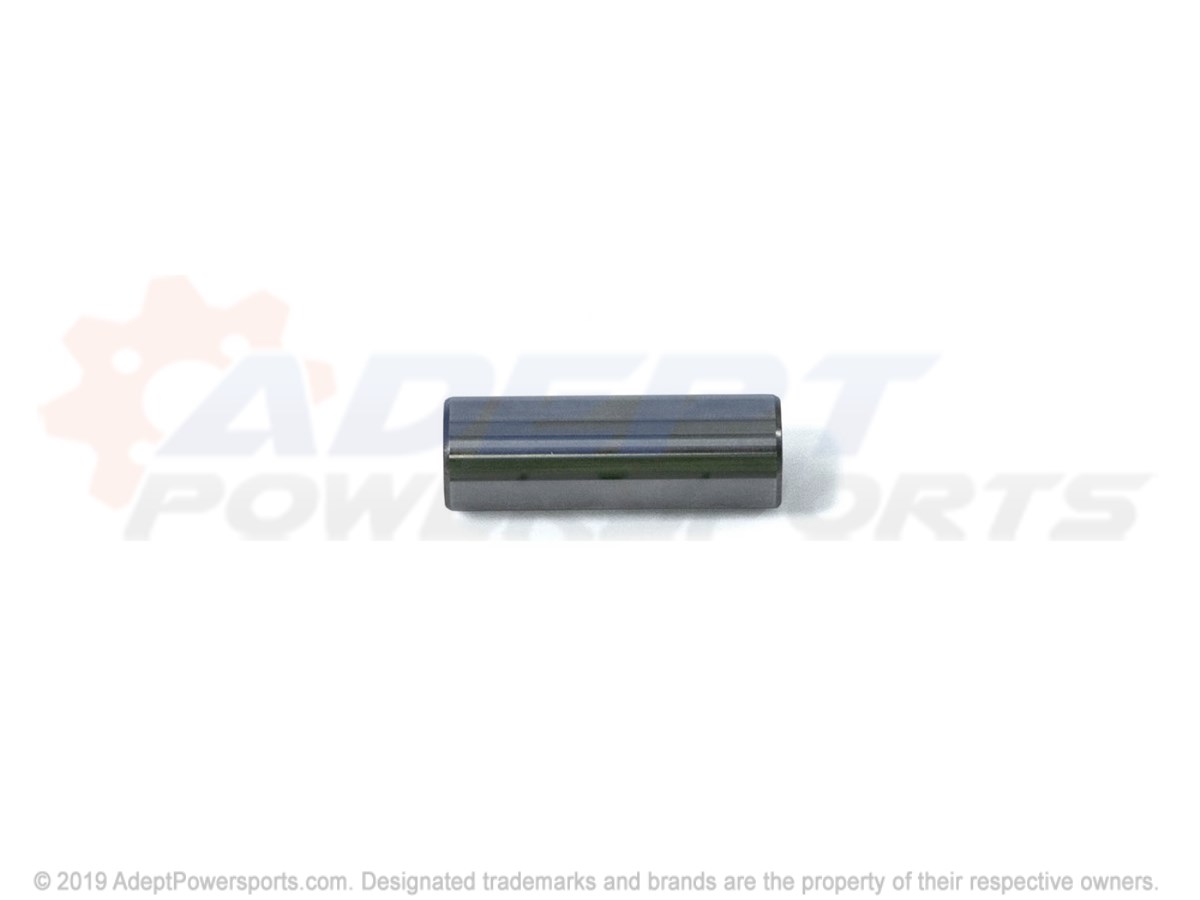

17	PIN, PISTON Part #: 0452433 Required per assembly: 1 Currently Not Available
18	PISTON Part #: 0452432 Required per assembly: 1 Currently Not Available
19	RING [SET] Part #: 0452431 Required per assembly: 1 Note: Ring Currently Not Available
