OEM Parts Polaris 2012 Polaris Phoenix 200 (A12PB20AF) Drive Train, Primary Clutch

2012 Polaris Phoenix 200 (A12PB20AF) - Drive Train, Primary Clutch

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

ASSEMBLY, DRIVE, CLUTCH

Part #: 0452465 Required per assembly: 1 Note: Asm., Drive Clutch [Incl. 3-8]
Currently Not Available
1

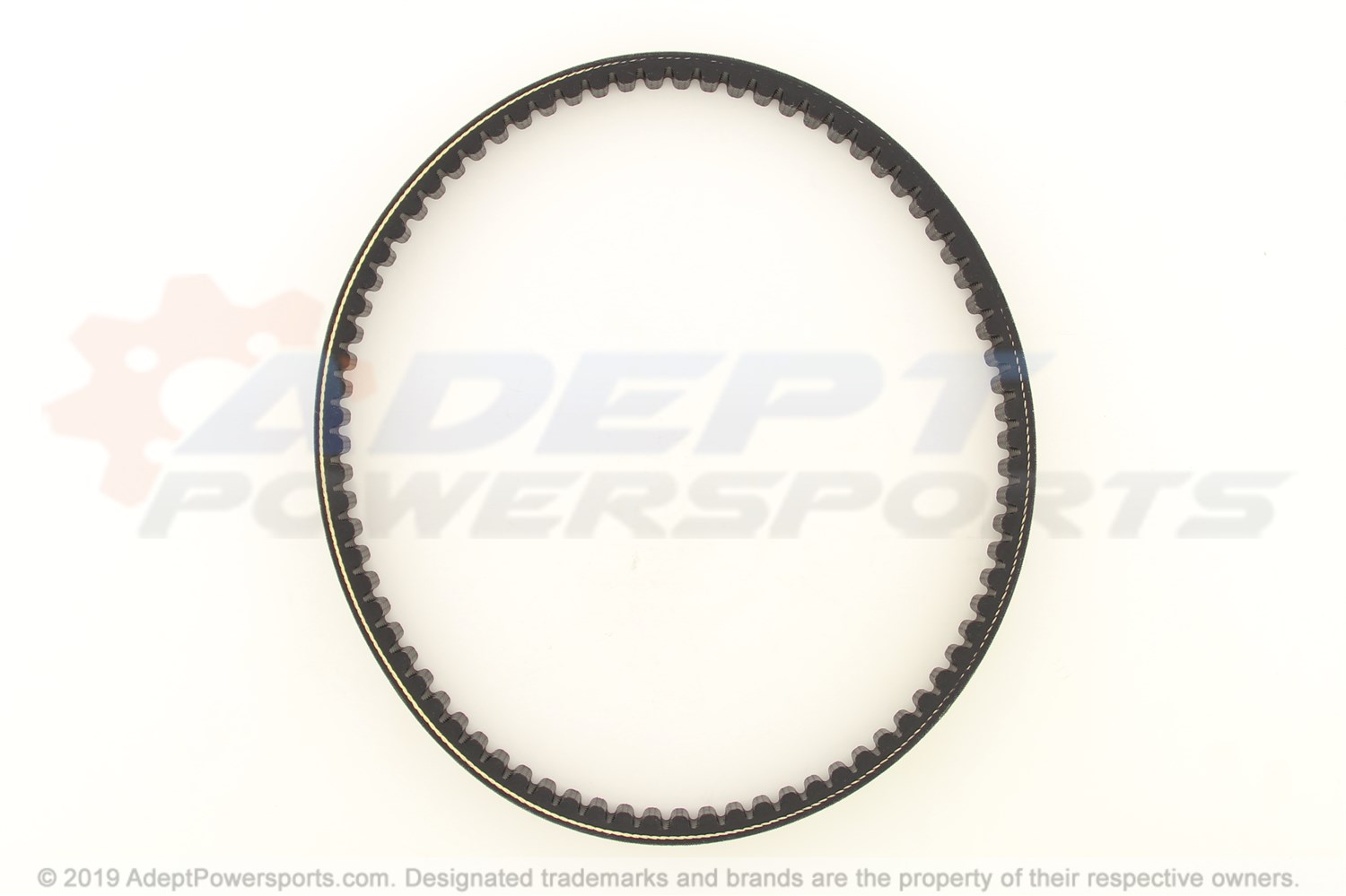

BELT, DRIVE

Part #: 0452496 Required per assembly: 1
Currently Not Available
3

S-BUSHING, SLIDER, PHX

Part #: 0455004 Required per assembly: 3
Currently Not Available
4

PLATE, SHEAVE

Part #: 0452472 Required per assembly: 1
Currently Not Available
5

S-ROLLER, PHX

Part #: 0455005 Required per assembly: 6
Currently Not Available
6

ASSEMBLY, SHEAVE

Part #: 0452468 Required per assembly: 1 Note: Asm., Sheave
Currently Not Available
7

SHAFT, DRIVE

Part #: 0453756 Required per assembly: 1
Currently Not Available
8

SHEAVE, MOVEABLE, DRIVE

Part #: 0452466 Required per assembly: 1
Currently Not Available
9

BUSHING, KICK, START

Part #: 0452474 Required per assembly: 1
Currently Not Available
10

WASHER, PLAIN

Part #: 0452792 Required per assembly: 1
Currently Not Available
11

NUT, FLANGE

Part #: 0450529 Required per assembly: 1
$3.99
$2.30
-
+
Add to cart
