Wheels, Rear Axle replacement parts for 2012 Polaris Phoenix 200 (A12PB20AF)

OEM Parts Polaris 2012 Polaris Phoenix 200 (A12PB20AF) Wheels, Rear Axle

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

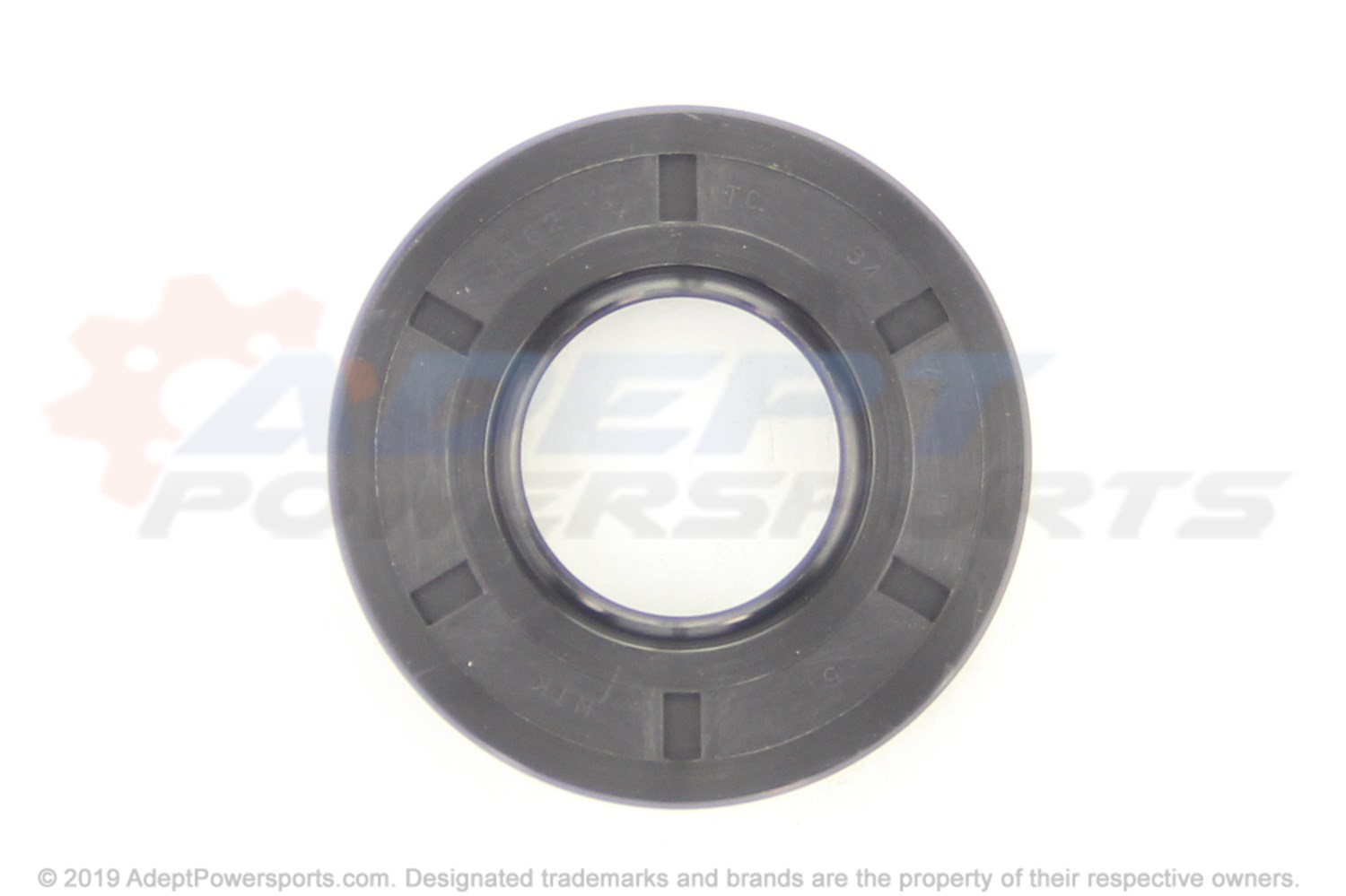

1	SEAL Part #: 0452700 Required per assembly: 1 Currently Not Available
2	BOLT Part #: 0452720 Required per assembly: 6 Currently Not Available
3	COVER, REAR, SILVER Part #: 0452701-385 Required per assembly: 1 Currently Not Available
4	DRUM-BRAKE PHOENIX Part #: 0455456 Required per assembly: 1 Currently Not Available
5	ASM-BRAKE, SHOE, REAR-PHOENIX Part #: 0455316 Required per assembly: 1 Currently Not Available
6	SHAFT, BRAKE, REAR Part #: 0452706 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 0452708 Required per assembly: 2 Currently Not Available
8	O-RING Part #: 0452710 Required per assembly: 1 Currently Not Available
9	PLATE, BRAKE Part #: 0452711 Required per assembly: 1 Currently Not Available
10	STUD, BOLT Part #: 0452714 Required per assembly: 4 Currently Not Available
11	CAP, RUBBER Part #: 0452775 Required per assembly: 1 Currently Not Available
12	WASHER, FLAT Part #: 0452712 Required per assembly: 3 Currently Not Available
13	BOLT Part #: 0452126 Required per assembly: 6 Currently Not Available

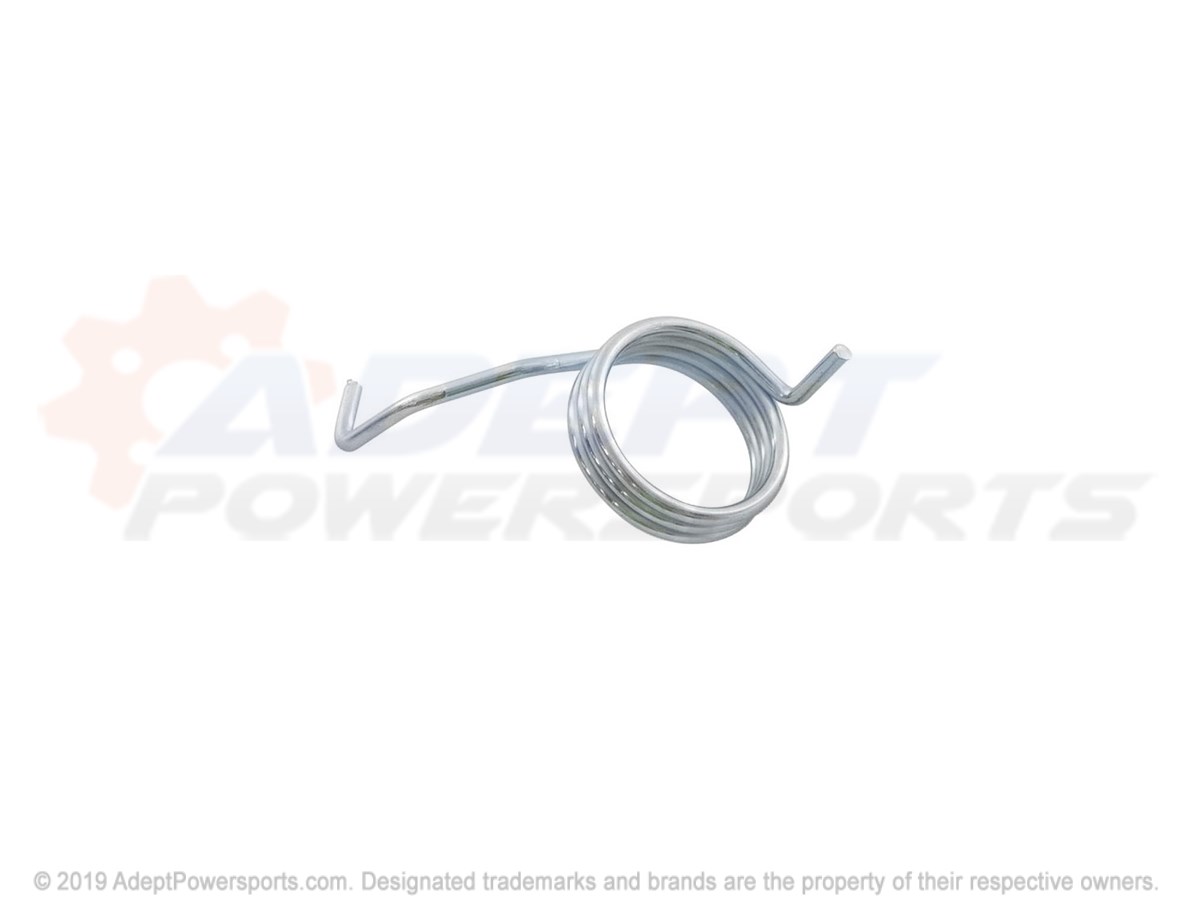

14	SPRING Part #: 0452722 Required per assembly: 1 Currently Not Available
15	BOLT, HEX, FLANGE Part #: 0451704 Required per assembly: 1 Note: Bolt Currently Not Available
16	ARM, BRAKE, REAR Part #: 0452724 Required per assembly: 1 Currently Not Available
17	NUT, LOCK Part #: 0450150 Required per assembly: 1 Note: Nut, Flange $1.99 $1.15 - + Add to cart
18	PLUG-DRAIN, OIL Part #: 0452368 Required per assembly: 1 Currently Not Available
19	O-RING, DRAIN, PLUG Part #: 0452371 Required per assembly: 1 Note: O-Ring Currently Not Available
20	ASSEMBLY, CAP Part #: 0452754 Required per assembly: 1 Note: Asm., Cap [Incl. 22,23] Currently Not Available
21	SEAL, OIL Part #: 0452752 Required per assembly: 1 Currently Not Available
22	RETAINER Part #: 0452717 Required per assembly: 2 Currently Not Available
23	BEARING Part #: 0453803 Required per assembly: 3 Currently Not Available
24	SEAL, OIL Part #: 0452745 Required per assembly: 1 Currently Not Available
25	NUT Part #: 0452743 Required per assembly: 1 Currently Not Available
26	BEARING Part #: 0452742 Required per assembly: 1 Currently Not Available
27	SHIM Part #: 0452741 Required per assembly: 1 Currently Not Available
28	GEAR, PINION Part #: 0452740 Required per assembly: 1 Currently Not Available
29	BEARING, NEEDLE Part #: 0452739 Required per assembly: 1 Currently Not Available
30	GEARCASE Part #: 0453148 Required per assembly: 1 $369.99 $208.65 - + Add to cart
31	SEAL, OIL Part #: 0452737 Required per assembly: 1 Currently Not Available
32	BEARING Part #: 0452730 Required per assembly: 2 $44.99 $23.29 - + Add to cart
33	SHIM Part #: 0452734 Required per assembly: 2 Currently Not Available
34	SHIM Part #: 0452733 Required per assembly: 2 Currently Not Available
35	SHIM Part #: 0452732 Required per assembly: 2 Currently Not Available
36	SPACER, RUBBER Part #: 0452756 Required per assembly: 4 Currently Not Available
37	PLATE, GEARCASE, SILVER Part #: 0452757-385 Required per assembly: 1 Currently Not Available
38	GEAR, RING Part #: 0452736 Required per assembly: 1 Currently Not Available
39	GASKET-COVER Part #: 0455496 Required per assembly: 1 Currently Not Available
40	AXLE Part #: 0452751 Required per assembly: 1 Currently Not Available
42	COVER, GEARCASE Part #: 0453147 Required per assembly: 1 Currently Not Available
43	SEAL, OIL Part #: 0452726 Required per assembly: 1 Currently Not Available
44	O-RING Part #: 0452718 Required per assembly: 1 Currently Not Available
45	RETAINER Part #: 0452717 Required per assembly: 1 Currently Not Available
46	BEARING Part #: 0453803 Required per assembly: 2 Currently Not Available
47	BOLT Part #: 0452749 Required per assembly: 6 Currently Not Available
48	BOLT Part #: 0452747 Required per assembly: 2 Currently Not Available
49	BELLOWS, DIFFERENTIAL Part #: 0454105 Required per assembly: 1 Currently Not Available
50	CLAMP Part #: 0453693 Required per assembly: 1 Currently Not Available
