Cooling System replacement parts for 2012 Polaris RZR 4 XP 900

OEM Parts Polaris 2012 Polaris RZR 4 XP 900 Cooling System

COOLING SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

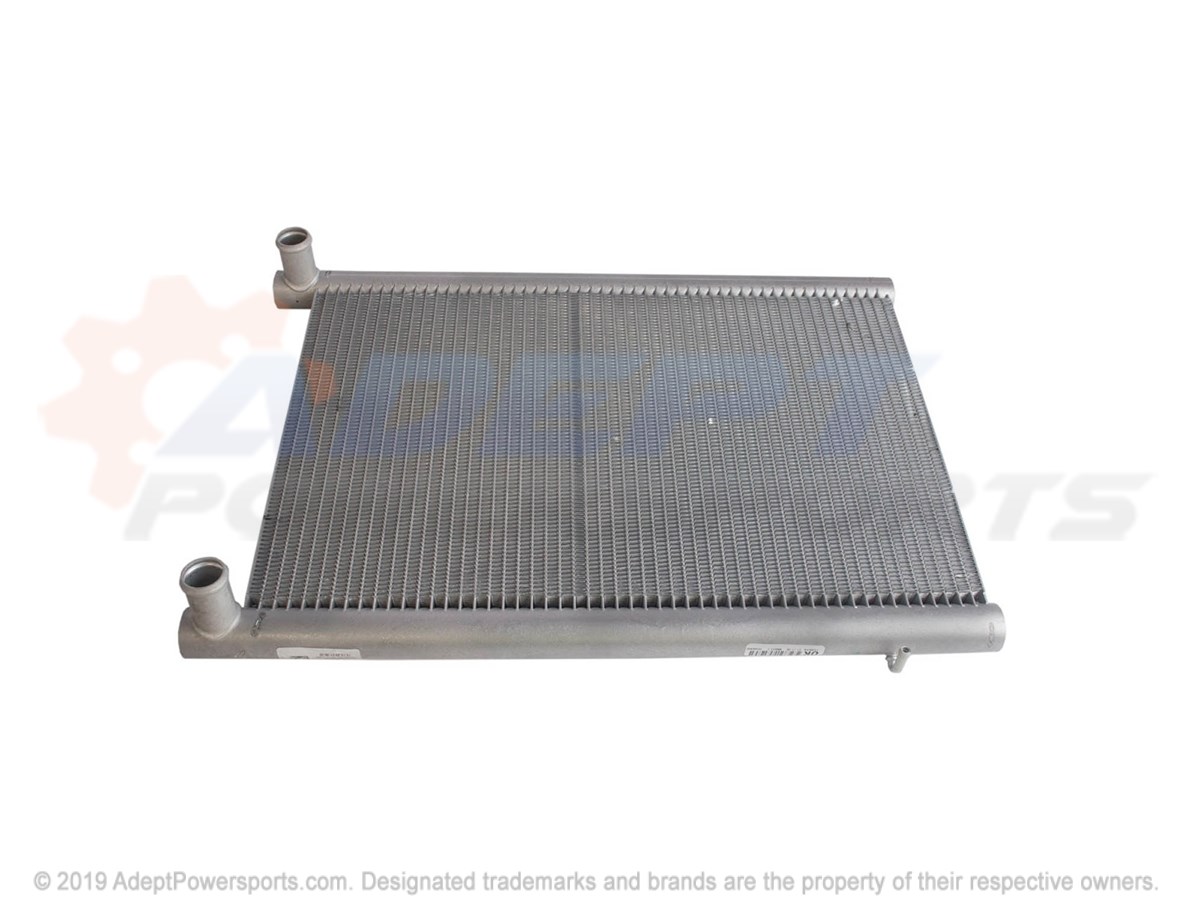

1	ASM-RADIATOR RZR XP Part #: 1240552 Required per assembly: 1 Currently Not Available
2	FAN-12" ASM CURVED BLADE Part #: 2411807 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413509 Required per assembly: 2 Currently Not Available

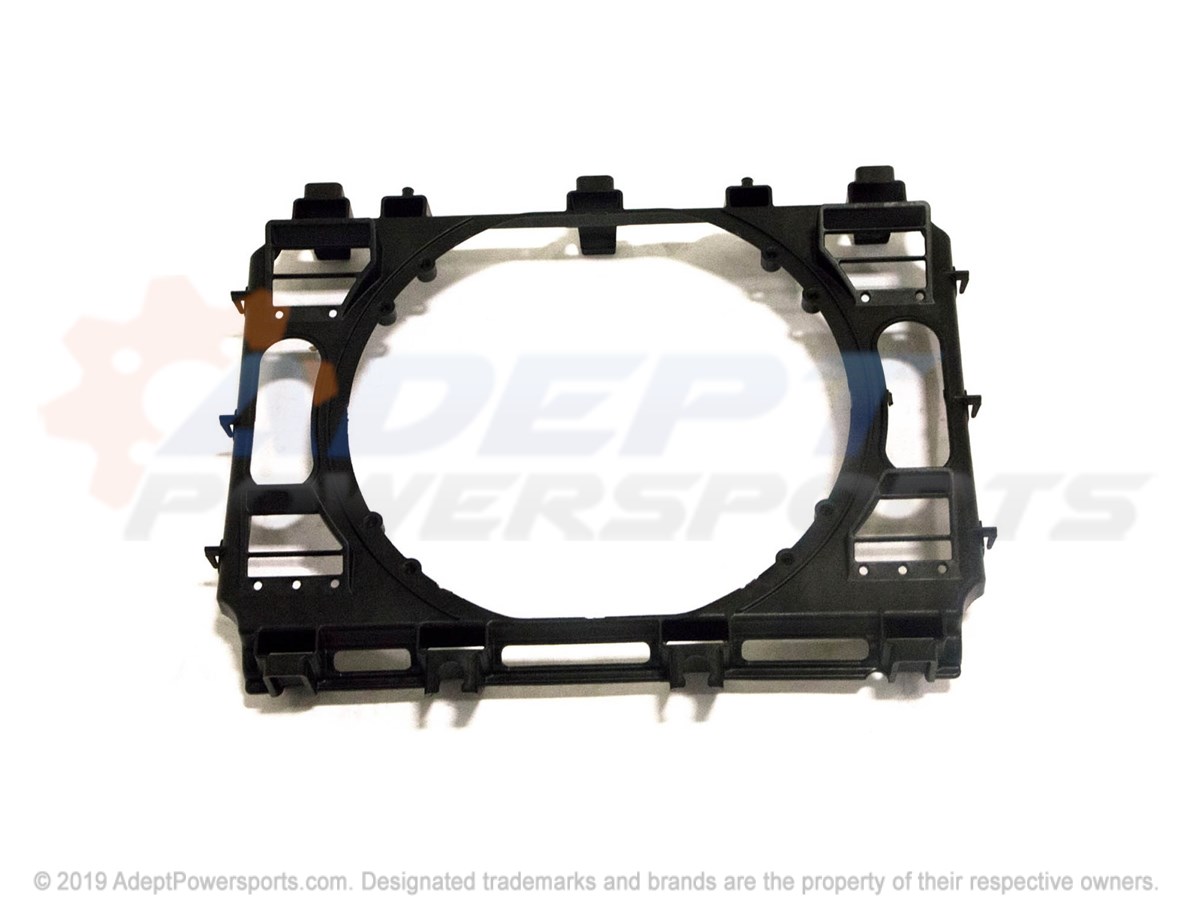

4	SHROUD-FAN Part #: 5438591 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7512084 Required per assembly: 5 Note: Screw $2.99 $1.73 - + Add to cart
5	SCREW Part #: 7512084 Required per assembly: 5 Note: Screw $2.99 $1.73 - + Add to cart
6	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
7	SCREW (FOR REF. 33 W/O INSERTS) Part #: 7512095 Required per assembly: 4 Note: Screw Currently Not Available

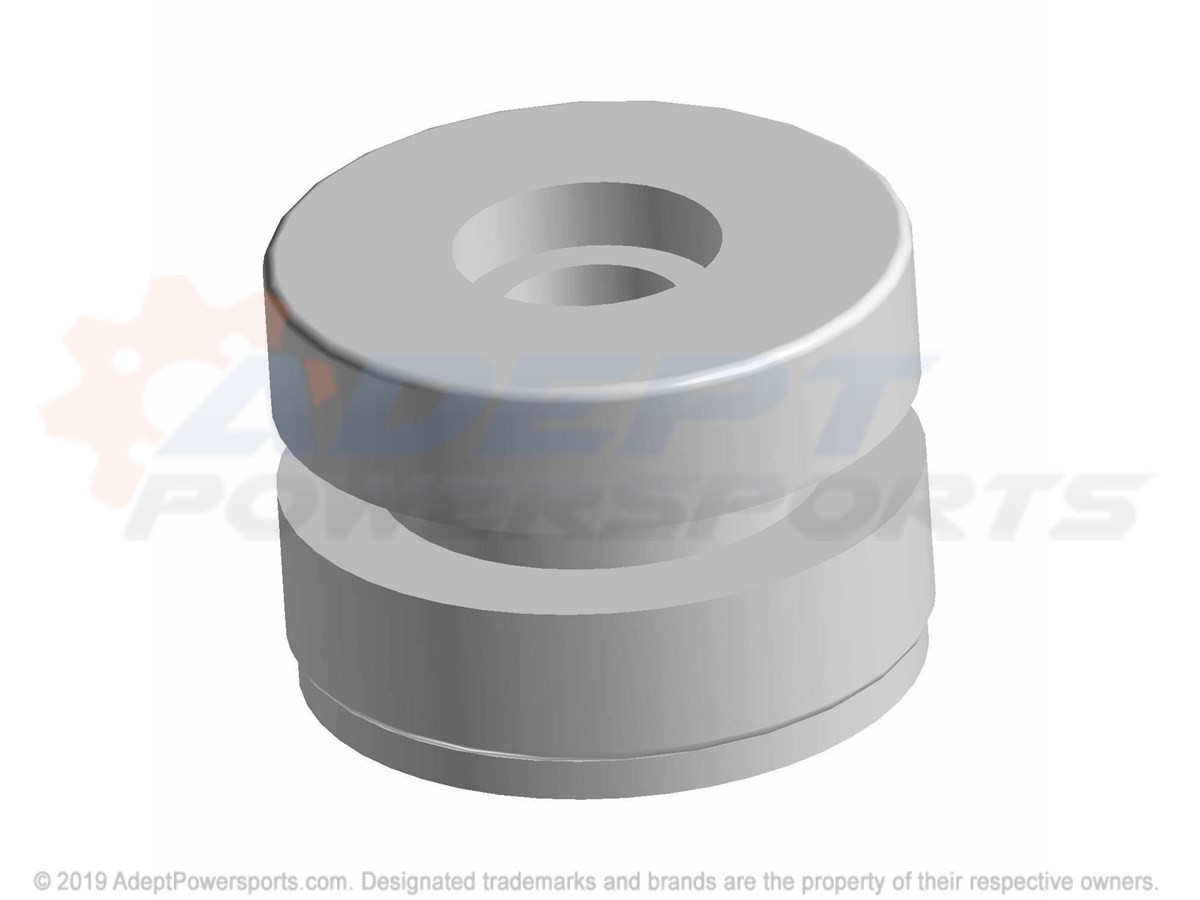

8	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
9	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 2 Note: Cable Tie Currently Not Available
10	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 $4.04 $2.91 - + Add to cart
11	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap $4.79 $2.92 - + Add to cart
12	CLAMP, S.S. Part #: 7080560 Required per assembly: 1 Note: Clamp, Hose Currently Not Available

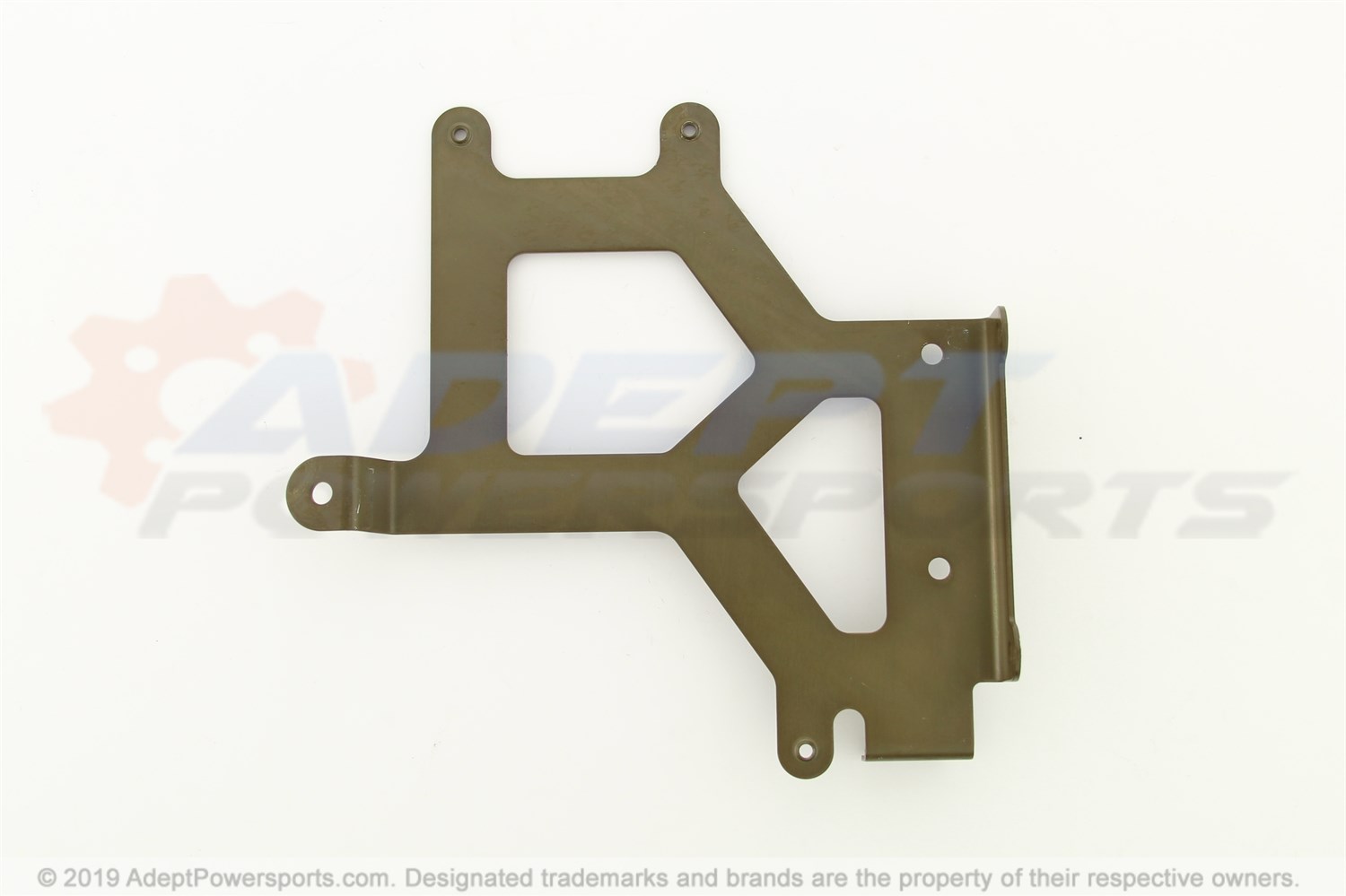

13	BRKT-MNT COOLANT FILL Part #: 5255187 Required per assembly: 1 Currently Not Available
14	TANK-SURGE Part #: 5439004 Required per assembly: 1 Currently Not Available
15	CLAMP, HOSE Part #: 7080003 Required per assembly: 3 Note: Clamp, Hose, Red Currently Not Available
16	CLAMP, HOSE Part #: 7081192 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7518529 Required per assembly: 8 $2.99 $1.73 - + Add to cart
17	SCREW Part #: 7518529 Required per assembly: 8 $2.99 $1.73 - + Add to cart
17	SCREW Part #: 7518529 Required per assembly: 8 $2.99 $1.73 - + Add to cart
17	SCREW Part #: 7518529 Required per assembly: 8 $2.99 $1.73 - + Add to cart
18	HOSE Part #: 8450120-600 Required per assembly: 2 Currently Not Available
19	CAP, PRESSURE Part #: 1240300 Required per assembly: 1 Currently Not Available
20	ASM-COOLANT TUBE Part #: 1240599 Required per assembly: 1 Note: Incl. 21 Currently Not Available

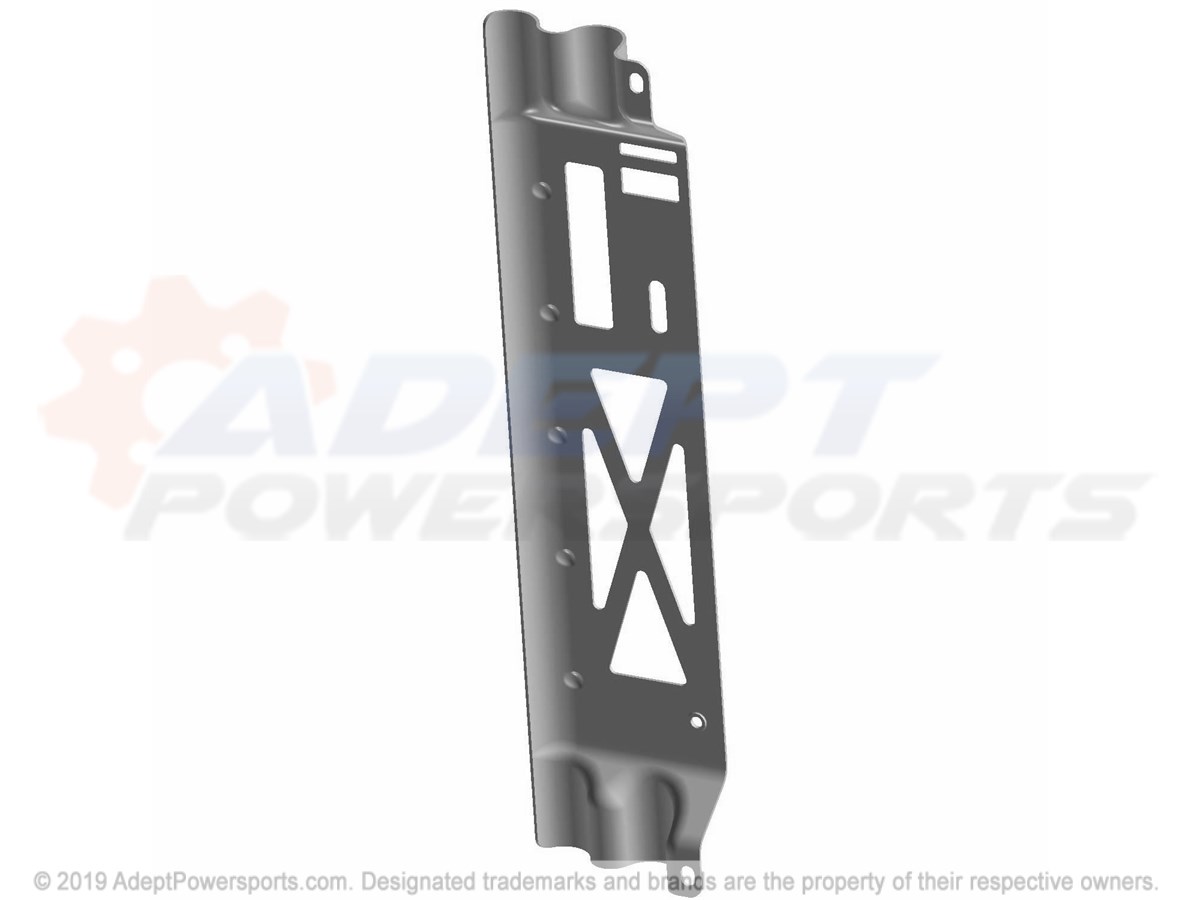

21	BRKT-FUEL TANK MOUNT CNTR BLK Part #: 5254161-329 Required per assembly: 1 Currently Not Available

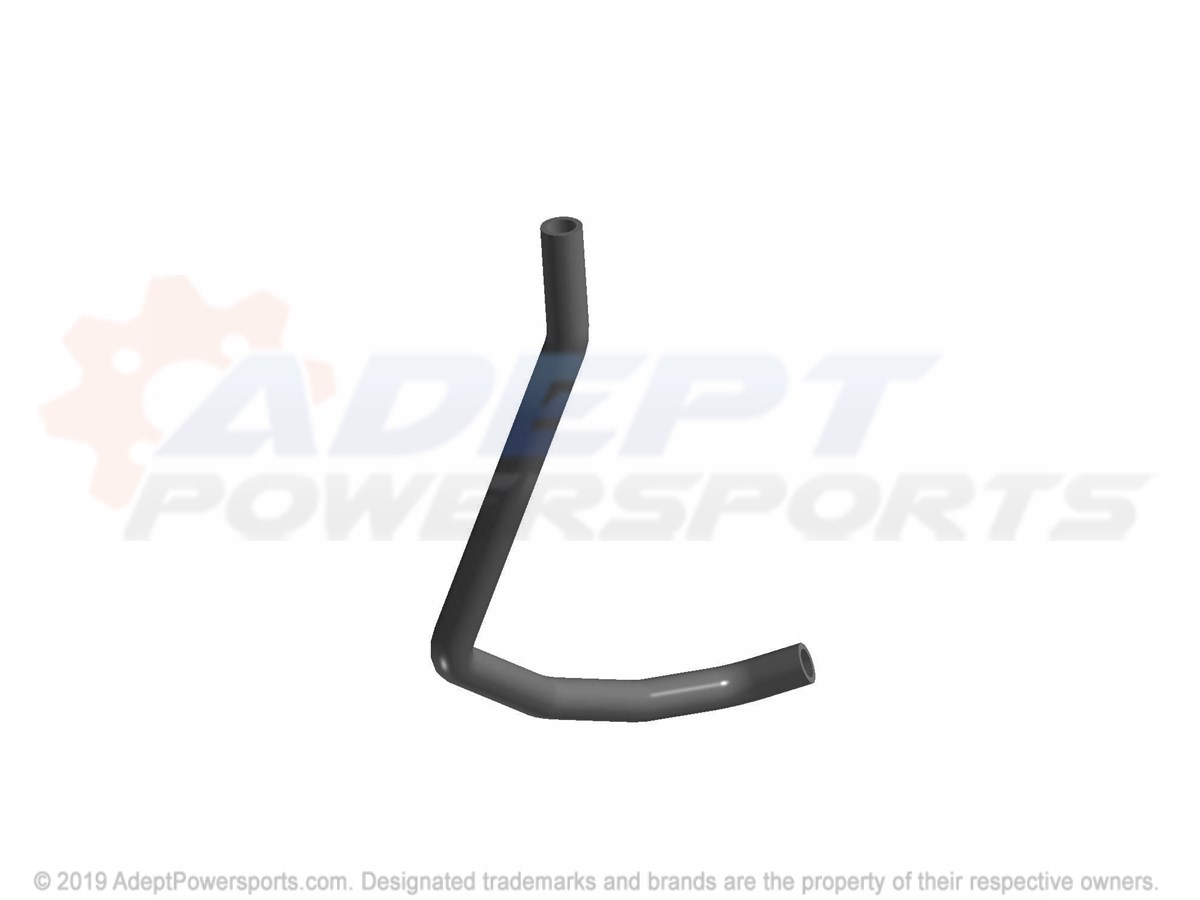

22	HOSE-UPPER RADIATOR Part #: 5414230 Required per assembly: 1 Currently Not Available
23	HOSE-ENG OUTLET REAR Part #: 5414232 Required per assembly: 1 Currently Not Available
24	HOSE-ENG INLET REAR Part #: 5414231 Required per assembly: 1 Currently Not Available
25	HOSE-LWR RAD SHORT Part #: 5414233 Required per assembly: 1 Currently Not Available
26	HOSE-LWR RAD LONG Part #: 5414234 Required per assembly: 1 Currently Not Available
27	HOSE-LWR RAD FILL Part #: 5414235 Required per assembly: 1 Currently Not Available
28	T-CONNECTOR Part #: 7052373 Required per assembly: 1 Note: T-Connector Currently Not Available
29	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 10 Currently Not Available
29	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 10 Currently Not Available
29	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 10 Currently Not Available
29	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 10 Currently Not Available
29	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 10 Currently Not Available
30	FILLER-REMOTE COOLANT SMALL Part #: 5439079 Required per assembly: 1 Currently Not Available
31	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
