Front Wheels replacement parts for 2012 Polaris RZR 4 XP 900

OEM Parts Polaris 2012 Polaris RZR 4 XP 900 Front Wheels

FRONT WHEELS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, WHEEL Part #: 7547309 Required per assembly: 8 Note: Nut, Wheel [AK] Sold in multiples of 10 only Currently Not Available
2	RIM, FRONT, CAST, ALUMINUM, [MH50AL][MN50AF/AN/AY] Part #: 1521106 Required per assembly: 2 Note: AA Currently Not Available
2	RIM-FRONT 12X6 CAST 26.2 M.BLK Part #: 1521106-458 Required per assembly: 2 Note: AS Currently Not Available
3	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
4	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle $3.99 $2.30 - + Add to cart
5	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
6	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
7	HUB-WHEEL FRONT (MACH) BLK Part #: 5137659-067 Required per assembly: 2 Currently Not Available
8	STUD [DA] Part #: 7517871 Required per assembly: 8 Note: Stud $2.99 $1.98 - + Add to cart
9	DISC-BRAKE FRONT Part #: 5254999 Required per assembly: 2 Currently Not Available

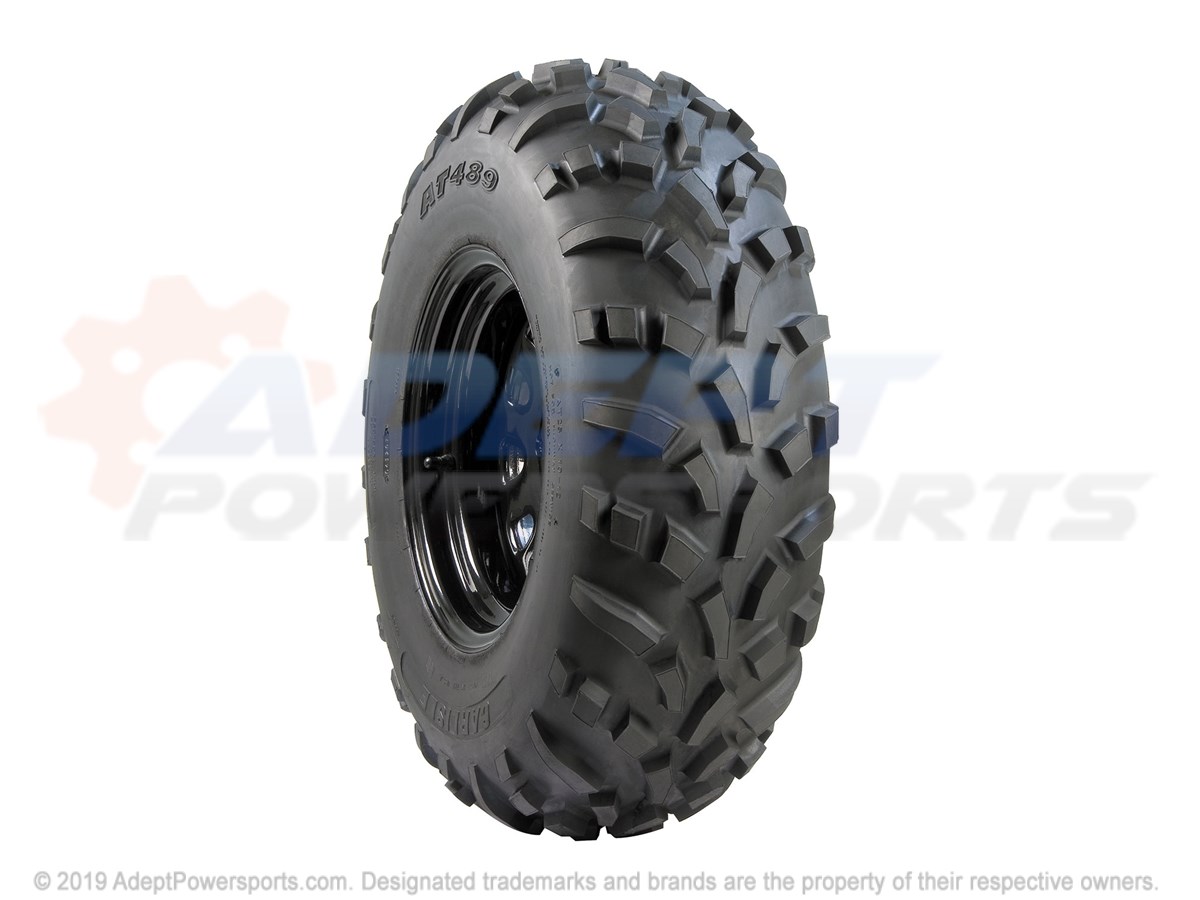

10	TIRE-FRT 27X9R12 Part #: 5413930 Required per assembly: 2 Note: AA Currently Not Available
10	TIRE-FRONT 26X9-12 BHORN EMARK Part #: 5414379 Required per assembly: 2 Note: AS Currently Not Available
11	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
12	BEARING-BALL SEALED 44X72X33.1 Part #: 3514699 Required per assembly: 2 Currently Not Available
14	CAP, RIM, [USE, W/CAST, RIMS] Part #: 1521128 Required per assembly: 2 Note: Cap, Rim [AK] Currently Not Available
15	SCREW Part #: 7518978 Required per assembly: 4 Currently Not Available
