OEM Parts Polaris 2012 Polaris RZR 4 XP 900 Headlights, Taillights And Bulbs

2012 Polaris RZR 4 XP 900 R12XT87AA/9EAS - Headlights, Taillights And Bulbs

HEADLIGHTS, TAILLIGHTS and BULBS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2411153 Assembly, Taillight, Lh

ASSEMBLY, TAILLIGHT, LH

Part #: 2411153 Required per assembly: 1 Note: Incl. 3,4
Currently Not Available
2
Polaris 2411154 Assembly, Taillight, Rh

ASSEMBLY, TAILLIGHT, RH

Part #: 2411154 Required per assembly: 1 Note: Incl. 3,4
Currently Not Available
3
Polaris 4011101 Socket, Taillight

SOCKET, TAILLIGHT

Part #: 4011101 Required per assembly: 2
Currently Not Available
4
Polaris 4010764 Bulb, Taillight

BULB, TAILLIGHT

Part #: 4010764 Required per assembly: 2 Note: Bulb, Tail/Stop, 27W
Currently Not Available
5

NUT, PUSH-ON

Part #: 7670054 Required per assembly: 6
$2.99
$1.73
-
+
Add to cart
6

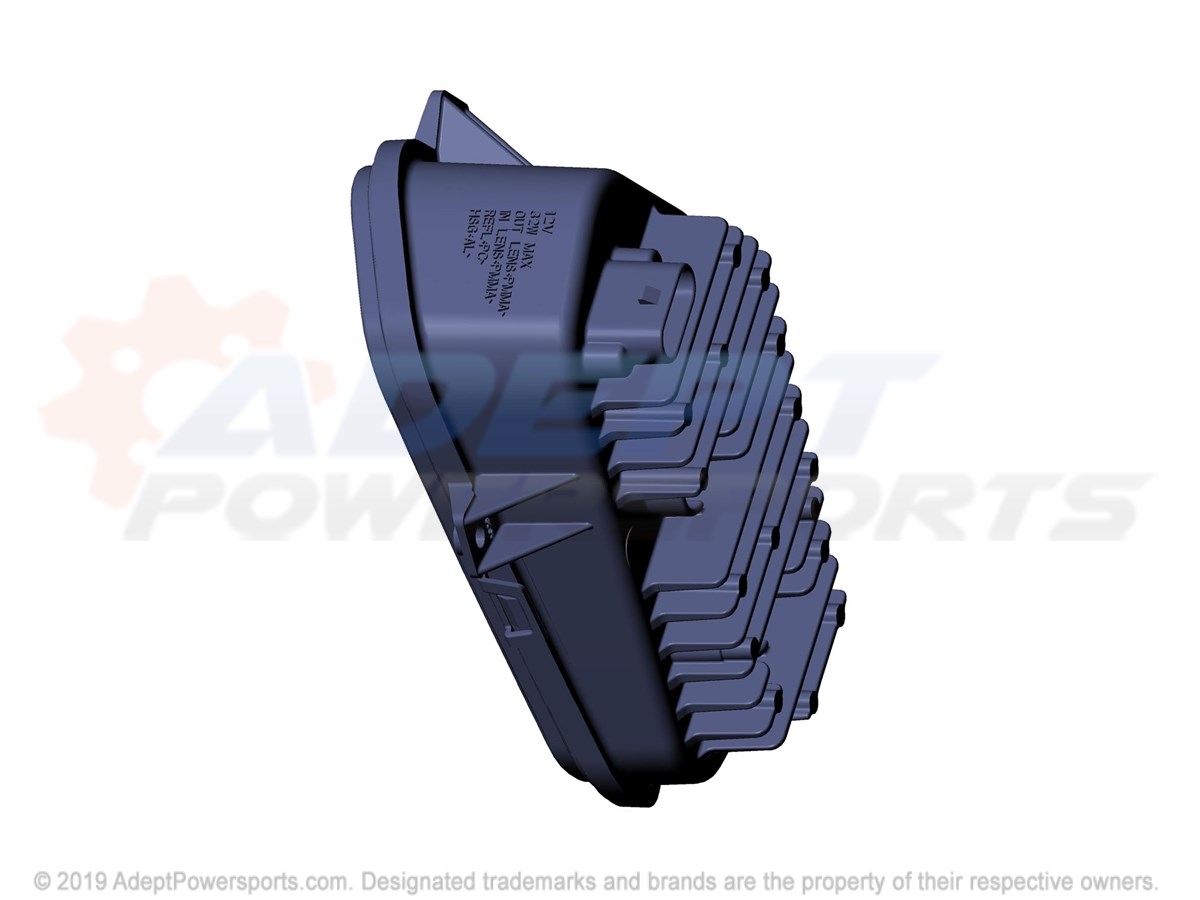

Polaris 2411854 Assembly, Headlight, Bumper, Led, Lh

ASSEMBLY, HEADLIGHT, BUMPER, LED, LH

Part #: 2411854 Required per assembly: 1
$498.50
$344.12
-
+
Add to cart
7

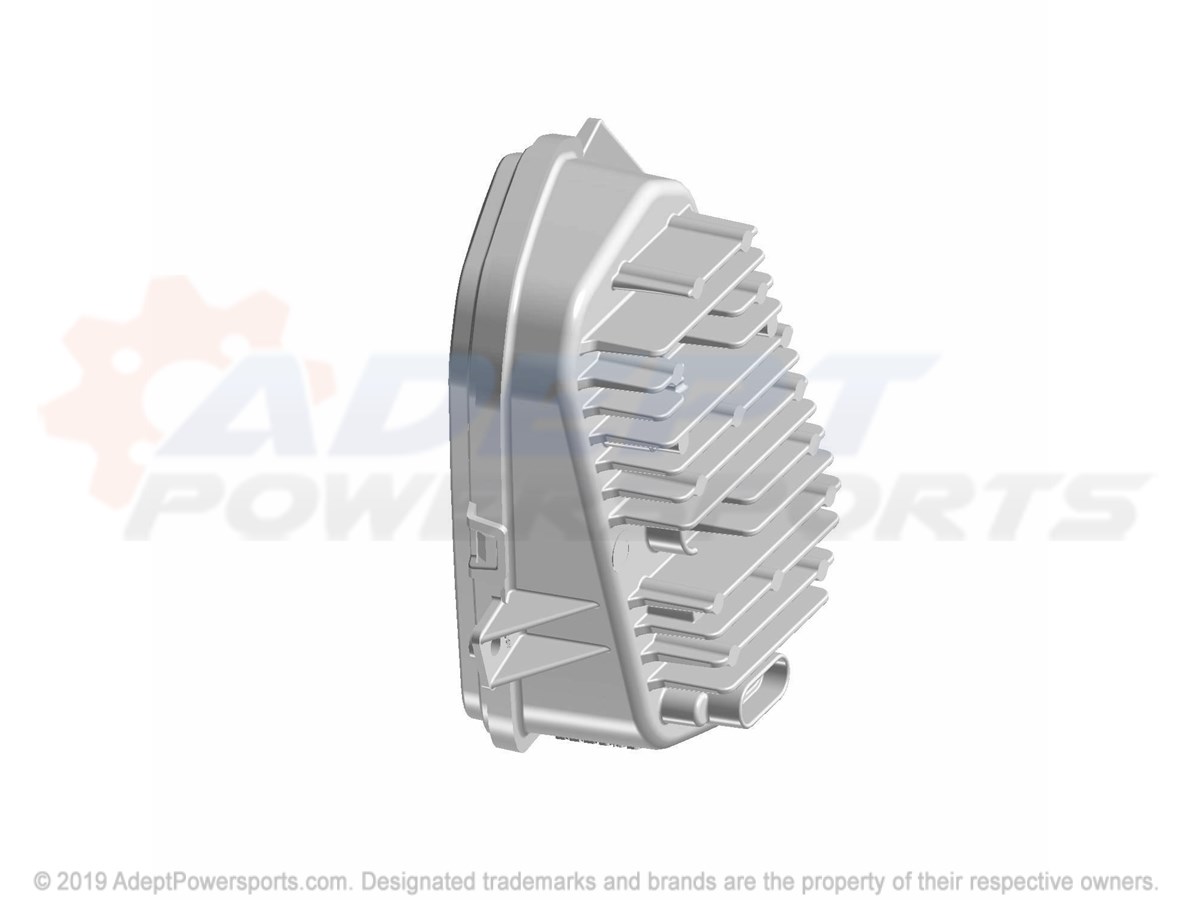

Polaris 2411855 Assembly, Headlight, Bumper, Led, Rh

ASSEMBLY, HEADLIGHT, BUMPER, LED, RH

Part #: 2411855 Required per assembly: 1
$498.50
$344.12
-
+
Add to cart
8
Polaris 7043816 Spring-Headlight

SPRING-HEADLIGHT

Part #: 7043816 Required per assembly: 6
Currently Not Available
9
Polaris 7512078 Screw

SCREW

Part #: 7512078 Required per assembly: 6
$1.99
$1.15
-
+
Add to cart
