OEM Parts Polaris 2012 Polaris RZR 4 XP 900 Ignition

2012 Polaris RZR 4 XP 900 R12XT87AA/9EAS - Ignition

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2

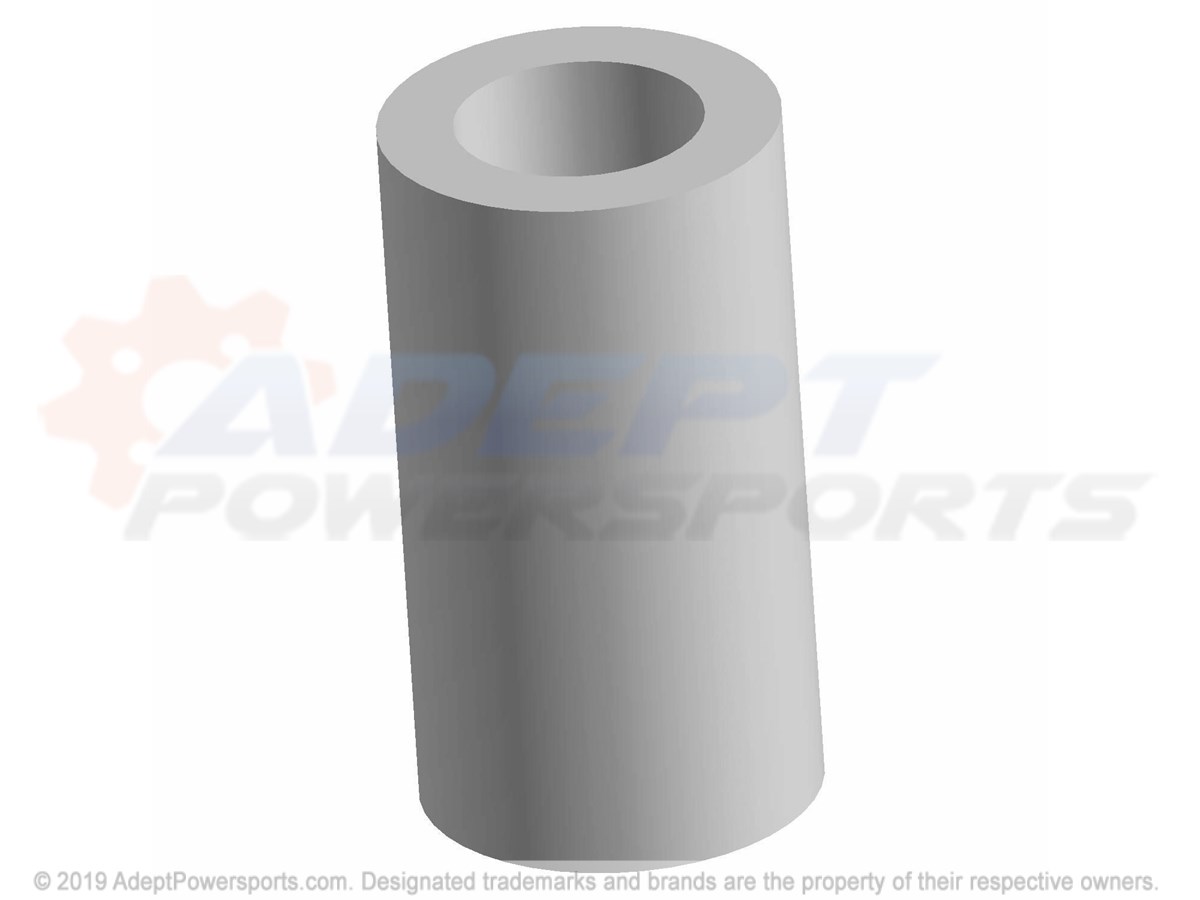

SPACER, COIL

Part #: 5133658 Required per assembly: 1
Currently Not Available
3

SCREW

Part #: 7519090 Required per assembly: 1
Currently Not Available
4

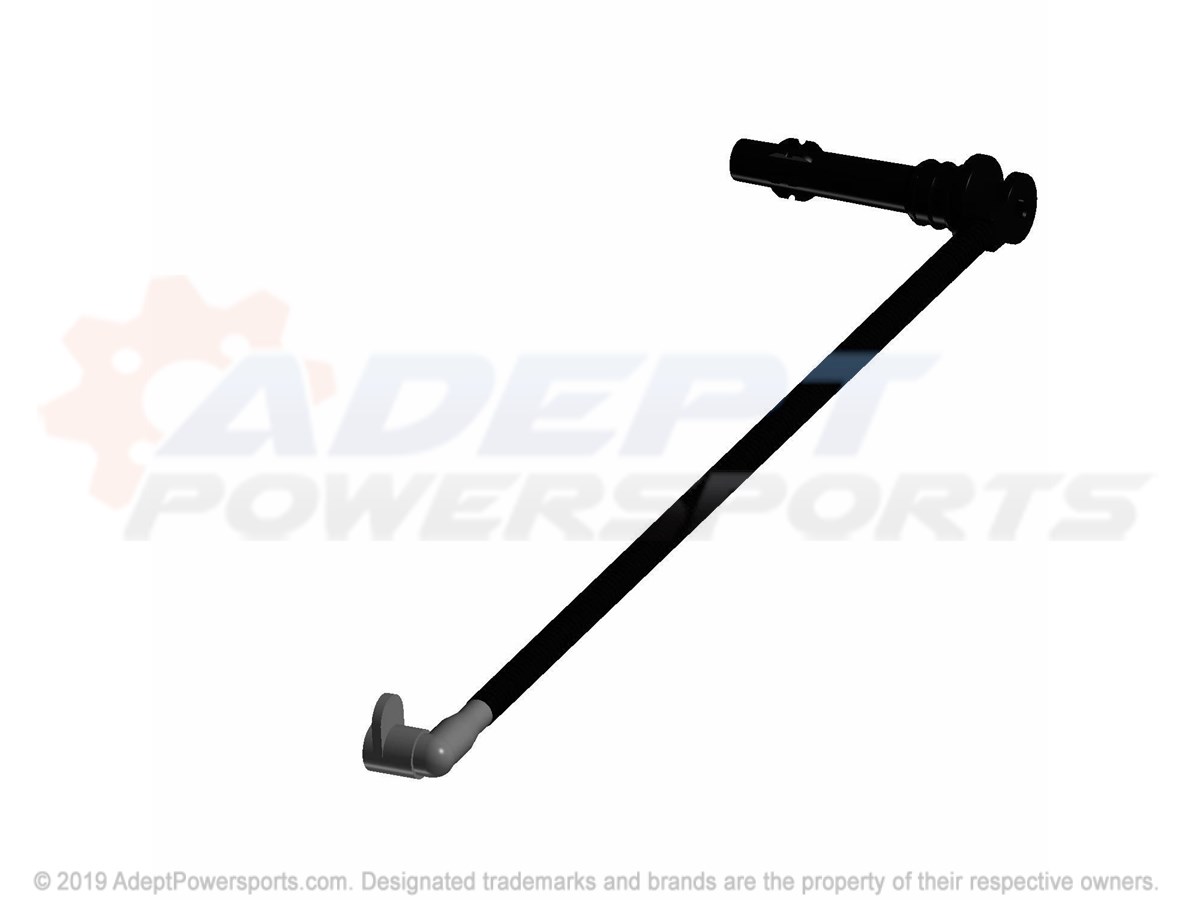

WIRE-SPARKPLUG MAG

Part #: 4012990 Required per assembly: 1
Currently Not Available
5

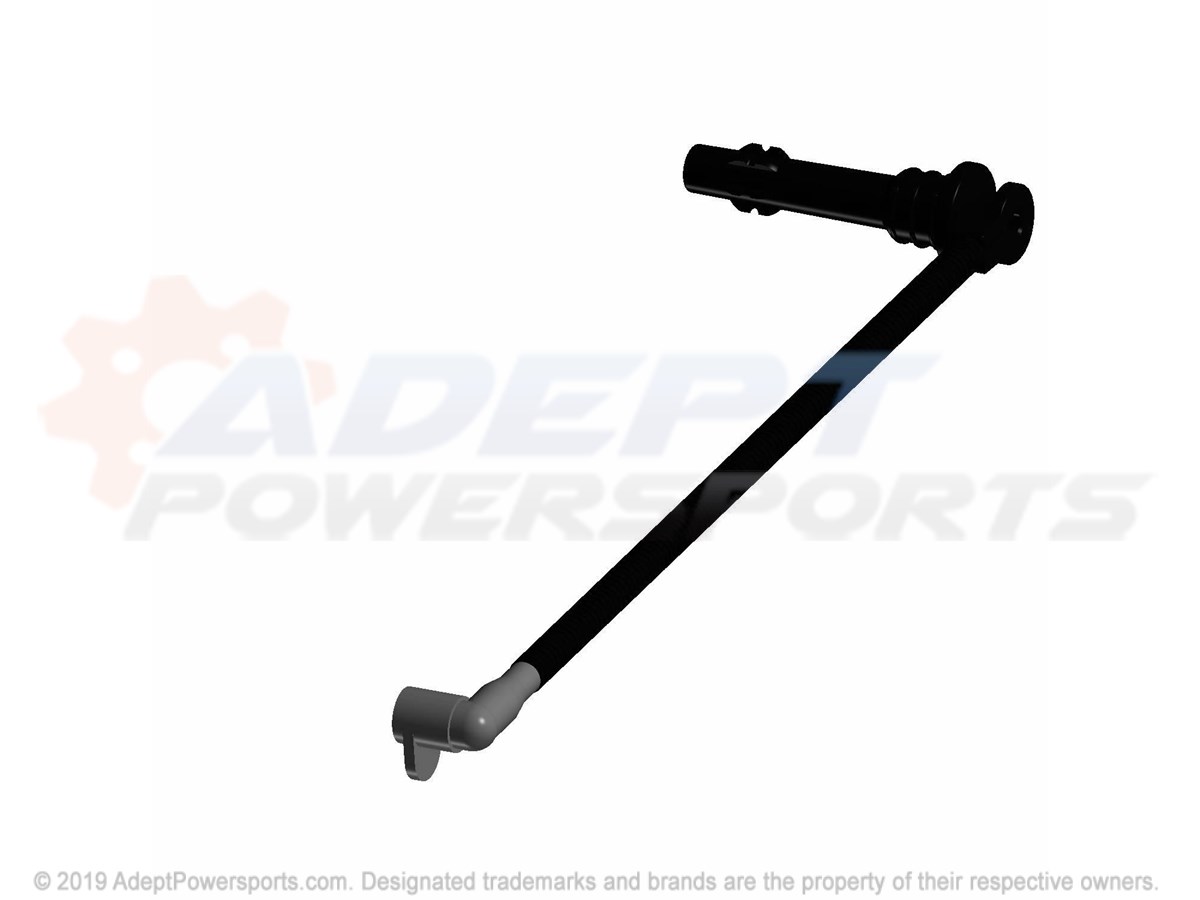

WIRE-SPARKPLUG PTO

Part #: 4012991 Required per assembly: 1
Currently Not Available
6

ELECTRONIC CONTROL UNIT (ECU) BASE

Part #: 4012838 Required per assembly: 1 Note: May need to be flashed by Polaris dealer
Currently Not Available
8

MNT-ECM REAR BLK

Part #: 5438708-070 Required per assembly: 1
Currently Not Available
9

COVER-ECM

Part #: 5438786 Required per assembly: 1
Currently Not Available
10

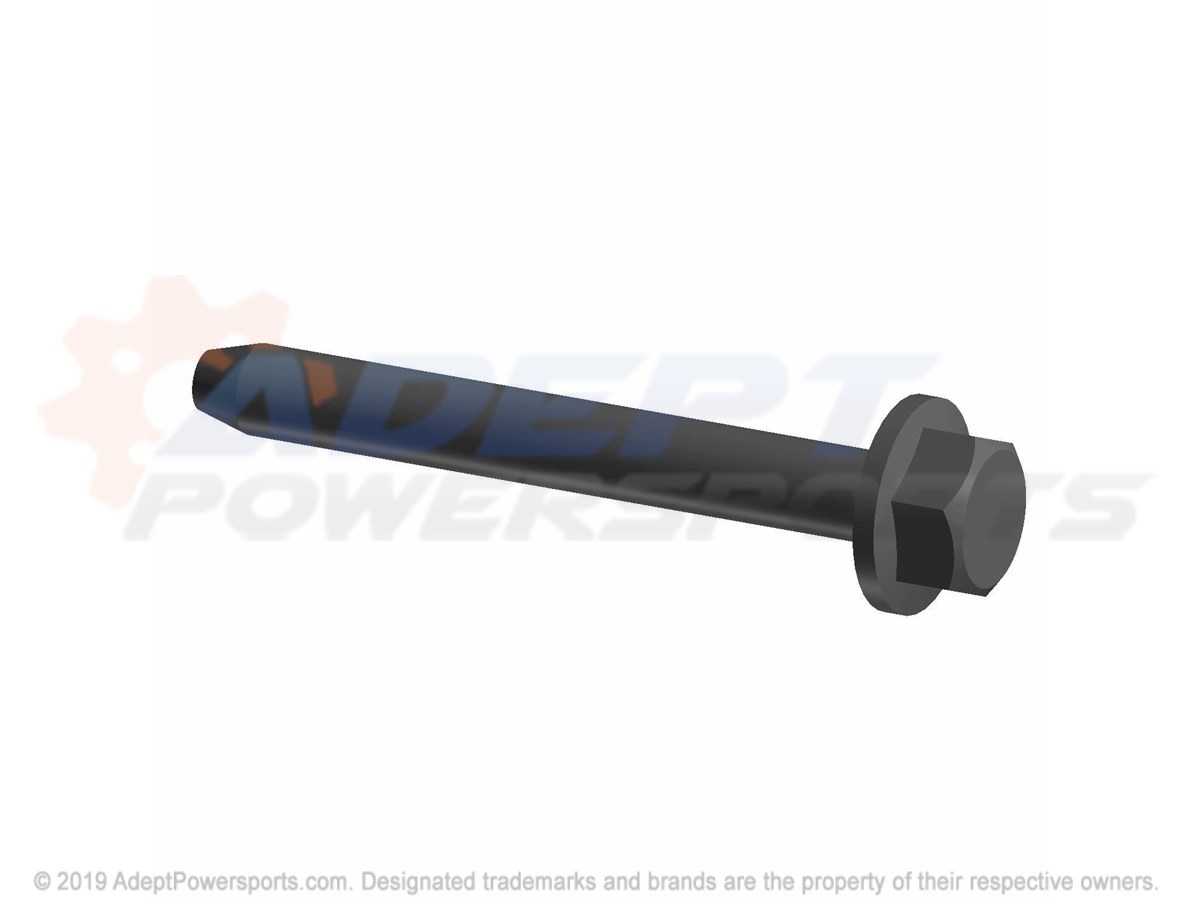

SCREW

Part #: 7519091 Required per assembly: 4
Currently Not Available
11

SCREW

Part #: 7519045 Required per assembly: 1
Currently Not Available
