Box Mounting And Latch - D131d9jdj/1L9jdj/2M9jdj replacement parts for 2013 Polaris Brutus/HD/HD PTO

OEM Parts Polaris 2013 Polaris Brutus/HD/HD PTO Box Mounting And Latch - D131d9jdj/1L9jdj/2M9jdj

Box Mounting and Latch - D131D9JDJ/1L9JDJ/2M9JDJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

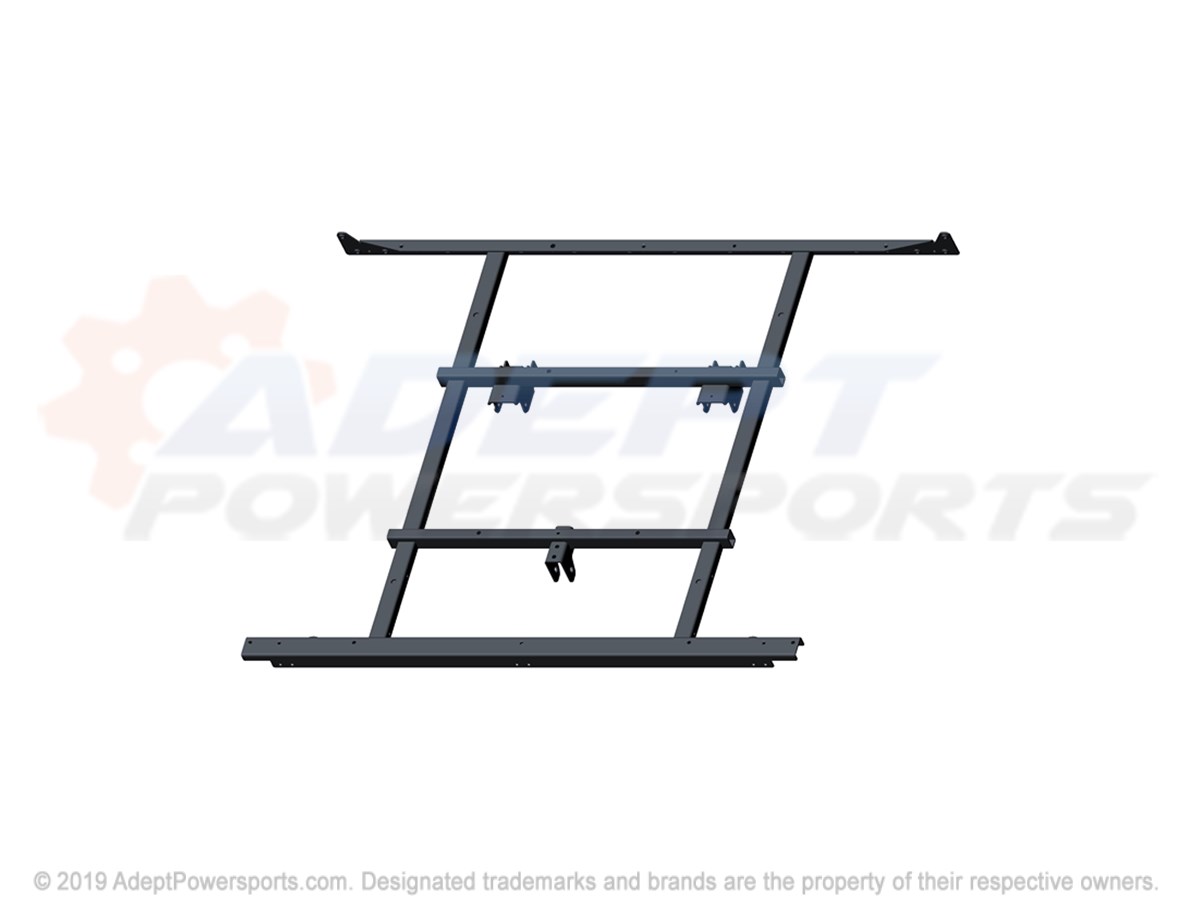

1	SUPPORT, BOX, LONG, BLACK Part #: 1019865-329 Required per assembly: 1 Currently Not Available
2	LATCH, BOX, MATTE, BLACK Part #: 1018431-458 Required per assembly: 1 Note: 1D Currently Not Available
3	BUMPER, BOX Part #: 5414343 Required per assembly: 2 ~~$5.99~~ $3.45 - + Add to cart
4	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 4 Note: 1D Currently Not Available
5	SPRING, LATCH Part #: 7043576 Required per assembly: 1 Note: 1D Currently Not Available
6	SPRING, LATCH Part #: 7043607 Required per assembly: 1 Note: 1D Currently Not Available
7	SCREW Part #: 7517793 Required per assembly: 2 Note: 1D Currently Not Available
8	RIVET Part #: 7621460 Required per assembly: 2 ~~$3.97~~ $3.16 - + Add to cart
9	NUT, FLANGE Part #: 7547317 Required per assembly: 2 Currently Not Available
10	SHOCK, BOX, DUMP Part #: 7043906 Required per assembly: 1 Note: 1D Currently Not Available
10	SHOCK, BOX, DUMP Part #: 7043906 Required per assembly: 1 Note: 1D Currently Not Available

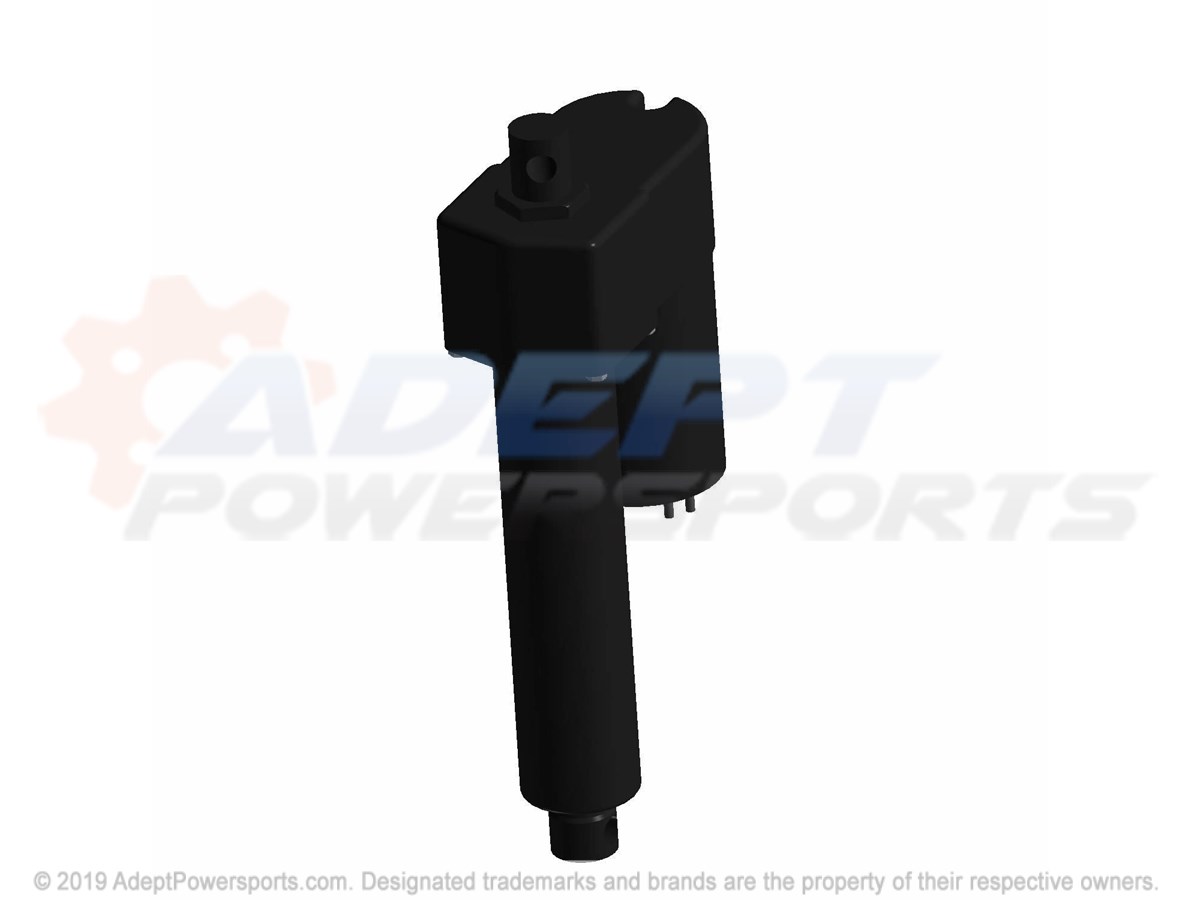

10	ACTUATOR, BOX, LIFT, [2M] Part #: 4013620 Required per assembly: 1 Note: 1L Currently Not Available
10	ACTUATOR, BOX, LIFT, [2M] Part #: 4013620 Required per assembly: 1 Note: 1L Currently Not Available
11	SCREW Part #: 7518555 Required per assembly: 6 Note: Bolt, Flange Currently Not Available
12	SCREW Part #: 7519722 Required per assembly: 4 Currently Not Available
13	SCREW Part #: 7519650 Required per assembly: 3 Currently Not Available
14	SCREW Part #: 7519363 Required per assembly: 2 Currently Not Available
15	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
16	CLIP-HITCHPIN .148X3 1/16 Part #: 7661067 Required per assembly: 2 Note: Clip Currently Not Available
17	PIN, CLEVIS Part #: 7661878 Required per assembly: 2 Currently Not Available
18	WASHER Part #: 7556329 Required per assembly: 7 Currently Not Available
