Door Mounting - D132m9jdj replacement parts for 2013 Polaris Brutus/HD/HD PTO

OEM Parts Polaris 2013 Polaris Brutus/HD/HD PTO Door Mounting - D132m9jdj

Door Mounting - D132M9JDJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

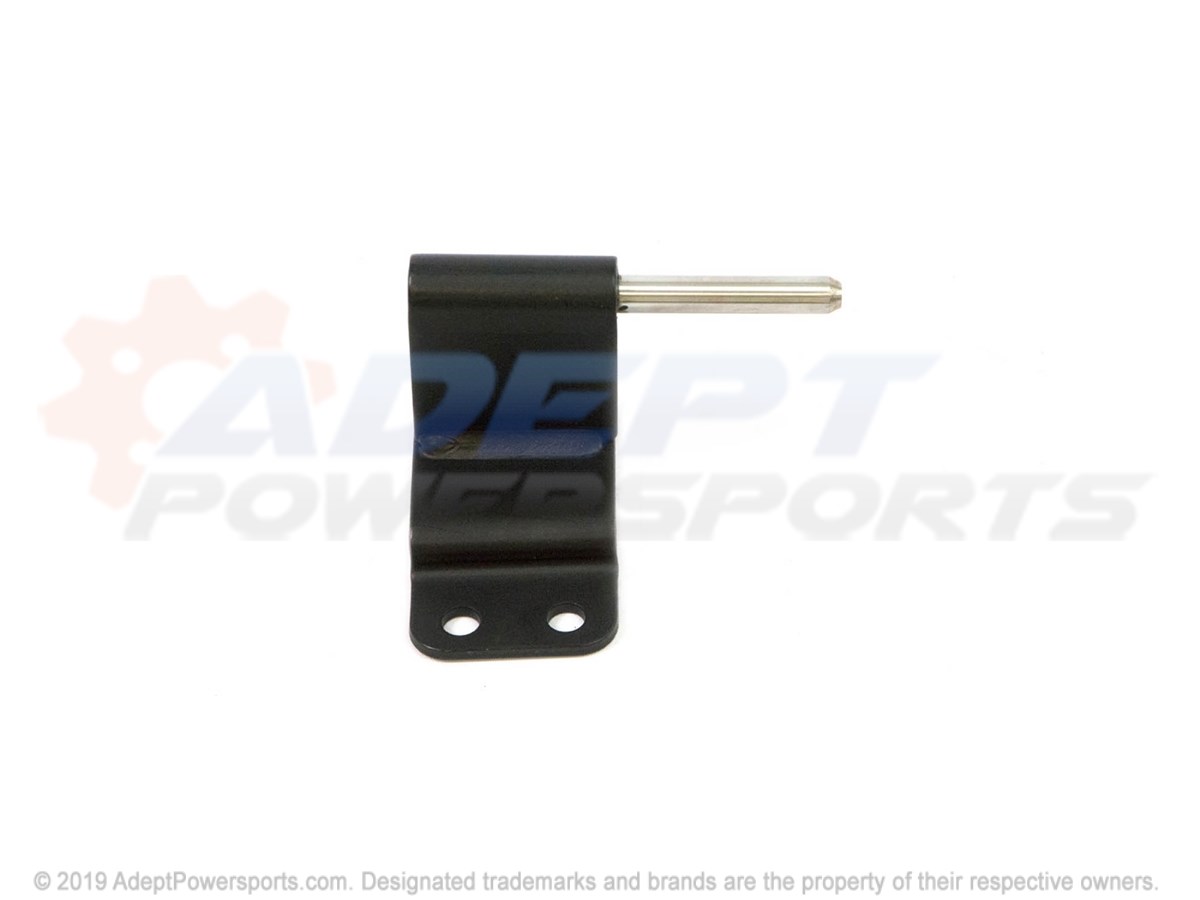

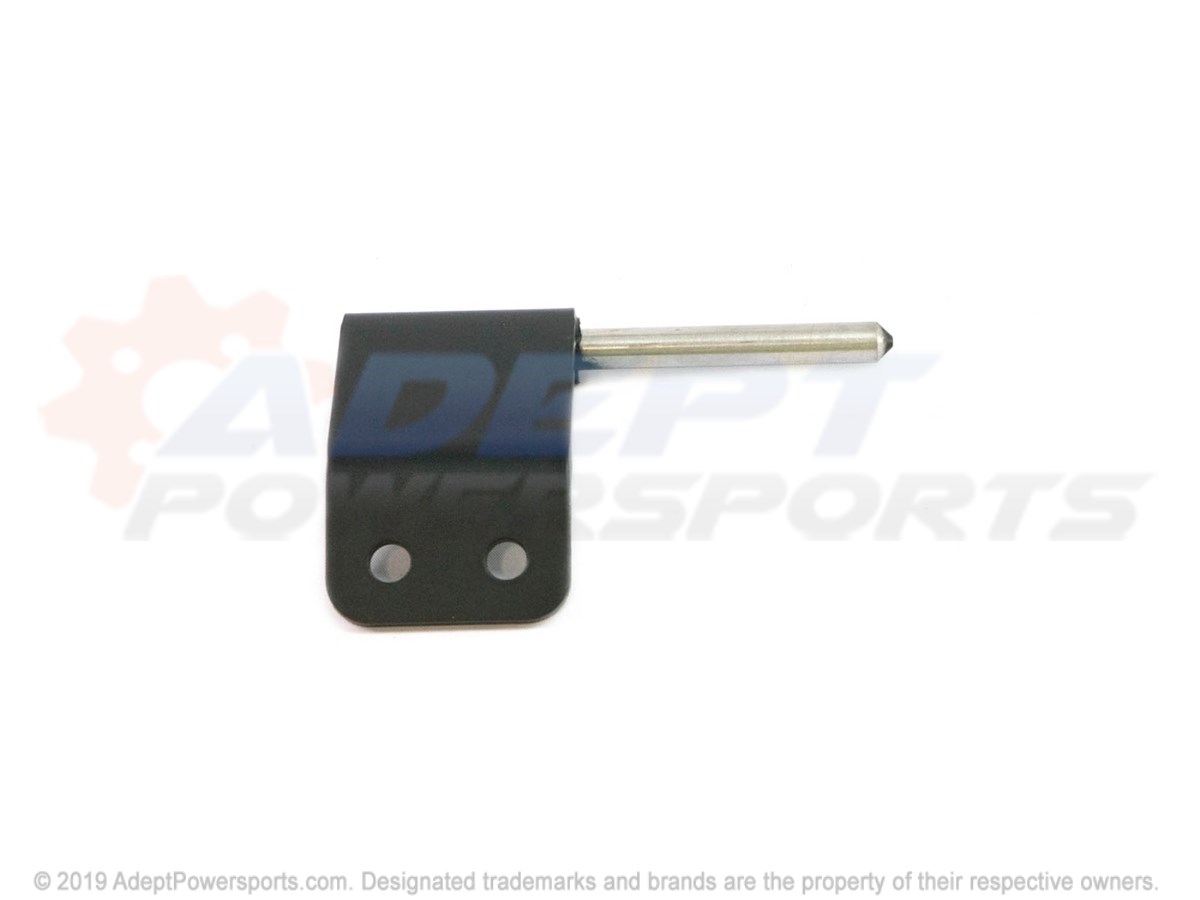

1	HINGE, LOWER, LH, BLACK Part #: 1018772-329 Required per assembly: 1 Currently Not Available
1	HINGE, LOWER, RH, BLACK Part #: 1018773-329 Required per assembly: 1 Currently Not Available

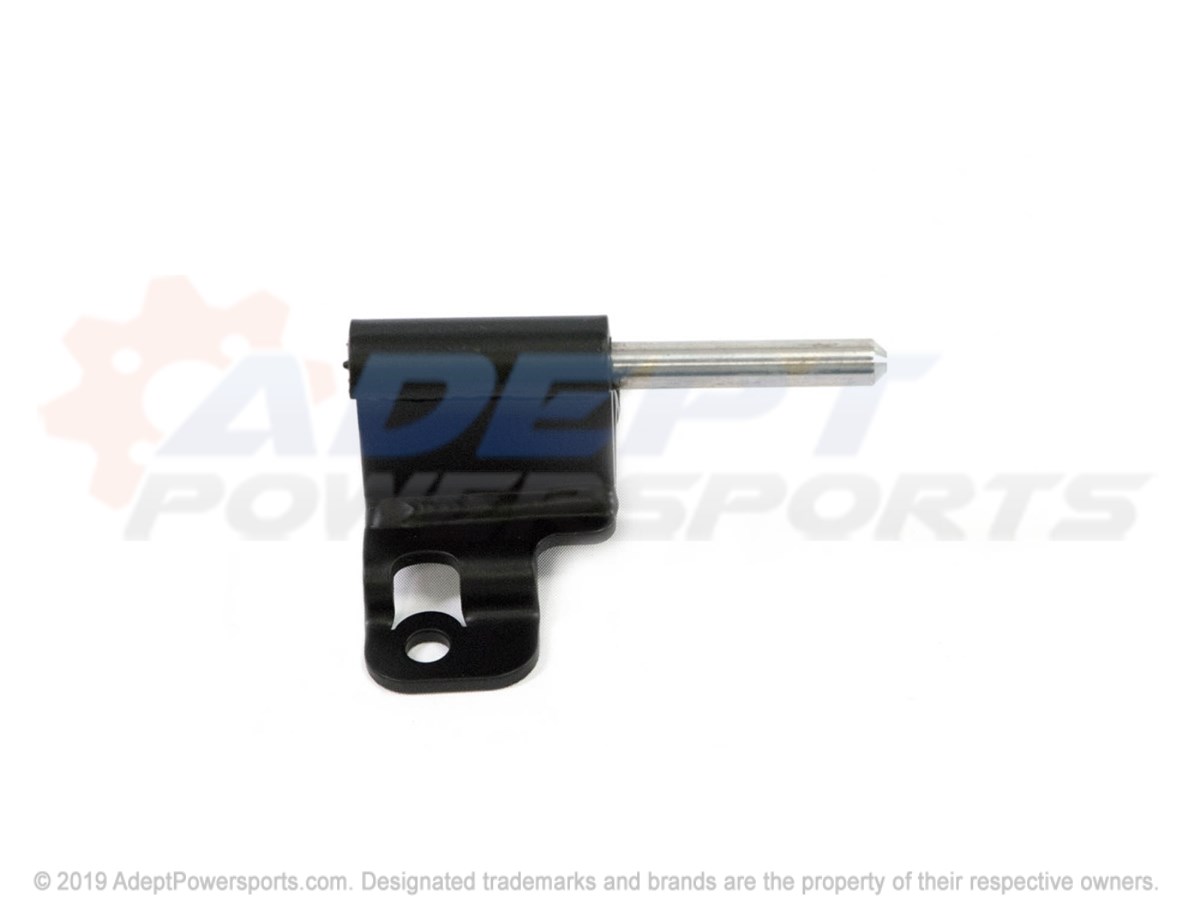

2	HINGE, UPPER, LH, BLACK Part #: 1018774-329 Required per assembly: 1 Currently Not Available
2	HINGE, UPPER, RH, BLACK Part #: 1018775-329 Required per assembly: 1 Currently Not Available
3	PLATE, HINGE Part #: 5256140-S Required per assembly: 2 Currently Not Available
4	BRKT-STRIKER, ADJUST, LH, BLK Part #: 5256943-458 Required per assembly: 1 Currently Not Available
4	BRKT-STRIKER, ADJUST, RH, BLK Part #: 5256944-458 Required per assembly: 1 Currently Not Available
5	WASHER Part #: 5439712 Required per assembly: 4 Currently Not Available
6	SCR-HEXFLGHD, M8, X, 20, 0600086 Part #: 7517838 Required per assembly: 10 Currently Not Available
7	SCREW Part #: 7518936 Required per assembly: 2 Currently Not Available
8	SCREW Part #: 7519109 Required per assembly: 4 Currently Not Available
9	PIN, STRIKER Part #: 7519358 Required per assembly: 2 Currently Not Available
10	NUT-NYLOK, M12X1.5, 0600110 Part #: 7540000 Required per assembly: 2 Currently Not Available
11	NUT, FLANGE Part #: 7547339 Required per assembly: 2 Currently Not Available
