Rear Suspension - D131d9jdj/1L9jdj/2M9jdj replacement parts for 2013 Polaris Brutus/HD/HD PTO

OEM Parts Polaris 2013 Polaris Brutus/HD/HD PTO Rear Suspension - D131d9jdj/1L9jdj/2M9jdj

Rear Suspension - D131D9JDJ/1L9JDJ/2M9JDJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	LINK, UPPER, MATTE, BLACK Part #: 1018392-458 Required per assembly: 1 Currently Not Available
2	SHAFT-PIVOT 89.71MM ZINC YEL Part #: 5137592 Required per assembly: 2 Currently Not Available
3	BUSHING, CONTROL, ARM Part #: 5439730 Required per assembly: 12 Note: Sold in multiples of 10 only Currently Not Available
3	BUSHING, CONTROL, ARM Part #: 5439730 Required per assembly: 12 Note: Sold in multiples of 10 only Currently Not Available
4	BOLT Part #: 7518566 Required per assembly: 2 Currently Not Available
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
5	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
6	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
6	WASHER, FLAT Part #: 7556153 Required per assembly: 6 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
7	LINK, LOWER, MATTE, BLACK Part #: 1018693-458 Required per assembly: 2 Currently Not Available
7	LINK, LOWER, MATTE, BLACK Part #: 1018693-458 Required per assembly: 2 Currently Not Available
8	TUBE, PIVOT Part #: 5136100 Required per assembly: 4 Currently Not Available
8	TUBE, PIVOT Part #: 5136100 Required per assembly: 4 Currently Not Available
9	FITTING, LUBE. Part #: 7080424 Required per assembly: 6 Note: Fitting, Lubrication Currently Not Available
10	SCREW Part #: 7519043 Required per assembly: 4 Note: Bolt Currently Not Available
10	SCREW Part #: 7519043 Required per assembly: 4 Note: Bolt Currently Not Available

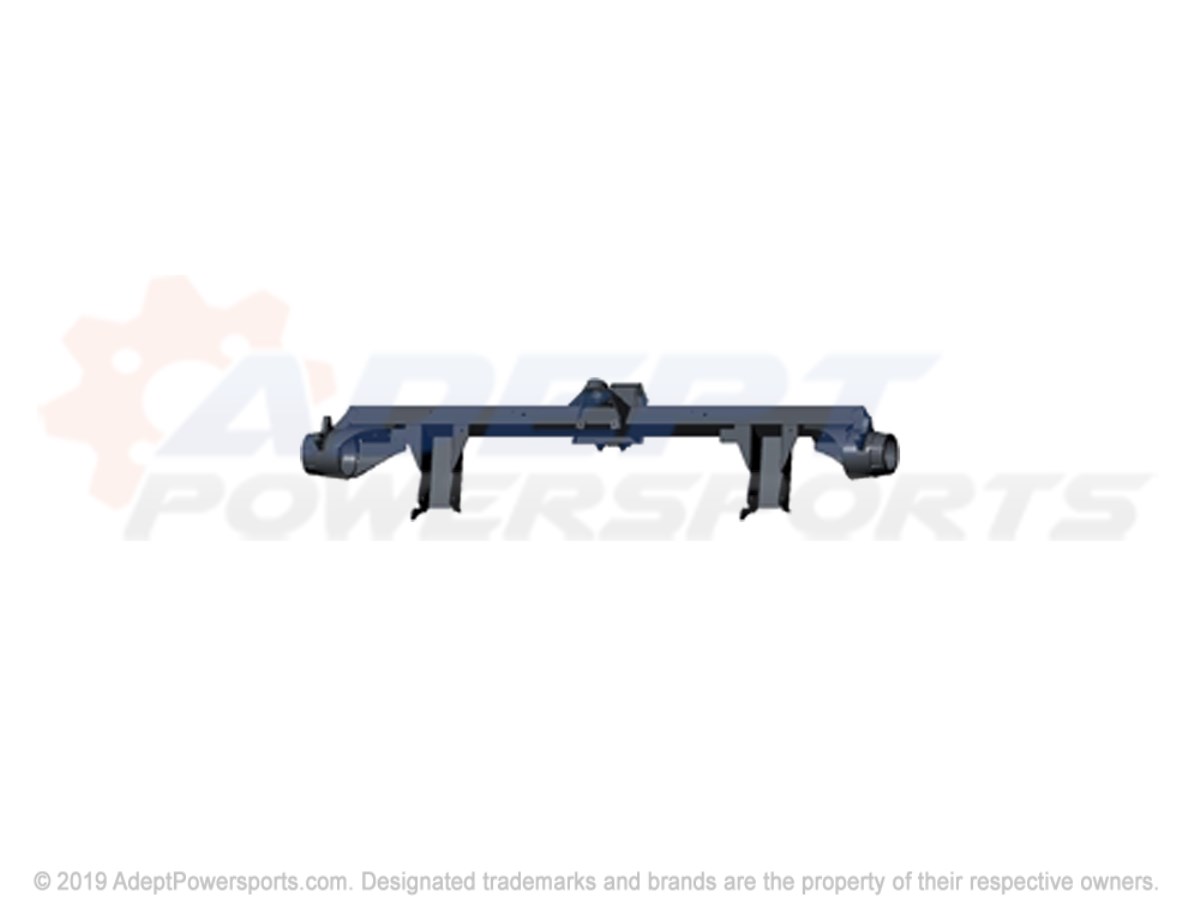

11	AXLE, REAR, BRACE, MATTE, BLACK Part #: 1018691-458 Required per assembly: 1 Currently Not Available
12	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
13	BEARING, SPHERICAL, LOWER Part #: 2204229 Required per assembly: 1 Currently Not Available
14	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
15	RING, RETAINING Part #: 7710539 Required per assembly: 1 Currently Not Available
16	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 1 Currently Not Available
