Dash Controls - D131d9jdj/1L9jdj/2M9jdj replacement parts for 2013 Polaris Brutus/HD/HD PTO

OEM Parts Polaris 2013 Polaris Brutus/HD/HD PTO Dash Controls - D131d9jdj/1L9jdj/2M9jdj

Dash Controls - D131D9JDJ/1L9JDJ/2M9JDJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

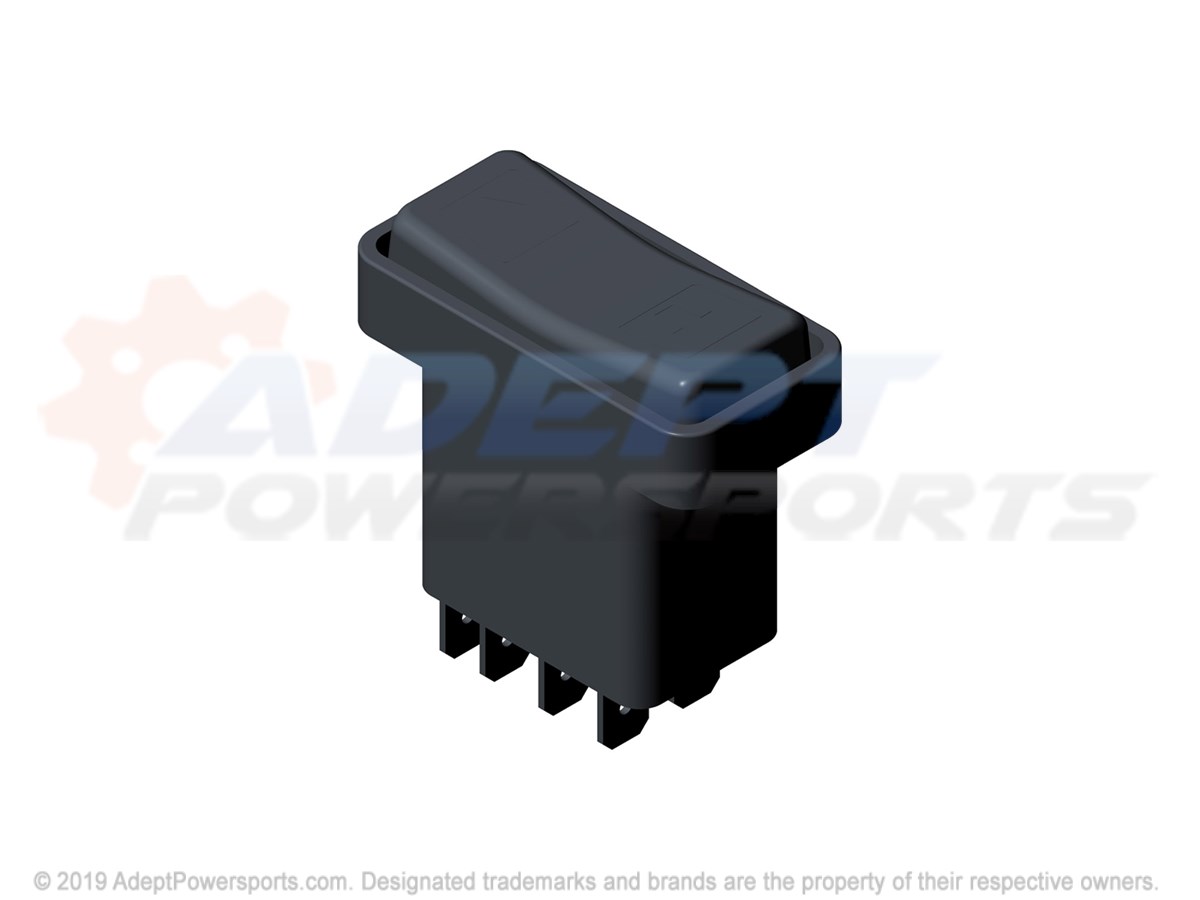

1	SWITCH, HEADLIGHT Part #: 4011115 Required per assembly: 1 Currently Not Available
2	SWITCH, KEY Part #: 4012165 Required per assembly: 1 Note: 3 position. Comes with 2 keys. 6 Pin Currently Not Available
3	RECEPTACLE, POD, MOUNT, 12V Part #: 4012393 Required per assembly: 2 Currently Not Available
4	SWITCH-AWD Part #: 4012747 Required per assembly: 1 Currently Not Available
5	PLUG, SWITCH, PTO Part #: 5414726 Required per assembly: 1 Currently Not Available
6	ASM-CLUSTER, CPIA3, OSPS, GM Part #: 3280595 Required per assembly: 1 Note: INCL. 7 Currently Not Available
7	MOUNT, RUBBER Part #: 5412138 Required per assembly: 1 ~~$34.97~~ $23.00 - + Add to cart
8	BEZEL-INSTRUMENT CLUSTER Part #: 5438945 Required per assembly: 1 Currently Not Available
9	SWITCH, BOX, LIFT, [2M] Part #: 4010634 Required per assembly: 2 Note: 1L Currently Not Available
9	SWITCH, BOX, LIFT, [2M] Part #: 4010634 Required per assembly: 2 Note: 1L Currently Not Available
10	SWITCH, WORK, GROUP, LOCK, [2M] Part #: 4013527 Required per assembly: 1 Note: 1L Currently Not Available
11	SWITCH, PTO Part #: 4013525 Required per assembly: 1 Note: 2M Currently Not Available
12	CONTROL, HVAC Part #: 3120177 Required per assembly: 1 Note: 2M Currently Not Available
13	SWITCH, ROCKER Part #: 3120178 Required per assembly: 1 Note: 2M Currently Not Available
14	SWITCH, TILT, LOCK, [2M] Part #: 4013528 Required per assembly: 1 Note: 1L Currently Not Available
15	PLUG, HOLE, ROCKER, SWITCH Part #: 5434192 Required per assembly: 1 Note: 1D Currently Not Available
