OEM Parts Polaris 2013 Polaris Brutus/HD/HD PTO Windshield - D132m9jdj

2013 Polaris Brutus/HD/HD PTO D131D9JDJ/1L9JDJ/2M9JDJ - Windshield - D132m9jdj

Windshield - D132M9JDJ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

BRACKET, HINGE, UPPER, LH

Part #: 1018927 Required per assembly: 1
Currently Not Available
2

BRACKET, HINGE, UPPER, RH

Part #: 1018928 Required per assembly: 1
Currently Not Available
3

MOUNT, LOWER, TIP

Part #: 1019071 Required per assembly: 1
Currently Not Available
4

ASSEMBLY, GLASS, TIPOUT

Part #: 2878858 Required per assembly: 1 Note: INCL. 5-7
Currently Not Available
5

BUSHING

Part #: 5137866 Required per assembly: 4
Currently Not Available
6
Polaris 5439803 Plug, Wiper, L, And, R

PLUG, WIPER, L, AND, R

Part #: 5439803 Required per assembly: 1
Currently Not Available
7
Polaris 5521838 Seal, Glass, Front

SEAL, GLASS, FRONT

Part #: 5521838 Required per assembly: 1
Currently Not Available
8
Polaris 5412465 Bumper

BUMPER

Part #: 5412465 Required per assembly: 2
Currently Not Available
9

GROMMET, RUBBER, HANDLE, TIPOUT

Part #: 5439913 Required per assembly: 1
Currently Not Available
10

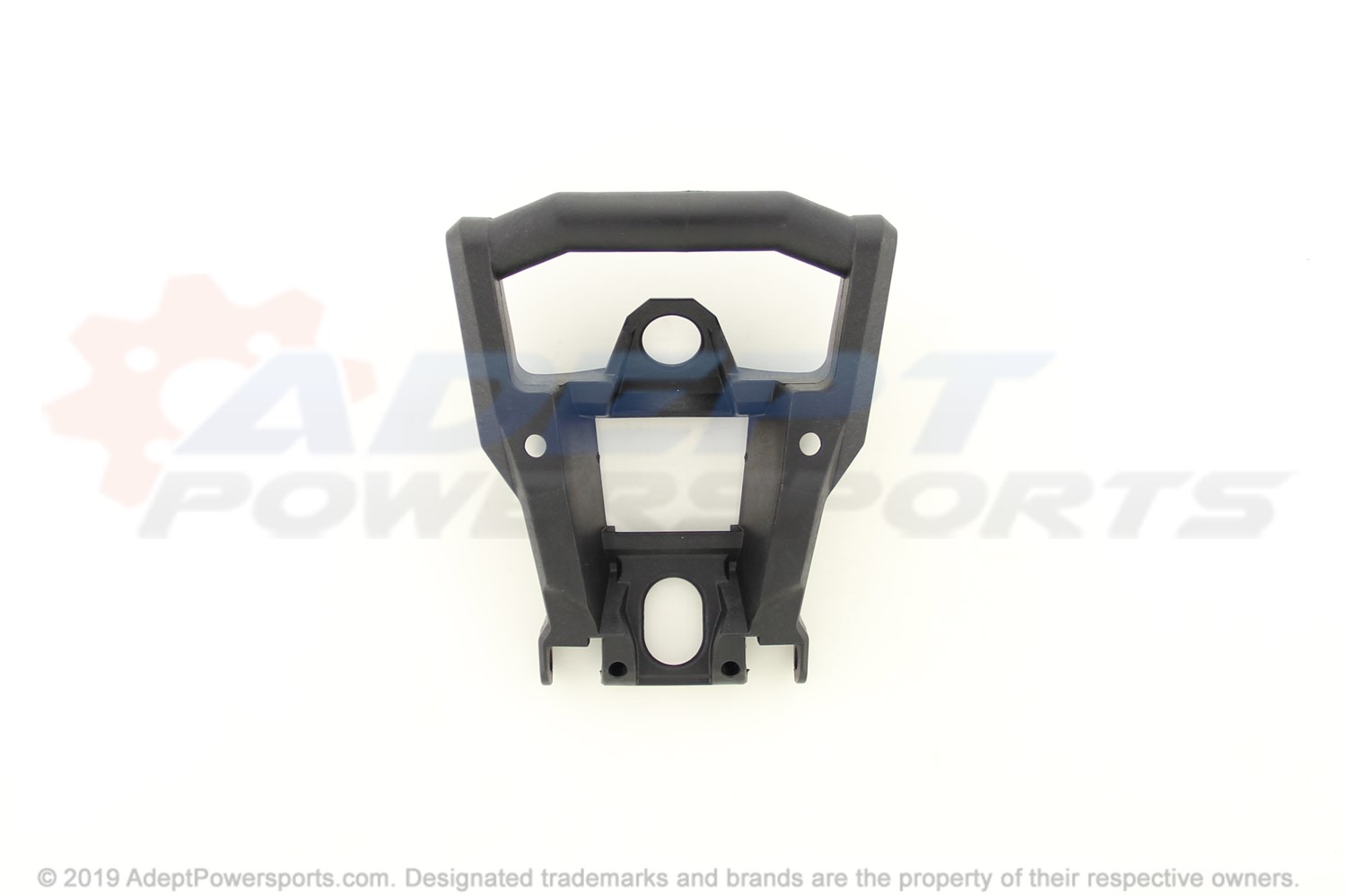

Polaris 5451292 Handle-Tip Out

HANDLE-TIP OUT

Part #: 5451292 Required per assembly: 1
Currently Not Available
11
Polaris 7043889 Shock, Gas, Tipout

SHOCK, GAS, TIPOUT

Part #: 7043889 Required per assembly: 2
Currently Not Available
12

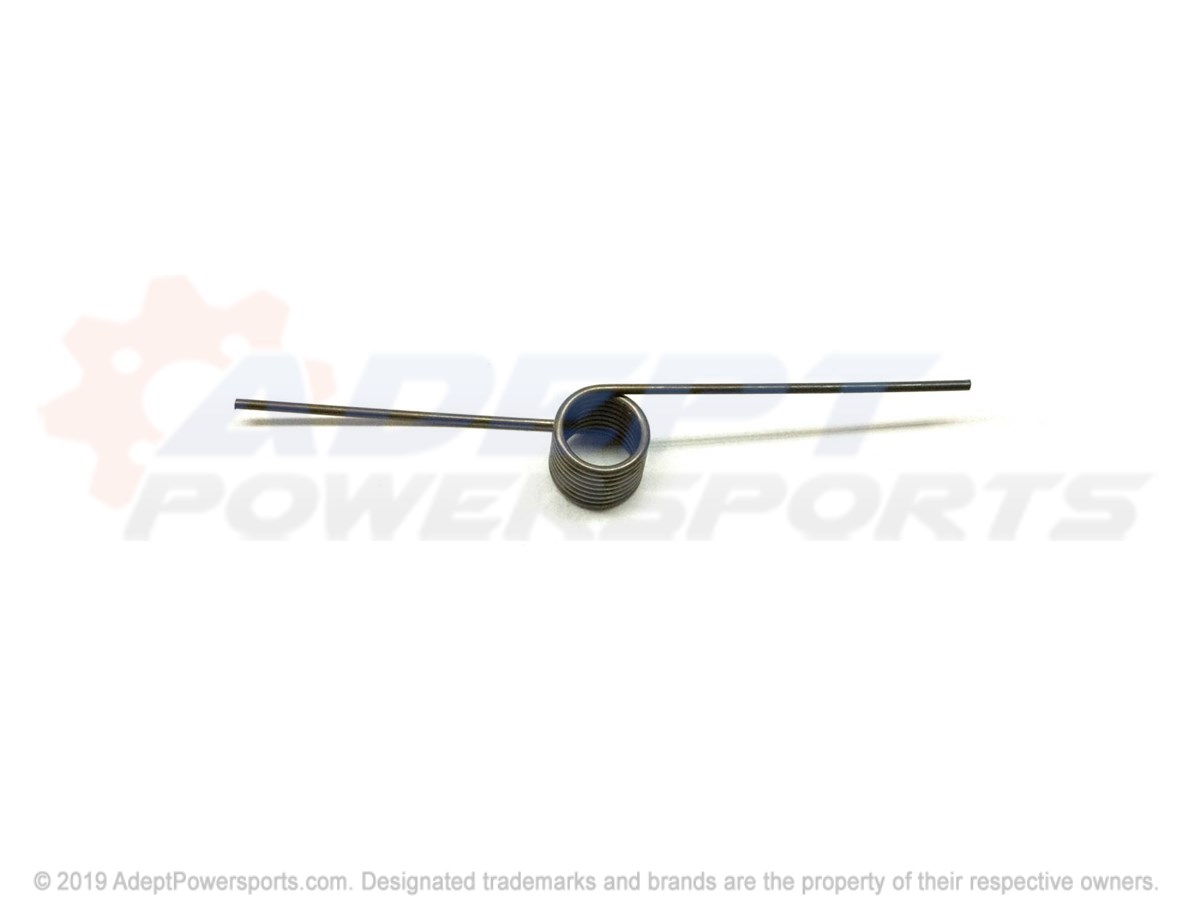

Polaris 7043894 Spring, Torsion, Rh, Tipout

SPRING, TORSION, RH, TIPOUT

Part #: 7043894 Required per assembly: 1
Currently Not Available
13

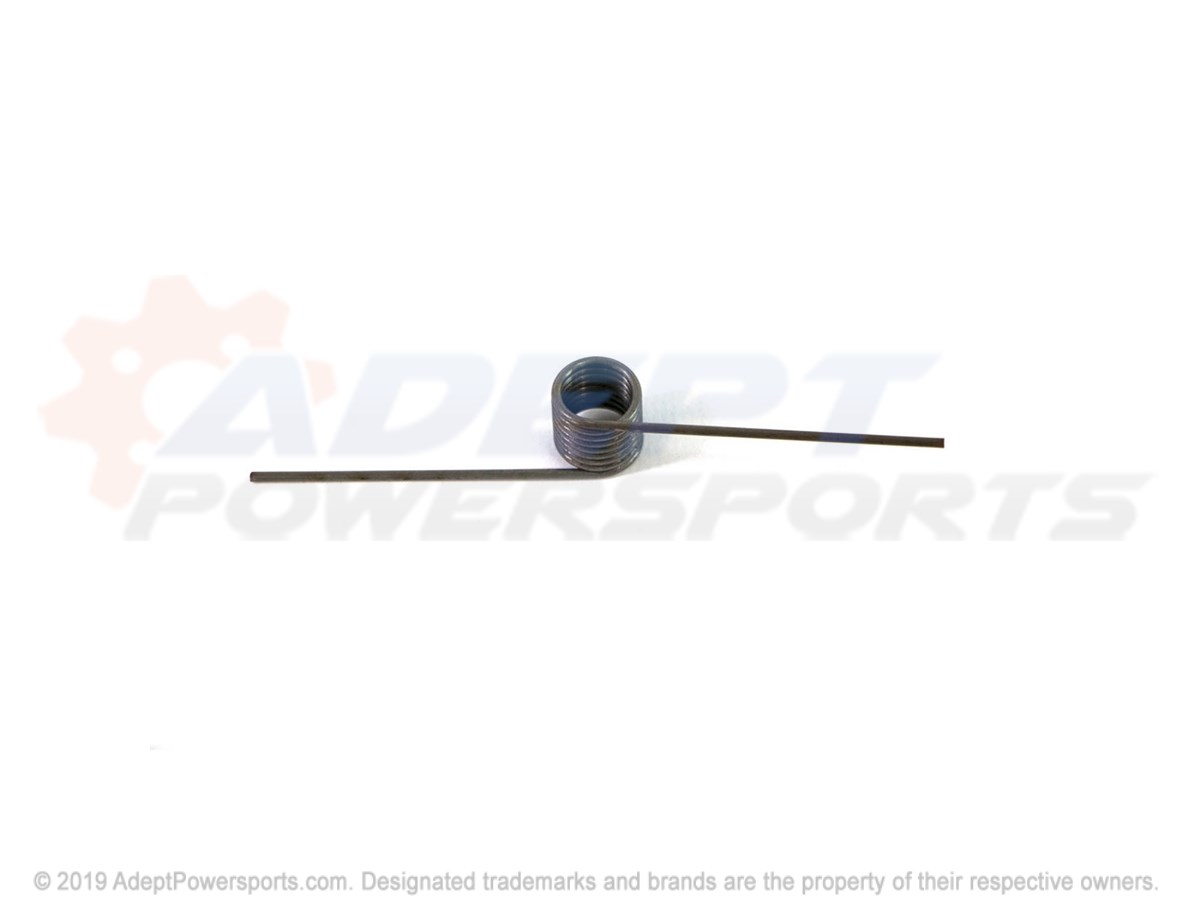

Polaris 7043895 Spring, Torsion, Lh, Tipout

SPRING, TORSION, LH, TIPOUT

Part #: 7043895 Required per assembly: 1
Currently Not Available
14

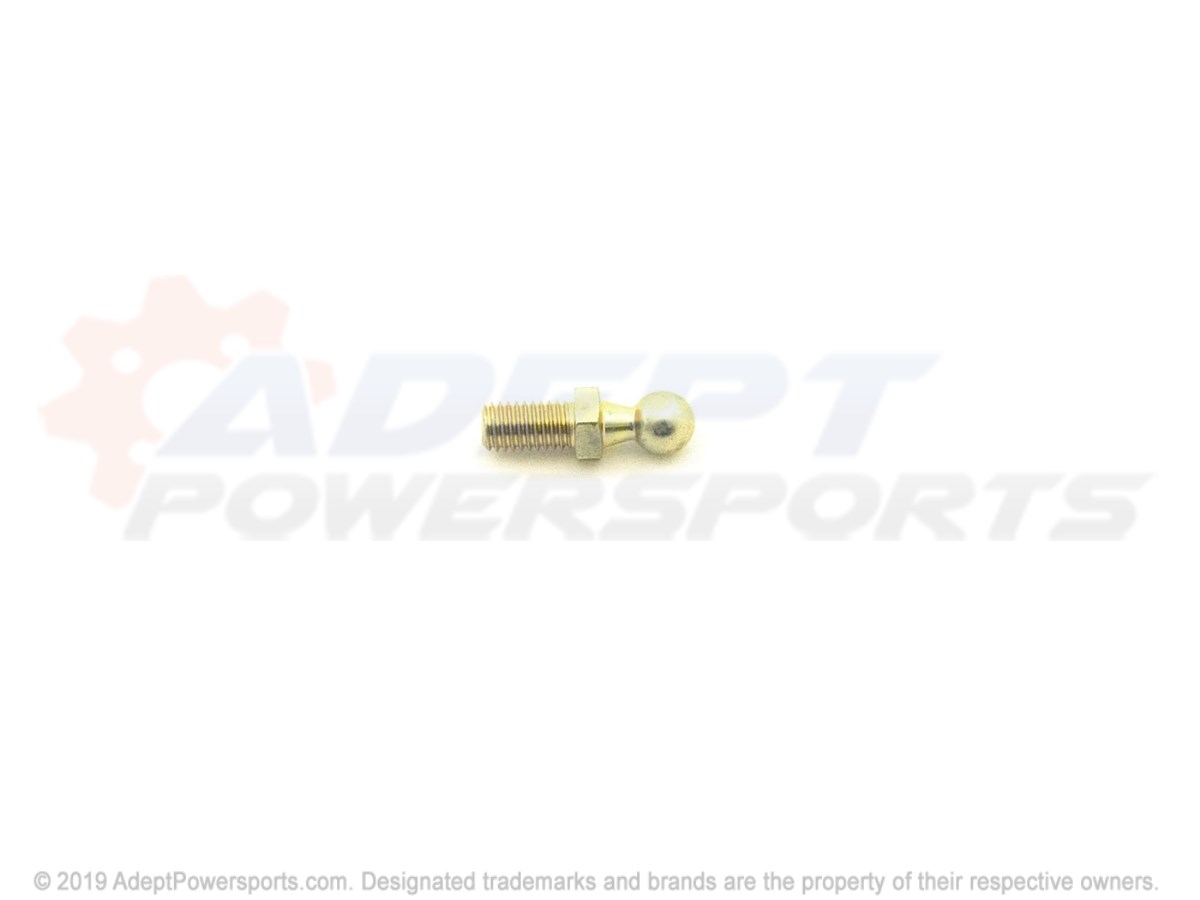

Polaris 7081839 Ball, End

BALL, END

Part #: 7081839 Required per assembly: 4
Currently Not Available
15
Polaris 7511866 Screw

SCREW

Part #: 7511866 Required per assembly: 2
Currently Not Available
16

PIN, PIVOT, HANDLE, TIPOUT

Part #: 7519743 Required per assembly: 2
Currently Not Available
17

SCREW

Part #: 7519747 Required per assembly: 6
Currently Not Available
18
Polaris 7547454 Nut, Flange

NUT, FLANGE

Part #: 7547454 Required per assembly: 8
Currently Not Available
