Brake Lines And Master Cylinder - D131d9jdj/1L9jdj/2M9jdj replacement parts for 2013 Polaris Brutus/HD/HD PTO

OEM Parts Polaris 2013 Polaris Brutus/HD/HD PTO Brake Lines And Master Cylinder - D131d9jdj/1L9jdj/2M9jdj

Brake Lines and Master Cylinder - D131D9JDJ/1L9JDJ/2M9JDJ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

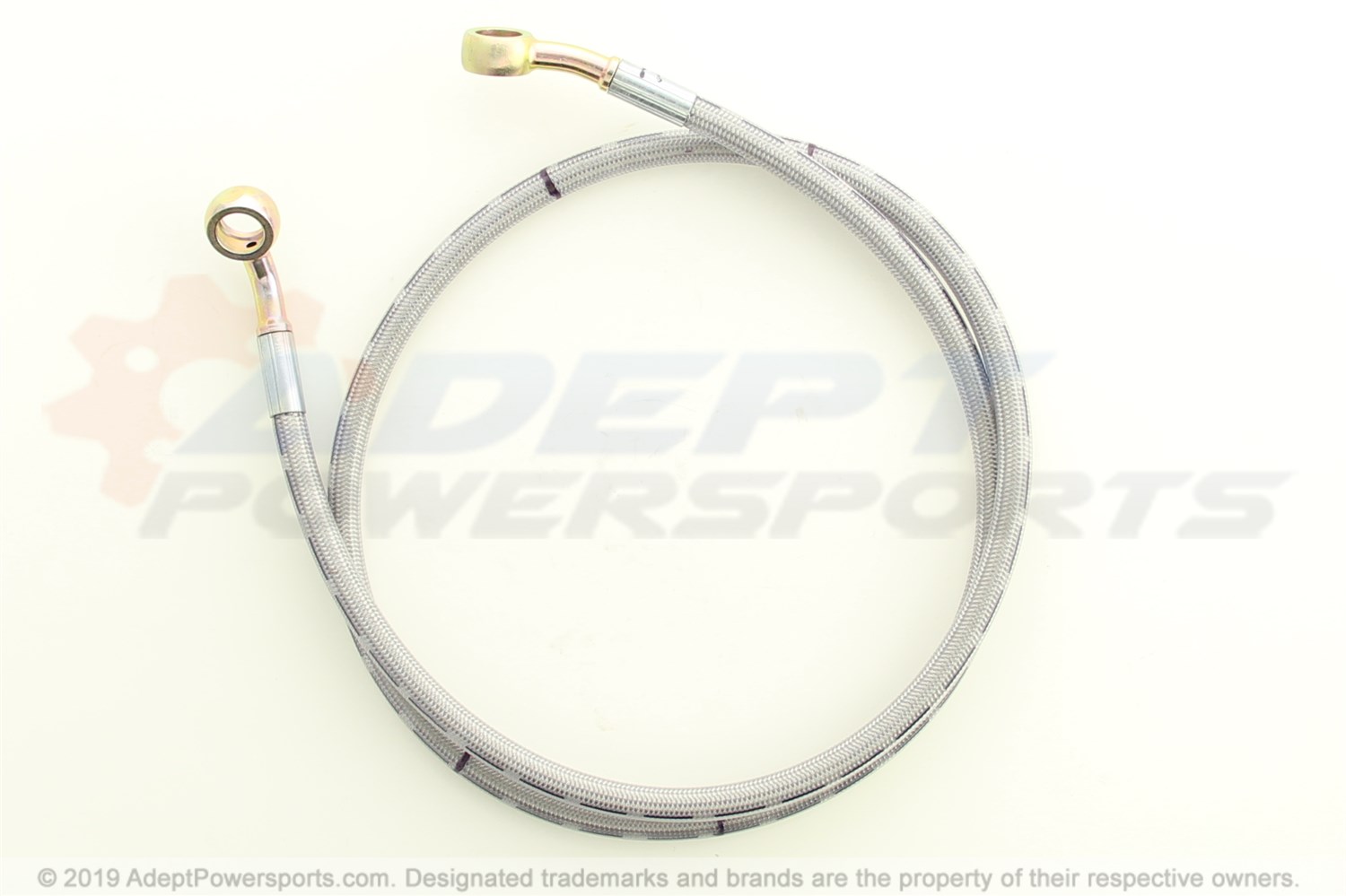

1	LINE, BRAKE, REAR, LH Part #: 1912110 Required per assembly: 1 Currently Not Available
2	LINE, BRAKE, REAR, RH Part #: 1912111 Required per assembly: 1 Currently Not Available
3	LINE, BRAKE, MASTER, CYLINDER, REAR Part #: 1911753 Required per assembly: 1 Currently Not Available
4	ASSEMBLY, MASTER, CYLINDER Part #: 1912463 Required per assembly: 1 Note: INCL. 22,26-29 Currently Not Available
5	LINE, BRAKE, FRONT, LH Part #: 1911734 Required per assembly: 1 Currently Not Available
6	LINE, BRAKE, FRONT, RH Part #: 1911735 Required per assembly: 1 Currently Not Available
7	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
8	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
8	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
8	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
8	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
9	SWITCH-PRESS BRK M10X1.25 DBL Part #: 4012981 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available
12	SCREW Part #: 7518558 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
12	SCREW Part #: 7518558 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
13	CLIP, SILENCER, Part #: 7670102 Required per assembly: 15 Note: Clip Currently Not Available
14	RETAINER-BRAKE LINE 1" Part #: 5439192 Required per assembly: 4 Currently Not Available
15	RIVET Part #: 7621323 Required per assembly: 4 ~~$1.99~~ $1.35 - + Add to cart
16	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
17	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
17	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
18	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
19	SCRAPER-BRAKE FRONT Part #: 5438948 Required per assembly: 2 Currently Not Available
19	SCRAPER-BRAKE FRONT Part #: 5438948 Required per assembly: 2 Currently Not Available
20	SCREW Part #: 7516823 Required per assembly: 4 Currently Not Available
20	SCREW Part #: 7516823 Required per assembly: 4 Currently Not Available
21	CLIP-ROUTING Part #: 7670109 Required per assembly: 2 Note: Clip, Routing Currently Not Available
22	KIT-BOOT DUST M/C TOSO Part #: 2204121 Required per assembly: 1 Currently Not Available
23	SHIELD, MASTER, CYLINDER Part #: 5251507 Required per assembly: 1 Currently Not Available
24	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
25	SCREW, FLANGE Part #: 7519298 Required per assembly: 2 Currently Not Available
26	KIT-CAP M/C TOSO Part #: 2204118 Required per assembly: 1 Currently Not Available
27	KIT-NUT CLEVIS M/C TOSO Part #: 2204120 Required per assembly: 2 Currently Not Available
28	KIT-CLEVIS M/C TOSO Part #: 2204119 Required per assembly: 1 Currently Not Available
29	KIT-ASM M/C TANDEM 3/4" TOSO Part #: 2204117 Required per assembly: 1 Currently Not Available
