Battery - Z14ST1EAM/EAW Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

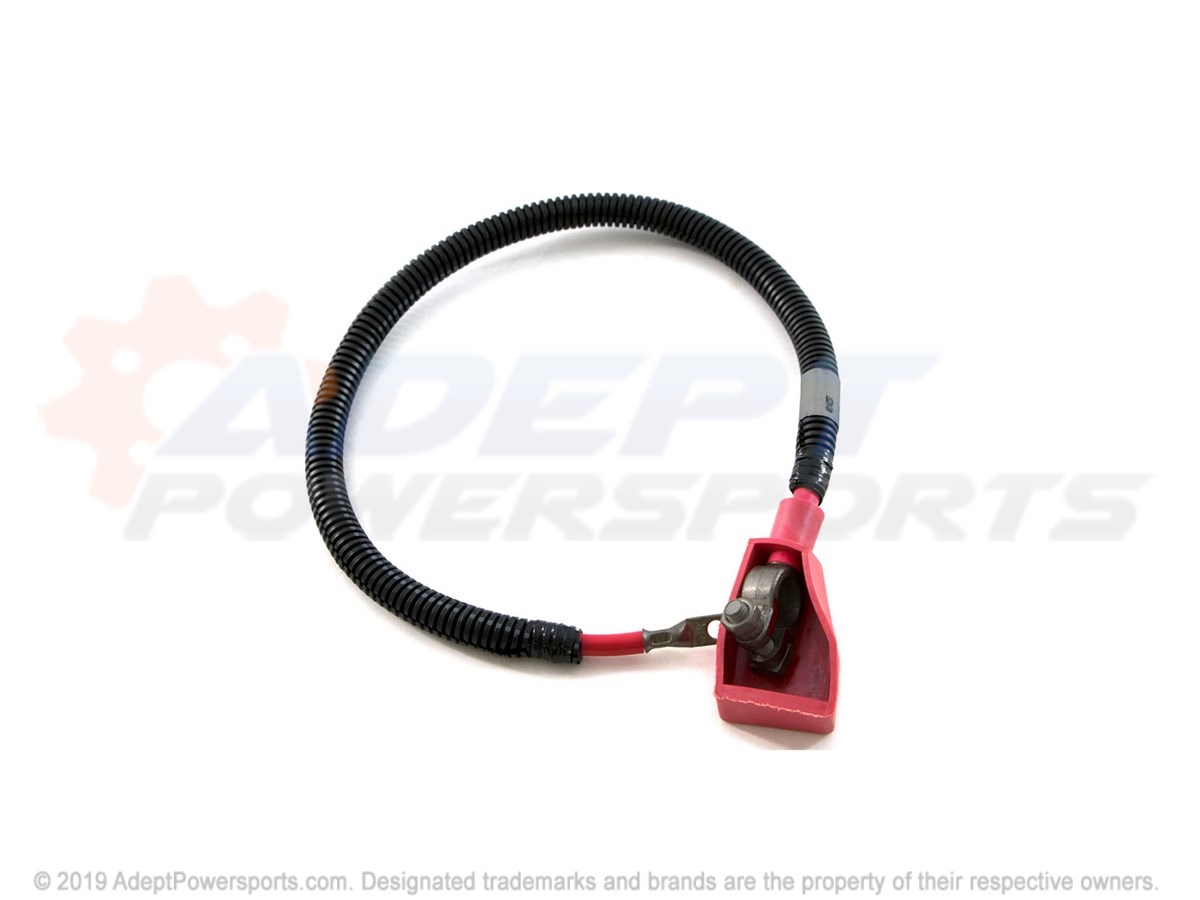

1	CABLE, BATTERY, TO, SOLENOID Part #: 4014237 Required per assembly: 1 Currently Not Available

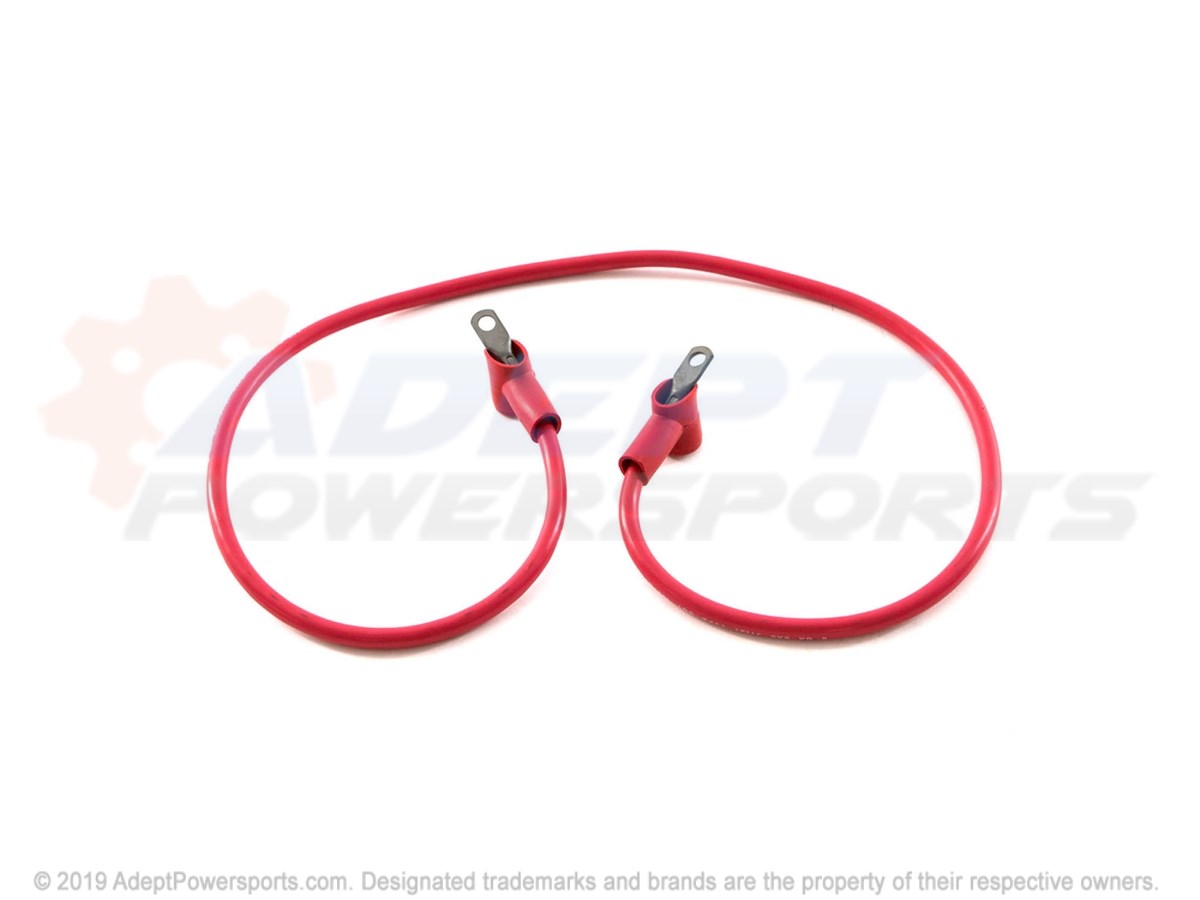

2	CABLE, START, TO, SOLENOID Part #: 4014238 Required per assembly: 1 Currently Not Available

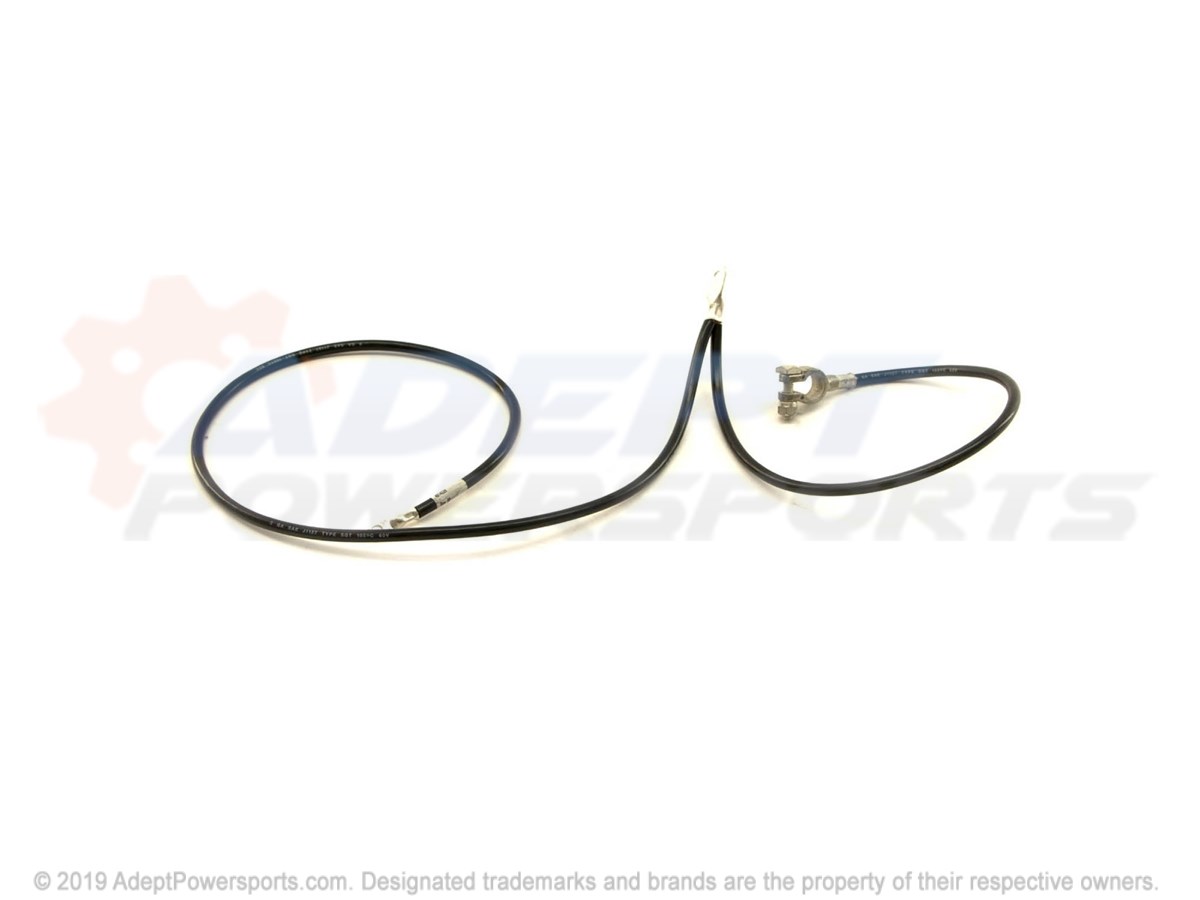

3	CABLE, GROUND Part #: 4014239 Required per assembly: 1 Currently Not Available
4	BATTERY Part #: 4014132-P Required per assembly: 1 Currently Not Available
5	STRAP, BATTERY, MAIN, BLACK Part #: 5257312-329 Required per assembly: 1 Currently Not Available
6	STRAP, BATTERY, LIFT Part #: 5450916 Required per assembly: 1 Currently Not Available
7	SCREW (W/O INSERT) Part #: 7512098 Required per assembly: 1 Note: SCREW ~~$2.99~~ $1.73 - + Add to cart
8	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
9	NUT, METRIC Part #: 7546703 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
9	NUT, METRIC Part #: 7546703 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
9	NUT, METRIC Part #: 7546703 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
10	PAD, BATTERY, FOAM Part #: 5814037 Required per assembly: 2 Currently Not Available
11	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
12	STUD Part #: 7519333 Required per assembly: 1 Currently Not Available
13	NUT, FLANGE Part #: 7547339 Required per assembly: 1 Currently Not Available
14	SOLENOID, STARTER, C1100, W/WASHER Part #: 4014471 Required per assembly: 1 Currently Not Available
