OEM Parts Polaris 2014 Polaris RZR XP 1000 Main Gearcase Mounting - Z14st1eam/Eaw

2014 Polaris RZR XP 1000 Z14ST1EAM/EAW - Main Gearcase Mounting - Z14st1eam/Eaw

Main Gearcase Mounting - Z14ST1EAM/EAW Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

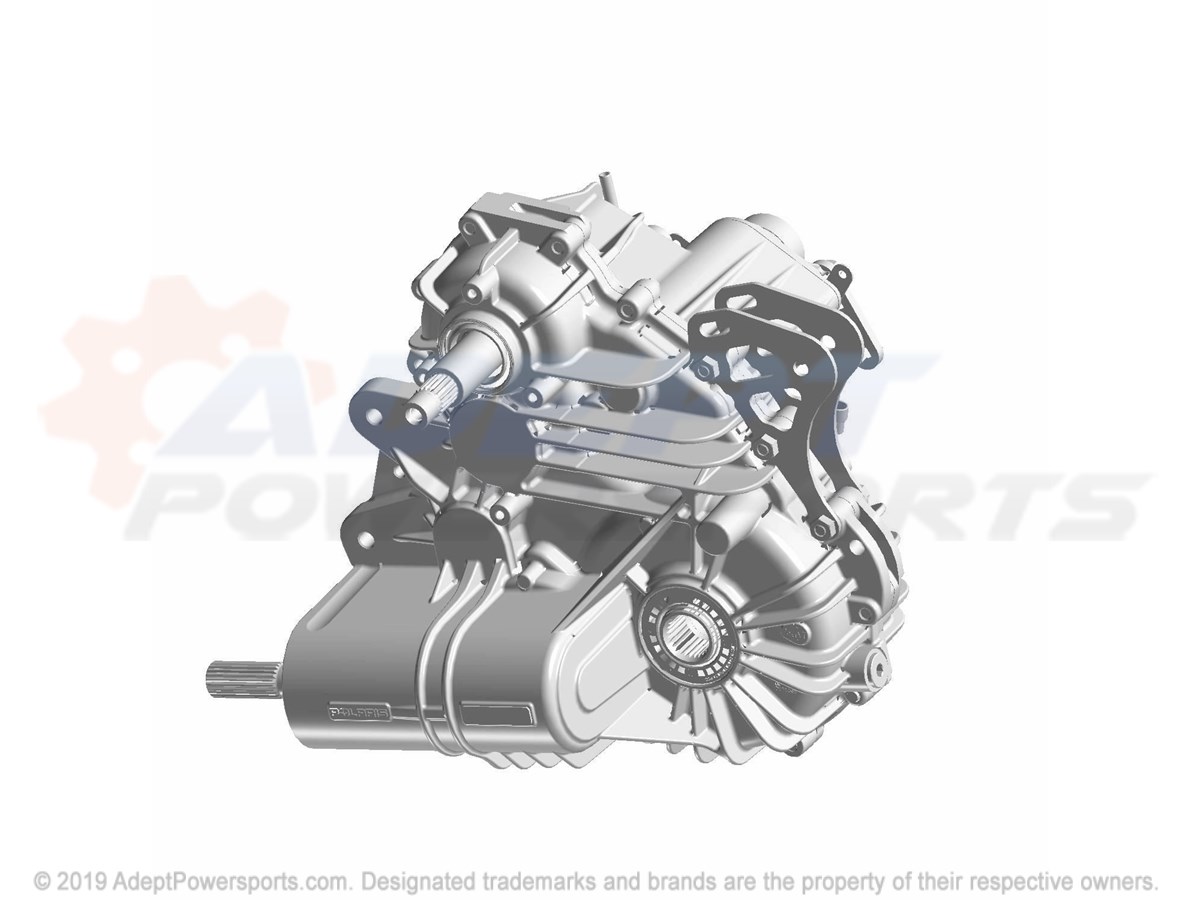

Polaris 1333121 Assembly, Gearcase, Complete

ASSEMBLY, GEARCASE, COMPLETE

Part #: 1333121 Required per assembly: 1
Currently Not Available
2
Polaris 1333242 Mount, Isolator

MOUNT, ISOLATOR

Part #: 1333242 Required per assembly: 1
Currently Not Available
3
Polaris 7080307 Clamp

CLAMP

Part #: 7080307 Required per assembly: 1 Note: Sold in multiples of 10 only
Currently Not Available
4
Polaris 7518563 Bolt, Flange

BOLT, FLANGE

Part #: 7518563 Required per assembly: 1
Currently Not Available
5
Polaris 7519097 Screw

SCREW

Part #: 7519097 Required per assembly: 2
Currently Not Available
6
Polaris 7547030 Palnut

PALNUT

Part #: 7547030 Required per assembly: 2
Currently Not Available
7

NUT, FLANGE

Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok
Currently Not Available
8
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 1 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
9
Polaris 8450003-1525 Fuel, Line, 1/4, Id(1525, Cm.)

FUEL, LINE, 1/4, ID(1525, CM.)

Part #: 8450003-1525
Currently Not Available
