Exhaust System - Z14ST1EAM/EAW Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

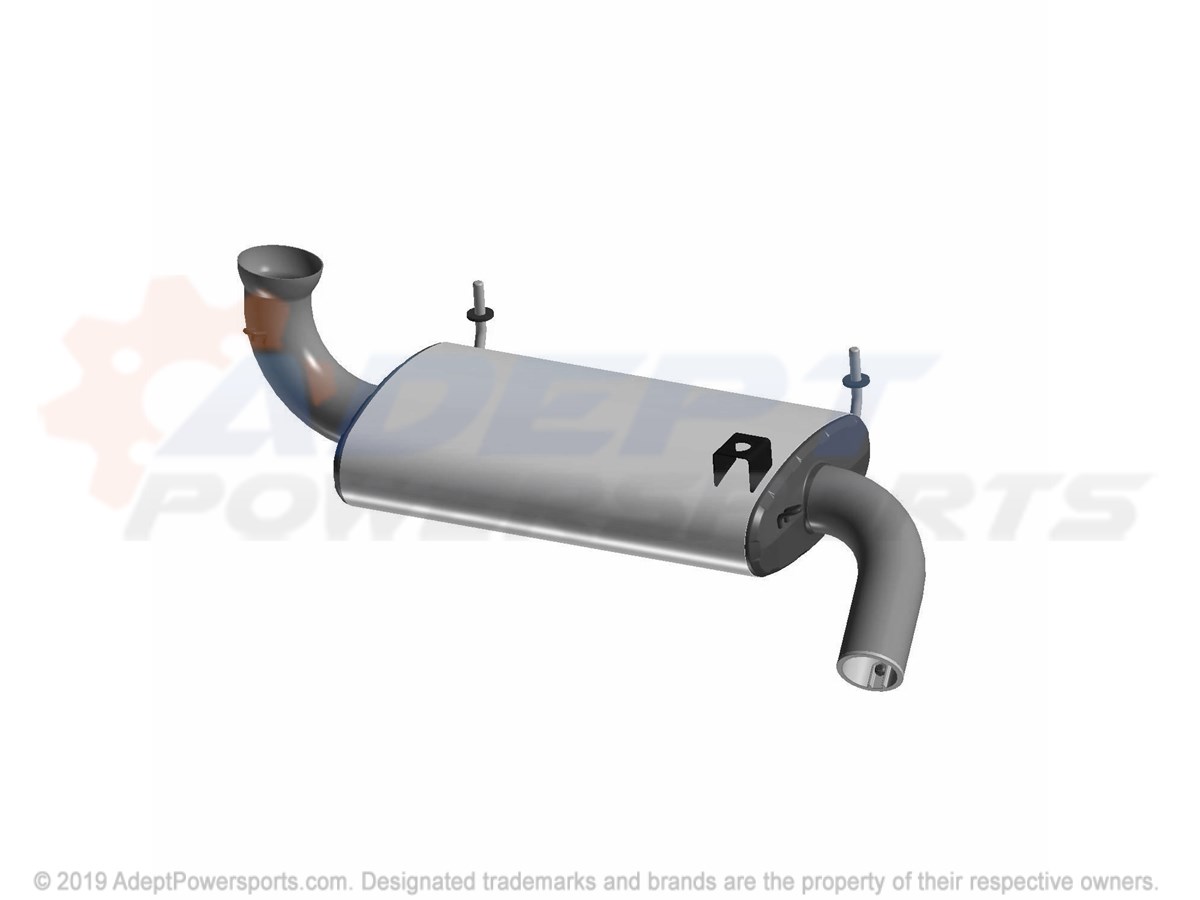

1	ASSEMBLY, SILENCER Part #: 1262395 Required per assembly: 1 Note: INCL. 2-4 Currently Not Available
2	ARRESTOR, SPARK Part #: 1262390 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
4	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
5	GASKET, EXHAUST, SEAL Part #: 3610184 Required per assembly: 1 Currently Not Available
6	SHIELD-BOX, FRONT Part #: 5814245 Required per assembly: 1 Currently Not Available
7	SHIELD-REAR, STAINLESS Part #: 5268152 Required per assembly: 1 Currently Not Available
8	SHIELD-SILENCER Part #: 5263543 Required per assembly: 1 Currently Not Available
9	SHIELD-ACCESS PANEL Part #: 5262942 Required per assembly: 1 Currently Not Available
10	SPRING-EXHAUST Part #: 7041789 Required per assembly: 4 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
11	SCREW Part #: 7518984 Required per assembly: 6 Currently Not Available
12	SCREW Part #: 7519045 Required per assembly: 4 Currently Not Available
13	SEAL, EXHAUST, SOCKET Part #: 3610211 Required per assembly: 1 ~~$34.99~~ $20.52 - + Add to cart
14	RIVET Part #: 7661855 Required per assembly: 13 ~~$2.99~~ $1.73 - + Add to cart

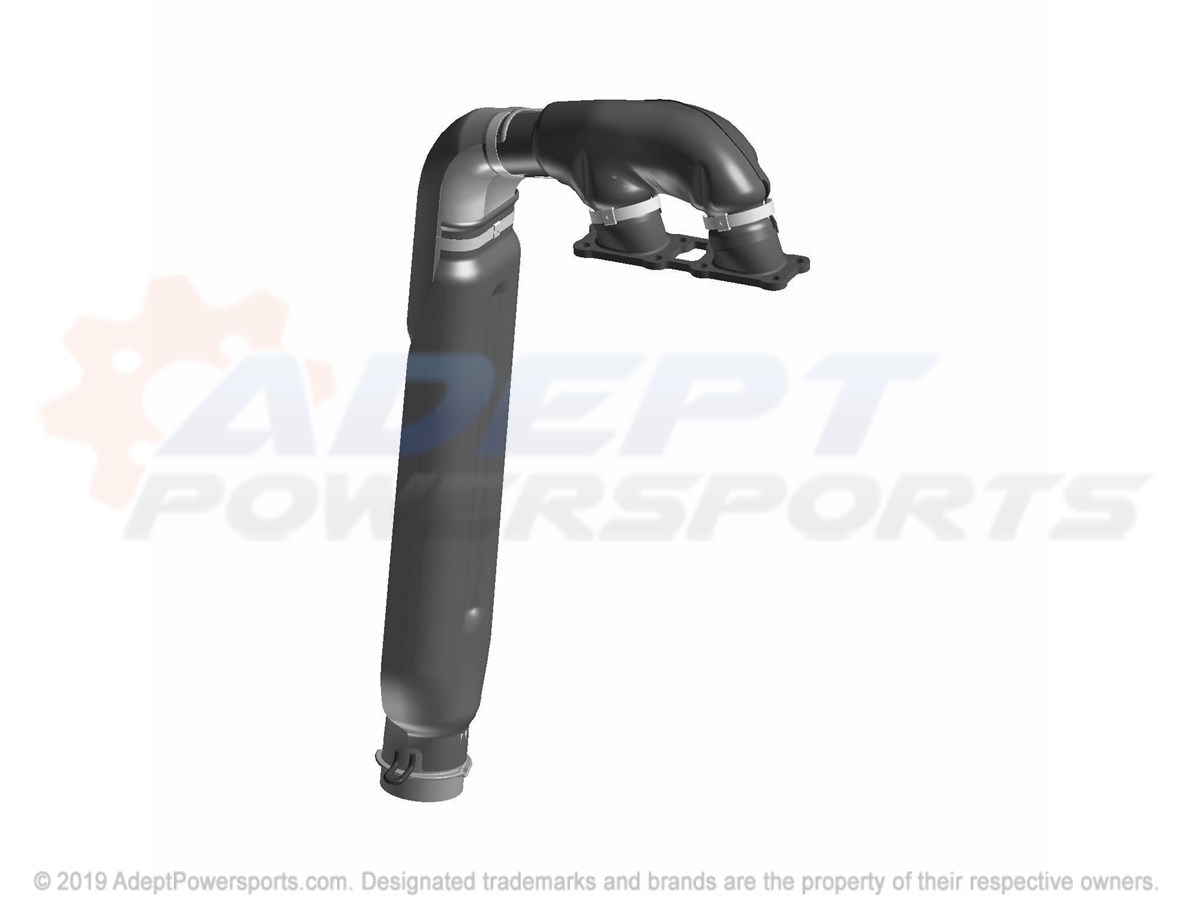

15	ASSEMBLY, HEADPIPE Part #: 1262392 Required per assembly: 1 Currently Not Available
16	MOUNT, ISOLATOR Part #: 5450115 Required per assembly: 2 Currently Not Available
17	SHIELD-REAR, STAINLESS Part #: 5268152 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
