Secondary Clutch - Z14st1eam/Eaw replacement parts for 2014 Polaris RZR XP 1000

OEM Parts Polaris 2014 Polaris RZR XP 1000 Secondary Clutch - Z14st1eam/Eaw

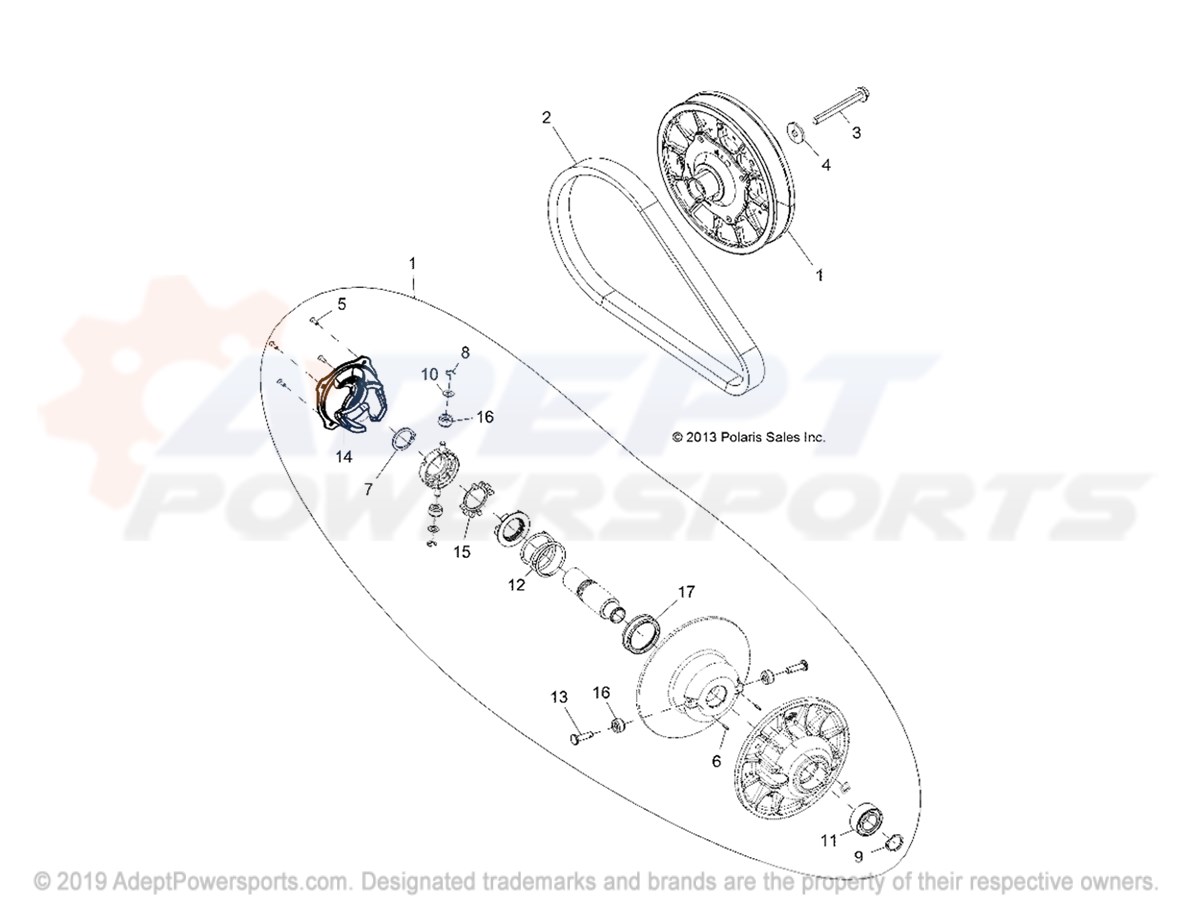

Secondary Clutch - Z14ST1EAM/EAW Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, DRIVEN, TIED Part #: 1323060 Required per assembly: 1 Note: INCL. 5-17 Currently Not Available
1	ASSEMBLY, DRIVEN, TIED Part #: 1323060 Required per assembly: 1 Note: INCL. 5-17 Currently Not Available
2	BELT-DRIVE 10.5 CD Part #: 3211148 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7519043 Required per assembly: 1 Note: Bolt $9.99 $5.75 - + Add to cart
4	WASHER Part #: 7556130 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
5	SCREW-HELIX PATCH Part #: 3234754 Required per assembly: 4 Currently Not Available
6	PIN, SPRING, SLOTTED Part #: 3234202 Required per assembly: 2 Currently Not Available
7	RING, RETAINING, EXT, 1.500 Part #: 7710522 Required per assembly: 1 Currently Not Available
8	E-RING, RETAINING, (1322551) Part #: 7710523 Required per assembly: 2 Note: E-Ring, Retaining Currently Not Available
9	RING, RETAINING, [1322419] Part #: 3234205 Required per assembly: 1 Note: Ring, Retaining Currently Not Available
10	WASHER, THRUST, (1322551) Part #: 7556226 Required per assembly: 2 Note: Washer, Thrust Currently Not Available
11	BEARING, BALL Part #: 3234203 Required per assembly: 1 Currently Not Available
12	SPRING, COMPRESSION, YELLOW Part #: 3234452 Required per assembly: 1 Currently Not Available
13	PIN, ROLLER Part #: 3234201 Required per assembly: 2 Currently Not Available
14	ASSEMBLY, CAM, EBS Part #: 3235552 Required per assembly: 1 Currently Not Available
15	K-CLUTCH, PTD, SPIDER, DAMPER Part #: 2206554 Required per assembly: 1 Currently Not Available
16	ROLLER Part #: 5434534 Required per assembly: 4 Currently Not Available
16	ROLLER Part #: 5434534 Required per assembly: 4 Currently Not Available
