OEM Parts Polaris 2014 Polaris RZR XP 1000 Front Prop Shaft - Z14st1eam/Eaw

2014 Polaris RZR XP 1000 Z14ST1EAM/EAW - Front Prop Shaft - Z14st1eam/Eaw

Front Prop Shaft - Z14ST1EAM/EAW Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

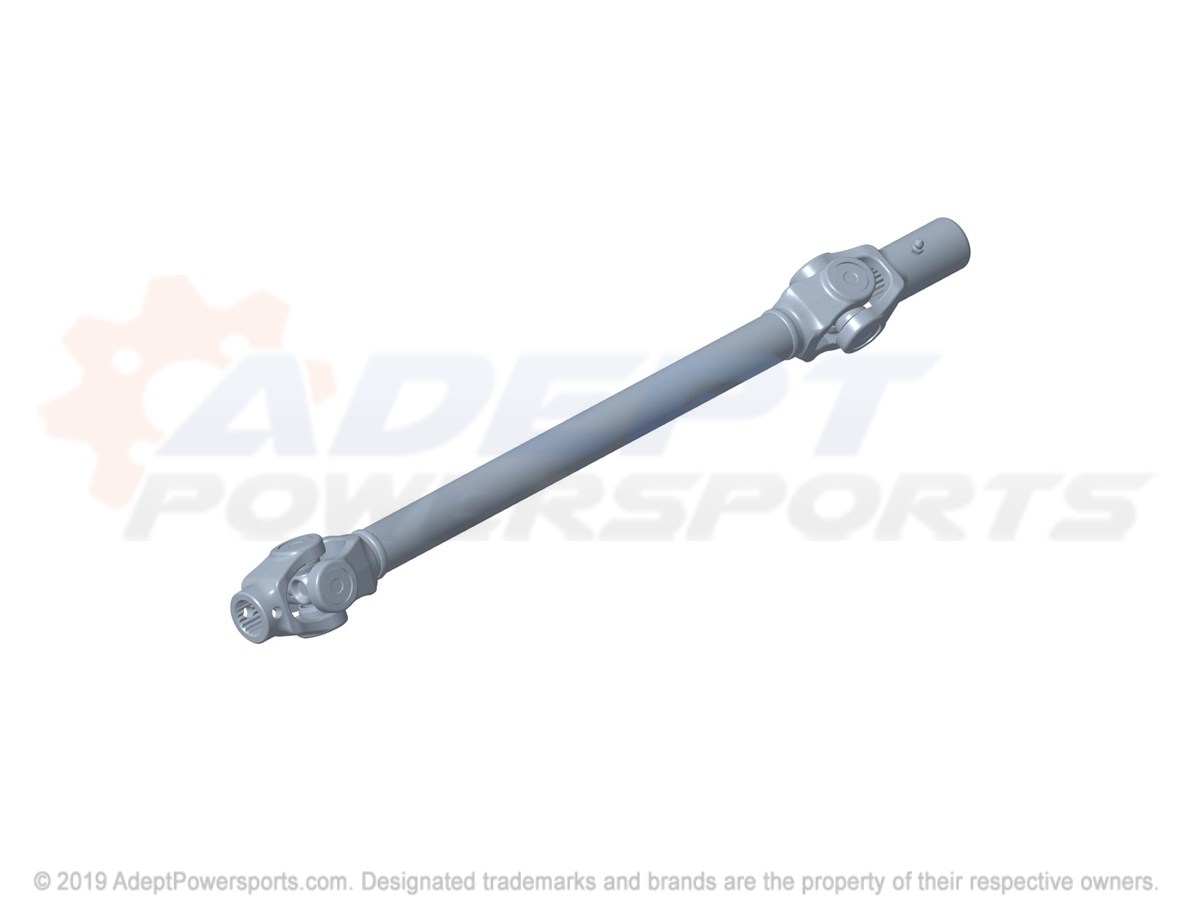

Polaris 1334187 Asm-Propshaft, Front

ASM-PROPSHAFT, FRONT

Part #: 1334187 Required per assembly: 1 Note: INCL. 2-5
Currently Not Available
1
Polaris 1334187 Asm-Propshaft, Front

ASM-PROPSHAFT, FRONT

Part #: 1334187 Required per assembly: 1 Note: INCL. 2-5
Currently Not Available
5
Polaris 7080424 Fitting, Lube.

FITTING, LUBE.

Part #: 7080424 Required per assembly: 1 Note: Fitting, Lubrication
Currently Not Available
5
Polaris 7080424 Fitting, Lube.

FITTING, LUBE.

Part #: 7080424 Required per assembly: 1 Note: Fitting, Lubrication
Currently Not Available
6

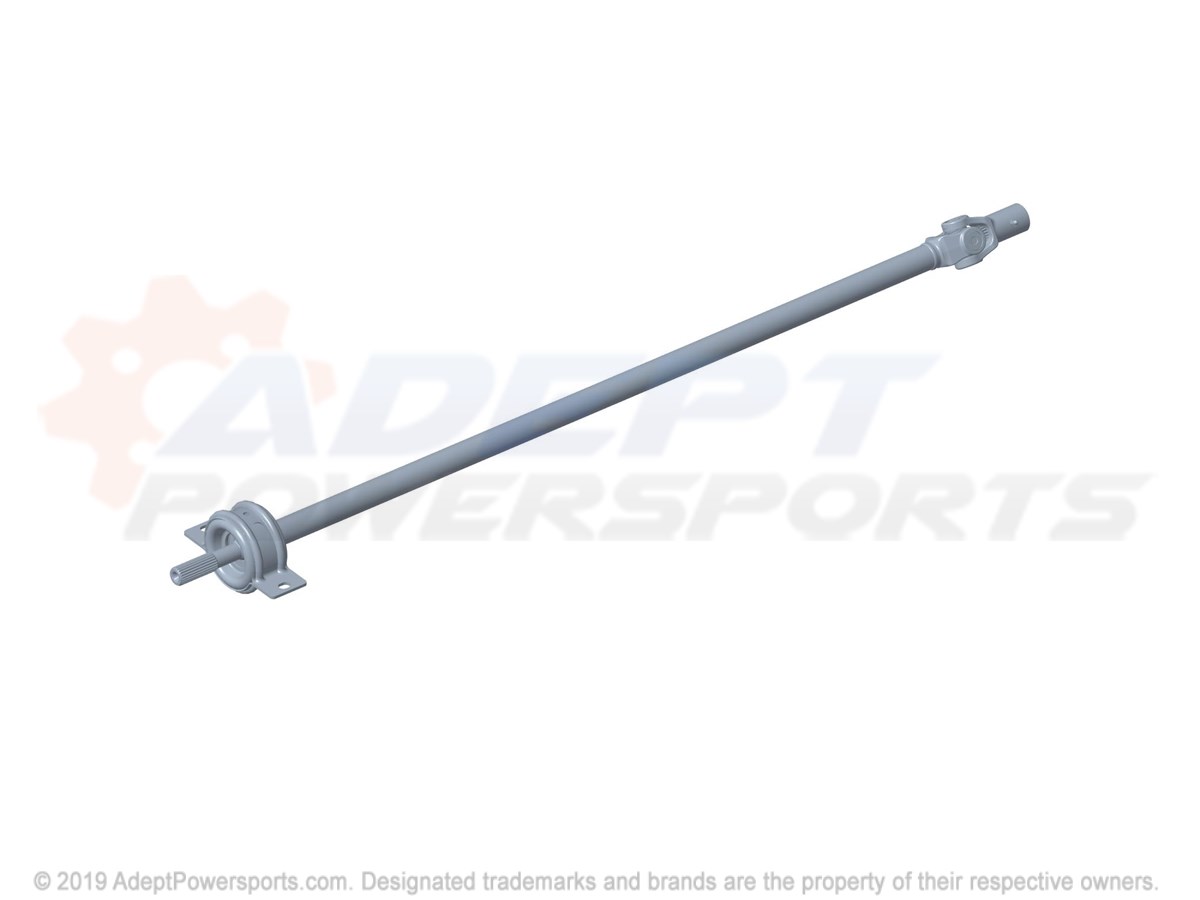

Polaris 1333424 Asm-Propshaft, Rear

ASM-PROPSHAFT, REAR

Part #: 1333424 Required per assembly: 1 Note: INCL. 7, 1 QTY OF 3, 1 QTY OF 5,8
Currently Not Available
6
Polaris 1333424 Asm-Propshaft, Rear

ASM-PROPSHAFT, REAR

Part #: 1333424 Required per assembly: 1 Note: INCL. 7, 1 QTY OF 3, 1 QTY OF 5,8
Currently Not Available
9
Polaris 5411965 O-Ring

O-RING

Part #: 5411965 Required per assembly: 1
Currently Not Available
10
Polaris 7518460 Screw

SCREW

Part #: 7518460 Required per assembly: 2 Note: Screw, Flange
Currently Not Available
11
Polaris 7555852 Washer, Flat

WASHER, FLAT

Part #: 7555852 Required per assembly: 2 Note: Washer, Flat
Currently Not Available
12
Polaris 7661913 Pin, Spring

PIN, SPRING

Part #: 7661913 Required per assembly: 1 Note: Sold in multiples of 10 only
Currently Not Available
