Grab Bar, Passenger - Z14st1eam/Eaw replacement parts for 2014 Polaris RZR XP 1000

OEM Parts Polaris 2014 Polaris RZR XP 1000 Grab Bar, Passenger - Z14st1eam/Eaw

Grab Bar, Passenger - Z14ST1EAM/EAW Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GRAB BAR Part #: 2634200 Required per assembly: 1 Currently Not Available
2	5/16X1 3/4 PIN HITCH TAB DBLWI Part #: 7661962 Required per assembly: 1 Currently Not Available

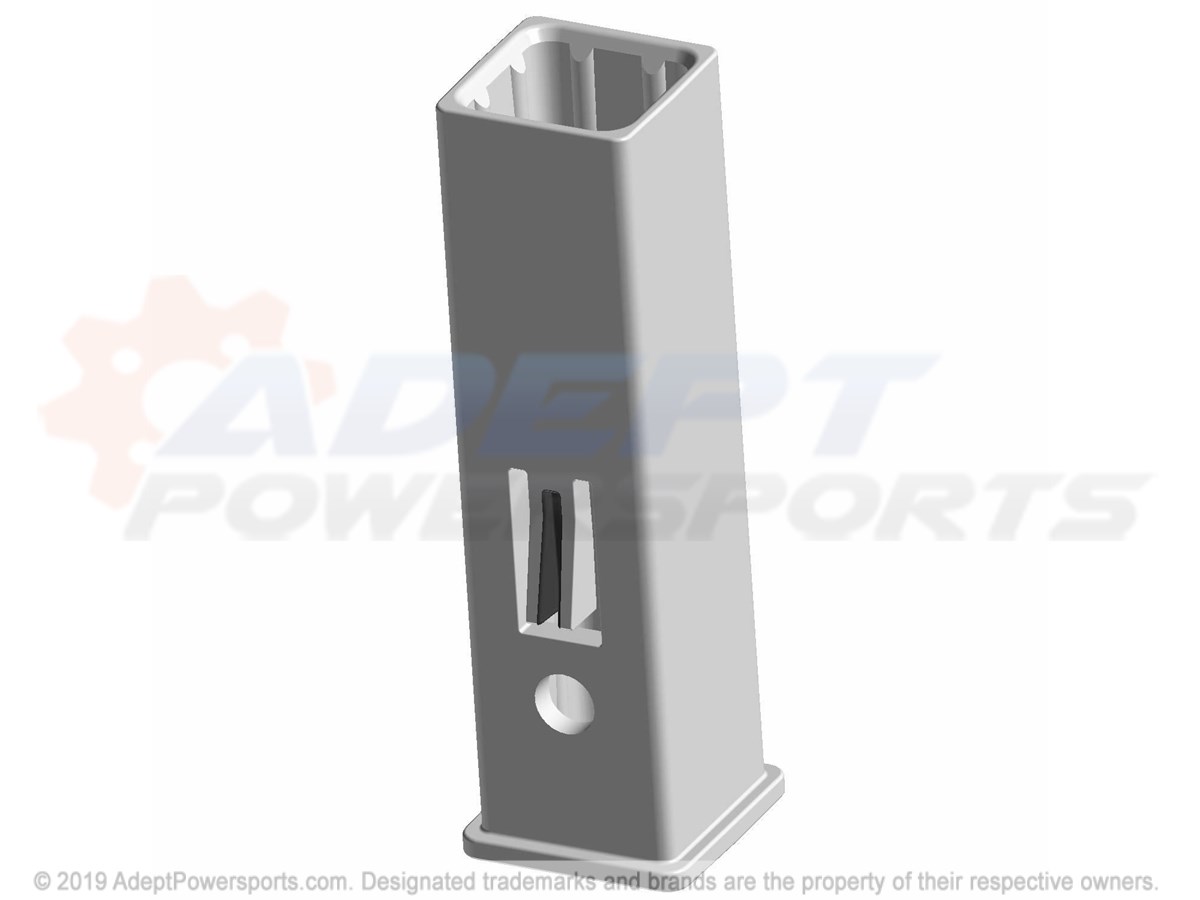

3	BUSHING, GRAB, BAR Part #: 5450250 Required per assembly: 2 Currently Not Available
3	BUSHING, GRAB, BAR Part #: 5450250 Required per assembly: 2 Currently Not Available
