FRONT CONTROL ARMS - R16RGE99A7/AE/AV (700833) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

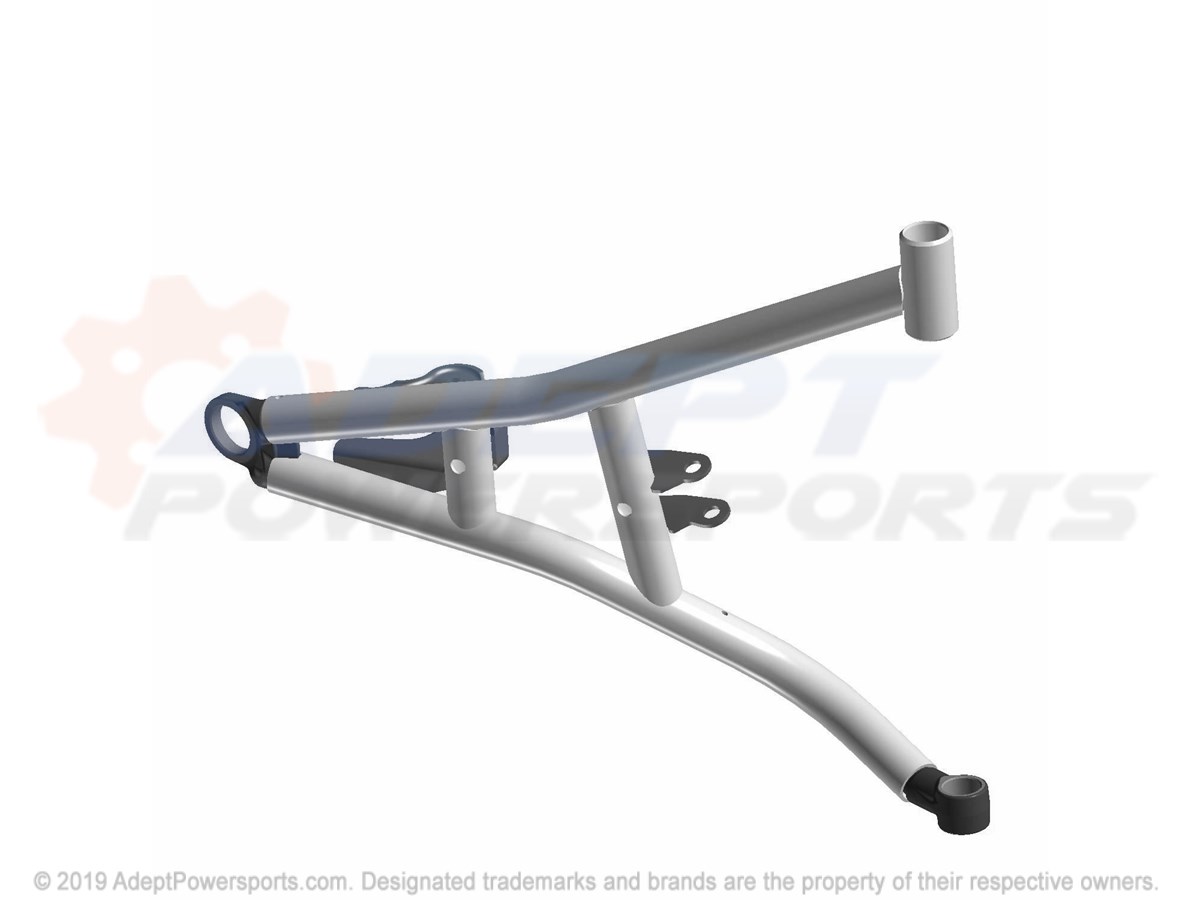

Polaris 1021416-133 Weld-Ctrl, Arm, Lwr, Frt, Lh, 60, Wt

WELD-CTRL, ARM, LWR, FRT, LH, 60, WT

Part #: 1021416-133 Required per assembly: 1 Note: AE
Currently Not Available
1
Polaris 1021416-458 Weld-Ctrl, Arm, Lwr, Frt, Lh, 60, Bl

WELD-CTRL, ARM, LWR, FRT, LH, 60, BL

Part #: 1021416-458 Required per assembly: 1 Note: A7
Currently Not Available
2

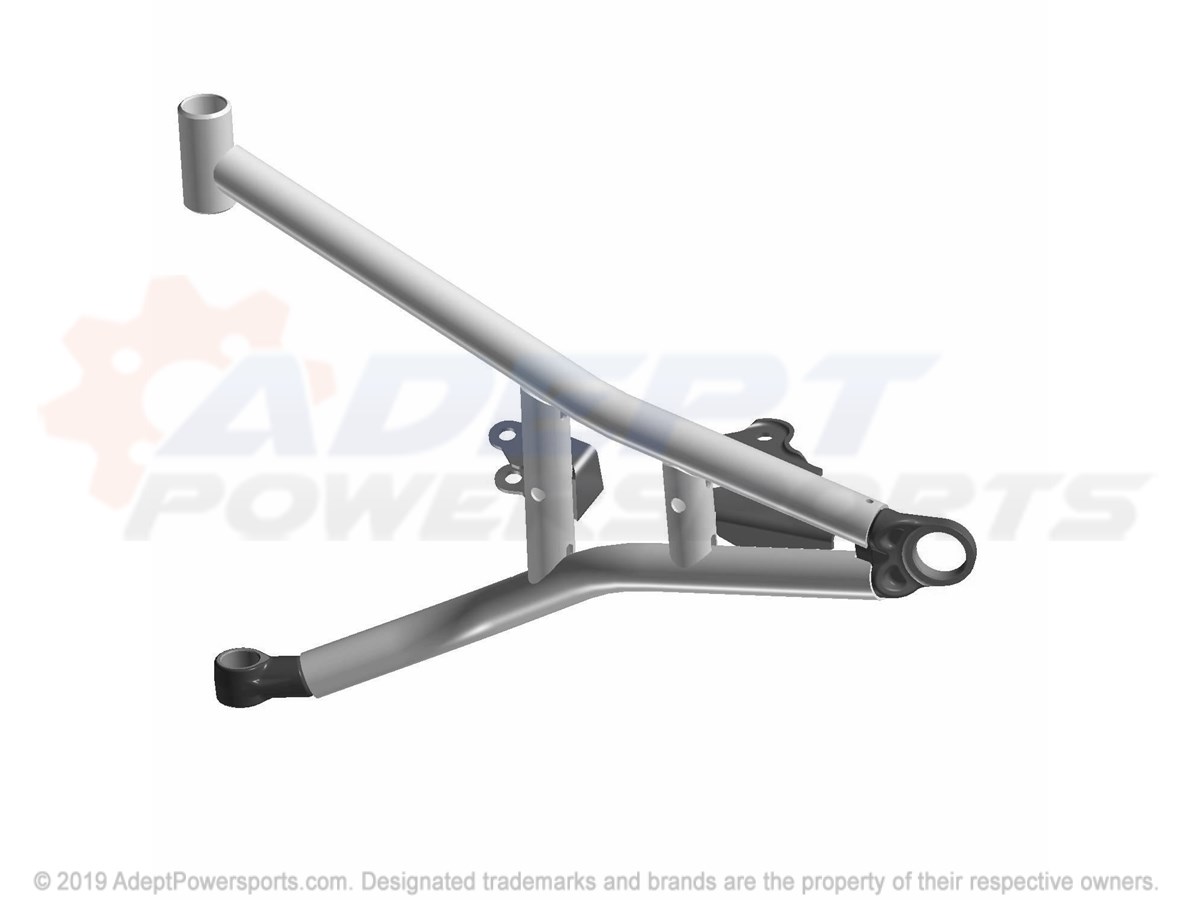

Polaris 1021417-133 Weld-Ctrl, Arm, Lwr, Frt, Rh, 60, Wt

WELD-CTRL, ARM, LWR, FRT, RH, 60, WT

Part #: 1021417-133 Required per assembly: 1 Note: AE
Currently Not Available
2
Polaris 1021417-458 Weld-Ctrl, Arm, Lwr, Frt, Rh, 60, Bl

WELD-CTRL, ARM, LWR, FRT, RH, 60, BL

Part #: 1021417-458 Required per assembly: 1 Note: A7
Currently Not Available
3
Polaris 1543611 Asm-Pivot, Cap, Sealed, M10

ASM-PIVOT, CAP, SEALED, M10

Part #: 1543611 Required per assembly: 12
Currently Not Available
4
Polaris 5139966 Shaft-Pivot, Short, M10

SHAFT-PIVOT, SHORT, M10

Part #: 5139966 Required per assembly: 6
Currently Not Available
5
Polaris 5452233 Bushing-Standard, Susp, M10

BUSHING-STANDARD, SUSP, M10

Part #: 5452233 Required per assembly: 12
Currently Not Available
6
Polaris 7519043 Screw

SCREW

Part #: 7519043 Required per assembly: 6 Note: Bolt
Currently Not Available
7
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 8 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
8
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 8 Note: Washer
$3.99
$2.30
-
+
Add to cart
9
Polaris 1021418-133 Weld-Ctrl, Arm, Upr, Frt, Lh, 60, Wt

WELD-CTRL, ARM, UPR, FRT, LH, 60, WT

Part #: 1021418-133 Required per assembly: 1 Note: AE
Currently Not Available
9
Polaris 1021418-458 Weld-Ctrl, Arm, Upr, Frt, Lh, 60, Bl

WELD-CTRL, ARM, UPR, FRT, LH, 60, BL

Part #: 1021418-458 Required per assembly: 1 Note: A7
Currently Not Available
10
Polaris 1021419-458 Weld-Ctrl, Arm, Upr, Frt, Rh, 60, Bl

WELD-CTRL, ARM, UPR, FRT, RH, 60, BL

Part #: 1021419-458 Required per assembly: 1 Note: A7
Currently Not Available
10
Polaris 1021419-133 Weld-Ctrl, Arm, Upr, Frt, Rh, 60, Wt

WELD-CTRL, ARM, UPR, FRT, RH, 60, WT

Part #: 1021419-133 Required per assembly: 1 Note: AE
Currently Not Available
11
Polaris 5138276 Tube, Pivot

TUBE, PIVOT

Part #: 5138276 Required per assembly: 2 Note: 29.2 MM
$19.99
$11.50
-
+
Add to cart
12
Polaris 5450095 Bushing, Control, Arm

BUSHING, CONTROL, ARM

Part #: 5450095 Required per assembly: 4
Currently Not Available
13
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 2
Currently Not Available
