Winch - R16rge99ae/Av (700792) replacement parts for 2016 Polaris General 1000 EPS (R26)

OEM Parts Polaris 2016 Polaris General 1000 EPS (R26) Winch - R16rge99ae/Av (700792)

WINCH - R16RGE99AE/AV (700792) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOOK, LATCH Part #: 2411836 Required per assembly: 1 Note: INCL 2 Currently Not Available
2	STRAP-WINCH, HOOK Part #: 7082085 Required per assembly: 1 Currently Not Available

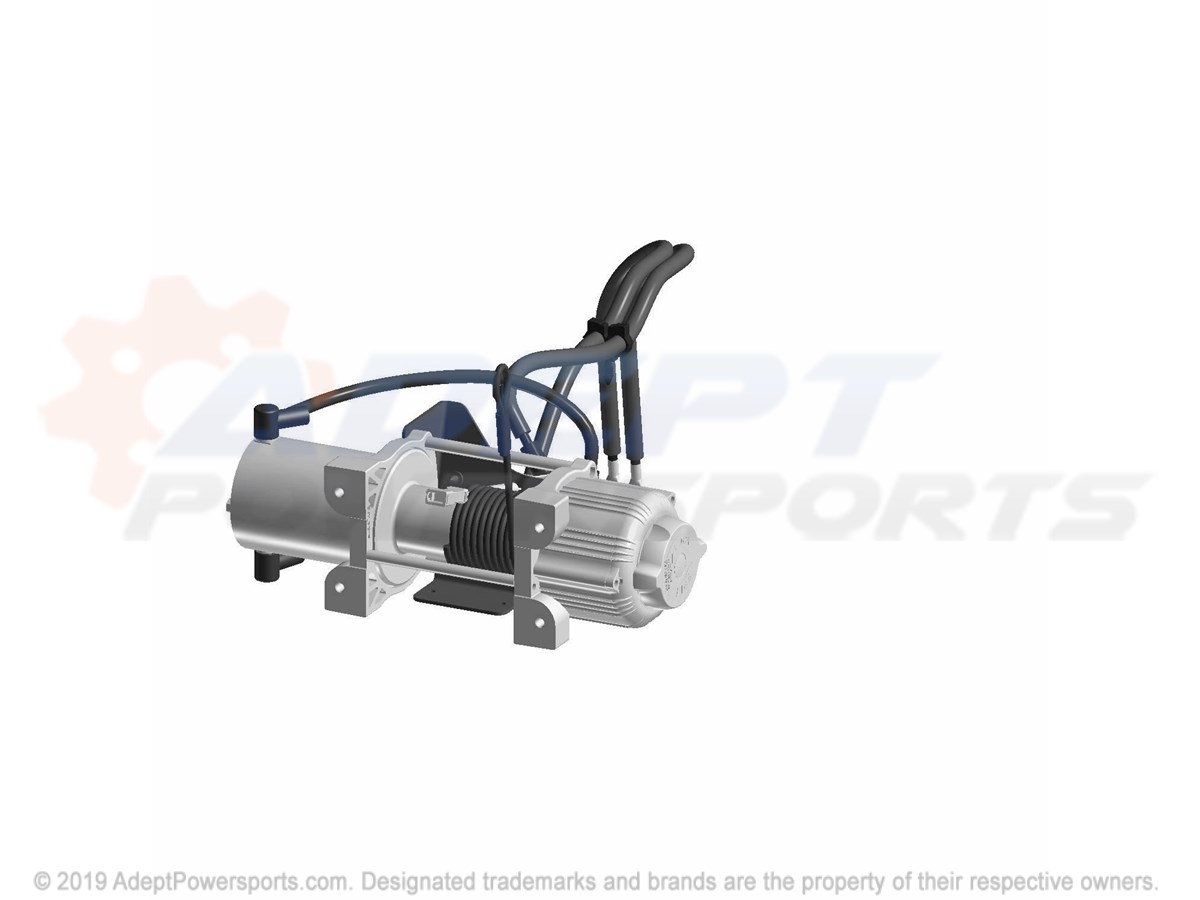

3	ASM-WINCH, W/CNTCTR, 4500, XOVR Part #: 2635954 Required per assembly: 1 Note: INCL 4-11 Currently Not Available
3	ASM-WINCH, W/CNTCTR, 45V2, XOVR Part #: 2636518 Required per assembly: 1 Note: FROM 1/15/17 Currently Not Available
4	WINCH-POLARIS, 4.5, BTM, SPL Part #: 2204855 Required per assembly: 1 Currently Not Available
5	CABLE, WINCH, STEEL Part #: 2878889 Required per assembly: 1 Currently Not Available
6	CABLE-WINCH, YELLOW, 6, GA, 235MM Part #: 4013468-235 Required per assembly: 1 Currently Not Available
7	CABLE-WINCH, BLUE, 6, GA, 300MM Part #: 4013469-300 Required per assembly: 1 Currently Not Available
8	CONTACTOR-INT, UVRSL Part #: 4015600 Required per assembly: 1 Currently Not Available
9	CABLE-CONTACTOR TO TERM BLOCK Part #: 4015748 Required per assembly: 1 Currently Not Available
10	BRKT-CONTACTOR, MOUNT, XOVR Part #: 5261142 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
12	BRKT-WINCHMOUNT, GNRL, BLK Part #: 5263364-458 Required per assembly: 1 Currently Not Available
13	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7519133 Required per assembly: 4 Currently Not Available
15	SCREW Part #: 7519372 Required per assembly: 6 Currently Not Available
16	NUT Part #: 7547423 Required per assembly: 6 Currently Not Available
17	ROLLER, FAIRLEAD Part #: 2411847 Required per assembly: 1 Currently Not Available
