Front Wheel - R16rge99a7/Ae/Av (700843) replacement parts for 2016 Polaris General 1000 EPS (R26)

OEM Parts Polaris 2016 Polaris General 1000 EPS (R26) Front Wheel - R16rge99a7/Ae/Av (700843)

FRONT WHEEL - R16RGE99A7/AE/AV (700843) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-RIM, FRONT, 12X6, 10GA, BLK Part #: 1525240-067 Required per assembly: 2 Note: A7 Currently Not Available
2	RIM-FRNT, 14X6, CAST, 26.2MM, MBLK Part #: 1522494-458 Required per assembly: 2 Note: AE Currently Not Available
3	CAP-RIM Part #: 1522498 Required per assembly: 2 Note: AE Currently Not Available
4	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
4	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available

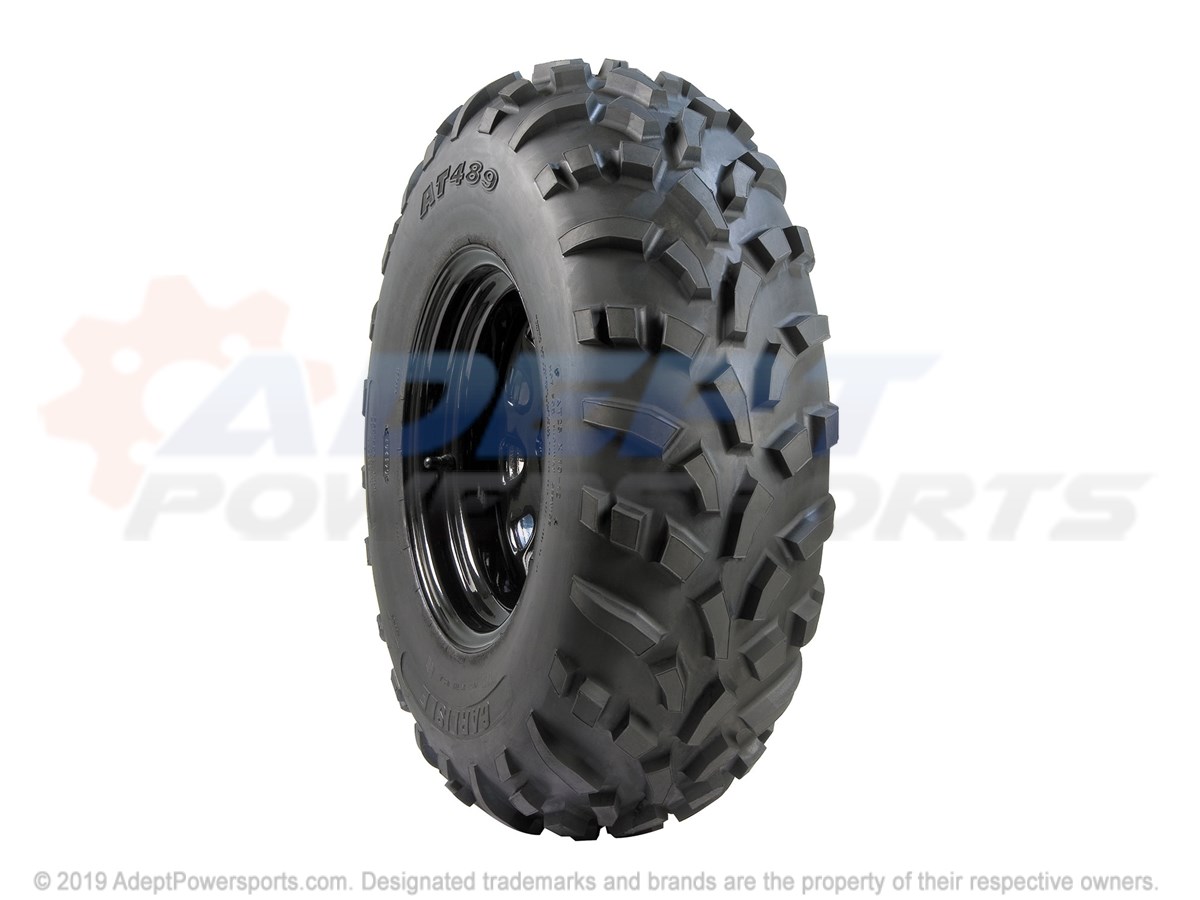

5	TIRE-FRONT, 27X9-12, 6, PR Part #: 5415456 Required per assembly: 2 Note: A7 Currently Not Available
6	TIRE-FRONT, 27X9-14 Part #: 5415346 Required per assembly: 2 Note: AE Currently Not Available
7	NUT, WHEEL Part #: 7547489 Required per assembly: 8 Note: AE Currently Not Available
8	NUT, LUG Part #: 7547660 Required per assembly: 8 Note: A7 Currently Not Available
