OEM Parts Polaris 2016 Polaris General 1000 EPS (R26) Rear Shock Mounting - R16rge99a7/Av (700839)

2016 Polaris General 1000 EPS (R26) R16RGE99A7/AE/AV - Rear Shock Mounting - R16rge99a7/Av (700839)

REAR SHOCK MOUNTING - R16RGE99A7/AV (700839) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
2
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
3
Polaris 5438839 Spacer-Spring Nylon 2"

SPACER-SPRING NYLON 2"

Part #: 5438839 Required per assembly: 2
Currently Not Available
4

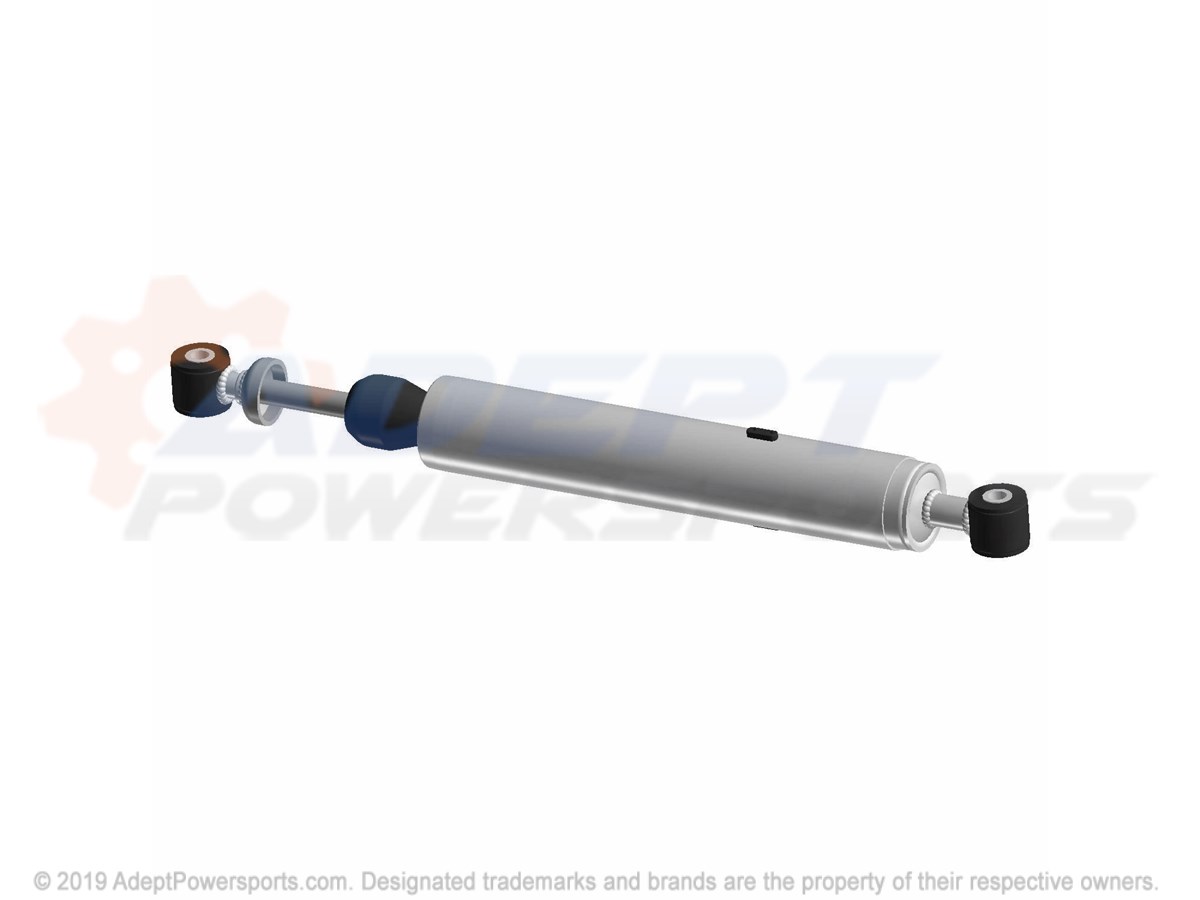

Polaris 7044681 Shock-Rear, High, Temp

SHOCK-REAR, HIGH, TEMP

Part #: 7044681 Required per assembly: 2 Note: IF BUILT AFTER 1/19/16
Currently Not Available
4
Polaris 7044681 Shock-Rear, High, Temp

SHOCK-REAR, HIGH, TEMP

Part #: 7044681 Required per assembly: 2 Note: IF BUILT BEFORE 1/18/16
Currently Not Available
5
Polaris 7044430-689 Spr-Rear, V.Blue

SPR-REAR, V.BLUE

Part #: 7044430-689 Required per assembly: 2 Note: AV
Currently Not Available
5
Polaris 7044430-458 Spr-Rear, Blk

SPR-REAR, BLK

Part #: 7044430-458 Required per assembly: 2 Note: A7
Currently Not Available
6
Polaris 7044455-689 Spr-Rear, Secondary, V.Blue

SPR-REAR, SECONDARY, V.BLUE

Part #: 7044455-689 Required per assembly: 2 Note: AV
Currently Not Available
6
Polaris 7044455-458 Spr-Rear, Secondary, Blk

SPR-REAR, SECONDARY, BLK

Part #: 7044455-458 Required per assembly: 2 Note: A7
Currently Not Available
7
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
8
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
