OEM Parts Polaris 2016 Polaris General 1000 EPS (R26) Front Shock Mounting - R16rge99a7/Av (700851)

2016 Polaris General 1000 EPS (R26) R16RGE99A7/AE/AV - Front Shock Mounting - R16rge99a7/Av (700851)

FRONT SHOCK MOUNTING - R16RGE99A7/AV (700851) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
2
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
3

SHOCK-FRONT, HIGH, TEMP

Part #: 7044682 Required per assembly: 2 Note: IF BUILT AFTER 1/19/16
Currently Not Available
3

SHOCK-FRONT, HIGH, TEMP

Part #: 7044682 Required per assembly: 2 Note: IF BUILT BEFORE 1/18/16
Currently Not Available
4

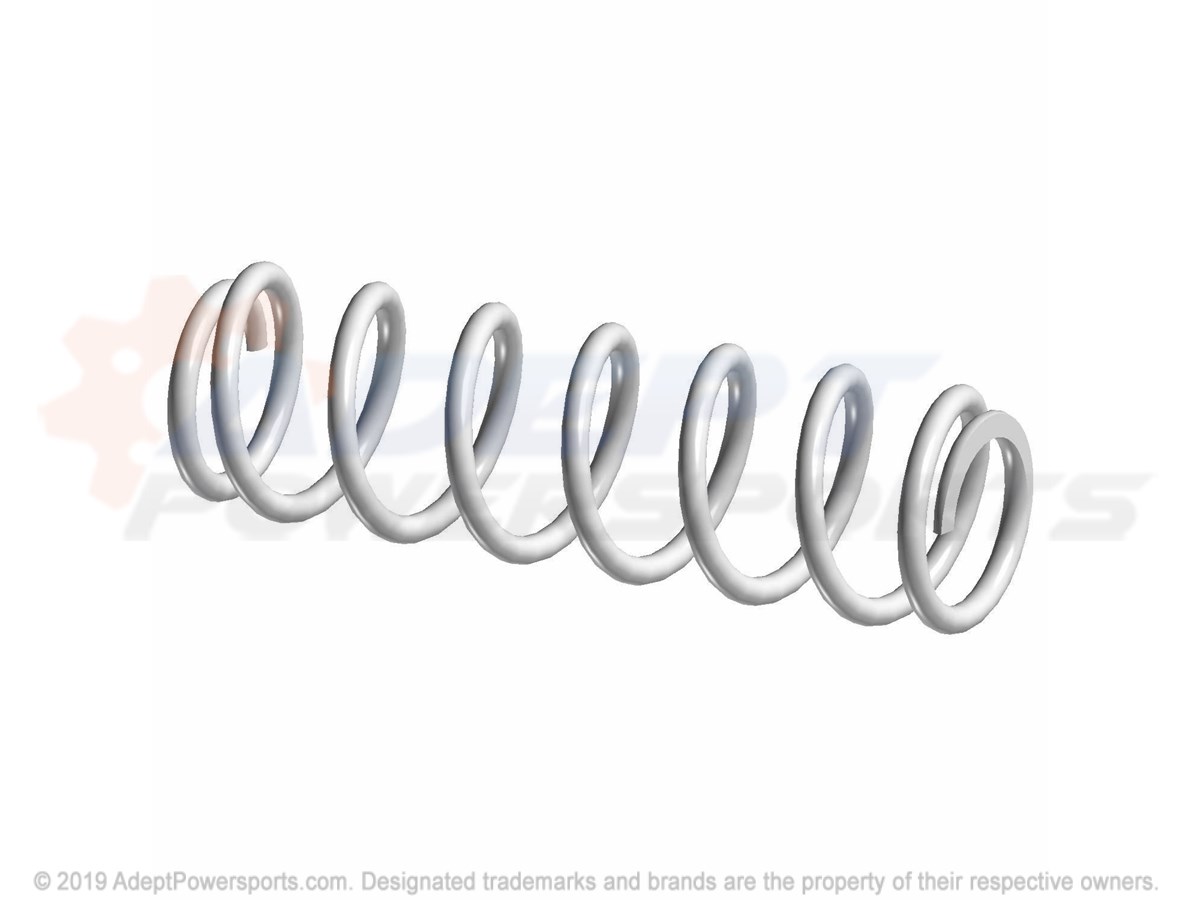

Polaris 7044429-458 Spr-Front, Blkk

SPR-FRONT, BLKK

Part #: 7044429-458 Required per assembly: 2 Note: A7
Currently Not Available
4
Polaris 7044429-689 Spr-Front, V.Blue

SPR-FRONT, V.BLUE

Part #: 7044429-689 Required per assembly: 2 Note: AV
Currently Not Available
5
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
5
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
6
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
