OEM Parts Polaris 2016 Polaris General 1000 EPS (R26) Rear Shock Mounting - R16rge99ae (700840)

2016 Polaris General 1000 EPS (R26) R16RGE99A7/AE/AV - Rear Shock Mounting - R16rge99ae (700840)

REAR SHOCK MOUNTING - R16RGE99AE (700840) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1501329 Retainer-Spring

RETAINER-SPRING

Part #: 1501329 Required per assembly: 2
Currently Not Available
2
Polaris 5438839 Spacer-Spring Nylon 2"

SPACER-SPRING NYLON 2"

Part #: 5438839 Required per assembly: 2
Currently Not Available
3

SHOCK-REAR, PIGGYBK, LH

Part #: 7045840 Required per assembly: 1
Currently Not Available
4

SHOCK-REAR, PIGGYBK, RH

Part #: 7045841 Required per assembly: 1
Currently Not Available
5

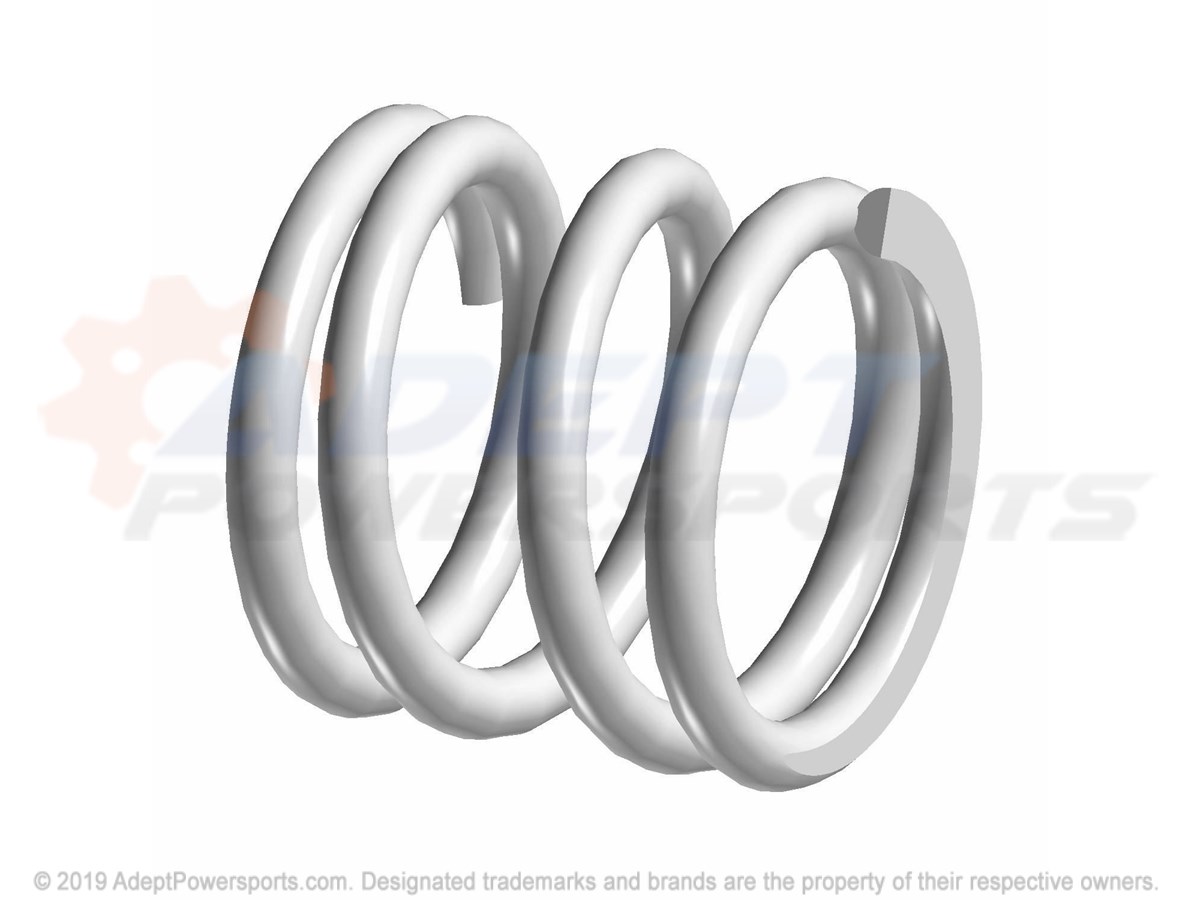

Polaris 7044580-647 Spr-480#, 2.65Fl, 2.3-2.3Id, Org

SPR-480#, 2.65FL, 2.3-2.3ID, ORG

Part #: 7044580-647 Required per assembly: 2
Currently Not Available
6

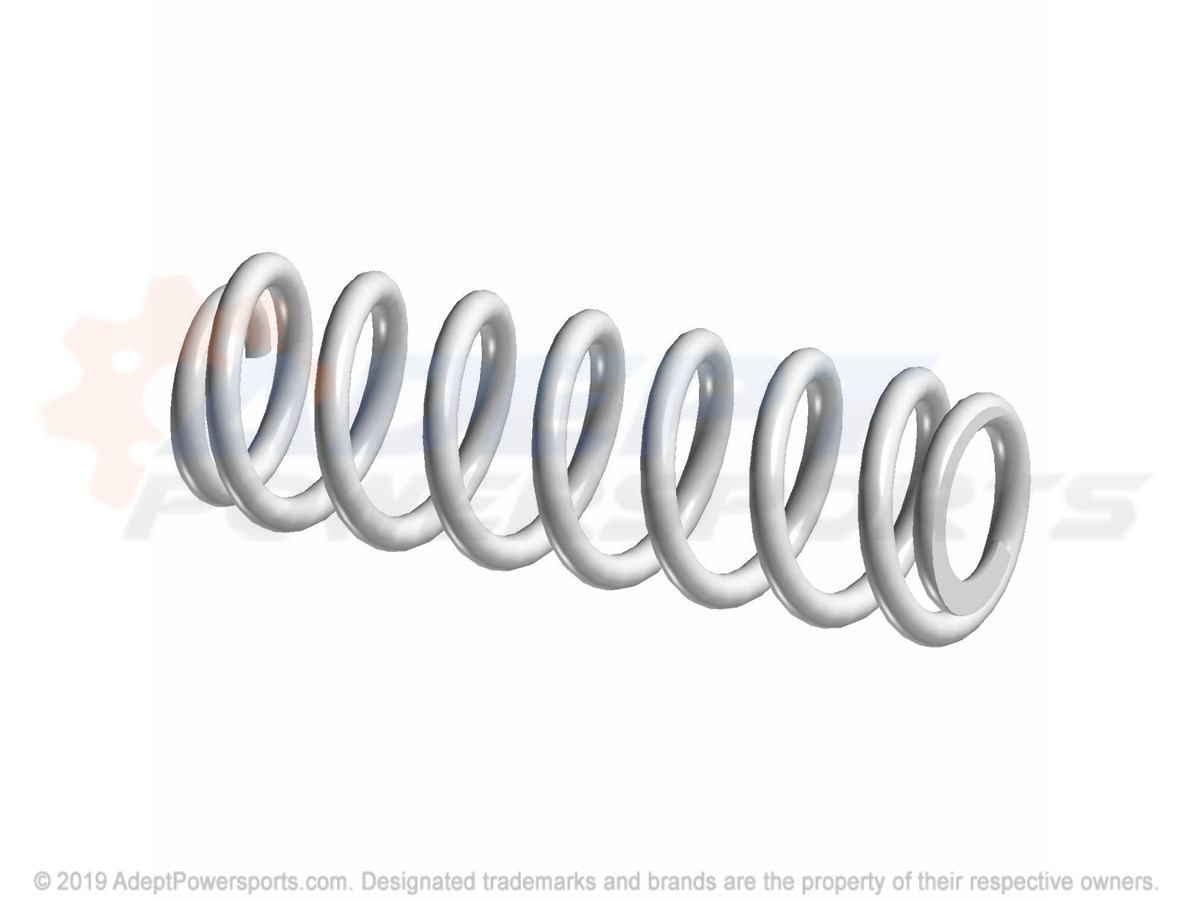

Polaris 7044579-647 Spr-350#, 13.0Fl, 2.3-2.3Id, Org

SPR-350#, 13.0FL, 2.3-2.3ID, ORG

Part #: 7044579-647 Required per assembly: 2
Currently Not Available
7
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
8
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
