Door, Half - R16rtm87al (49Rgrdoor159xp) replacement parts for 2016 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2016 Polaris Ranger 900 XP All Options Door, Half - R16rtm87al (49Rgrdoor159xp)

Door, Half - R16RTM87AL (49RGRDOOR159XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
2	WASHER Part #: 5439712 Required per assembly: 4 Currently Not Available
3	ACTUATOR-LATCH, RH Part #: 5450912 Required per assembly: 1 Currently Not Available
3	ACTUATOR-LATCH, LH Part #: 5450911 Required per assembly: 1 Currently Not Available

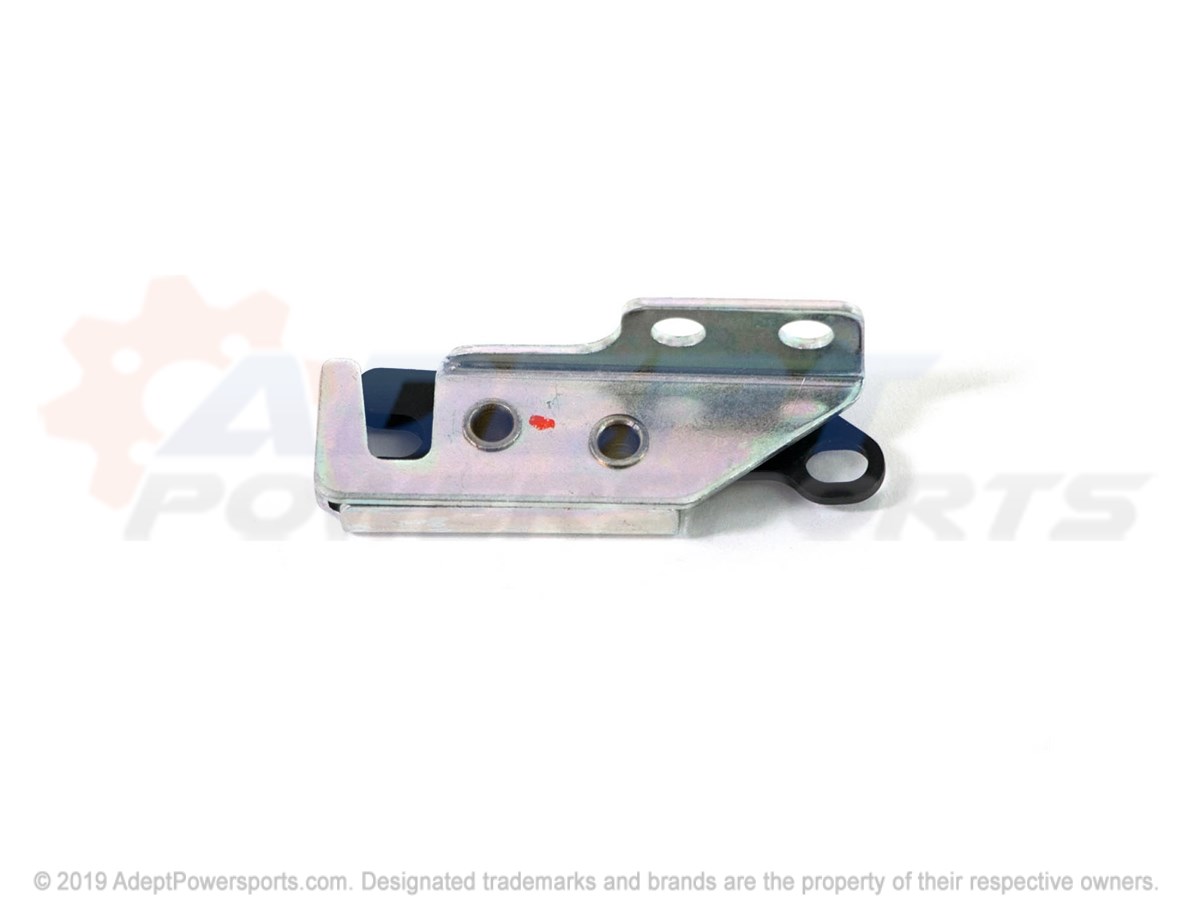

4	ASSEMBLY, LATCH, DOOR, RH Part #: 2635310 Required per assembly: 1 Currently Not Available

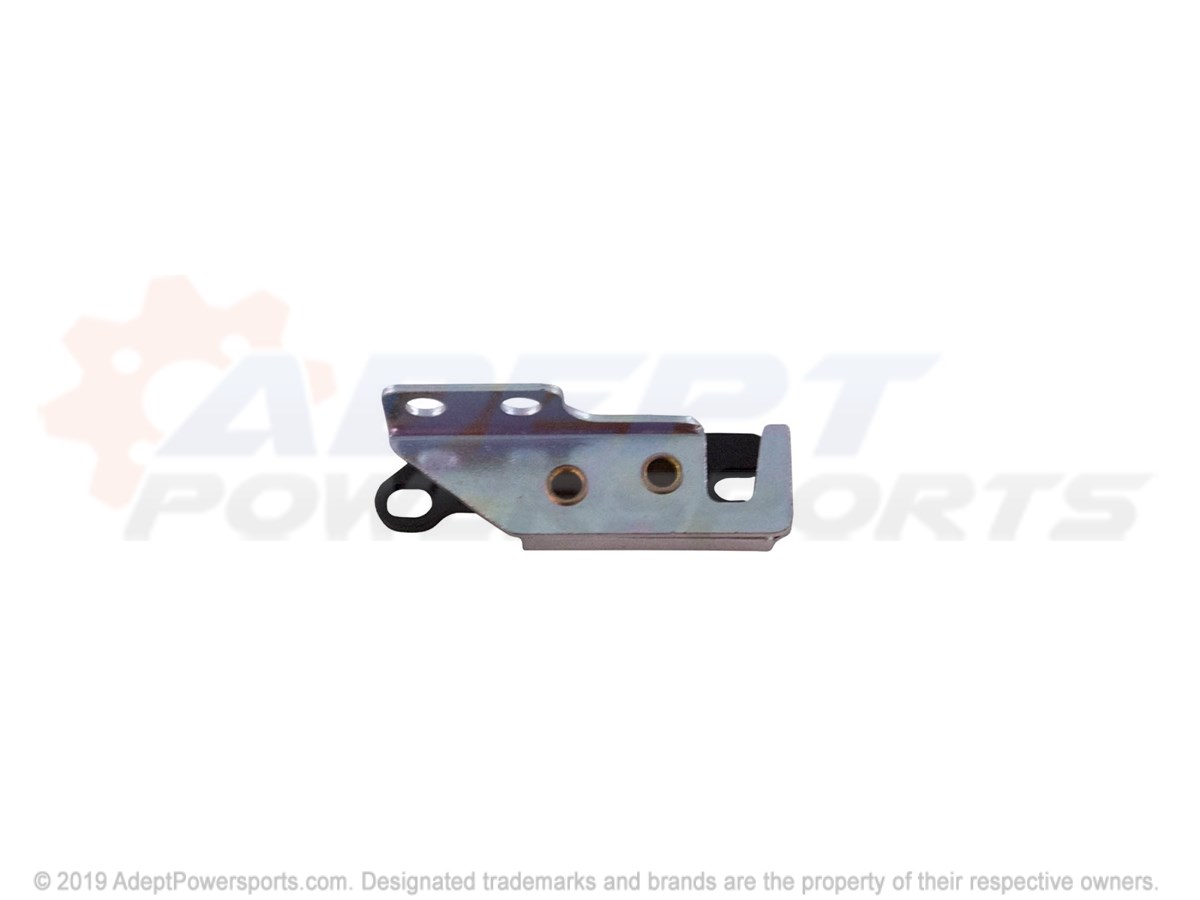

4	ASSEMBLY, LATCH, DOOR, LH Part #: 2635309 Required per assembly: 1 Currently Not Available

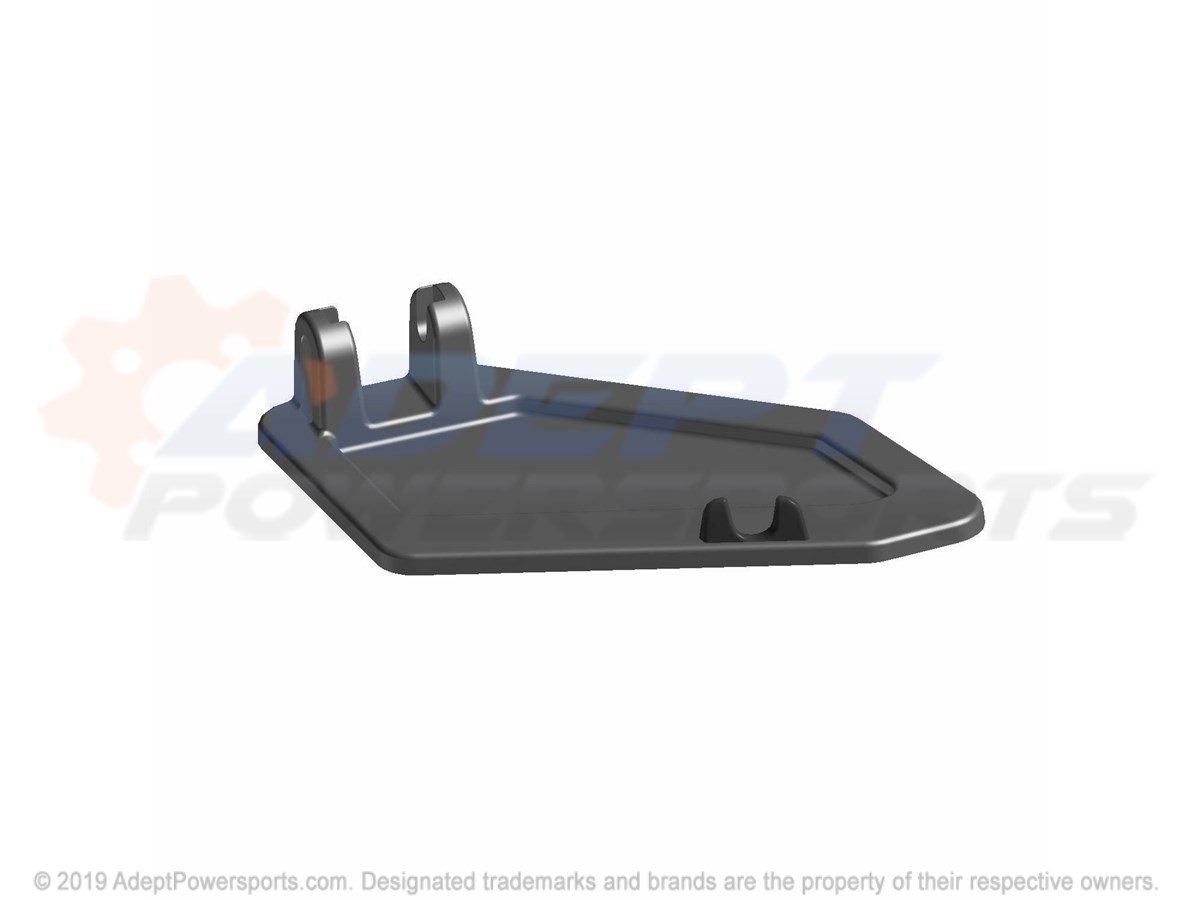

5	BRACKET, HINGE, SUPPORT, MATTE, BLACK Part #: 5258730-458 Required per assembly: 2 Currently Not Available

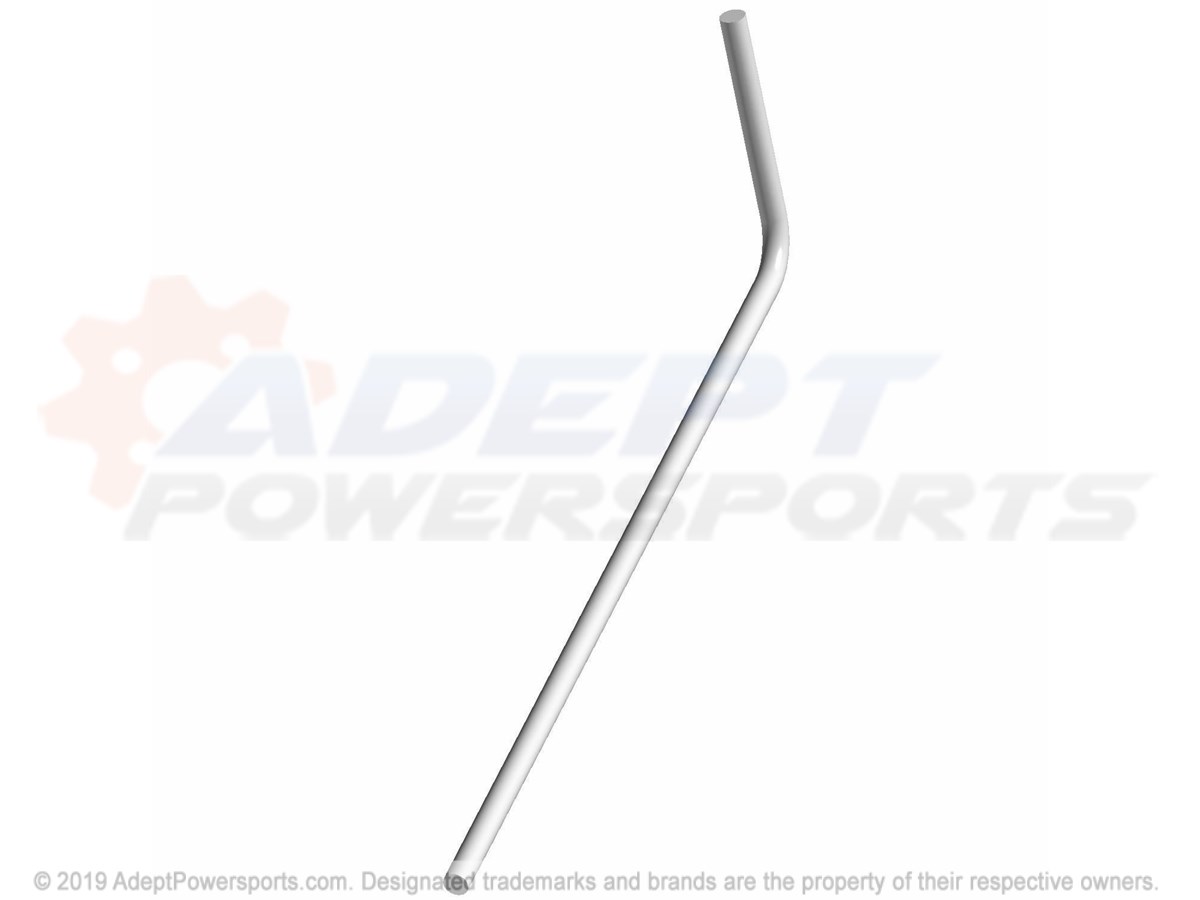

6	ROD, DOOR, LATCH Part #: 5338187 Required per assembly: 2 Currently Not Available
7	GROMMET-SEATFILLER, TRUNK Part #: 5413464 Required per assembly: 2 Currently Not Available
8	BUMPER, RECESS Part #: 5414486 Required per assembly: 6 Currently Not Available

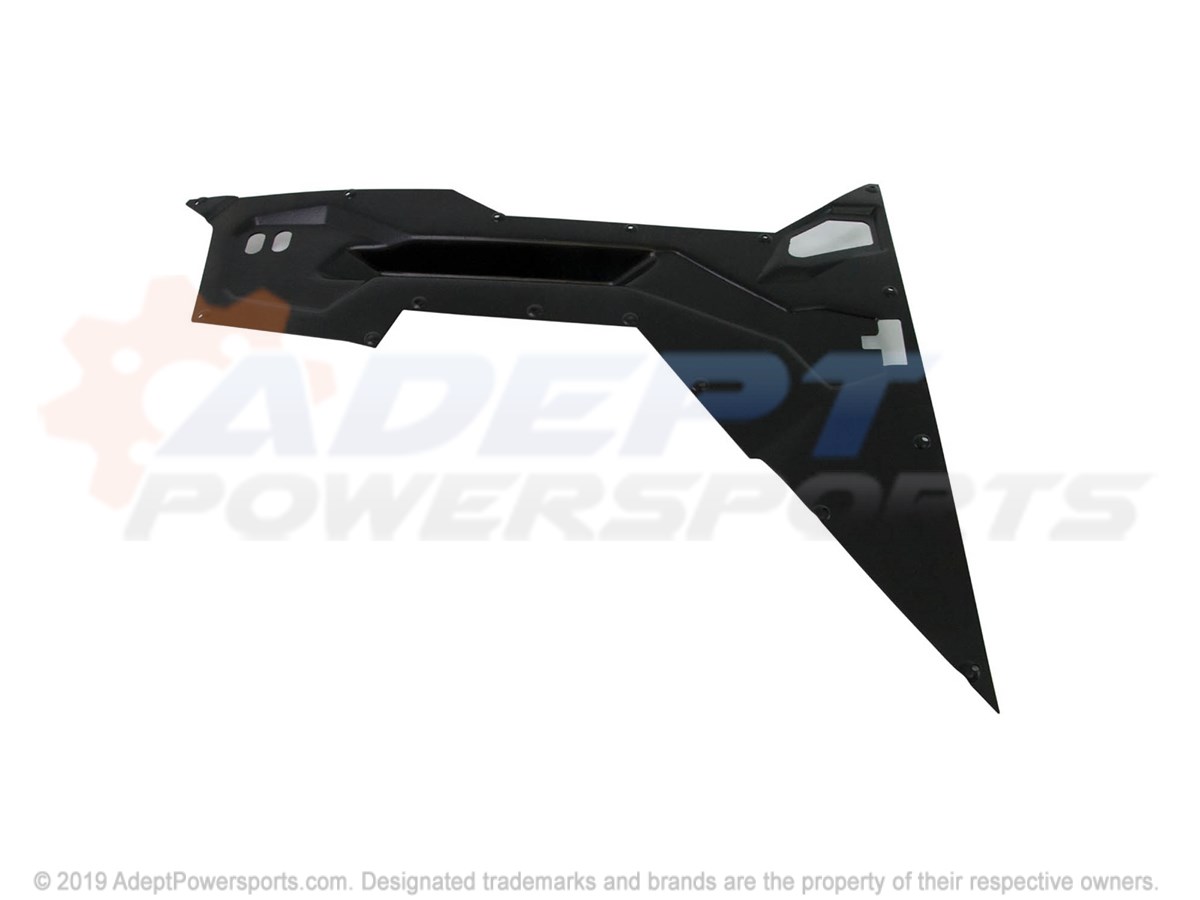

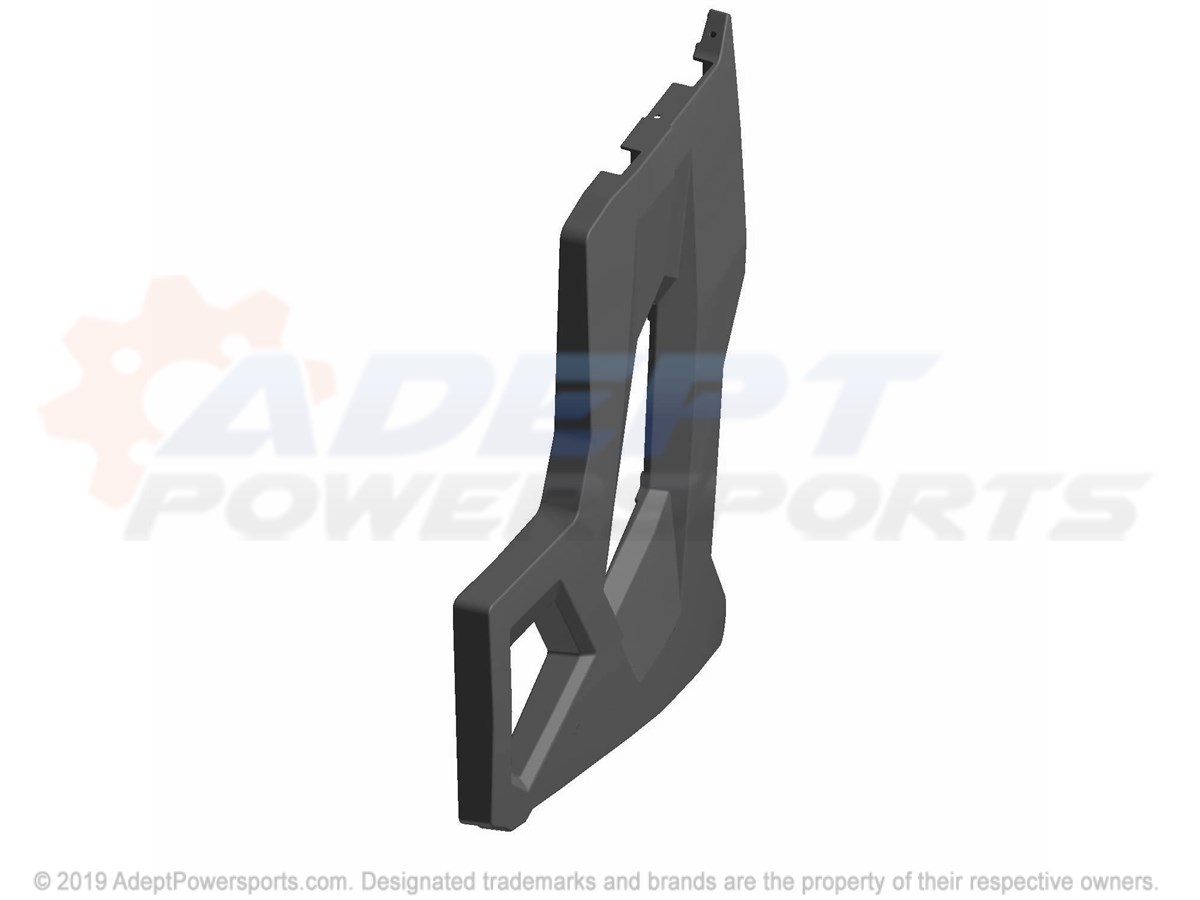

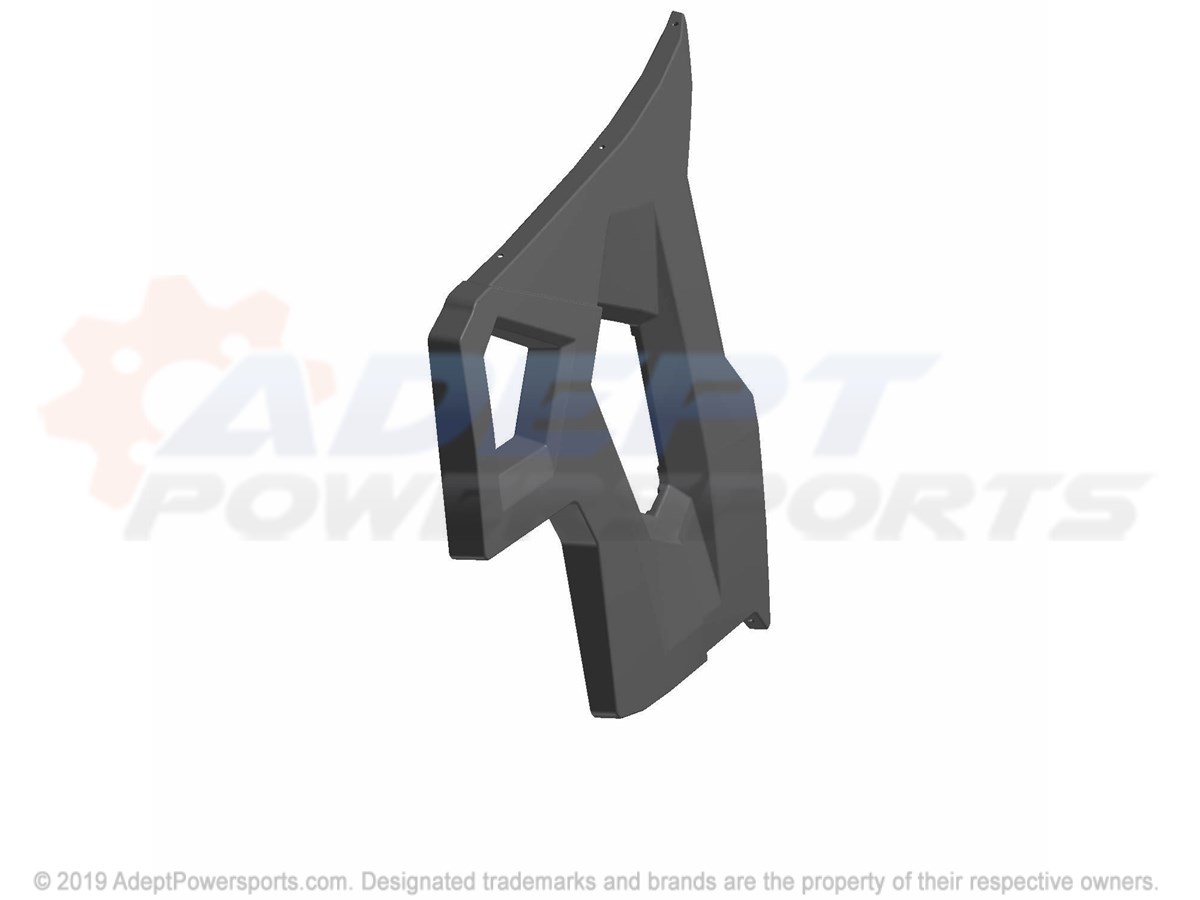

9	PANEL, DOOR, RH, BLACK Part #: 5450754-070 Required per assembly: 1 Currently Not Available

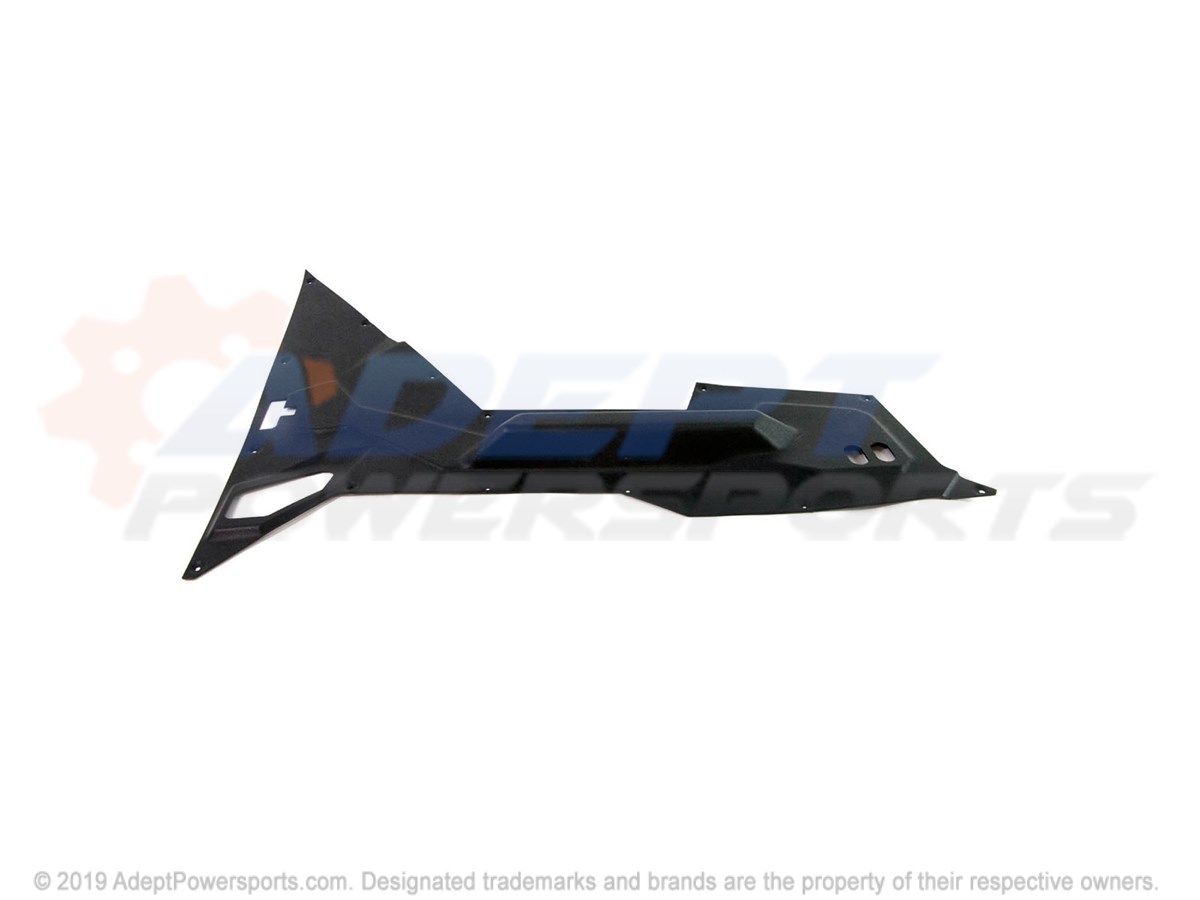

9	PANEL, DOOR, LH, BLACK Part #: 5450753-070 Required per assembly: 1 Currently Not Available

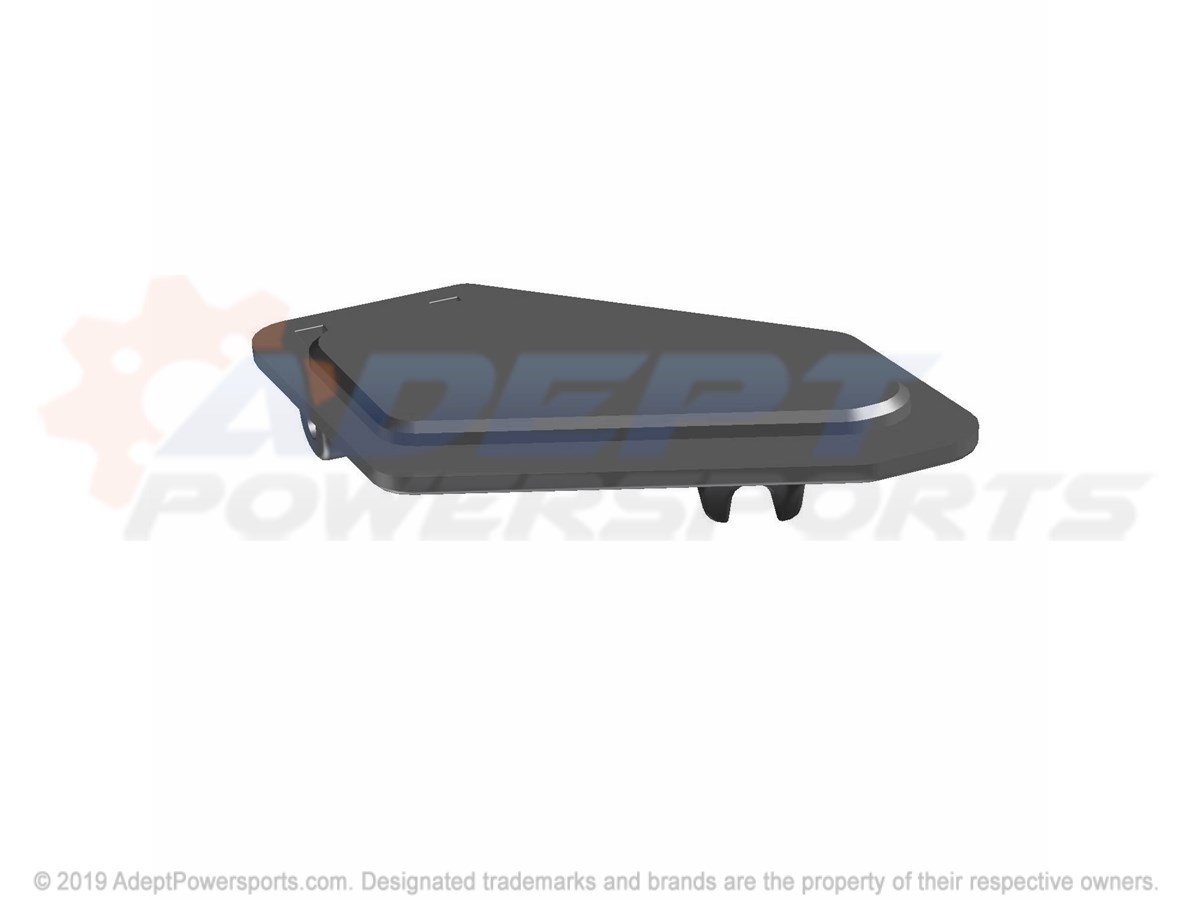

10	COVER, LATCH, INNER, RH Part #: 5450970 Required per assembly: 1 Currently Not Available
10	COVER, LATCH, INNER, LH Part #: 5450969 Required per assembly: 1 Currently Not Available

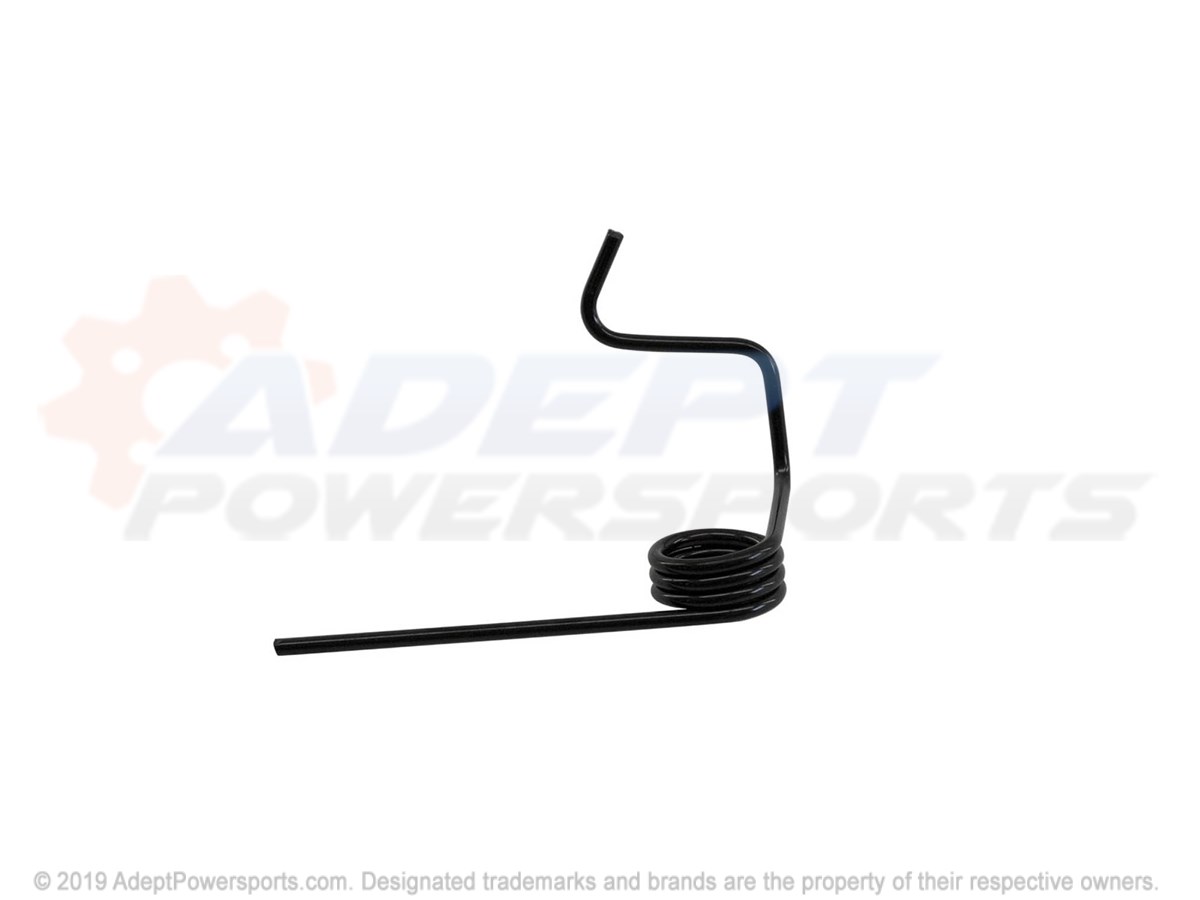

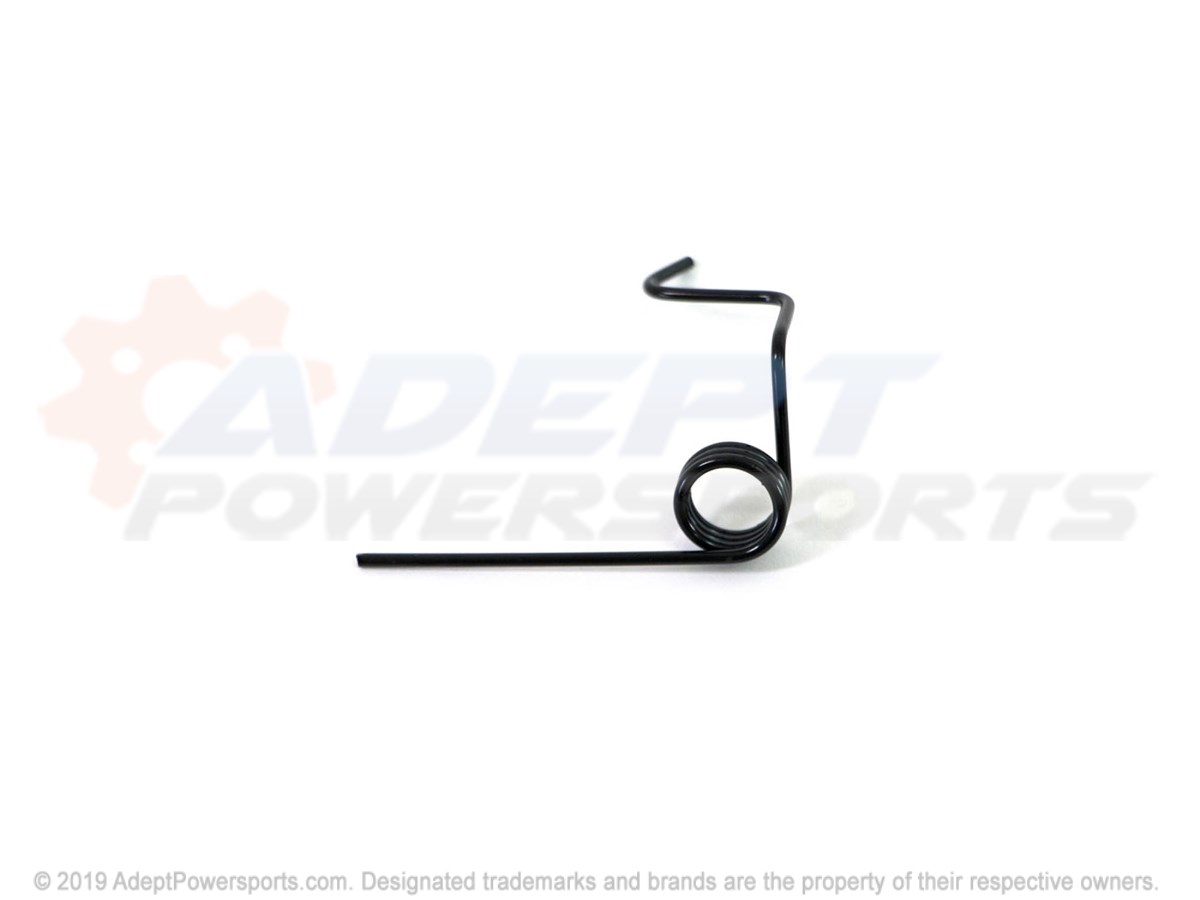

11	ACTUATOR, SPRING, LH Part #: 7044264 Required per assembly: 1 Currently Not Available
11	ACTUATOR, SPRING, RH Part #: 7044265 Required per assembly: 1 Currently Not Available
12	SCR-HEXFLGHD, M8, X, 20, 0600086 Part #: 7517838 Required per assembly: 26 Currently Not Available
13	SCREW Part #: 7519091 Required per assembly: 32 Currently Not Available

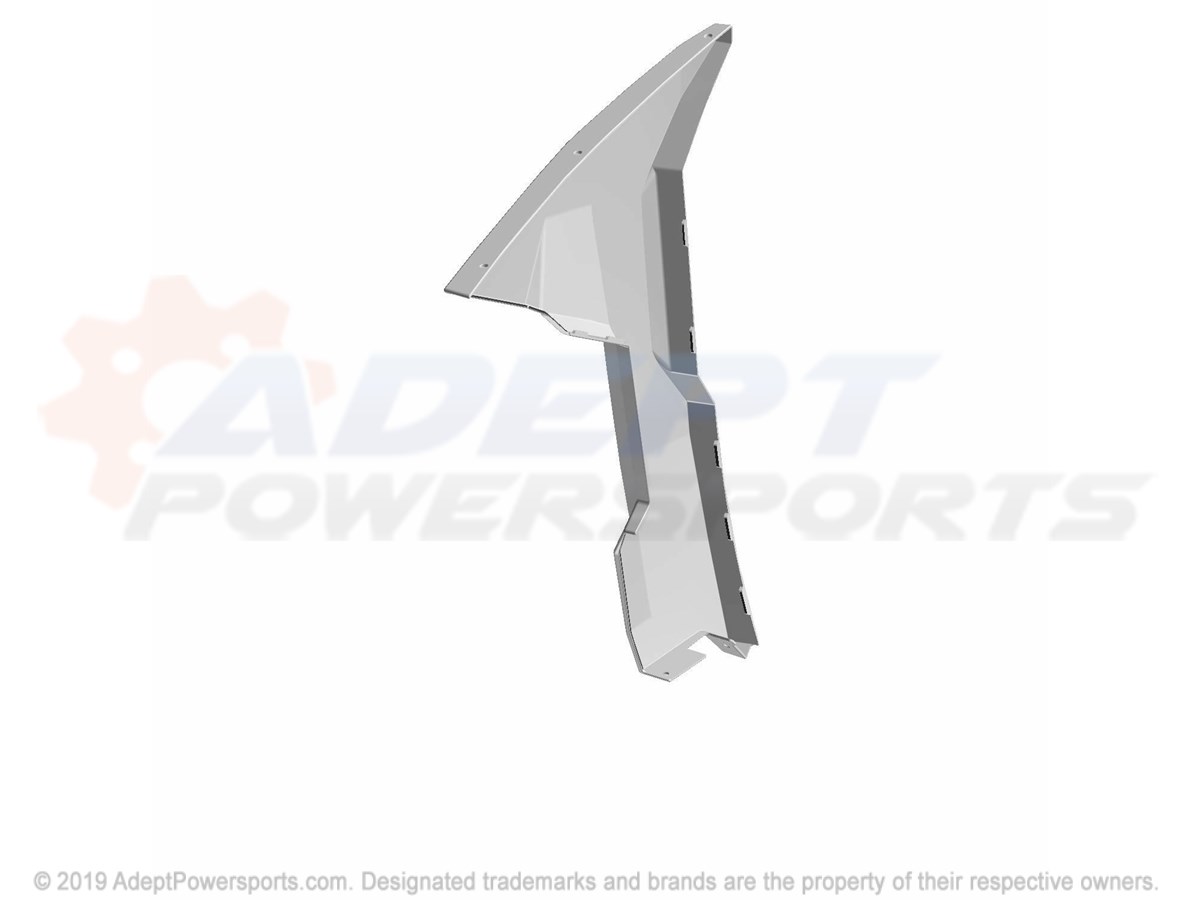

14	PANEL-DOOR, OUTER, RH, PPC Part #: 5451571-587 Required per assembly: 1 Note: U87A9 Currently Not Available

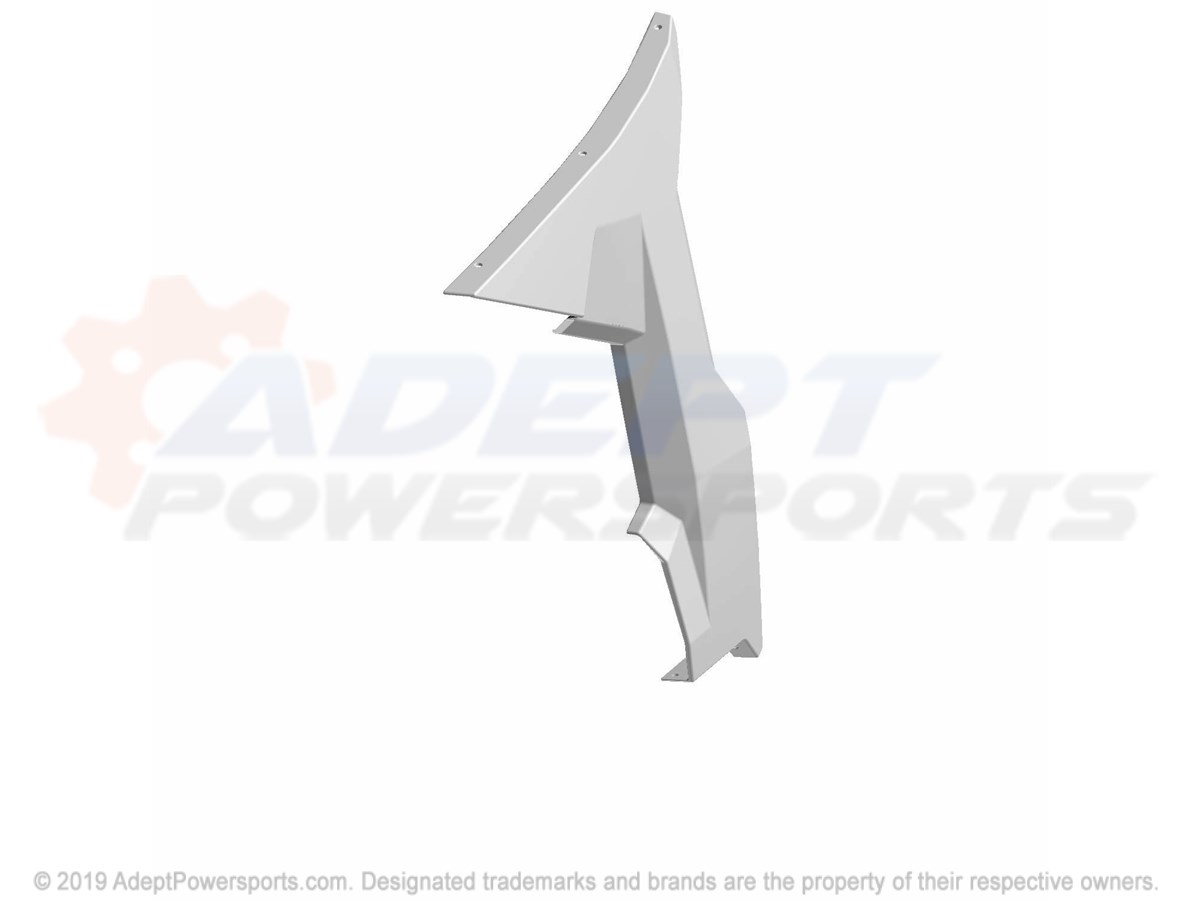

14	PANEL-DOOR-OUTER, LH, PPC Part #: 5451570-587 Required per assembly: 1 Note: U87A9 Currently Not Available
14	PANEL-DOOR, OUTR, RH, PNT, STL, BLK Part #: 5451127-464 Required per assembly: 1 Note: M87AL Currently Not Available
14	PANEL-DOOR-OUTR, LH, PNT, STL, BLK Part #: 5451126-464 Required per assembly: 1 Note: M87AL Currently Not Available
15	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart

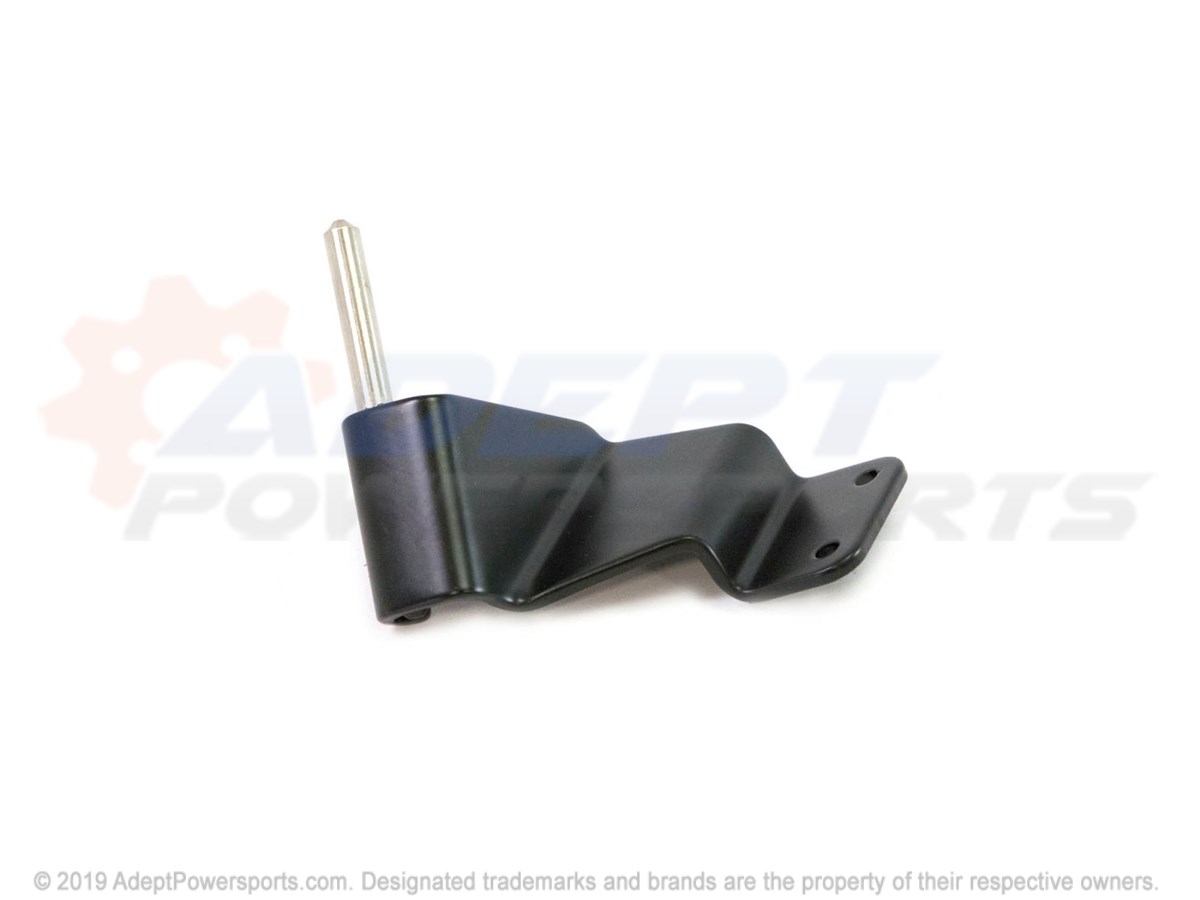

16	HINGE, LOWER, LH, MATTE, BLACK Part #: 1018772-458 Required per assembly: 1 Currently Not Available
16	HINGE, LOWER, RH, MATTE, BLACK Part #: 1018773-458 Required per assembly: 1 Currently Not Available
17	HINGE, UPPER, RH, MATTE, BLACK Part #: 1019991-458 Required per assembly: 1 Currently Not Available
17	HINGE, UPPER, LH, MATTE, BLACK Part #: 1019990-458 Required per assembly: 1 Currently Not Available
18	ASSEMBLY, STRIKER Part #: 2635181 Required per assembly: 2 Currently Not Available

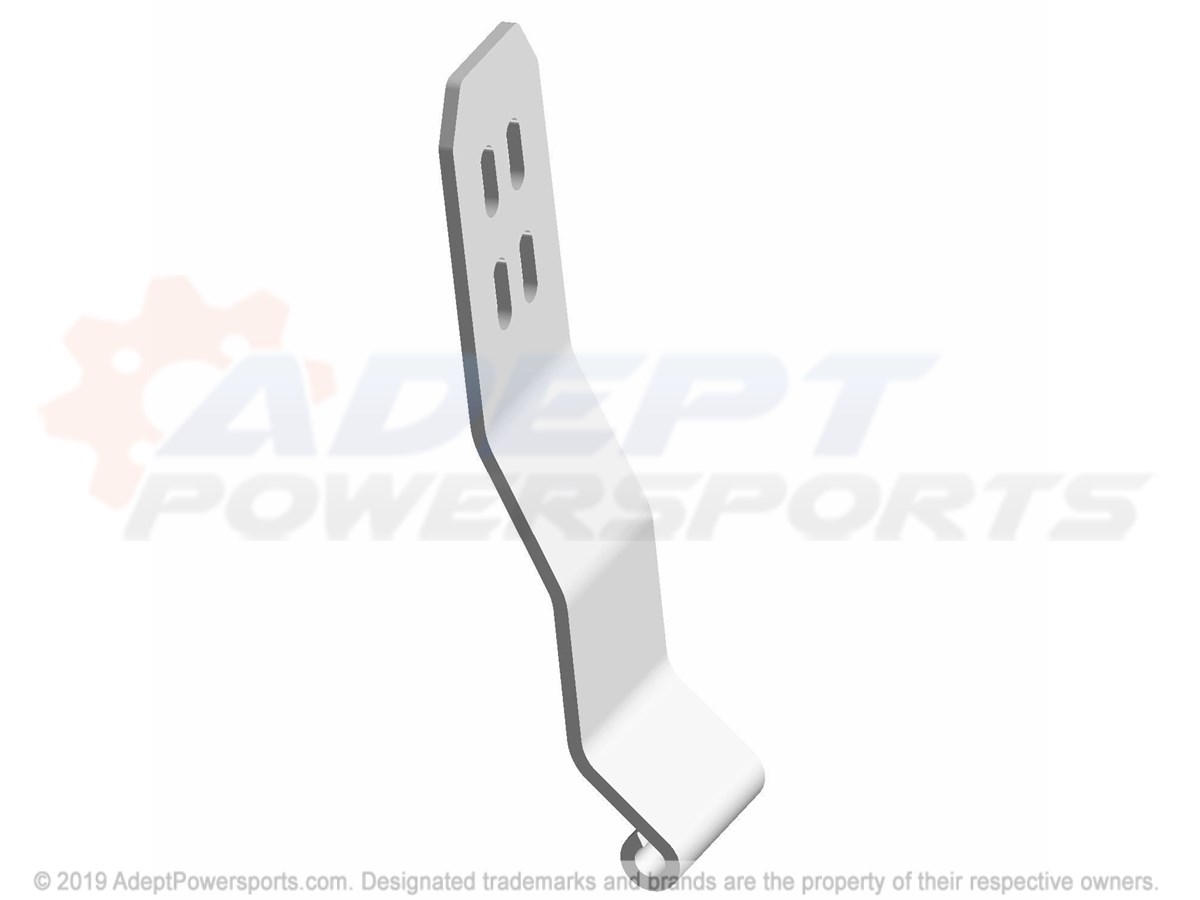

19	BRACKET, HINGE, MATTE, BLACK Part #: 5258349-458 Required per assembly: 4 Currently Not Available
