Heater And Dash - R16rtu87as (49Rgrdash15900xp) replacement parts for 2016 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2016 Polaris Ranger 900 XP All Options Heater And Dash - R16rtu87as (49Rgrdash15900xp)

Heater and Dash - R16RTU87AS (49RGRDASH15900XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

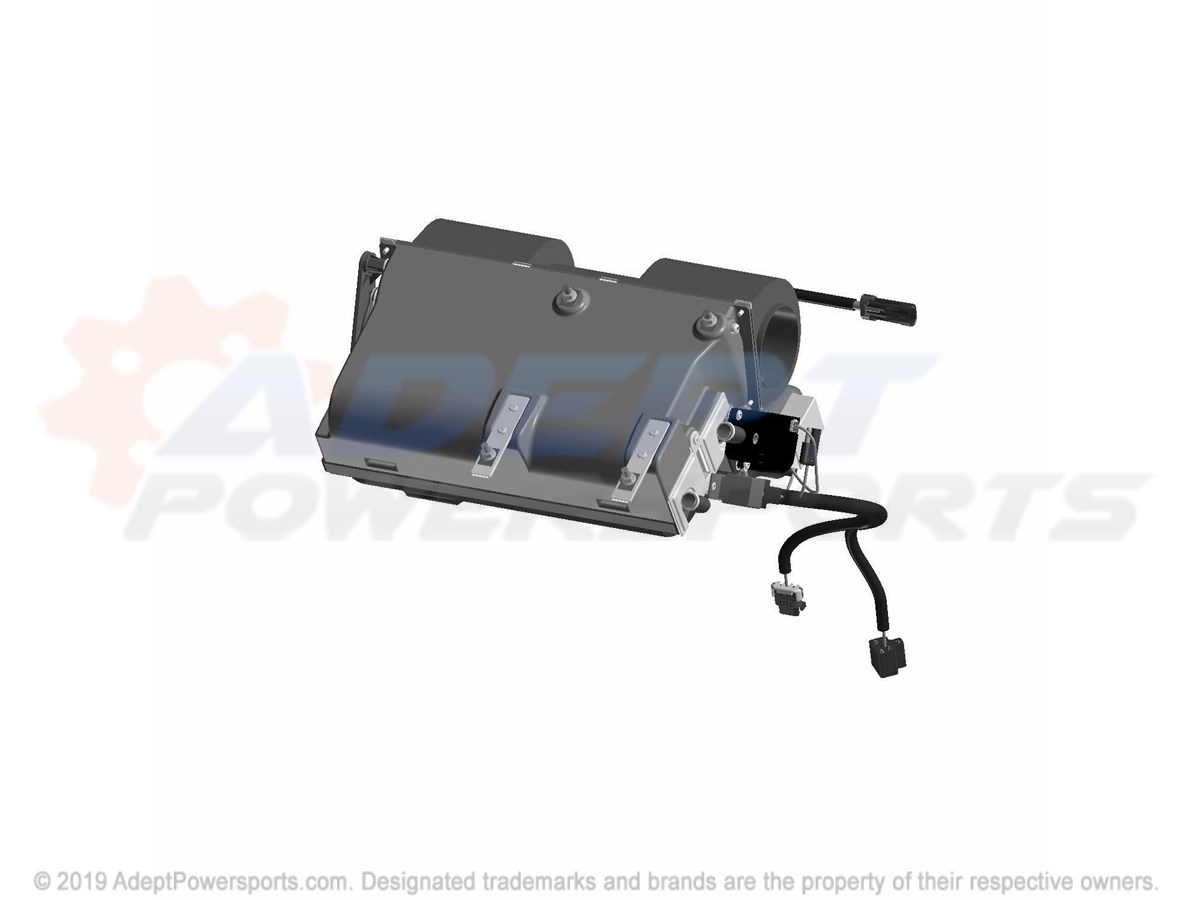

1	ASM-HEATER/BLOWER, SYS, RGR, LE Part #: 1240884 Required per assembly: 1 Currently Not Available
2	K-BUTT, SPLICE, XP, TTN Part #: 2205073 Required per assembly: 1 Currently Not Available
3	SWITCH-PANEL, HEATER Part #: 2412947 Required per assembly: 1 Currently Not Available
4	DISTRIBUTOR, HVAC Part #: 3120149 Required per assembly: 1 Currently Not Available
5	VENT, ROUND Part #: 3120150 Required per assembly: 2 Currently Not Available
6	DUCT, UPPER Part #: 3120151 Required per assembly: 2 Currently Not Available
7	DUCT, FOOT Part #: 3120154 Required per assembly: 2 Currently Not Available
8	VENT, RECTANGLE Part #: 3120156 Required per assembly: 2 Currently Not Available
9	VENT, SQUARE Part #: 3120157 Required per assembly: 2 Currently Not Available
10	SEAL, DEFROST Part #: 3120158 Required per assembly: 2 Currently Not Available
11	SEAL, DASH, CENTER Part #: 3120159 Required per assembly: 2 ~~$19.99~~ $11.72 - + Add to cart
12	HOSE-1/2", HEATER, HI, TEMP, 153CM Part #: 5412724-153 Required per assembly: 1 Currently Not Available
13	HOSE-1/2", HEATER, HI, TEMP, 275CM Part #: 5412724-275 Required per assembly: 1 Currently Not Available
14	PANEL-DASH, CONTROL, HTR, RTR, BLK Part #: 5451956-070 Required per assembly: 1 Currently Not Available
15	COVER, HVAC, BLACK Part #: 5439648-070 Required per assembly: 1 Currently Not Available
16	DASH, STORAGE, ROUTERED, BLACK Part #: 5439824-070 Required per assembly: 1 Currently Not Available
17	DASH-PANEL, UPPER, ROUTERED, BLK Part #: 5451067-070 Required per assembly: 1 Currently Not Available
18	FLOOR-FRONT, HEATER, ROUTER, BLK Part #: 5451728-070 Required per assembly: 1 Currently Not Available
19	COVER-DRIVE, SHAFT, HTR, RTD, BLK Part #: 5451729-070 Required per assembly: 1 Currently Not Available
20	DASH-PANEL, LWR, PNTD, SUNSET, RED Part #: 5451786-520 Required per assembly: 1 Currently Not Available
21	FOAM-HOSE, HEATER Part #: 5814164 Required per assembly: 1 Currently Not Available
22	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 7 Currently Not Available
23	CLAMP, HOSE Part #: 7080474 Required per assembly: 5 Note: Clamp, Hose ~~$9.44~~ $6.81 - + Add to cart
24	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 4 Note: Cable Tie Currently Not Available
25	SCREW Part #: 7519766 Required per assembly: 6 Currently Not Available
