Undercarrage Protection - R16rtu87ab (C700006) replacement parts for 2016 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2016 Polaris Ranger 900 XP All Options Undercarrage Protection - R16rtu87ab (C700006)

Undercarrage Protection - R16RTU87AB (C700006) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

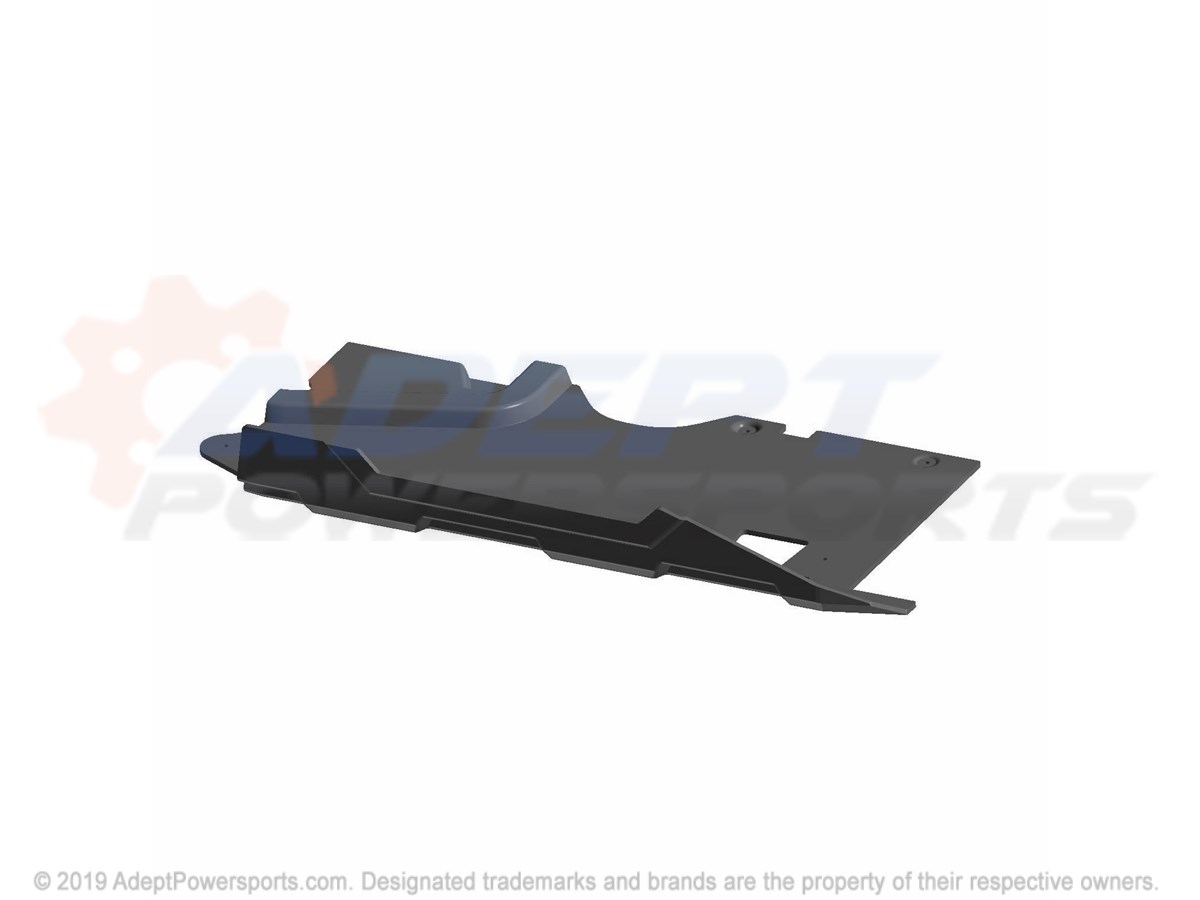

1	K-SKID, PLATE, TTN Part #: 2879686 Required per assembly: 1 Currently Not Available

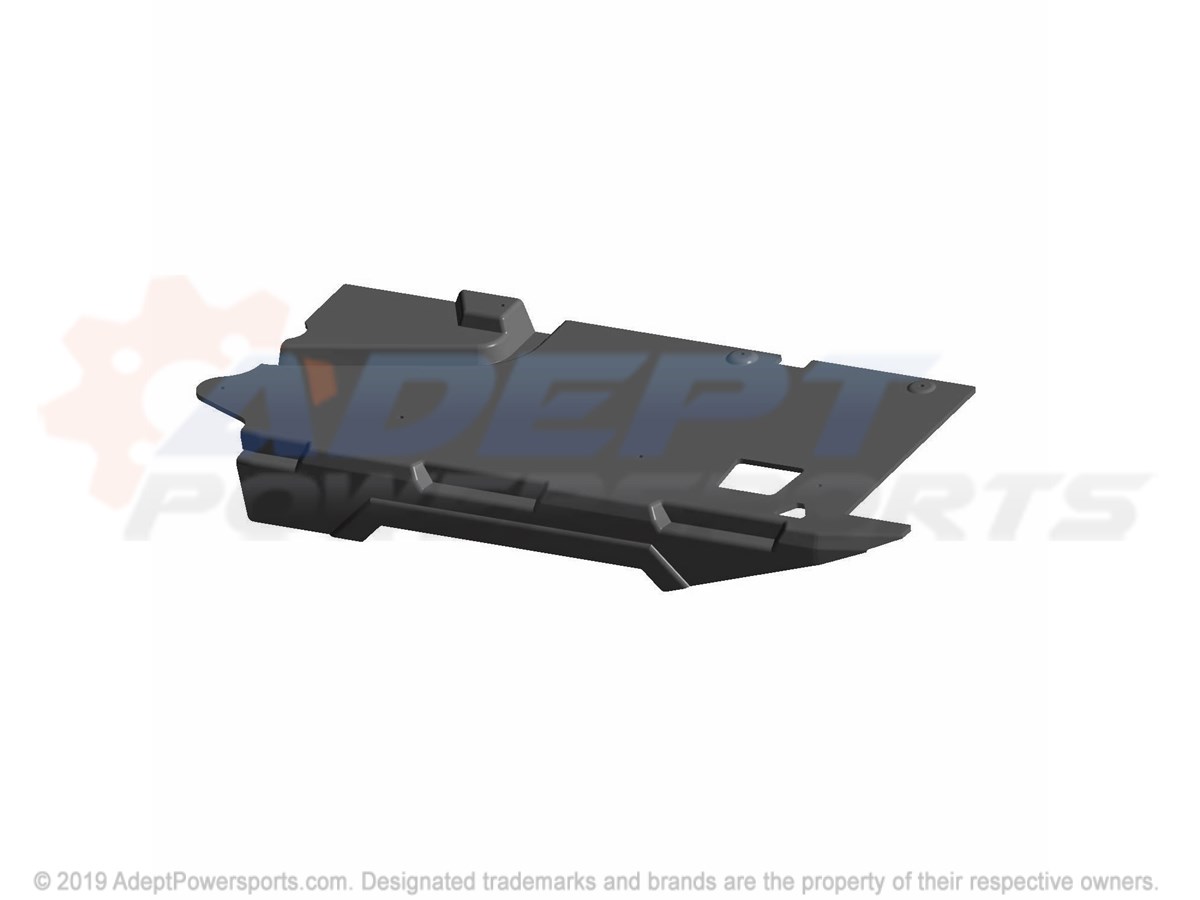

2	K-SKID, PLATE, TTN Part #: 2879686 Required per assembly: 1 Currently Not Available
3	WASHER-SKID PLATE Part #: 7556065 Required per assembly: 4 Note: Washer Currently Not Available
4	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart

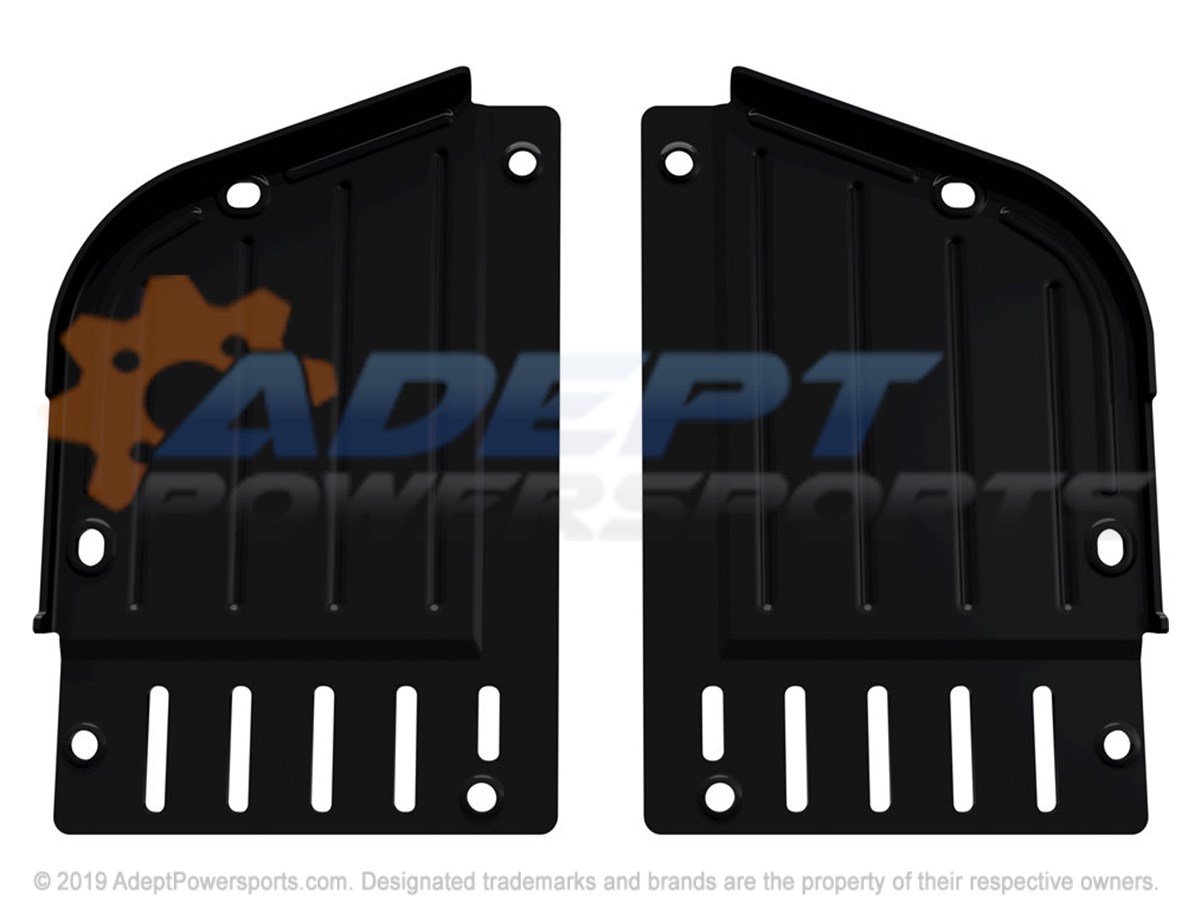

5	PROTECTOR-UNDER, BOX, LH, RGR Part #: 5452556 Required per assembly: 1 Currently Not Available
6	PROTECTOR-UNDER, BOX, RH, RGR Part #: 5452557 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7519731 Required per assembly: 6 Currently Not Available

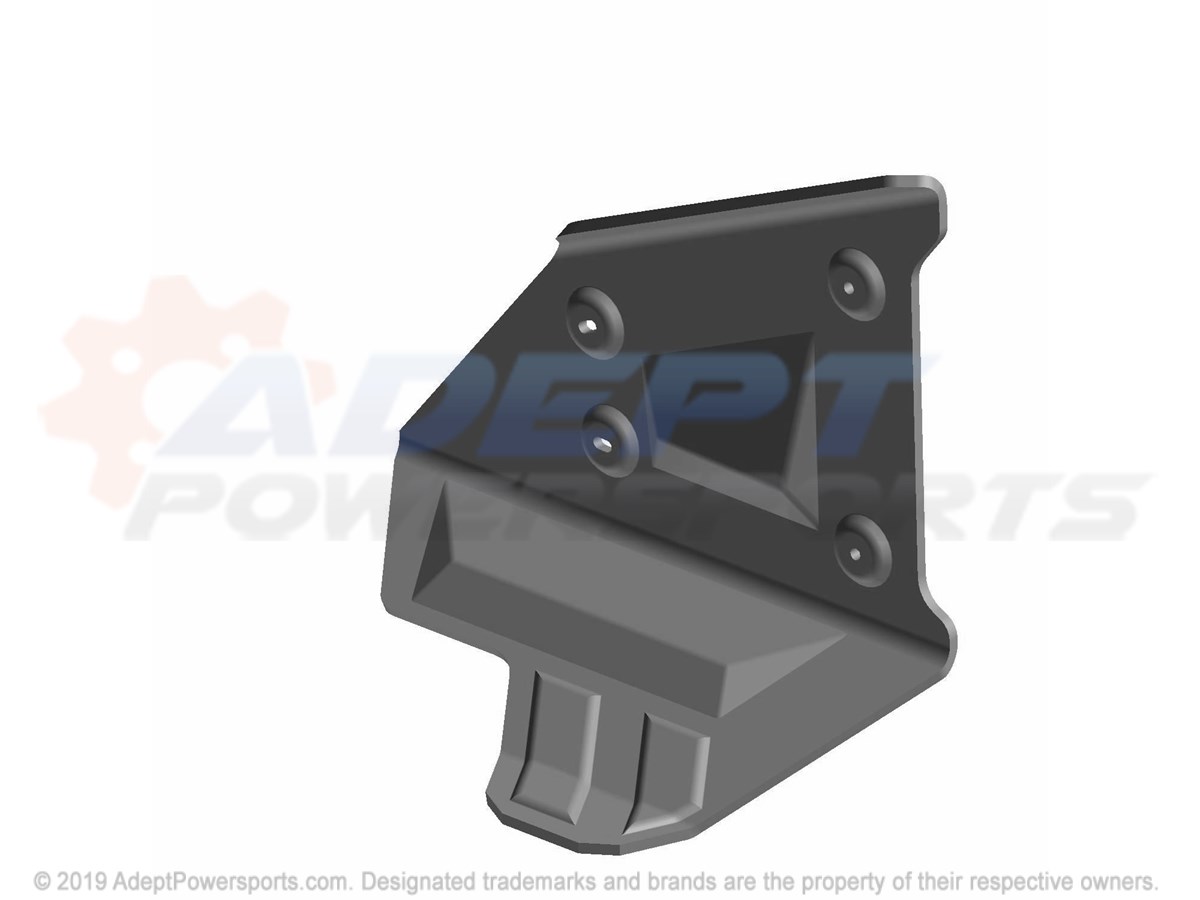

8	GUARD-A, ARM, LH, F, RGR Part #: 5452558 Required per assembly: 1 Currently Not Available
9	GUARD-A, ARM, RH, F, RGR Part #: 5452559 Required per assembly: 1 Currently Not Available

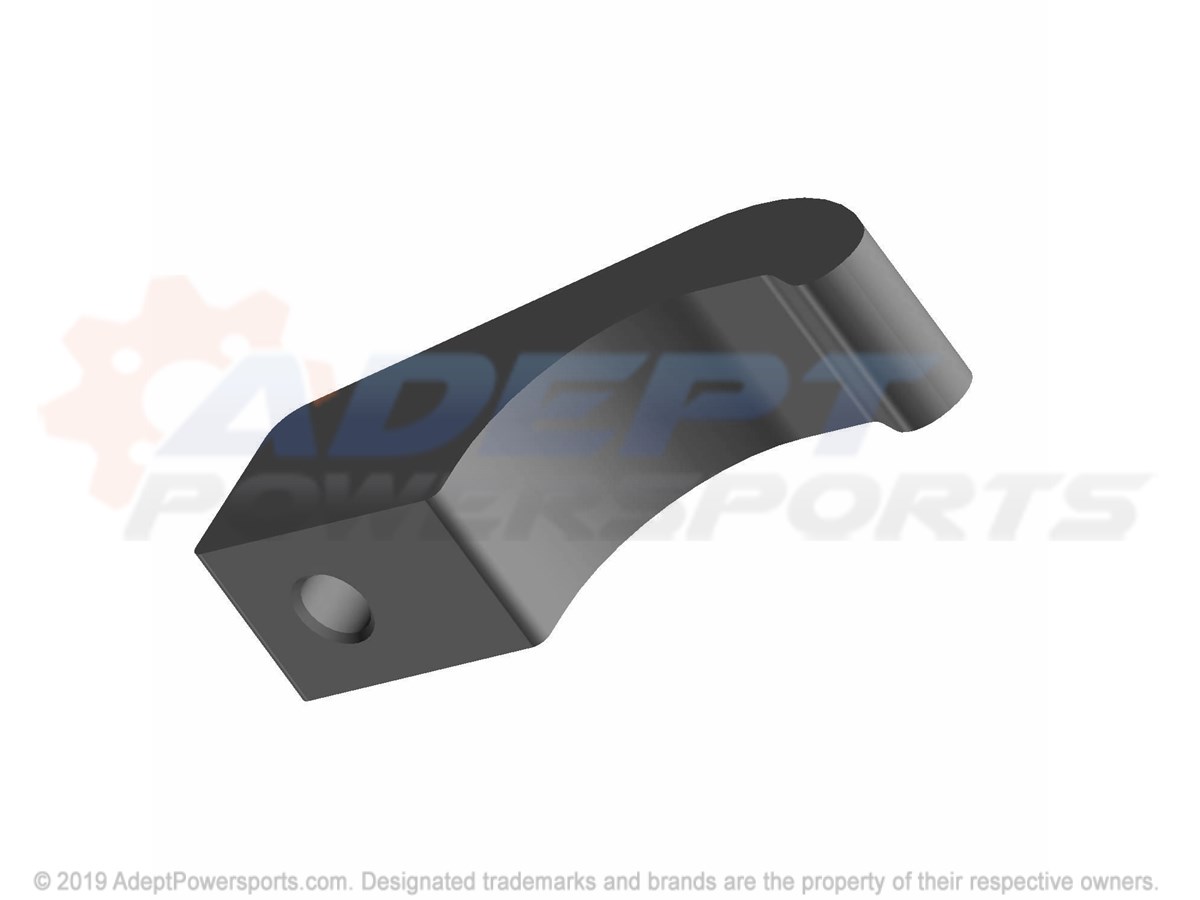

10	CLAMP-A, ARM, GUARD, FR Part #: 5140242 Required per assembly: 8 Currently Not Available

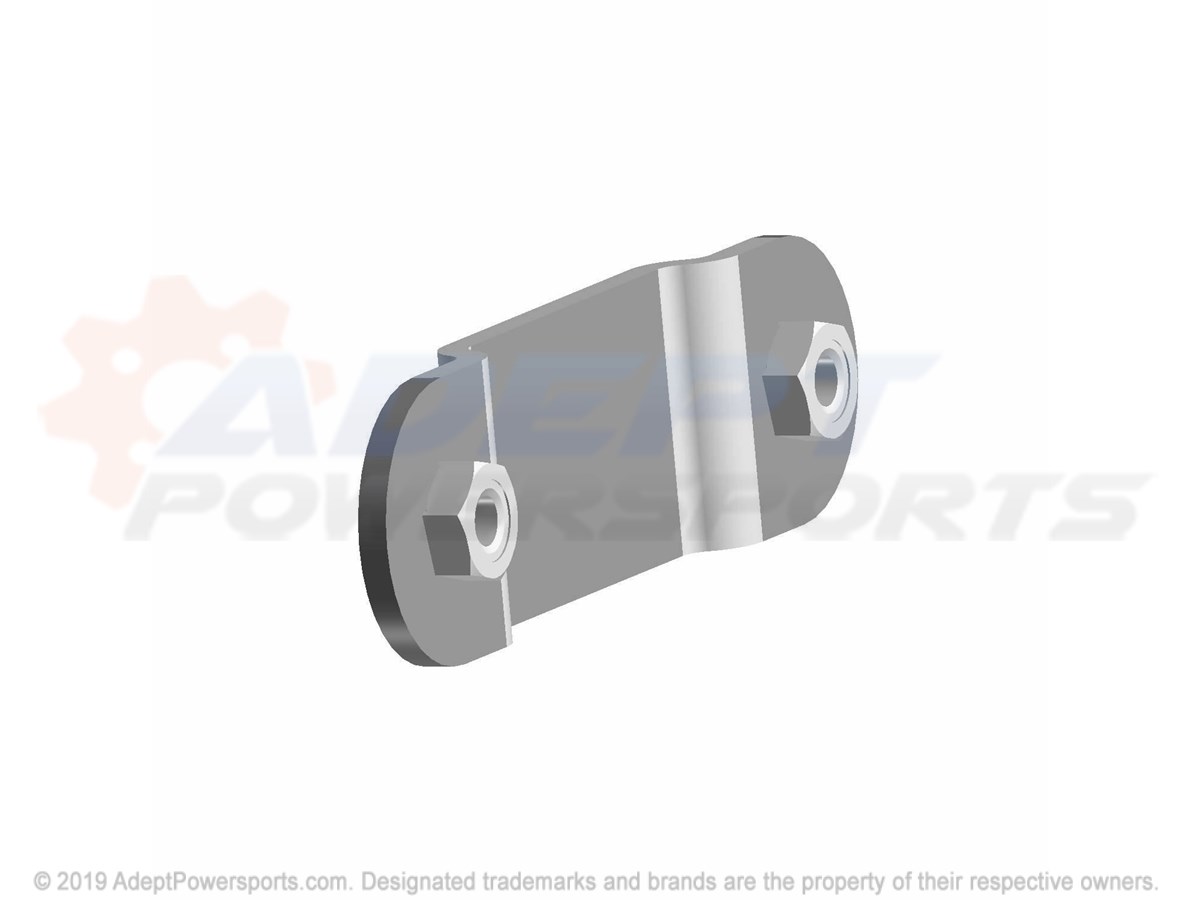

11	WASHER, FLAT Part #: 7556064 Required per assembly: 8 Currently Not Available
12	SCREW Part #: 7518535 Required per assembly: 18 Currently Not Available

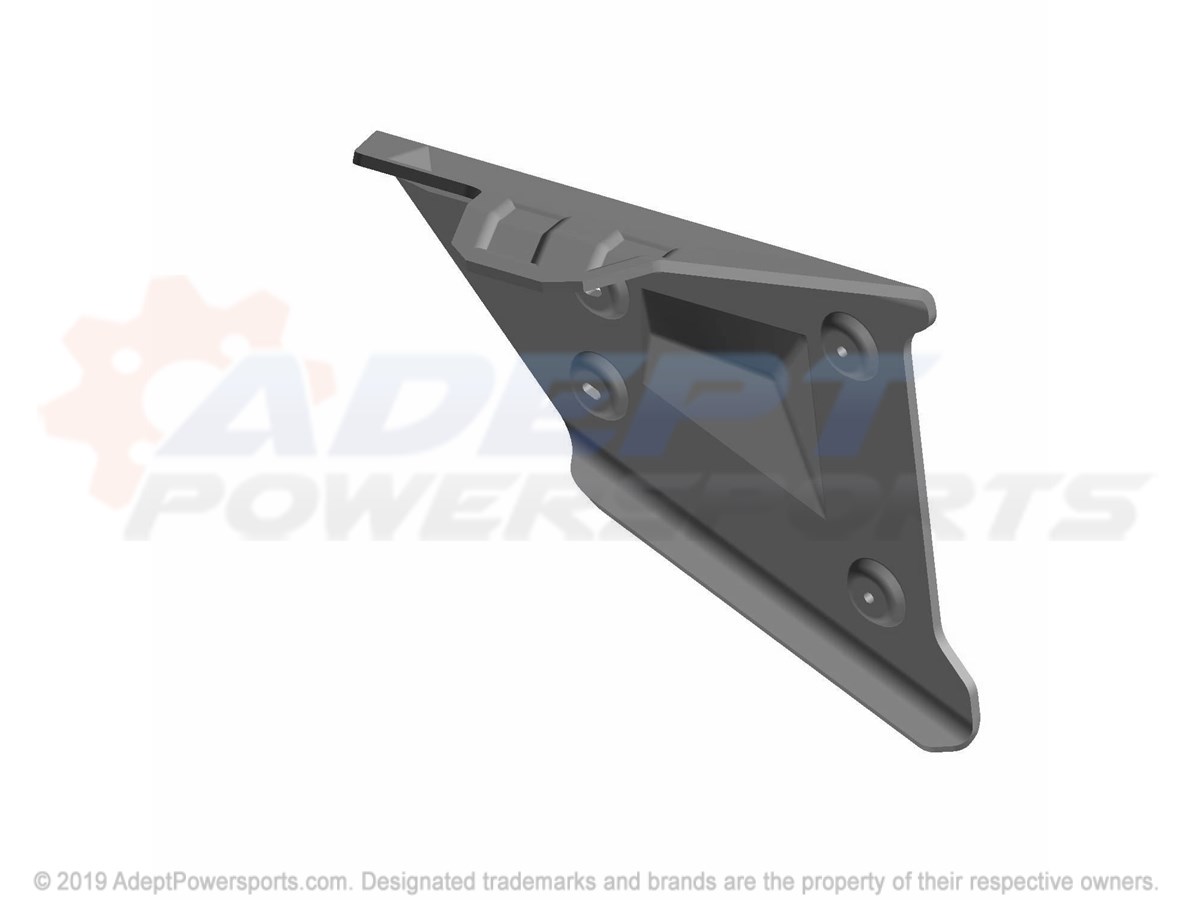

13	GUARD-A, ARM, LH, R, RGR Part #: 5452560 Required per assembly: 1 Currently Not Available
14	GUARD-A, ARM, RH, R, RGR Part #: 5452561 Required per assembly: 1 Currently Not Available

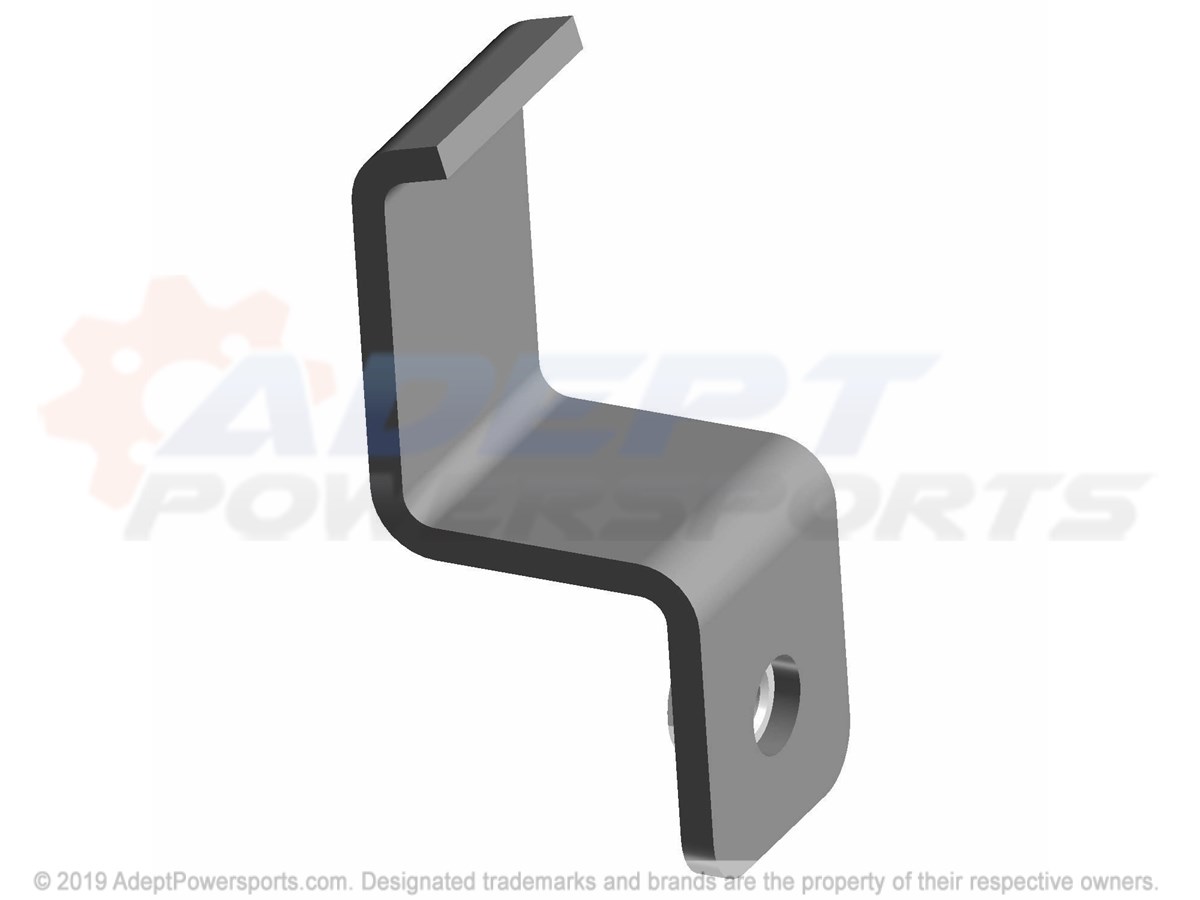

15	CLAMP-A, ARM, GUARD, RR, INNER Part #: 5261708 Required per assembly: 4 Currently Not Available
16	CLAMP-A, ARM, GUARD, RR, OUTER Part #: 5261709 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7518546 Required per assembly: 8 Currently Not Available
