Front Shock - R16rt_87 All Options (49Rgrshockfrt7043755) replacement parts for 2016 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2016 Polaris Ranger 900 XP All Options Front Shock - R16rt_87 All Options (49Rgrshockfrt7043755)

Front Shock - R16RT_87 All Options (49RGRSHOCKFRT7043755) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
2	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available

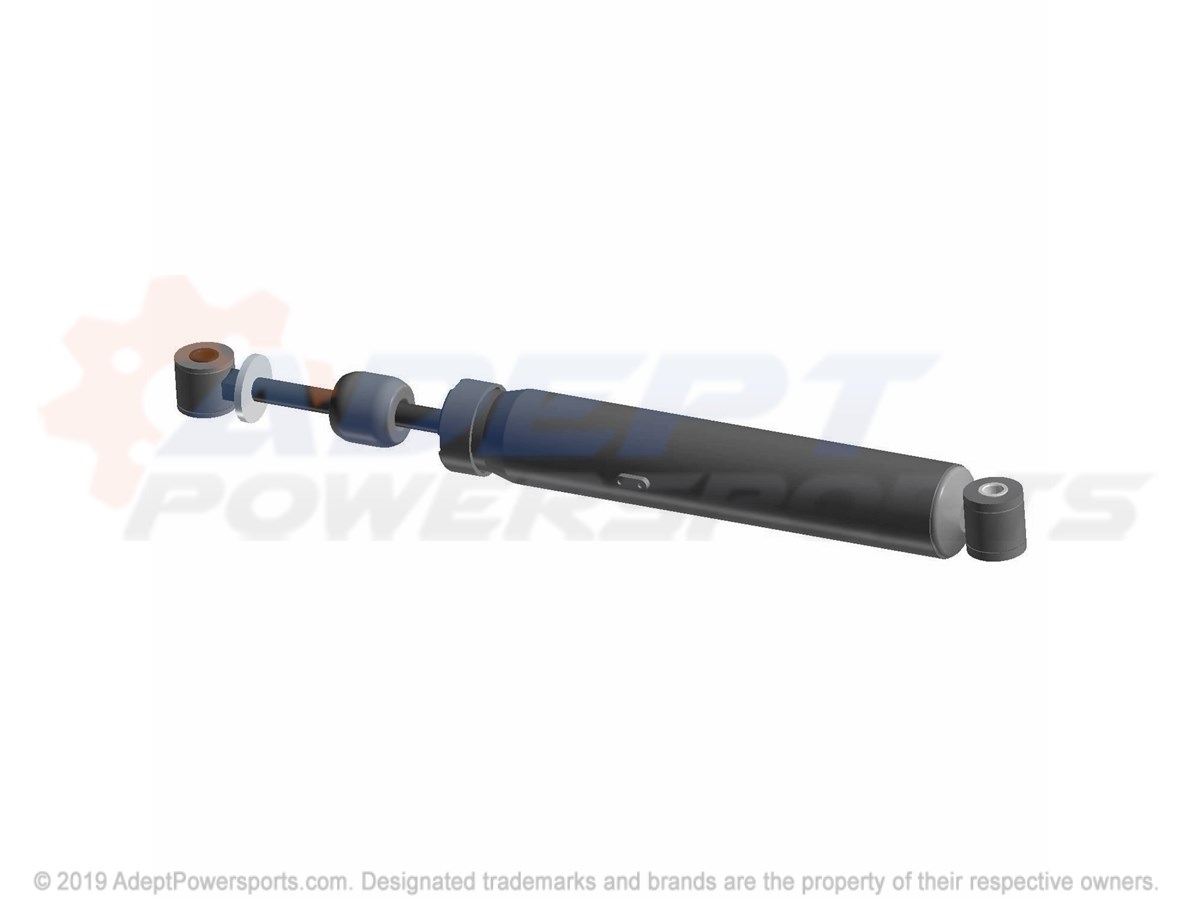

3	SHOCK, FRONT Part #: 7043755 Required per assembly: 2 Currently Not Available
3	SHOCK-FRONT, MUDDER Part #: 7044501 Required per assembly: 2 Note: M87AL Currently Not Available

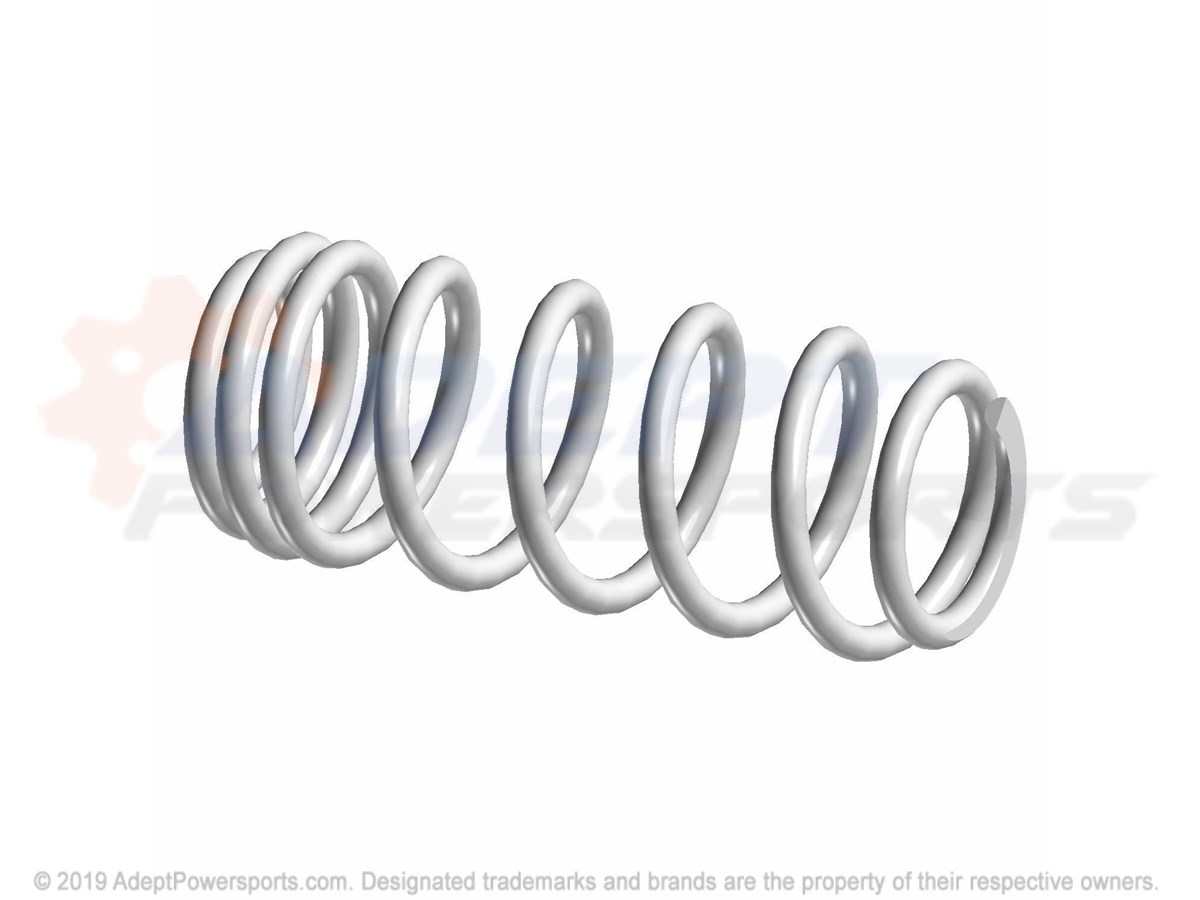

4	SPRING-FRONT, MUDDER, WHITE Part #: 7044533-133 Required per assembly: 2 Note: M87AL Currently Not Available
4	SPRING, REAR, 3, SEAT, BLK Part #: 7045557-458 Required per assembly: 2 Note: A87A1 Currently Not Available
4	SPRING-225#, C.SLVR Part #: 7045557-385 Required per assembly: 2 Note: E87AK Currently Not Available
4	SPRING-225#, WHITE Part #: 7045557-133 Required per assembly: 2 Note: E87AM Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
