Exhaust - R16RT_87 All Options (700400) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-HEADPIPE, RGR, 900 Part #: 1262693 Required per assembly: 1 Note: INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS Currently Not Available

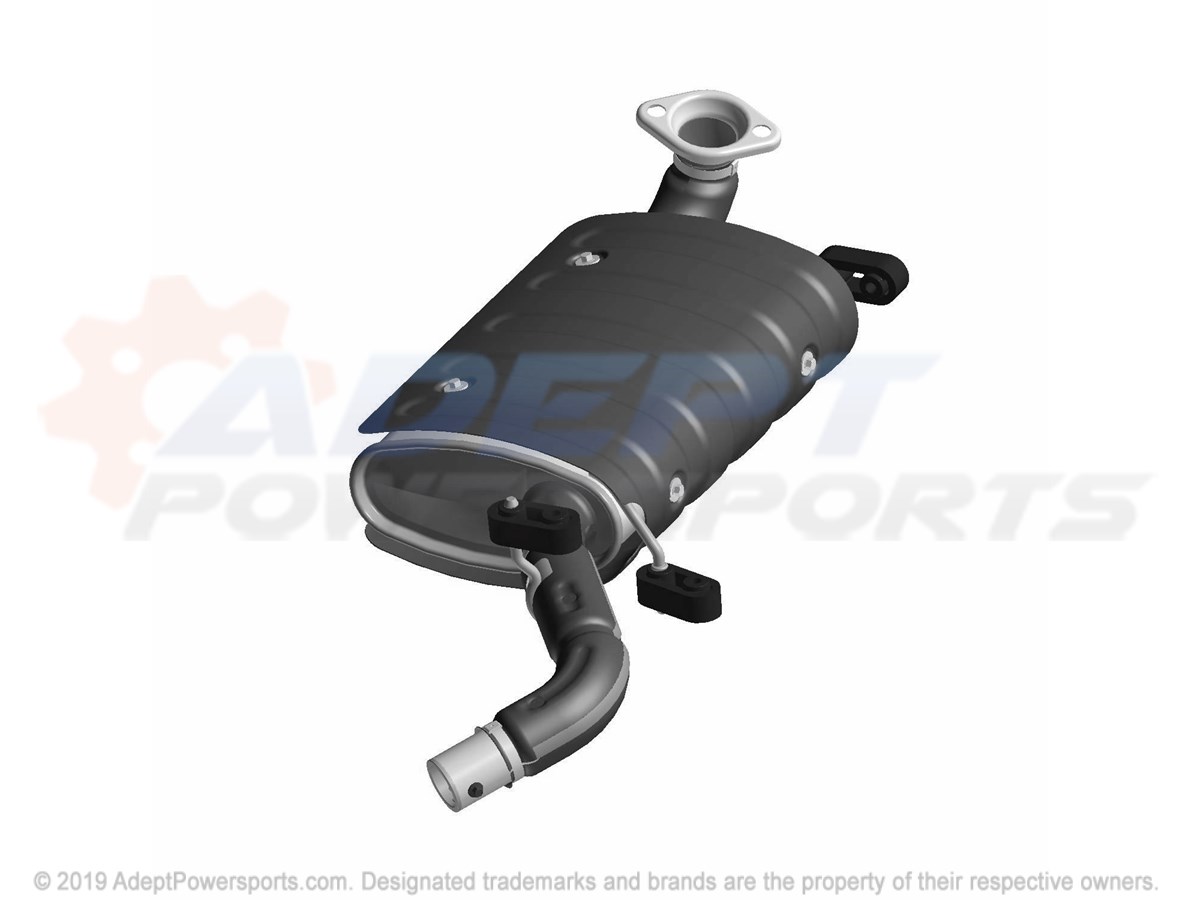

2	ASM-SILENCER, RGR, CAT/O2 Part #: 1262694 Required per assembly: 1 Note: INCL. 3-5,10-13, ALL SHIELDS AND CLAMPS Currently Not Available
2	ASM-SILENCER, RGR Part #: 1262695 Required per assembly: 1 Note: INCL. 3-5,10-13, ALL SHIELDS AND CLAMPS Currently Not Available
3	WELD-SPARK ARRESTOR AVA875 Part #: 1262123 Required per assembly: 1 Currently Not Available
4	SHIELD, SILENCER Part #: 5257719 Required per assembly: 1 Currently Not Available
5	MNT-ISOLATOR Part #: 5438965 Required per assembly: 3 Currently Not Available
6	SHIELD, HEAT, FOIL, TOP Part #: 5813762 Required per assembly: 1 Currently Not Available
7	SHIELD, HEAT, FOIL, BOTTOM Part #: 5813763 Required per assembly: 1 Currently Not Available
8	GASKET, EXHAUST, SEAL Part #: 3610184 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7518984 Required per assembly: 6 Currently Not Available
10	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518490 Required per assembly: 6 Note: Screw, Flange Currently Not Available
12	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
13	WASHER Part #: 7555935 Required per assembly: 6 Note: Washer, Flat Currently Not Available
14	GASKET-DOUBLE, SPHERICAL, 2" Part #: 3610248 Required per assembly: 1 Currently Not Available
15	SPRING-SPHERICAL, EXHAUST Part #: 7044274 Required per assembly: 2 Currently Not Available
16	STUD-SPHERICAL, EXHAUST Part #: 7520079 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7518529 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
18	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
19	K-SVC, SHIELD, 14, RGR Part #: 2206653 Required per assembly: 1 Currently Not Available

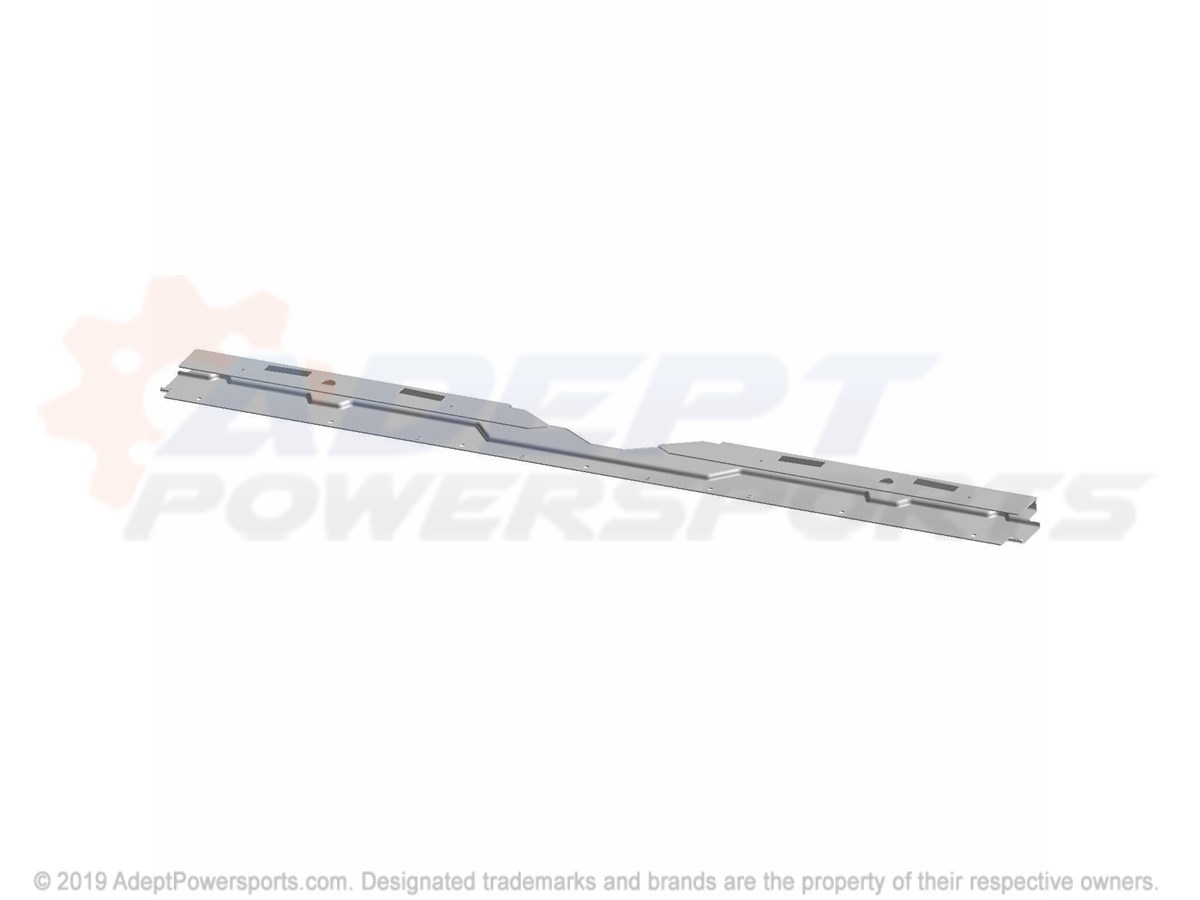

19	BRKT-BOX, CLOSE, OFF, MUDDER Part #: 5261285 Required per assembly: 1 Note: M87AL Currently Not Available
20	SENSOR-OXYGEN Part #: 4016021 Required per assembly: 1 Note: M87AL Currently Not Available
