Seat, 60/40 - R16rte87a9 (49Rgrseat15900sb) replacement parts for 2016 Polaris Ranger 900 XP All Options

OEM Parts Polaris 2016 Polaris Ranger 900 XP All Options Seat, 60/40 - R16rte87a9 (49Rgrseat15900sb)

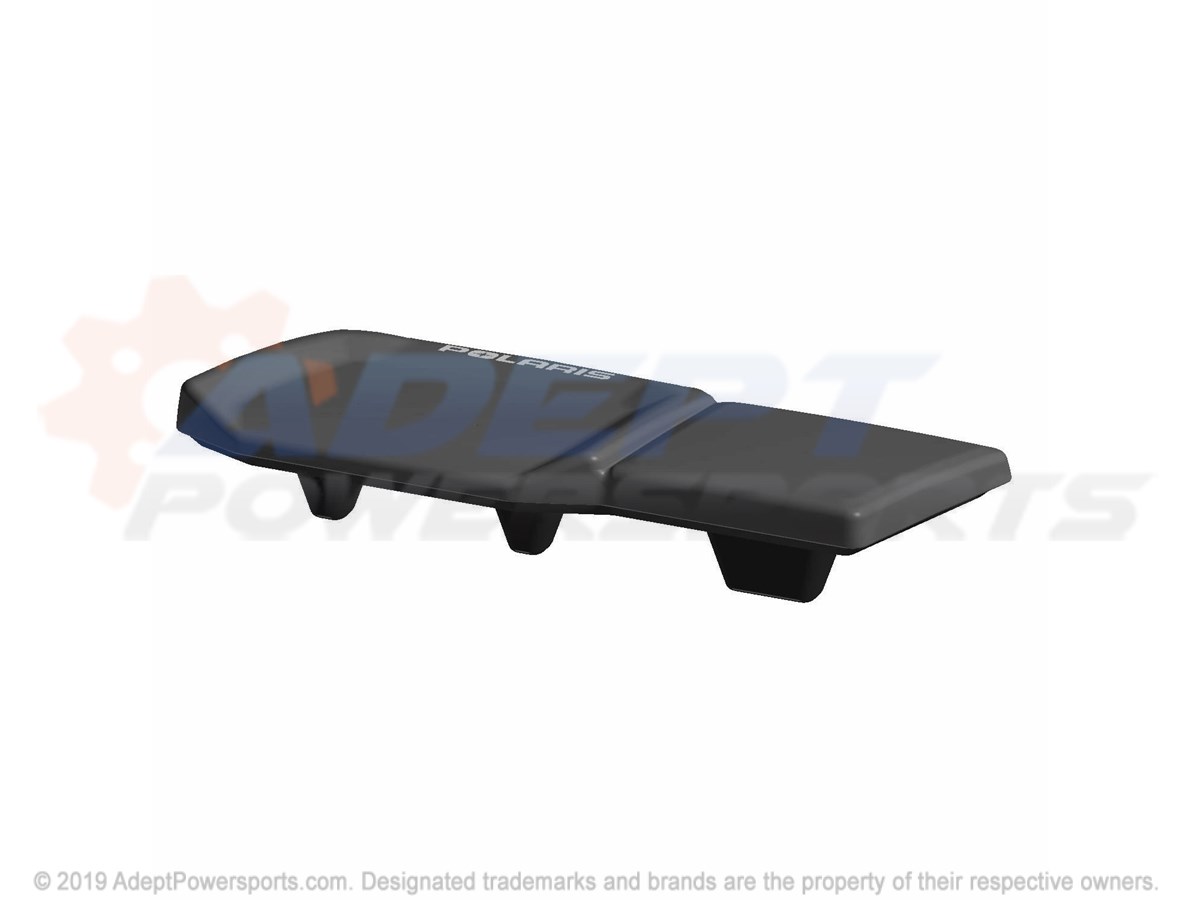

Seat, 60/40 - R16RTE87A9 (49RGRSEAT15900SB) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685141 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685350 Required per assembly: 1 Note: E87AS Currently Not Available
1	ASM-SEAT, BTM, 60, BLK/BLUE, FIRE Part #: 2685895 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
1	ASM-SEAT, BTM, 60, O.MAD/WHT Part #: 2686240 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
1	ASM-SEAT, BTM, 60, DK.STL/WHITE Part #: 2686258 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
1	CVR-SEAT, BTM, 60, O.MAD/WHT Part #: 2686286 Required per assembly: 1 Note: M87AL Currently Not Available
1	HEATER-ELEMENT, SEAT, TTN Part #: 2412575 Required per assembly: 1 Note: U87A9 Currently Not Available
1	CVR-SEAT, BTM, 60, DK.STL/WHT Part #: 2686294 Required per assembly: 1 Note: E87AM Currently Not Available
1	ASM-SEAT, BTM, HTR, 60, BLK/S.RED Part #: 2686315 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7, HEATER ELEMENT Currently Not Available
1	COVERING-BTM, 60, BLK/BLUE, FIRE Part #: 2685899 Required per assembly: 1 Note: U87AB Currently Not Available
1	ASM-SEAT, BTM, HTR, 60, BLK, WV/PPC Part #: 2687000 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7, HEATER ELEMENT Currently Not Available
1	ASM-SEAT, BTM, 60, WV/BLU/WHT, ST Part #: 2686942 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
1	ASM-SEAT, BTM, 60, BLK, WV/PPC Part #: 2686906 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
1	ASM-SEAT, BTM, 60, WV/SLV/RED Part #: 2686914 Required per assembly: 1 Note: INCL 6,QTY 4 OF 7 Currently Not Available
2	ASM-SEAT, BTM, 40, WV/BLU/WHT, ST Part #: 2686943 Required per assembly: 1 Note: E87AV Currently Not Available
2	ASM-SEAT, BTM, 40, BLK, WV/PPC Part #: 2686907 Required per assembly: 1 Note: E87A9 Currently Not Available
2	COVERING-BTM, 40, BLK/BLUE, FIRE Part #: 2685900 Required per assembly: 1 Note: U87AB Currently Not Available
2	ASM-SEAT, BTM, 40.WV/SLV/RED Part #: 2686915 Required per assembly: 1 Note: E87AK Currently Not Available
2	ASM-SEAT, BTM, HTR, 40, BLK, WV/PPC Part #: 2687003 Required per assembly: 1 Note: U87A9 Currently Not Available
2	CVR-SEAT, BTM, 40, O.MAD/WHT Part #: 2686288 Required per assembly: 1 Note: M87AL Currently Not Available
2	ASM-SEAT, BTM, HTR, 40, BLK/S.RED Part #: 2686316 Required per assembly: 1 Note: INCL HEATER ELEMENT Currently Not Available
2	CVR-SEAT, BTM, 40, DK.STL/WHT Part #: 2686296 Required per assembly: 1 Note: E87AM Currently Not Available
2	CVR-SEAT, BACK, 40, O.MAD/WHT Part #: 2686287 Required per assembly: 1 Note: M87AL Currently Not Available
2	ASM-SEAT, BTM, 40.DK.STL/WHITE Part #: 2686260 Required per assembly: 1 Note: E87AM Currently Not Available
2	HEATER-ELEMENT, SEAT, TTN Part #: 2412575 Required per assembly: 1 Note: U87A9 Currently Not Available
2	ASM-SEAT, BACK, 40, O.MAD/WHT Part #: 2686241 Required per assembly: 1 Note: M87AL Currently Not Available
2	ASM-SEAT, BTM, 40, O.MAD/WHT Part #: 2686242 Required per assembly: 1 Note: M87AL Currently Not Available
2	ASM-SEAT, BTM, 40, BLK/BLUE, FIRE Part #: 2685896 Required per assembly: 1 Note: U87AB Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685143 Required per assembly: 1 Note: E87AS Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685360 Required per assembly: 1 Note: E87AS Currently Not Available
3	ASSEMBLY, SEAT, BACK, 60, BLACK/S., RED, [EAZ] Part #: 2685140 Required per assembly: 1 Note: E87AS Currently Not Available
3	COVERING, BACK, 60, BLACK/S., RED, [EAZ] Part #: 2685345 Required per assembly: 1 Note: E87AS Currently Not Available
3	ASM-SEAT, BACK, 60, BLK/BLUE, FIRE Part #: 2685893 Required per assembly: 1 Note: U87AB Currently Not Available
3	ASM-SEAT, BACK, 60, DK.STL/WHITE Part #: 2686257 Required per assembly: 1 Note: E87AM Currently Not Available
3	COVERING-BACK, 60, BLK/BLUE, FIRE Part #: 2685897 Required per assembly: 1 Note: U87AB Currently Not Available
3	CVR-SEAT, BACK, 60, O.MAD/WHT Part #: 2686285 Required per assembly: 1 Note: M87AL Currently Not Available
3	ASM-SEAT, BACK, 60, O.MAD/WHT Part #: 2686239 Required per assembly: 1 Note: M87AL Currently Not Available
3	ASM-SEAT, BACK, 60, WV/SLV/RED Part #: 2686912 Required per assembly: 1 Note: E87AK Currently Not Available
3	CVR-SEAT, BACK, 60, DK.STL/WHT Part #: 2686293 Required per assembly: 1 Note: E87AM Currently Not Available
3	ASM-SEAT, BACK, 60, WV/BLU/WHT, ST Part #: 2686940 Required per assembly: 1 Note: E87AV Currently Not Available
3	ASM-SEAT, BACK, 60, BLK, WV/PPC Part #: 2686904 Required per assembly: 1 Note: E87A9 Currently Not Available
4	ASM-SEAT, BACK, 40, BLK, WV/PPC Part #: 2686905 Required per assembly: 1 Note: E87A9 Currently Not Available
4	ASM-SEAT, BACK, 40, WV/BLU/WHT, ST Part #: 2686941 Required per assembly: 1 Note: E87AV Currently Not Available
4	ASM-SEAT, BACK, 40, WV/SLV/RED Part #: 2686913 Required per assembly: 1 Note: E87AK Currently Not Available
4	CVR-SEAT, BACK, 40, O.MAD/WHT Part #: 2686287 Required per assembly: 1 Note: M87AL Currently Not Available
4	CVR-SEAT, BACK, 40, DK.STL/WHT Part #: 2686295 Required per assembly: 1 Note: E87AM Currently Not Available
4	CVR-SEAT, BTM, 40, O.MAD/WHT Part #: 2686288 Required per assembly: 1 Note: M87AL Currently Not Available
4	ASM-SEAT, BACK, 40, BLK/BLUE, FIRE Part #: 2685894 Required per assembly: 1 Note: U87AB Currently Not Available
4	ASM-SEAT, BTM, 40, O.MAD/WHT Part #: 2686242 Required per assembly: 1 Note: M87AL Currently Not Available
4	ASM-SEAT, BACK, 40, O.MAD/WHT Part #: 2686241 Required per assembly: 1 Note: M87AL Currently Not Available
4	COVERING-BACK, 40, BLK/BLUE, FIRE Part #: 2685898 Required per assembly: 1 Note: U87AB Currently Not Available
4	ASM-SEAT, BACK, 40, DK.STL/WHITE Part #: 2686259 Required per assembly: 1 Note: E87AM Currently Not Available
4	ASSEMBLY, SEAT, BACK, 40, BLACK/S., RED, [EAZ] Part #: 2685142 Required per assembly: 1 Note: E87AS Currently Not Available
4	COVERING, BACK, 40, BLACK/S., RED, [EAZ] Part #: 2685355 Required per assembly: 1 Note: E87AS Currently Not Available
5	GROMMET Part #: 5439179 Required per assembly: 2 Currently Not Available
6	PIN, SEAT, LATCH Part #: 5910404 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7519045 Required per assembly: 8 Currently Not Available
8	ASM-SEAT, BELT, 3PT Part #: 2638785 Required per assembly: 2 Currently Not Available
9	ASM-SEAT, BELT, 3PT, CENTER Part #: 2638784 Required per assembly: 1 Currently Not Available
10	BUCKLE-SEATBELT, 90, Z, SWITCH Part #: 2637304 Required per assembly: 1 Currently Not Available
11	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 7 Currently Not Available
12	SCREW Part #: 7519770 Required per assembly: 7 Currently Not Available
13	NUT, FLANGE, NYLOK Part #: 7547441 Required per assembly: 12 Currently Not Available
14	BUCKLE, SEATBELT, PASSENGER Part #: 2635235 Required per assembly: 2 Currently Not Available
15	CAP, BOLT, HEAD Part #: 5450708 Required per assembly: 1 Currently Not Available
16	BRACKET, SEAT, HINGE Part #: 5256836 Required per assembly: 2 Currently Not Available
17	CLAMP, WIRE/TUBE Part #: 7081246 Required per assembly: 1 Currently Not Available
