Cooling System - T17aapf/Aarf/Aasf All Options (500043) replacement parts for 2017 Polaris Slingshot All Options (R09)

OEM Parts Polaris 2017 Polaris Slingshot All Options (R09) Cooling System - T17aapf/Aarf/Aasf All Options (500043)

COOLING SYSTEM - T17AAPF/AARF/AASF ALL OPTIONS (500043) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RIVET Part #: 7661855 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
2	SHROUD-RADIATOR, UPPER Part #: 5450127 Required per assembly: 1 Currently Not Available
3	SHROUD-RADIATOR, LOWER Part #: 5453242 Required per assembly: 1 Currently Not Available
4	SHROUD-RADIATOR, REAR, INJ, MOLD Part #: 5453259 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519054 Required per assembly: 2 Currently Not Available

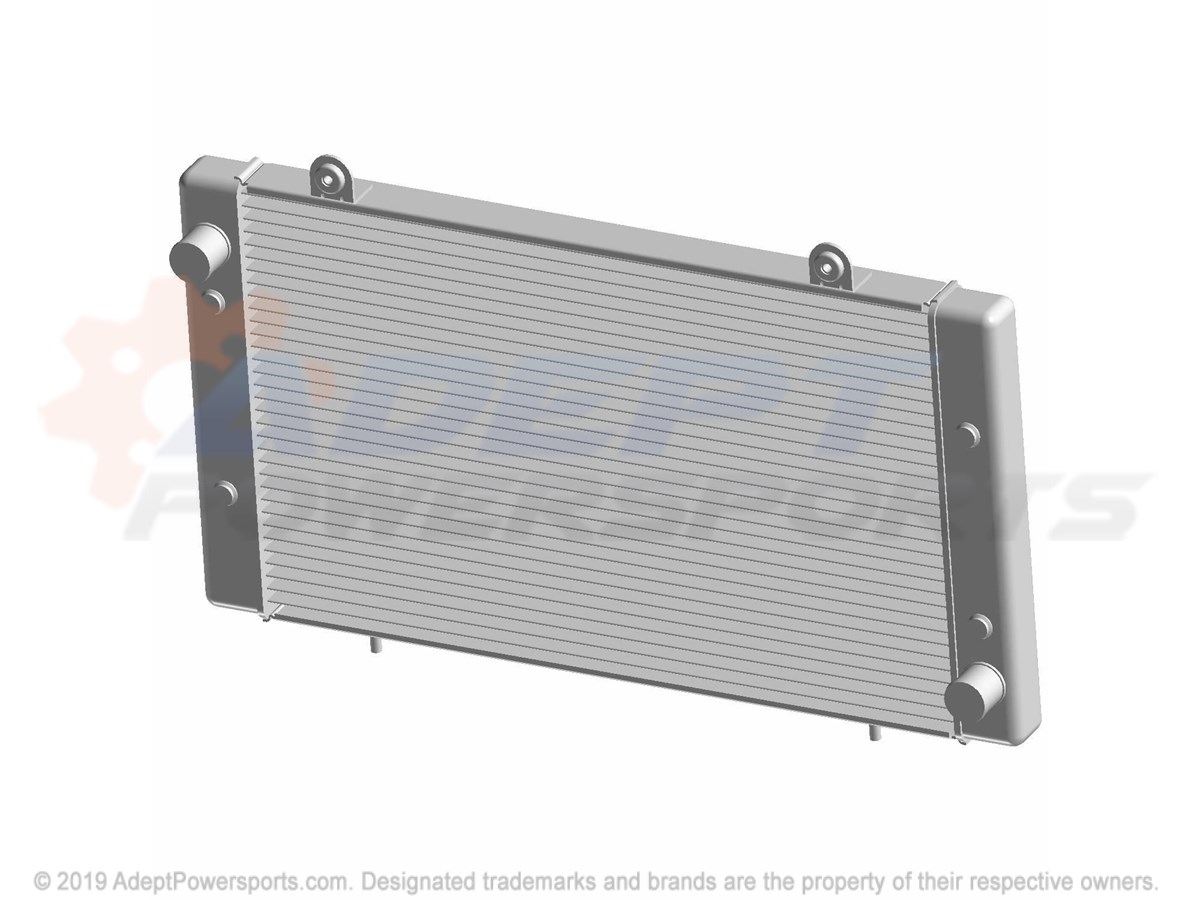

6	CORE-RADIATOR Part #: 1241022 Required per assembly: 1 Currently Not Available
7	CLAMP-HOSE, .625, DIA, VNL, COATED Part #: 7080880 Required per assembly: 2 Note: Clamp, Hose Currently Not Available

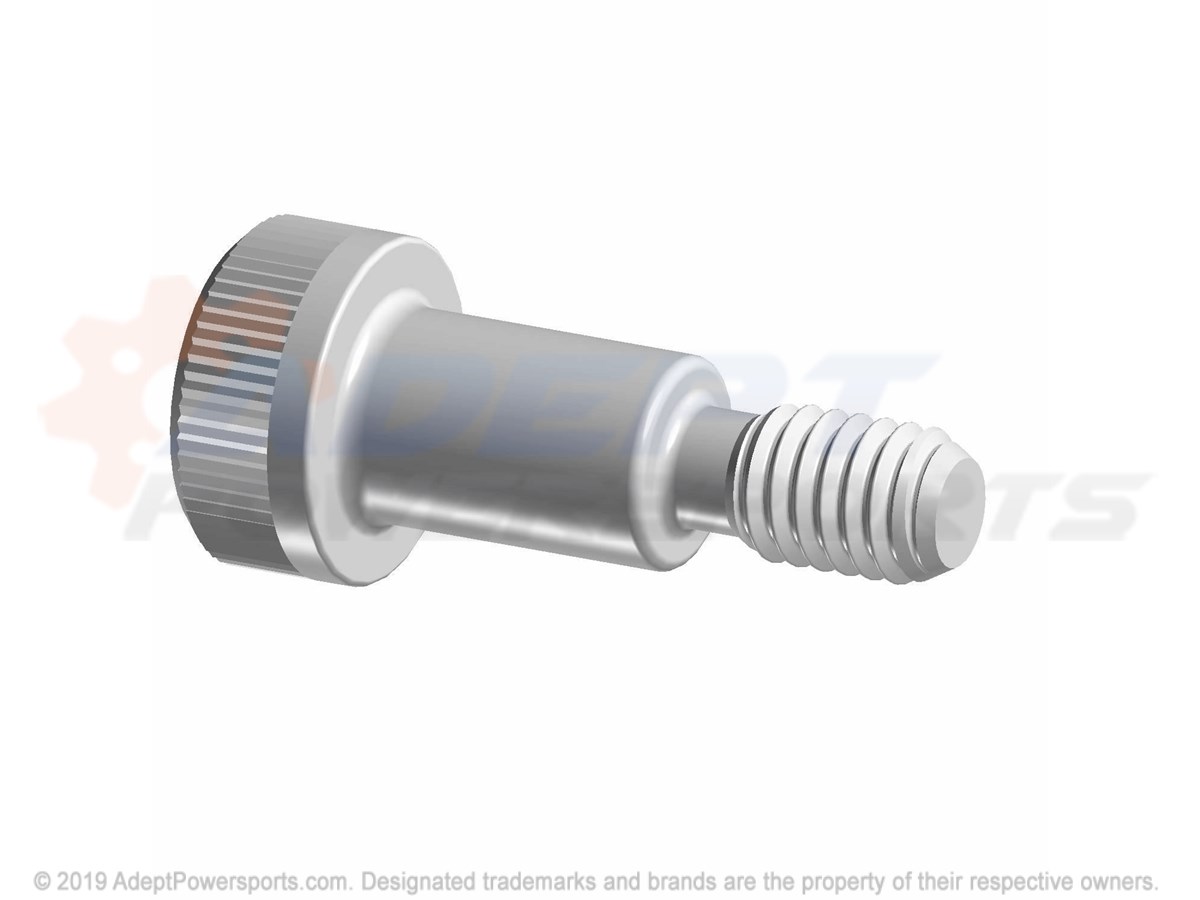

8	SCR-SHSHLD-M6X1.0X12 8.8 ZPB Part #: 7520490 Required per assembly: 4 Currently Not Available
9	HOSE-OVERFLOW, SURGE Part #: 5415514 Required per assembly: 1 Currently Not Available
10	LINE, RETURN, COOLANT, FRT Part #: 5416272 Required per assembly: 1 Note: BUILT FROM 2/27/2017 Currently Not Available
10	LINE, RETURN, COOLANT, FRT Part #: 5416272 Required per assembly: 1 Note: BUILT TO 2/27/2017 Currently Not Available
11	NUT, FLANGE Part #: 7547270 Required per assembly: 2 Note: Nut, Hex Currently Not Available
12	HOSE, ENGINE, OUTLET Part #: 5416270 Required per assembly: 1 Note: BUILT FROM 3/20/2017 Currently Not Available
12	HOSE, ENGINE, OUTLET Part #: 5416270 Required per assembly: 1 Note: BUILT TO 3/20/2017 Currently Not Available
13	KIT-FAN/SHROUD Part #: 2880965 Required per assembly: 1 Currently Not Available
14	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
15	LINE, RETURN, COOLANT Part #: 5416271 Required per assembly: 1 Note: BUILT FROM 3/20/2017 Currently Not Available
15	LINE, RETURN, COOLANT Part #: 5416271 Required per assembly: 1 Note: BUILT TO 3/20/2017 Currently Not Available
16	CLAMP-CTB44 Part #: 7082269 Required per assembly: 6 Note: BUILT FROM 2/01/2017 Currently Not Available
16	CLAMP-CTB44 Part #: 7082269 Required per assembly: 6 Note: BUILT FROM 2/01/2017 Currently Not Available
16	CLAMP-CTB44 Part #: 7082269 Required per assembly: 6 Note: BUILT FROM 2/01/2017 Currently Not Available
16	CLAMP-CTB 46 Part #: 7081844 Required per assembly: 6 Note: BUILT TO 2/01/2017 ~~$10.99~~ $6.33 - + Add to cart
16	CLAMP-CTB 46 Part #: 7081844 Required per assembly: 6 Note: BUILT TO 2/01/2017 ~~$10.99~~ $6.33 - + Add to cart
16	CLAMP-CTB 46 Part #: 7081844 Required per assembly: 6 Note: BUILT TO 2/01/2017 ~~$10.99~~ $6.33 - + Add to cart

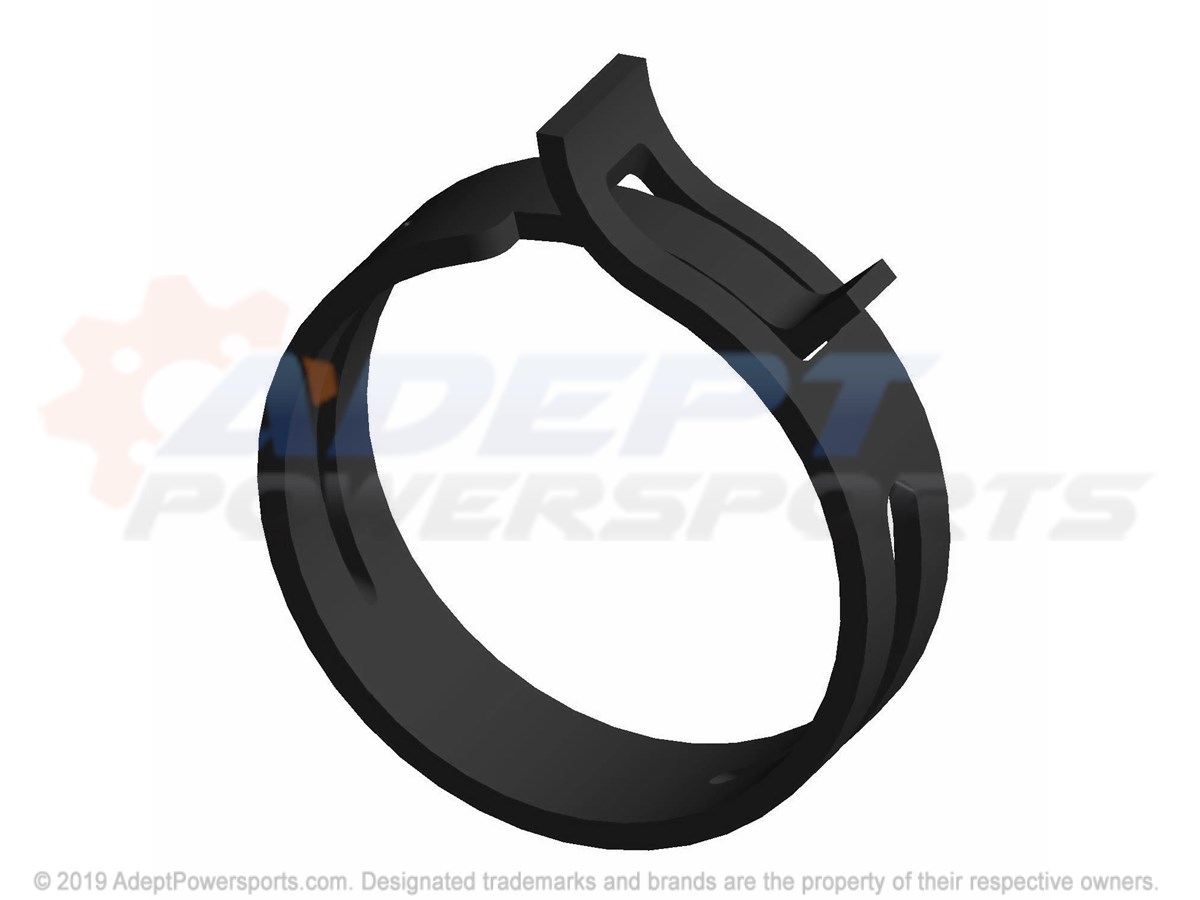

17	CLAMP, SPRINGBAND Part #: 7080842 Required per assembly: 4 Currently Not Available
17	CLAMP, SPRINGBAND Part #: 7080842 Required per assembly: 4 Currently Not Available
17	CLAMP, SPRINGBAND Part #: 7080842 Required per assembly: 4 Currently Not Available
18	HOSE, CORE, BYPASS Part #: 5416269 Required per assembly: 1 Currently Not Available
19	ORIFICE-HEATER BYPASS Part #: 5450024 Required per assembly: 1 ~~$4.99~~ $2.88 - + Add to cart
20	SCREW Part #: 7518514 Required per assembly: 2 Note: Bolt Currently Not Available

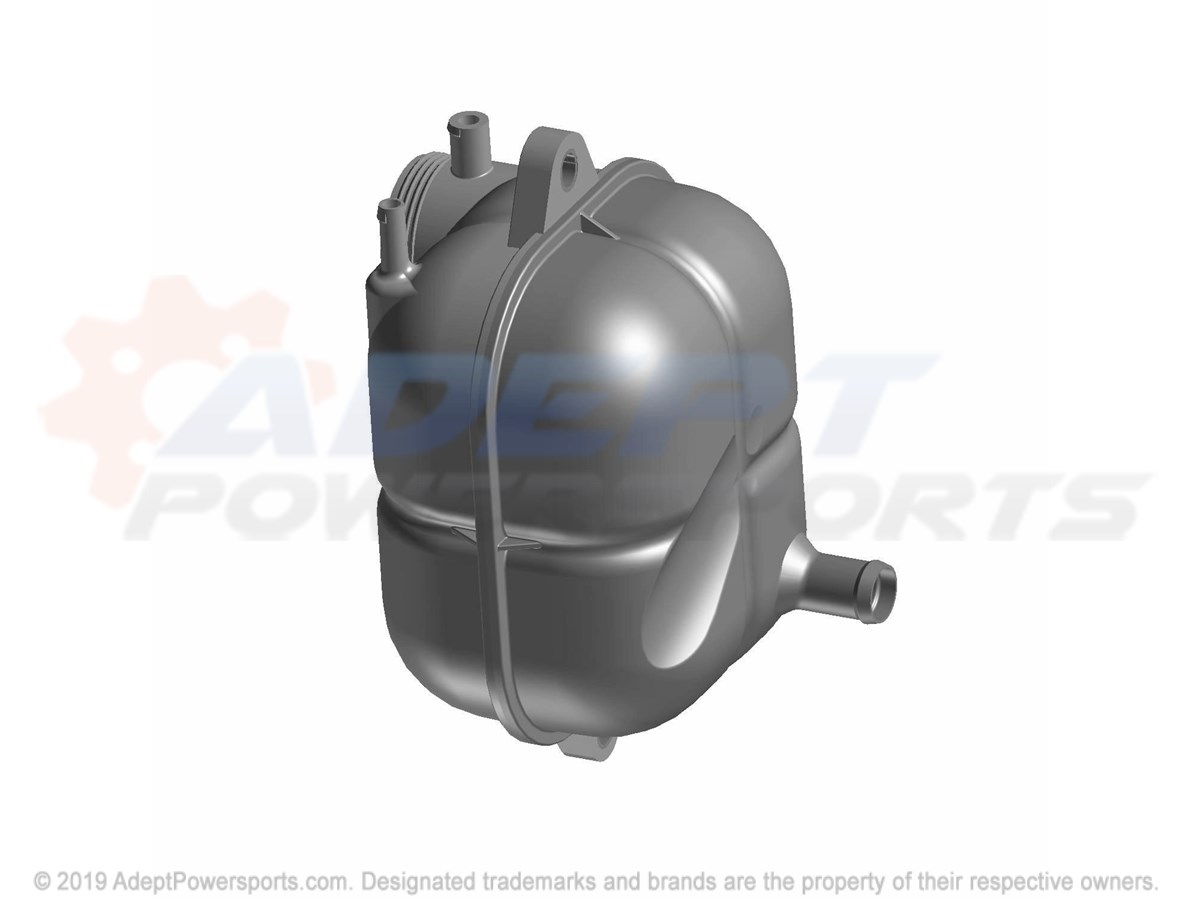

21	TANK-SURGE Part #: 5455083 Required per assembly: 1 Currently Not Available
22	CAP-SURGE TANK Part #: 5439573 Required per assembly: 2 Currently Not Available
23	LINE, SURGE Part #: 5416273 Required per assembly: 1 Note: BUILT FROM 3/20/2017 Currently Not Available
23	LINE, SURGE Part #: 5416273 Required per assembly: 1 Note: BUILT TO 3/20/2017 Currently Not Available
24	CLIP-ROUTING Part #: 7081496 Required per assembly: 2 Currently Not Available

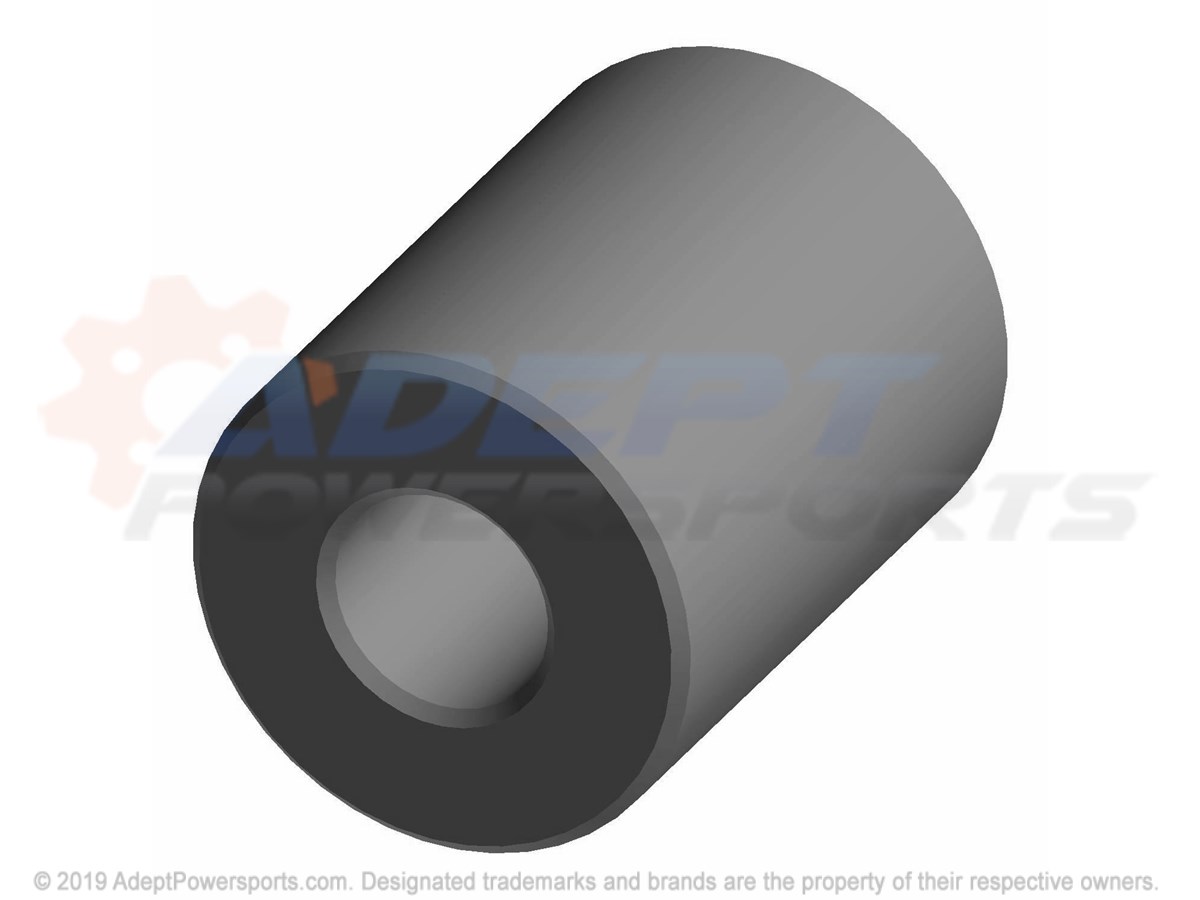

25	SPACER-COOLANT TUBE MNT Part #: 5414568 Required per assembly: 1 Currently Not Available
26	TUBE-COOLANT, RETURN Part #: 5339646 Required per assembly: 1 Note: BUILT TO 2/01/2017 Currently Not Available
26	TUBE-COOLANT, RETURN Part #: 5340299 Required per assembly: 1 Note: BUILT FROM 2/01/2017 Currently Not Available
27	SCREW Part #: 7517704 Required per assembly: 2 Currently Not Available
28	CLAMP-HOSE Part #: 7080807 Required per assembly: 1 Currently Not Available

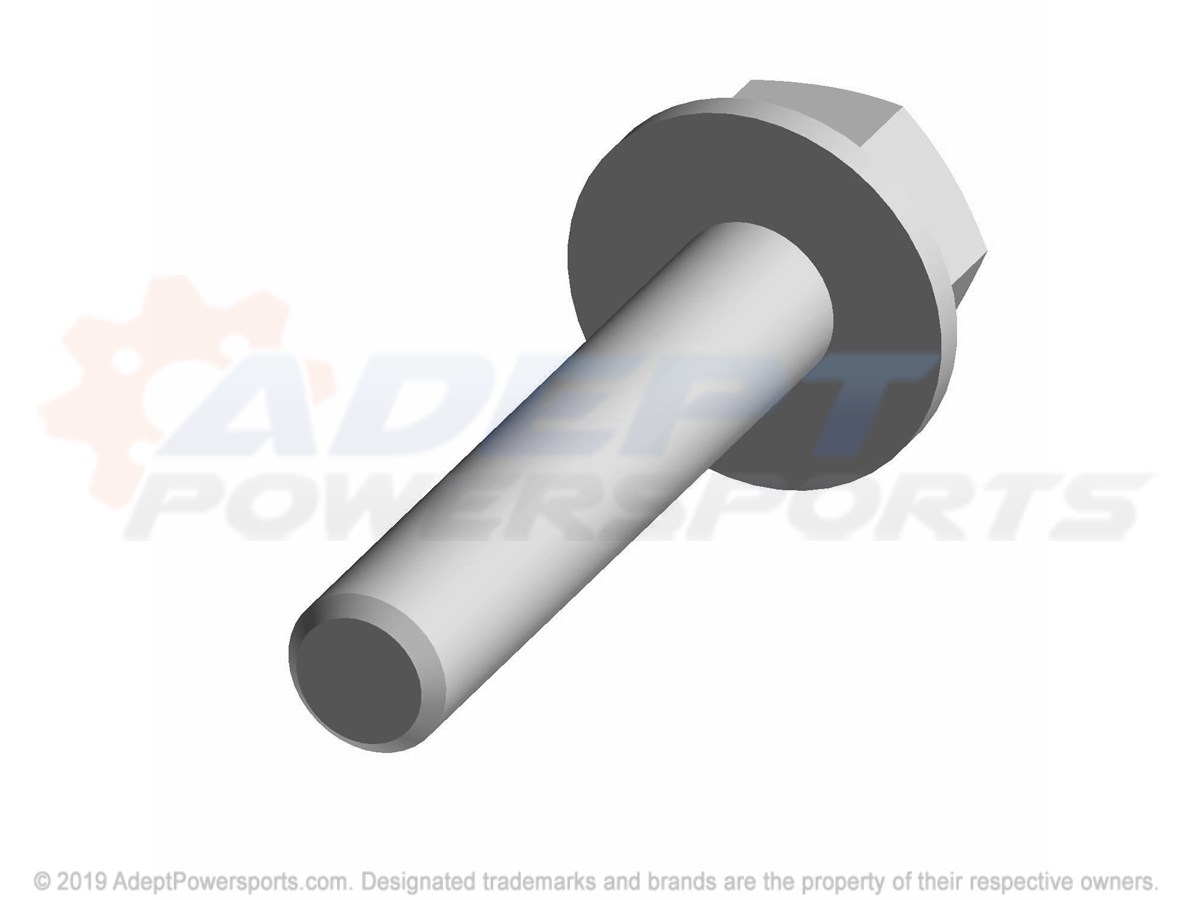

29	SCR HXFLGHD M6X16 Part #: 7517770 Required per assembly: 1 ~~$2.19~~ $1.27 - + Add to cart
30	HOSE-VENT, SURGE Part #: 5416821 Required per assembly: 1 Note: BUILT TO 2/27/2017 Currently Not Available
30	HOSE-VENT, SURGE Part #: 5416821 Required per assembly: 1 Note: BUILT FROM 2/27/2017 Currently Not Available
31	CLAMP-CTB15 Part #: 7082286 Required per assembly: 1 Note: BUILT FROM 2/01/2017 Currently Not Available
31	CLAMP, HOSE Part #: 7080699 Required per assembly: 1 Note: BUILT TO 2/01/2017 ~~$3.77~~ $2.30 - + Add to cart
32	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
33	CLAMP, HOSE, S.S. Part #: 7080476 Required per assembly: 1 ~~$6.99~~ $4.03 - + Add to cart
