Rear Asm., Upper - T17aapf/Aarf/Aasf All Options (500005) replacement parts for 2017 Polaris Slingshot All Options (R09)

OEM Parts Polaris 2017 Polaris Slingshot All Options (R09) Rear Asm., Upper - T17aapf/Aarf/Aasf All Options (500005)

REAR ASM., UPPER - T17AAPF/AARF/AASF ALL OPTIONS (500005) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	3M, 4952, VHB, TAPE, 150, MM, LONG Part #: 8360141 Note: ADHESIVE TAPE NOT SHOWN Currently Not Available
1	SCR-TXBH-M6X1.0X15 8.8 ZB3 SH Part #: 7520011 Currently Not Available
1	SCR-TXBH-M6X1.0X15 8.8 ZB3 SH Part #: 7520011 Currently Not Available
1	SCR-TXBH-M6X1.0X15 8.8 ZB3 SH Part #: 7520011 Currently Not Available
1	SCR-TXBH-M6X1.0X15 8.8 ZB3 SH Part #: 7520011 Currently Not Available
1	SCR-TXBH-M6X1.0X15 8.8 ZB3 SH Part #: 7520011 Currently Not Available
2	SCREW Part #: 7512026 Note: Screw Currently Not Available
2	SCREW Part #: 7512026 Note: Screw Currently Not Available

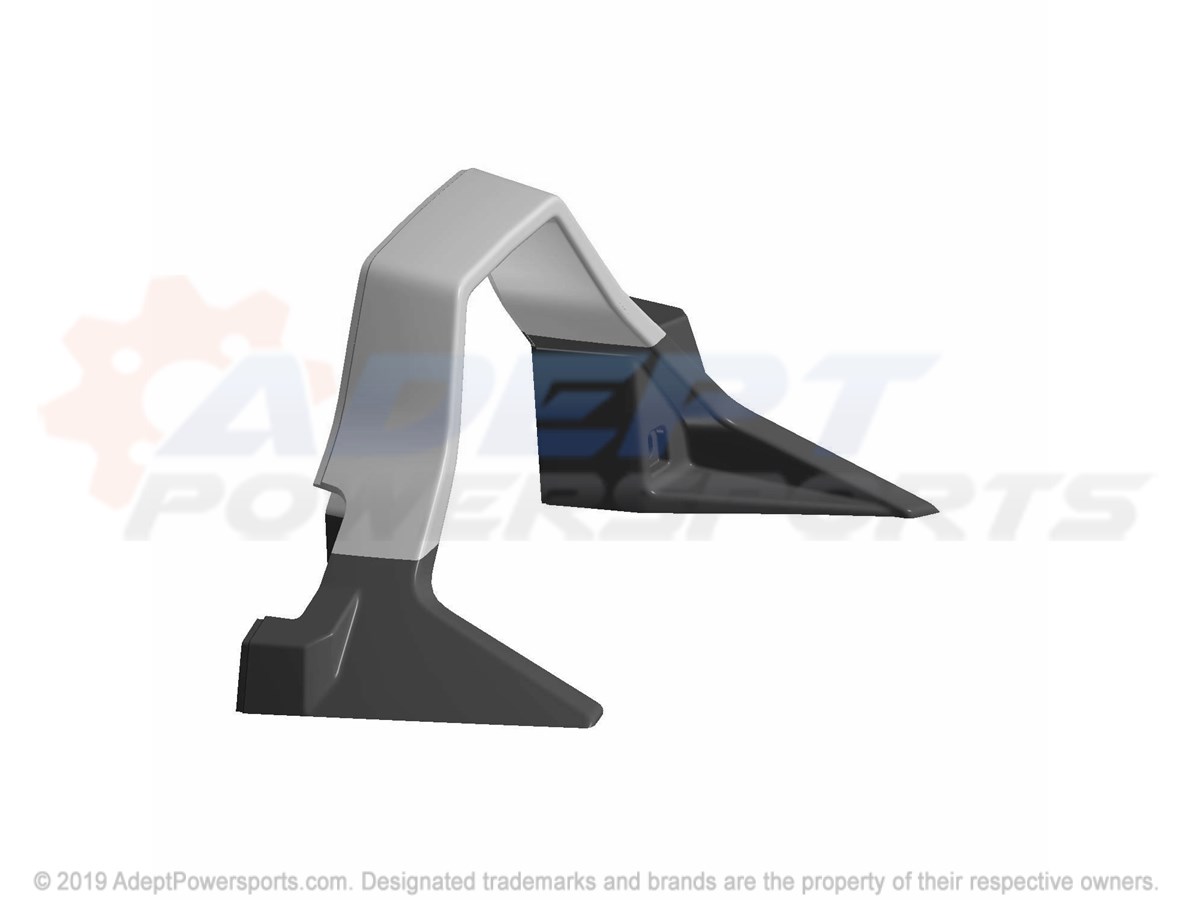

3	COVER-RH, FRONT, HOOP, BLK, PRL Part #: 5450029-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available
3	COVER, RH, FRNT, HOOP, BLK, TEXTURE Part #: 5453200 Required per assembly: 1 Currently Not Available
3	COVER-RH, FRONT, HOOP, MDNGT, CHER Part #: 5450029-554 Required per assembly: 1 Note: SL LE ONLY Currently Not Available
4	COVER-RH, REAR, HOOP, MDNITE, CHER Part #: 5450031-554 Required per assembly: 1 Note: SL LE ONLY Currently Not Available
4	COVER-RH, REAR, HOOP, BLK, TEXTURE Part #: 5453202 Required per assembly: 1 Currently Not Available
4	COVER-RH, REAR, HOOP, BLK, PRL Part #: 5450031-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available
5	COVER-LH, FRONT, HOOP, BLK, PRL Part #: 5450045-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available
5	COVER-LH, FRNT, HOOP, BLK, TEXTURE Part #: 5453199 Required per assembly: 1 Currently Not Available
5	COVER-LH, FRONT, HOOP, MDNGT, CHER Part #: 5450045-554 Required per assembly: 1 Note: SL LE ONLY Currently Not Available
6	COVER, LH, REAR, HOOP, MDNITE, CHER Part #: 5450030-554 Required per assembly: 1 Note: SL LE ONLY Currently Not Available
6	COVER-LH, REAR, HOOP, BLK, TEXTURE Part #: 5453201 Required per assembly: 1 Currently Not Available
6	COVER, LH, REAR, HOOP, BLK, PRL Part #: 5450030-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available
7	TRIM-CHMSL, UPPER Part #: 5452313 Required per assembly: 1 Currently Not Available
8	SCREW, M4, TXBH Part #: 7518518 Currently Not Available
8	SCREW, M4, TXBH Part #: 7518518 Currently Not Available
8	SCREW, M4, TXBH Part #: 7518518 Currently Not Available
8	SCREW, M4, TXBH Part #: 7518518 Currently Not Available
8	SCREW, M4, TXBH Part #: 7518518 Currently Not Available
9	NUT Part #: 7547324 Currently Not Available
9	NUT Part #: 7547324 Currently Not Available
9	NUT Part #: 7547324 Currently Not Available
9	NUT Part #: 7547324 Currently Not Available
10	TRIM-CHMSL, LOWER Part #: 5450048 Required per assembly: 1 Note: AASF GLOSS BLACK ONLY Currently Not Available

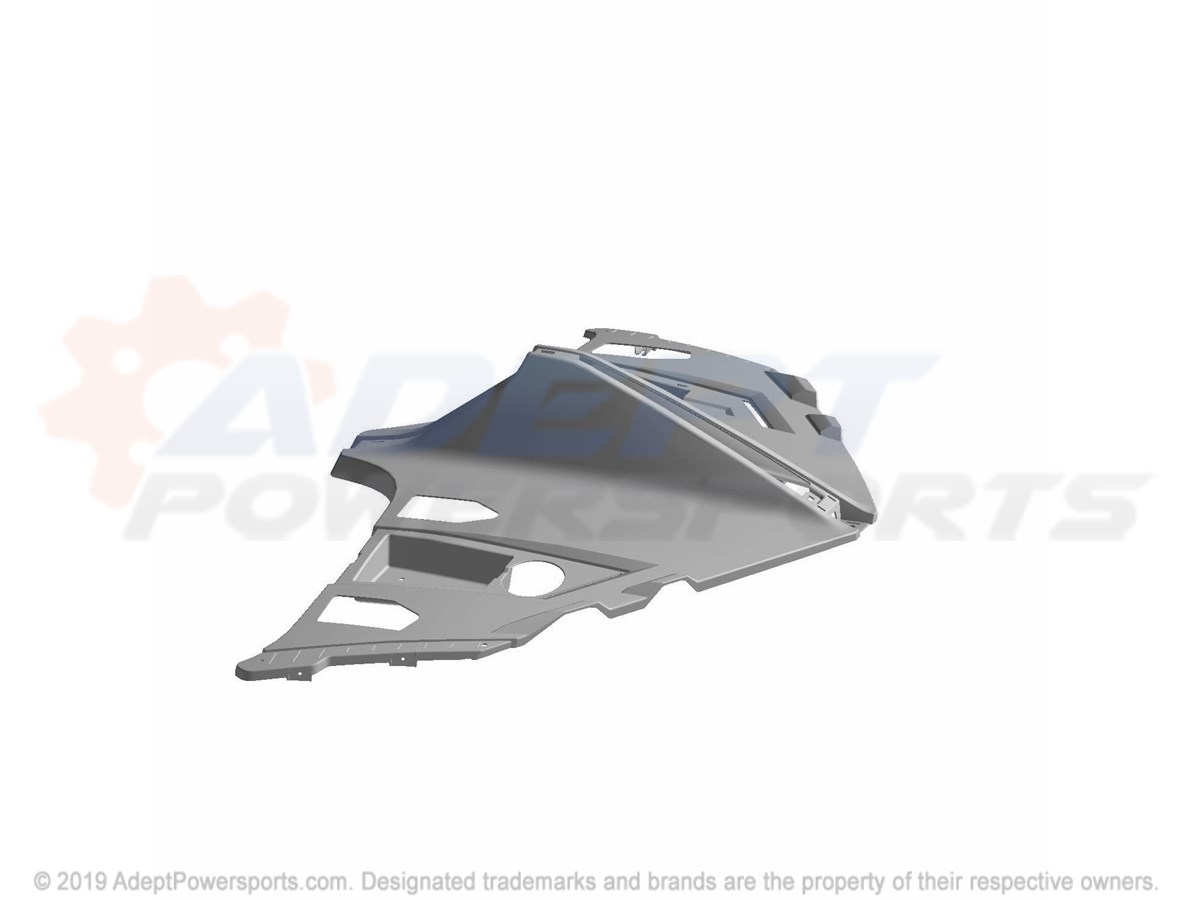

11	DECK-REAR, TOP, SUNSET, RED Part #: 5439966-520 Required per assembly: 1 Currently Not Available
11	DECK-REAR, TOP, GLOSS, BLACK Part #: 5439966-070 Required per assembly: 1 Note: AASF ONLY Currently Not Available
11	DECK-REAR, TOP, BLK, PRL Part #: 5458805-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available
11	3M, VHB, TAPE, 40MM, L, 0.09, THK Part #: 8360173 Required per assembly: 2 Currently Not Available
11	DECK-REAR, TOP, GLOSS, NAVY, BLUE Part #: 5439966-727 Required per assembly: 1 Currently Not Available
11	DECK-REAR, TOP, MIDNIGHT, CHERRY Part #: 5439966-554 Required per assembly: 1 Note: SL LE ONLY Currently Not Available

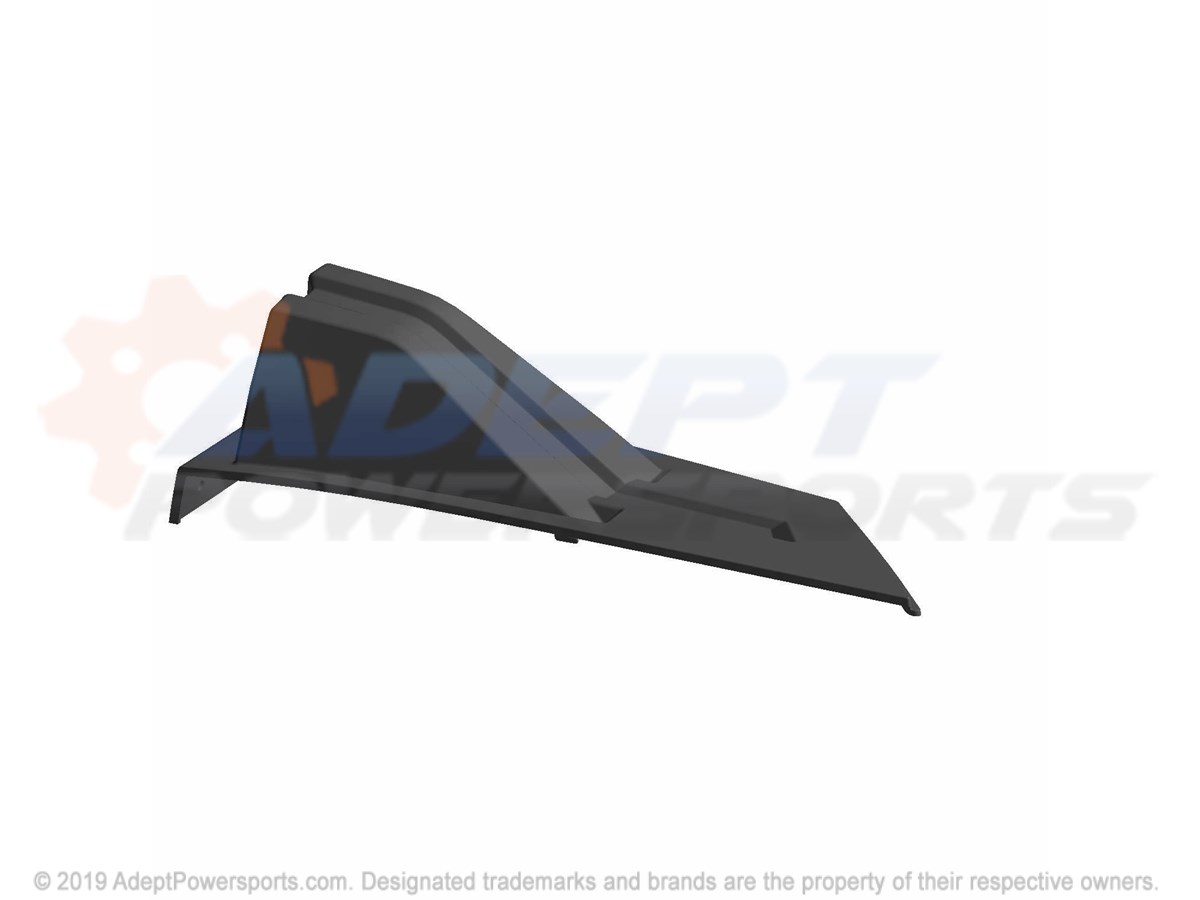

12	PANEL-REAR, HUMP, DECK, LH, PRLWH2 Part #: 5453411-566 Required per assembly: 1 Note: SL LE ONLY Currently Not Available
12	PANEL-REAR, HUMP, DECK, LH Part #: 5452410 Required per assembly: 1 Currently Not Available
12	PANEL-REAR, HUMP, DECK, LH, BLKPRL Part #: 5453411-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available

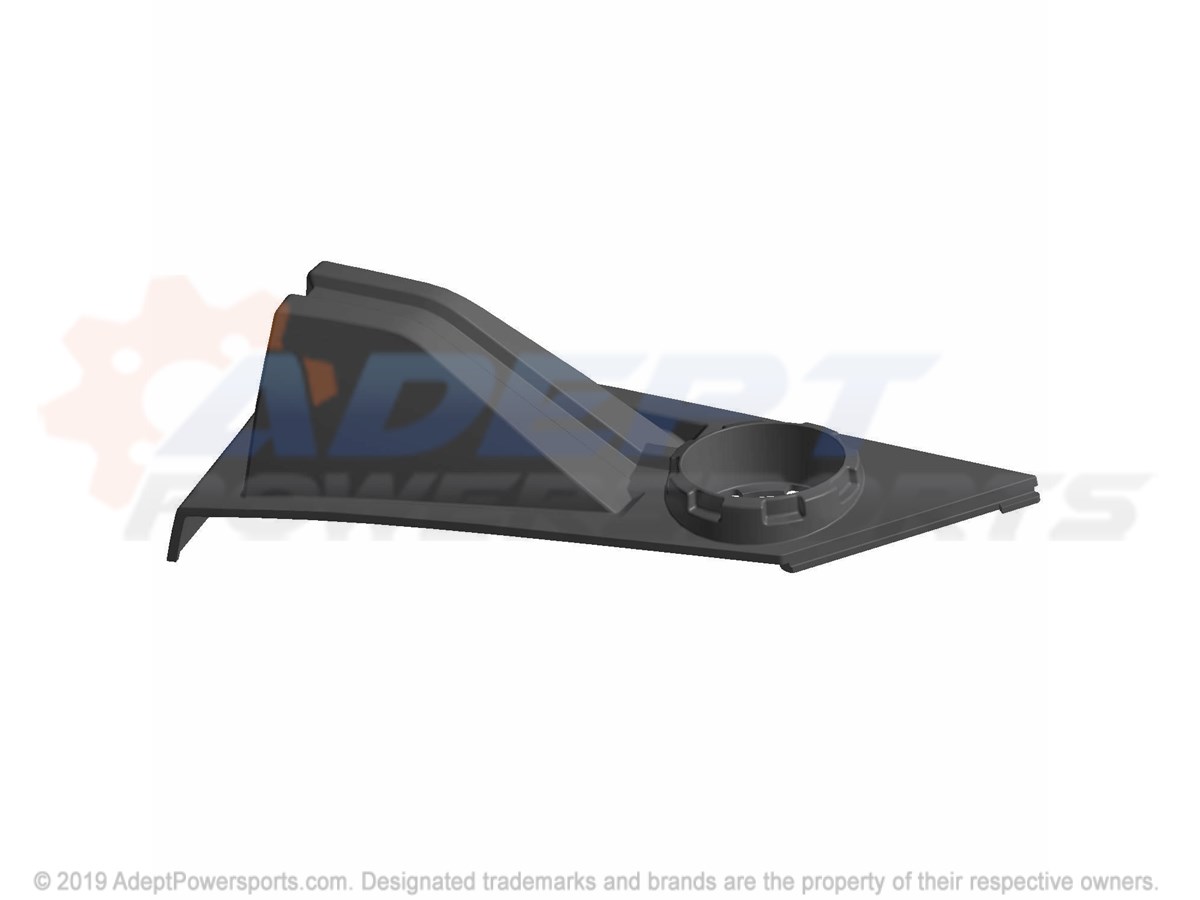

13	PANEL-REAR, HUMP, DECK, RH, BLPRL Part #: 5453412-666 Required per assembly: 1 Note: AARF ONLY Currently Not Available
13	PANEL-REAR, HUMP, DECK, RH Part #: 5452411 Required per assembly: 1 Currently Not Available
13	PANEL-REAR, HUMP, DECK, RH, PRLWH2 Part #: 5453412-566 Required per assembly: 1 Note: SL LE ONLY Currently Not Available
