2017 Polaris Slingshot All Options (R09) T17AAPF/AARF/AASF - Main, And Rear Asm. - T17aapf/Aarf/Aasf All Options (500052)

MAIN, and REAR ASM. - T17AAPF/AARF/AASF ALL OPTIONS (500052) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

WELD-MAINFRAME, CHASSIS, BRT, WHT

Part #: 1021650-133 Required per assembly: 1 Note: SL LE
Currently Not Available
1

WELD-MAINFRME, CHASS, TIANIUN, 18

Part #: 1023405-650 Required per assembly: 1
Currently Not Available
1

CHASSIS, MAINFRAME, ORANGE, MADNESS

Part #: 1023405-589 Required per assembly: 1 Note: AARF ORANGE MADNESS ONLY
Currently Not Available
2

SCR-HXFL-M12X1.75X65 ZOD P80

Part #: 7519264 Required per assembly: 8
Currently Not Available
2

SCR-HXFL-M12X1.75X65 ZOD P80

Part #: 7519264 Required per assembly: 8
Currently Not Available
3
Polaris 5142238-463 Hoop-Roll, Rh, Flat, Black

HOOP-ROLL, RH, FLAT, BLACK

Part #: 5142238-463 Required per assembly: 1
Currently Not Available
4

HOOP-ROLL, LH, FLAT, BLACK

Part #: 5144613-463 Required per assembly: 1
Currently Not Available

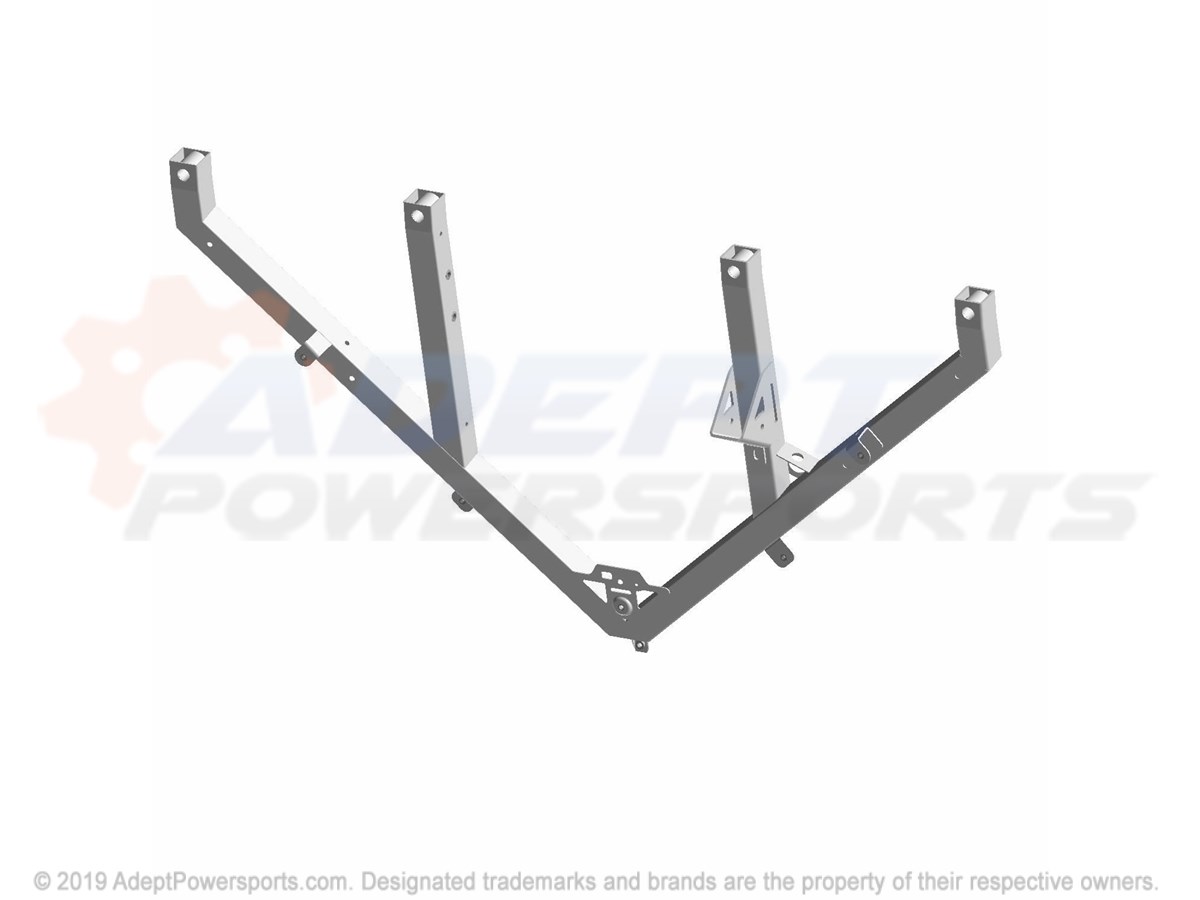

5
Polaris 1026167 Weld-Subframe, Rear

WELD-SUBFRAME, REAR

Part #: 1026167 Required per assembly: 1
Currently Not Available
6

NUT, FLANGE

Part #: 7547332 Required per assembly: 1 Note: Nut, Nylok
Currently Not Available
7
Polaris 7517533 Screw, M8x1.25X55

SCREW, M8X1.25X55

Part #: 7517533 Required per assembly: 1
Currently Not Available

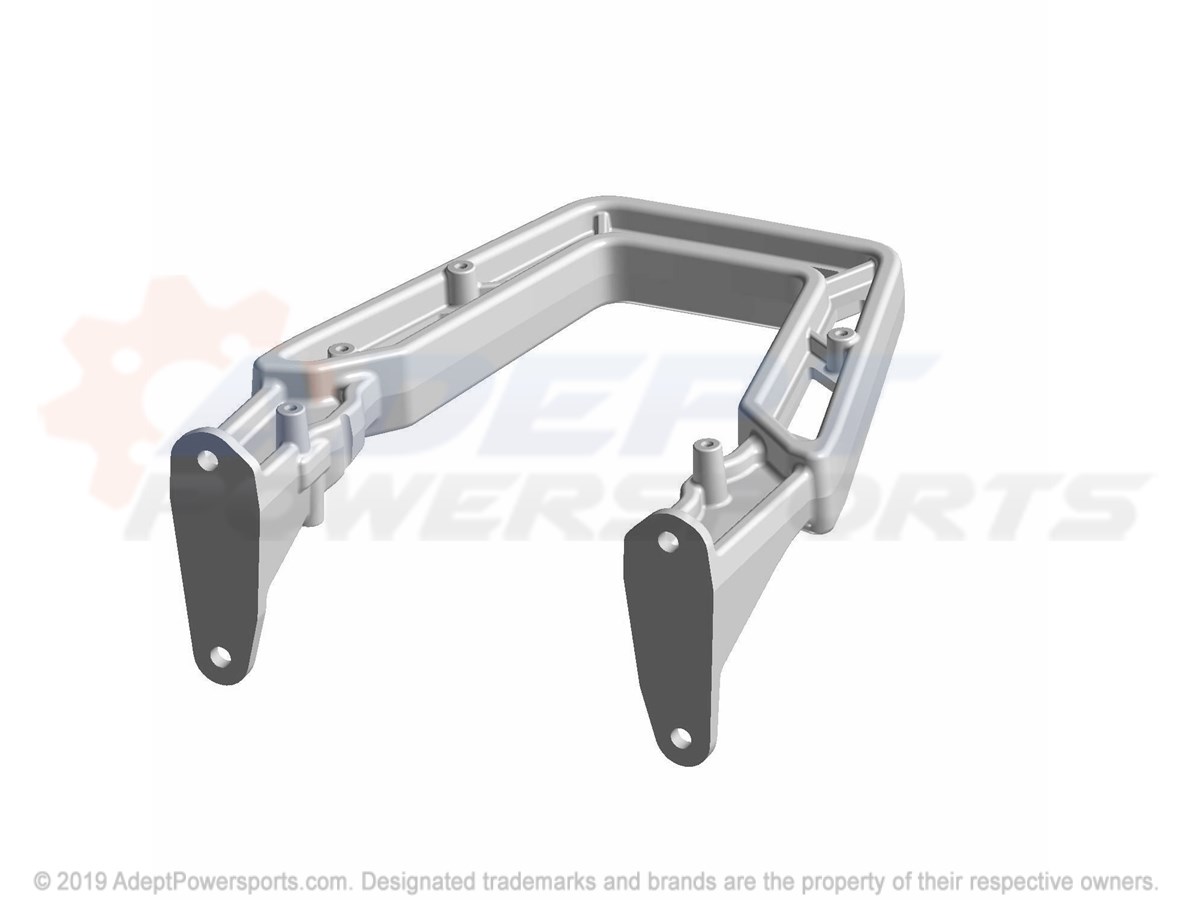

8
Polaris 1021668 Weld-Tube, Rear, Brace

WELD-TUBE, REAR, BRACE

Part #: 1021668 Required per assembly: 1
Currently Not Available
9

SCREW

Part #: 7519790 Required per assembly: 1
Currently Not Available
10

NUT

Part #: 7547017 Required per assembly: 1
Currently Not Available
11
Polaris 7519181 Scr-Hxfl-M8x1.25X16 8.8 Zod

SCR-HXFL-M8X1.25X16 8.8 ZOD

Part #: 7519181 Required per assembly: 4
Currently Not Available

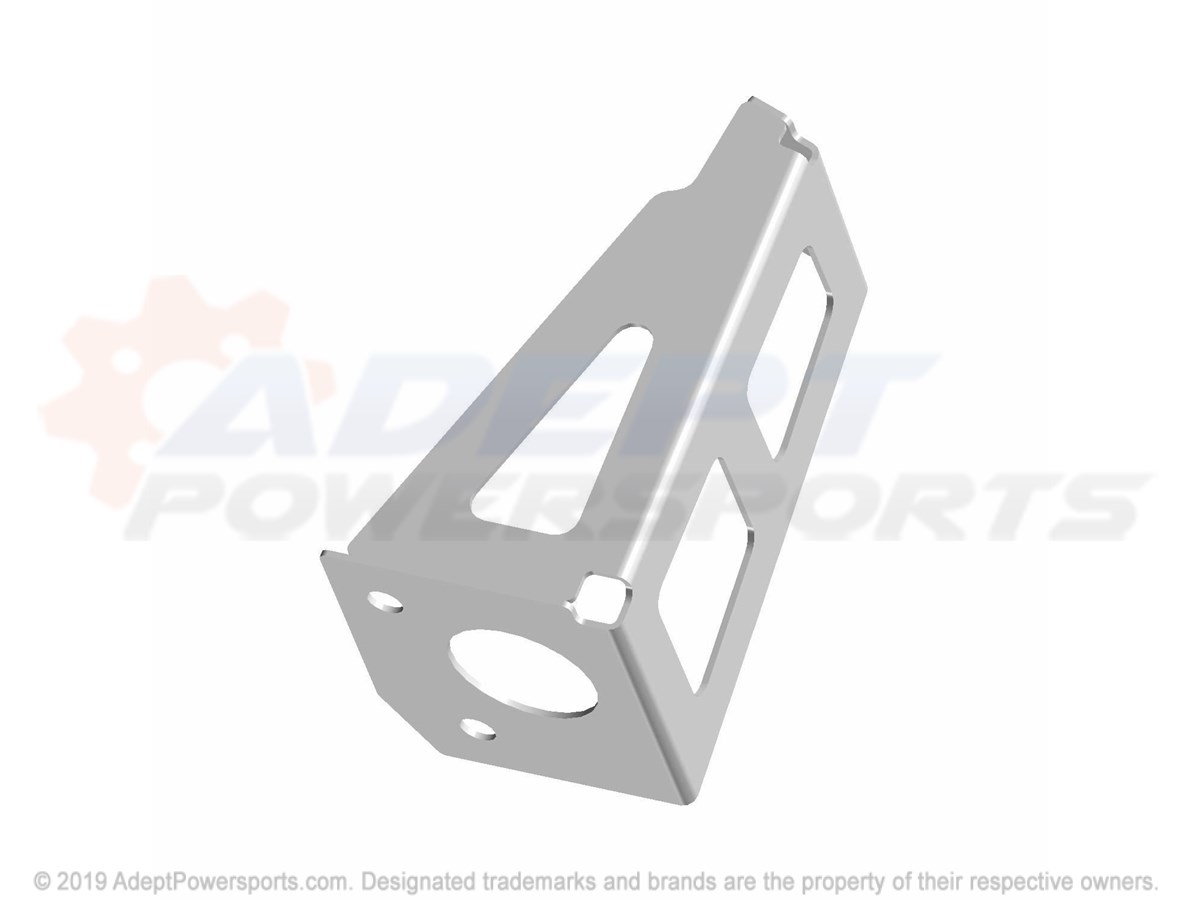

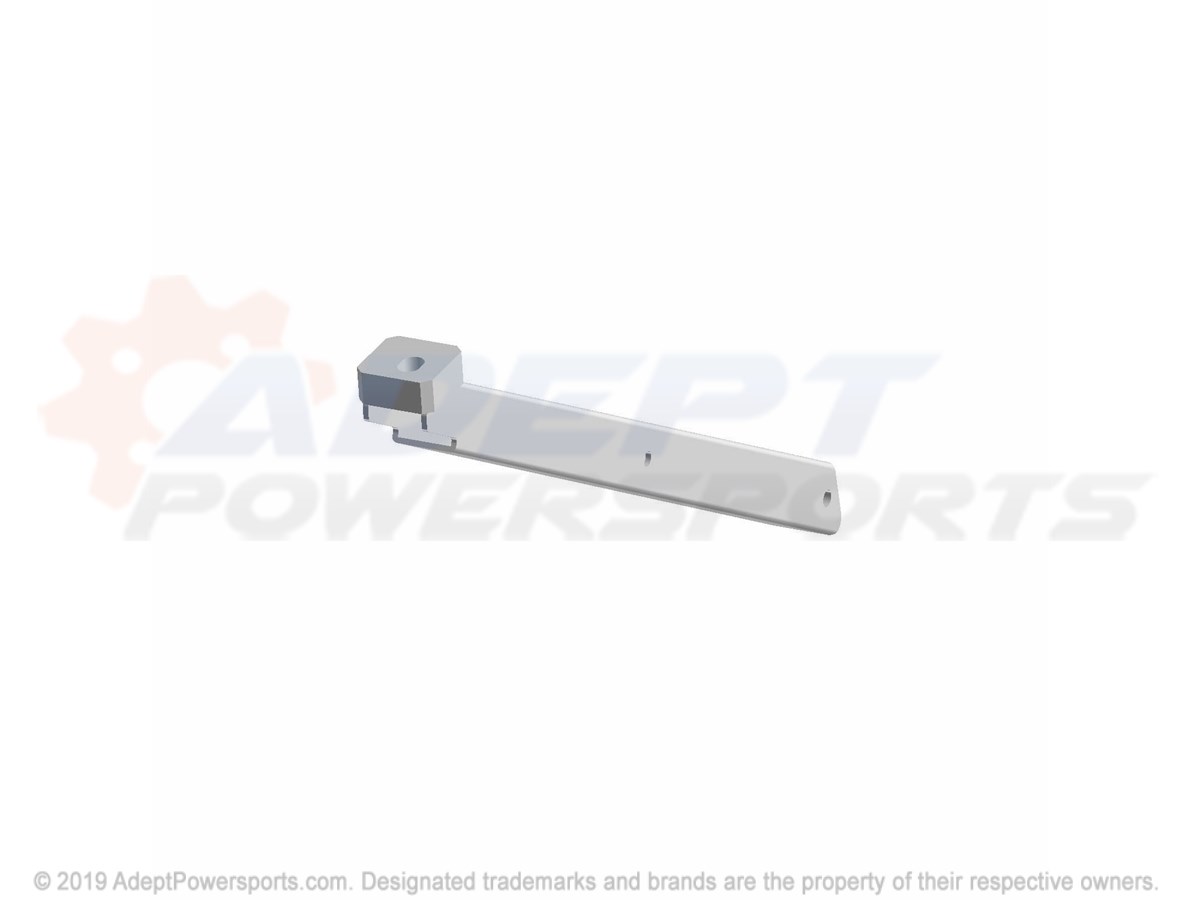

12
Polaris 5260968 Brkt-Wing, Support, Lh

BRKT-WING, SUPPORT, LH

Part #: 5260968 Required per assembly: 1
Currently Not Available

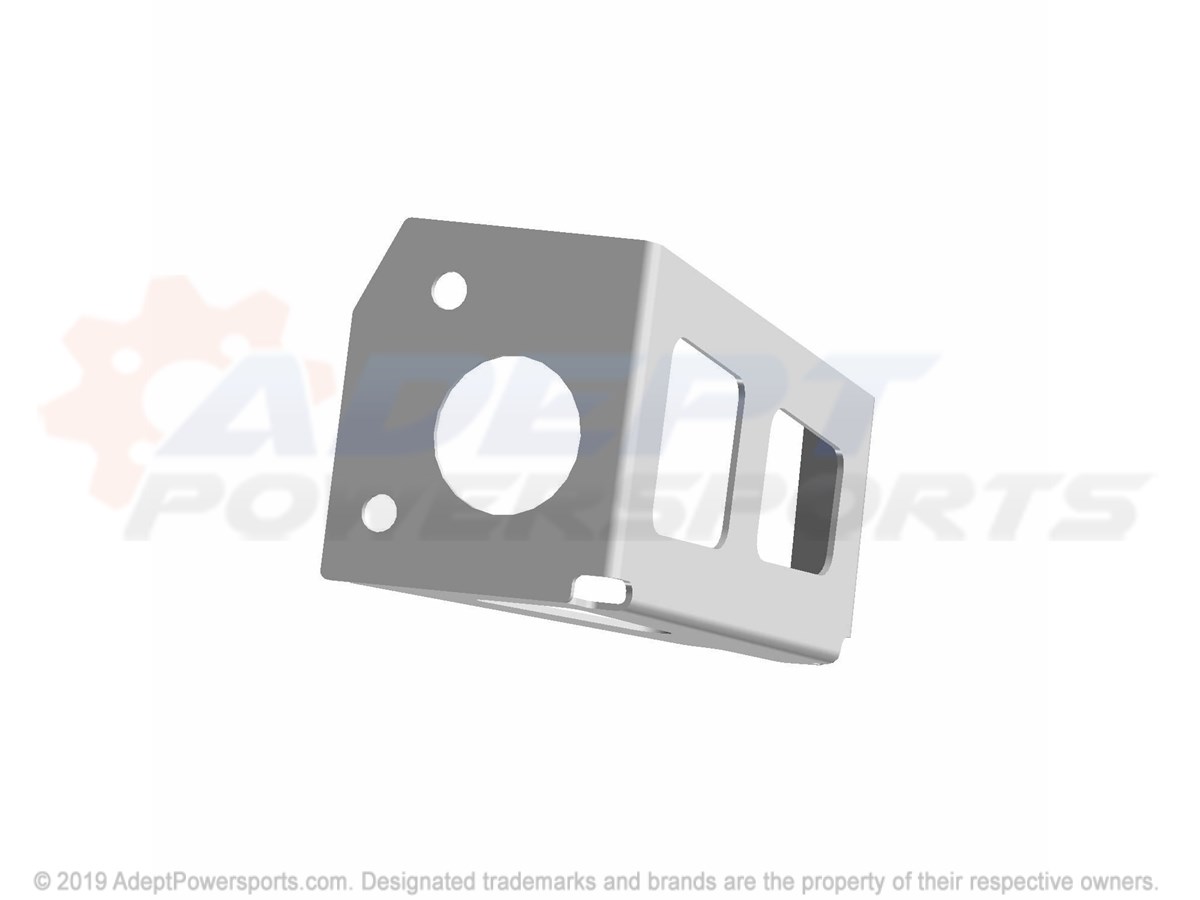

12
Polaris 5260969 Brkt-Wing, Support, Rh

BRKT-WING, SUPPORT, RH

Part #: 5260969 Required per assembly: 1
Currently Not Available

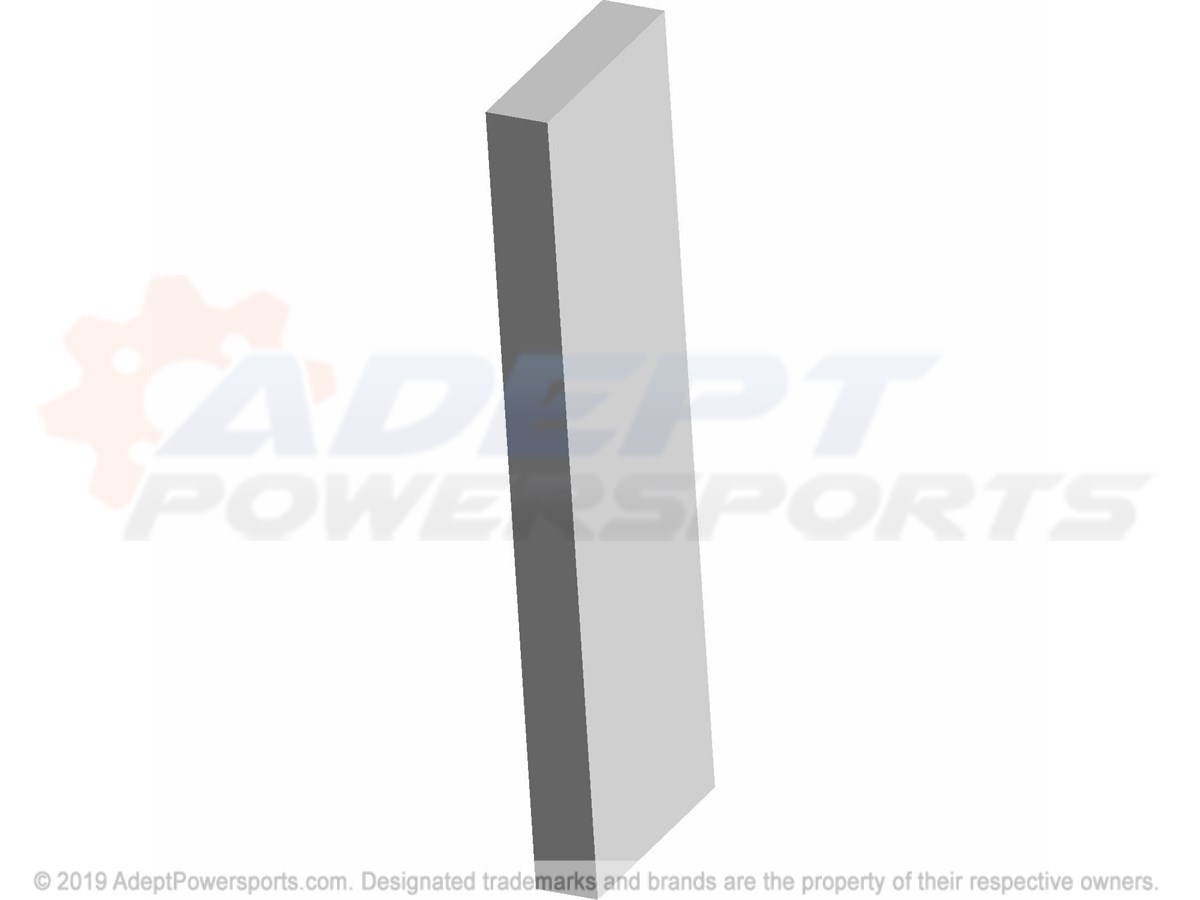

13
Polaris 8360178 Pad-.250"Sce Neoprene Rubber

PAD-.250"SCE NEOPRENE RUBBER

Part #: 8360178 Required per assembly: 2
Currently Not Available
14

CLIP-DART, TRW, PC47561

Part #: 7670142 Required per assembly: 8
Currently Not Available
