FRONT FRAME ASM. - T17AAPF/AARF/AASF ALL OPTIONS (500041) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

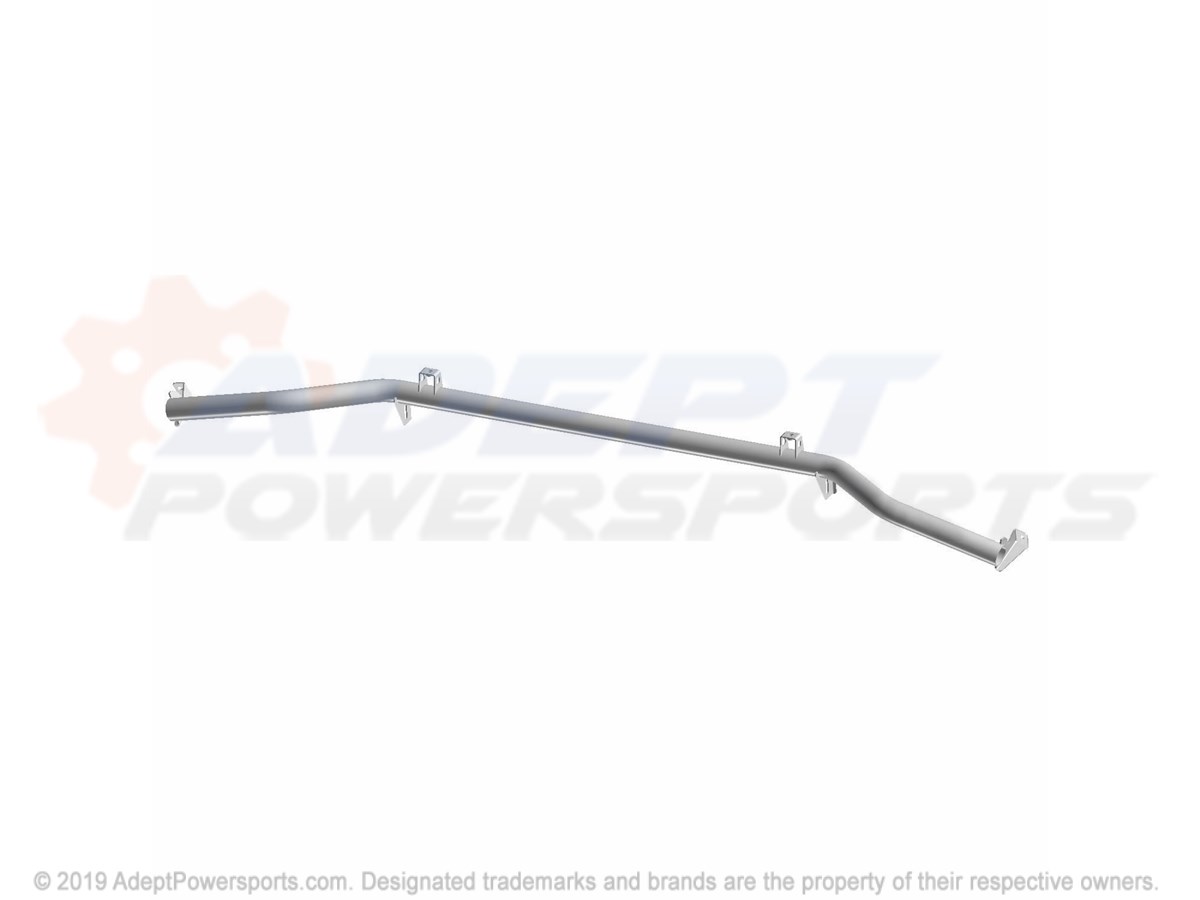

1	WELD-TUBE, LOWERCLIP, ALUM, ECOAT Part #: 1022959-329 Required per assembly: 1 Currently Not Available
2	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
2	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 4 Note: Bolt, Flange Currently Not Available

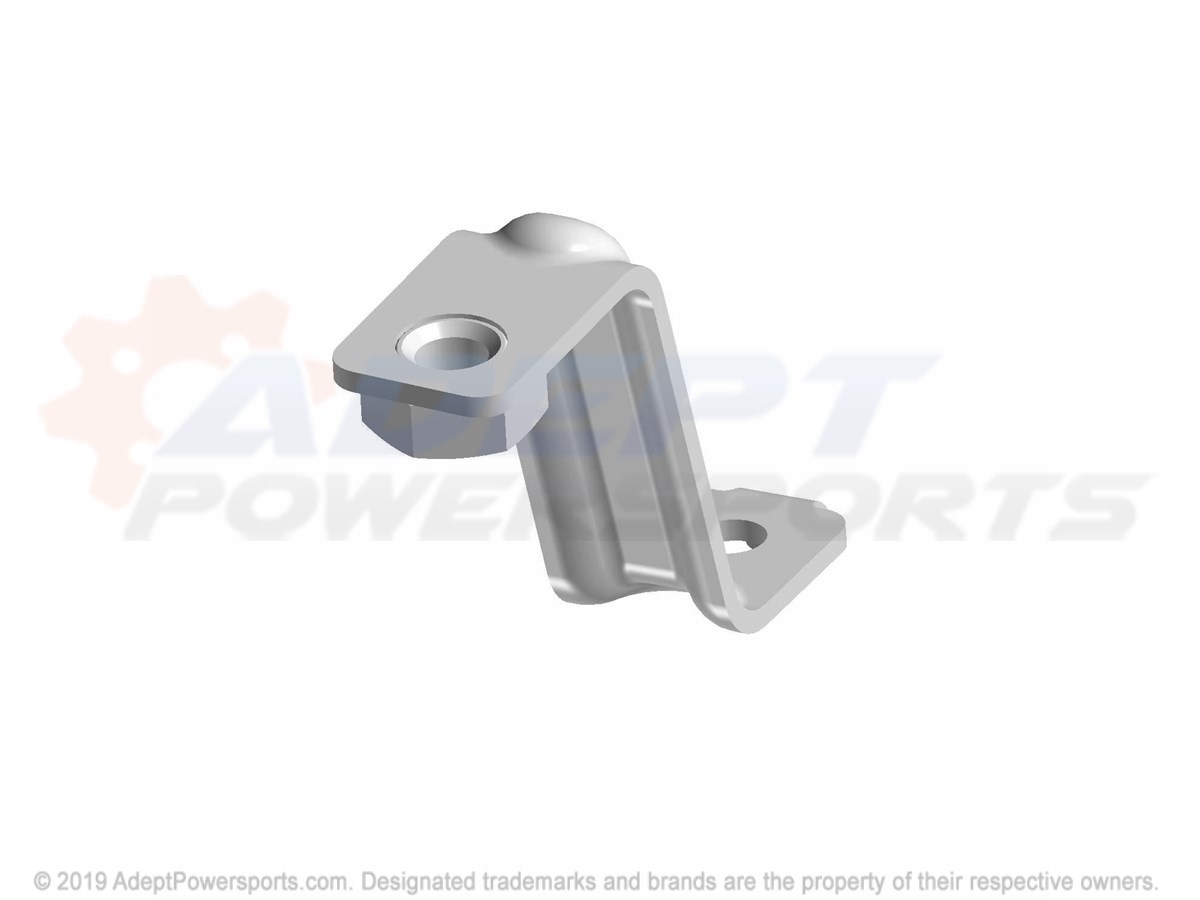

3	BRKT-MNT, FRNT, UPR, WHISKR, ECOAT Part #: 5261028-329 Required per assembly: 2 Currently Not Available
3	BRKT-MNT, FRNT, UPR, WHISKR, ECOAT Part #: 5261028-329 Required per assembly: 2 Currently Not Available
4	SCREW Part #: 7518548 Required per assembly: 4 Currently Not Available
4	SCREW Part #: 7518548 Required per assembly: 4 Currently Not Available
5	MOUNT-HEADLIGHT, OUTER, ECOAT Part #: 5263200-329 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7519072 Required per assembly: 4 Currently Not Available
6	SCREW Part #: 7519072 Required per assembly: 4 Currently Not Available
6	SCREW Part #: 7519072 Required per assembly: 4 Currently Not Available
6	SCREW Part #: 7519072 Required per assembly: 4 Currently Not Available
7	BUMPER-HOOD ADJUSTMENT Part #: 5414577 Required per assembly: 2 Currently Not Available
8	WELD-FRONT, SUPPORT, BLK, E-COAT Part #: 1022141-329 Required per assembly: 1 Currently Not Available
9	SCR-HXFL, M12X1.75X80, 10.9, ZPC Part #: 7519804 Required per assembly: 2 Currently Not Available
10	NUT, FLANGE, NYLOK Part #: 7547441 Required per assembly: 2 Currently Not Available
11	WELD-MNT, RADIATOR, UPPER Part #: 1022370 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518548 Required per assembly: 2 Currently Not Available
