OEM Parts Polaris 2017 Polaris Slingshot All Options (R09) Driven Sprocket, Belt And Guard - T17aapf/Aarf/Aasf All Options (500054)

2017 Polaris Slingshot All Options (R09) T17AAPF/AARF/AASF - Driven Sprocket, Belt And Guard - T17aapf/Aarf/Aasf All Options (500054)

DRIVEN SPROCKET, BELT and GUARD - T17AAPF/AARF/AASF ALL OPTIONS (500054) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1333384-650 Asm-Spkt, 62T, 7, Deg, Titanium

ASM-SPKT, 62T, 7, DEG, TITANIUM

Part #: 1333384-650 Required per assembly: 1
Currently Not Available
2

NUT

Part #: 7547831 Required per assembly: 2 Note: Sold in multiples of 2 only
Currently Not Available
3
Polaris 3211184 Belt, Drive, 36Mm, 147T

BELT, DRIVE, 36MM, 147T

Part #: 3211184 Required per assembly: 1
Currently Not Available
4

SCR-TXBH-M6X1.0X15 8.8 ZB3 SH

Part #: 7520011 Required per assembly: 3
Currently Not Available
4

SCR-TXBH-M6X1.0X15 8.8 ZB3 SH

Part #: 7520011 Required per assembly: 3
Currently Not Available
5

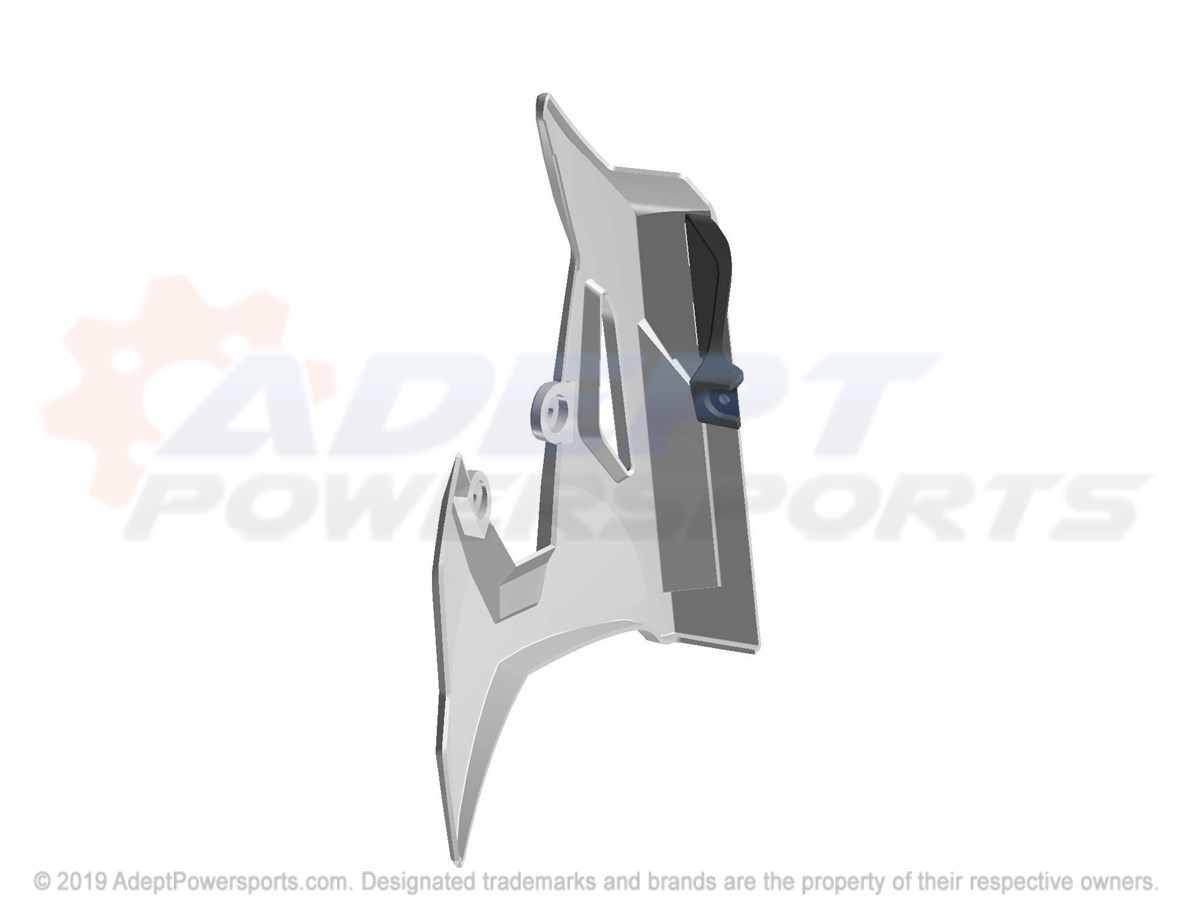

Polaris 2635536 Asm-Belt Guard

ASM-BELT GUARD

Part #: 2635536 Required per assembly: 1
Currently Not Available
5
Polaris 2636320-666 Asm-Belt, Guard, Black, Pearl

ASM-BELT, GUARD, BLACK, PEARL

Part #: 2636320-666 Required per assembly: 1 Note: SLR, AARF TURBO SILVER/ORANGE MADNESS ONLY
Currently Not Available
5
Polaris 2636320-554 Asm-Belt, Guard, Midnight, Cherry

ASM-BELT, GUARD, MIDNIGHT, CHERRY

Part #: 2636320-554 Required per assembly: 1 Note: SL LE
Currently Not Available
