OEM Parts Polaris 2017 Polaris Slingshot All Options (R09) Rear Brake Line And Park Brake - T17aapf/Aarf/Aasf All Options (500039)

2017 Polaris Slingshot All Options (R09) T17AAPF/AARF/AASF - Rear Brake Line And Park Brake - T17aapf/Aarf/Aasf All Options (500039)

REAR BRAKE LINE and PARK BRAKE - T17AAPF/AARF/AASF ALL OPTIONS (500039) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

BOLT, BANJO

Part #: 1910958 Required per assembly: 2
Currently Not Available
2
Polaris 5413212 Seal

SEAL

Part #: 5413212 Required per assembly: 4
$9.99
$5.85
-
+
Add to cart
3

HOSE-BRAKE, CALIPER, REAR

Part #: 1912872 Required per assembly: 1
Currently Not Available
4

BRKT-MNT, BRKE, EBRAKE, WSS

Part #: 5256663 Required per assembly: 2
Currently Not Available
5
Polaris 7517704 Screw

SCREW

Part #: 7517704 Required per assembly: 2
Currently Not Available
6

BRKT-MNT, HOSE, BRAKE, REAR

Part #: 5263763 Required per assembly: 1
Currently Not Available
7
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496 Required per assembly: 3
Currently Not Available
8

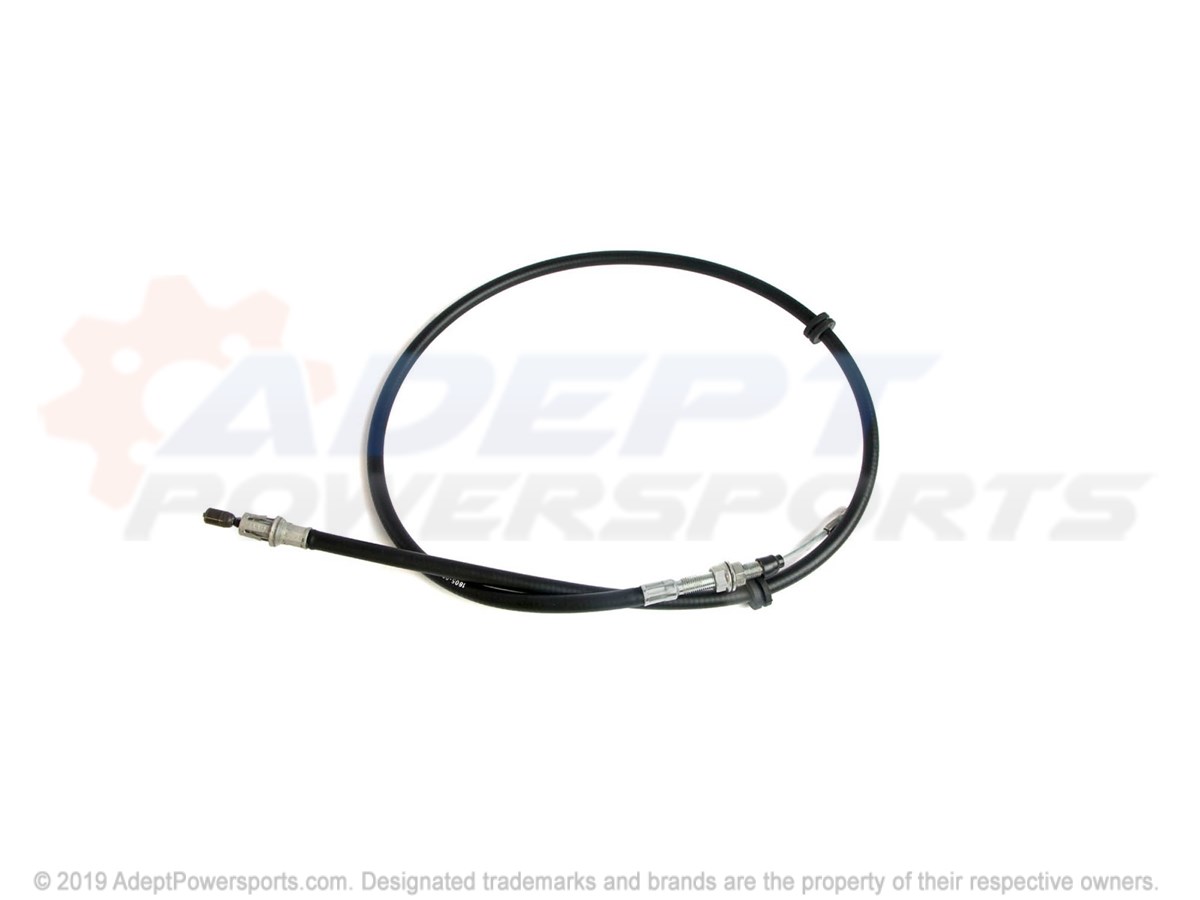

Polaris 7081805 Cable-Parking Brake

CABLE-PARKING BRAKE

Part #: 7081805 Required per assembly: 1
Currently Not Available
9

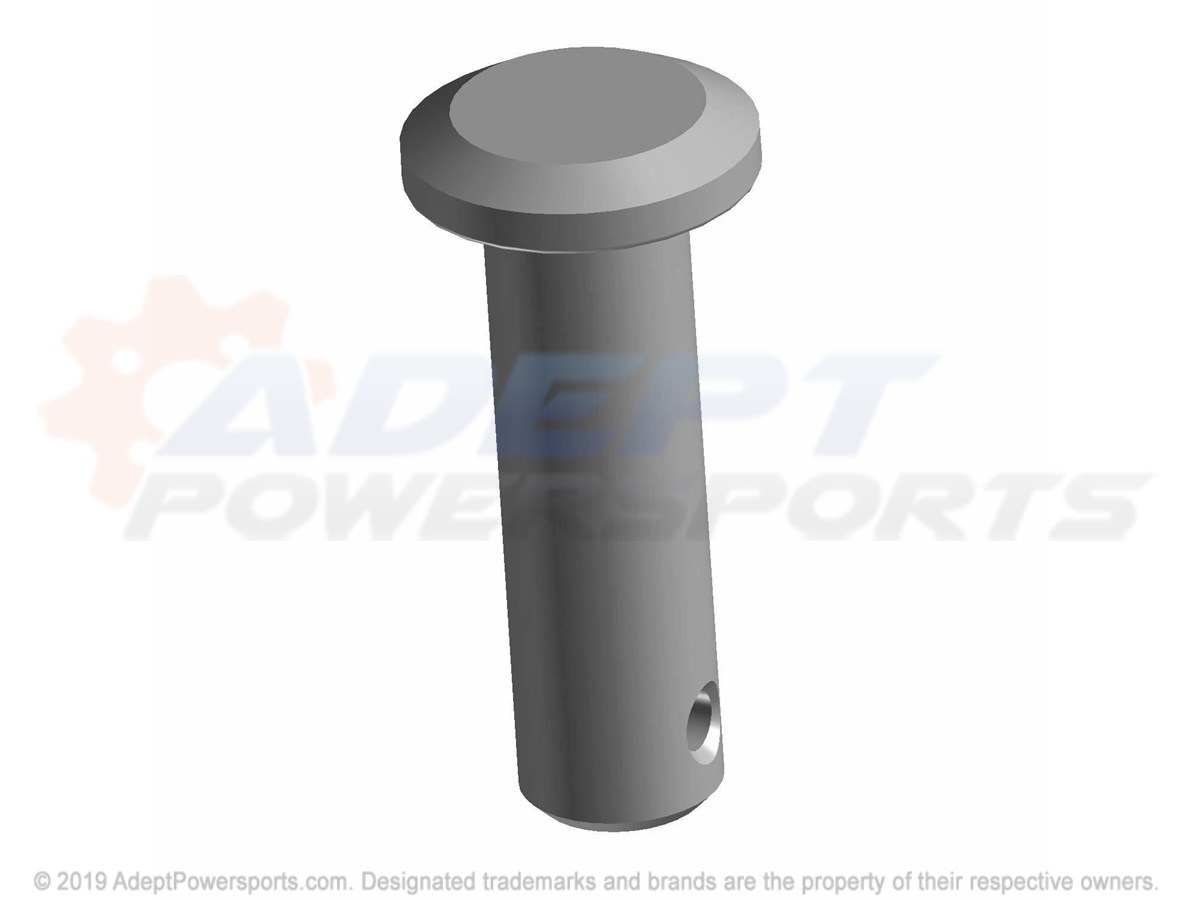

Polaris 7662149 Pin-Clevis, 8Mm

PIN-CLEVIS, 8MM

Part #: 7662149 Required per assembly: 1
Currently Not Available
10

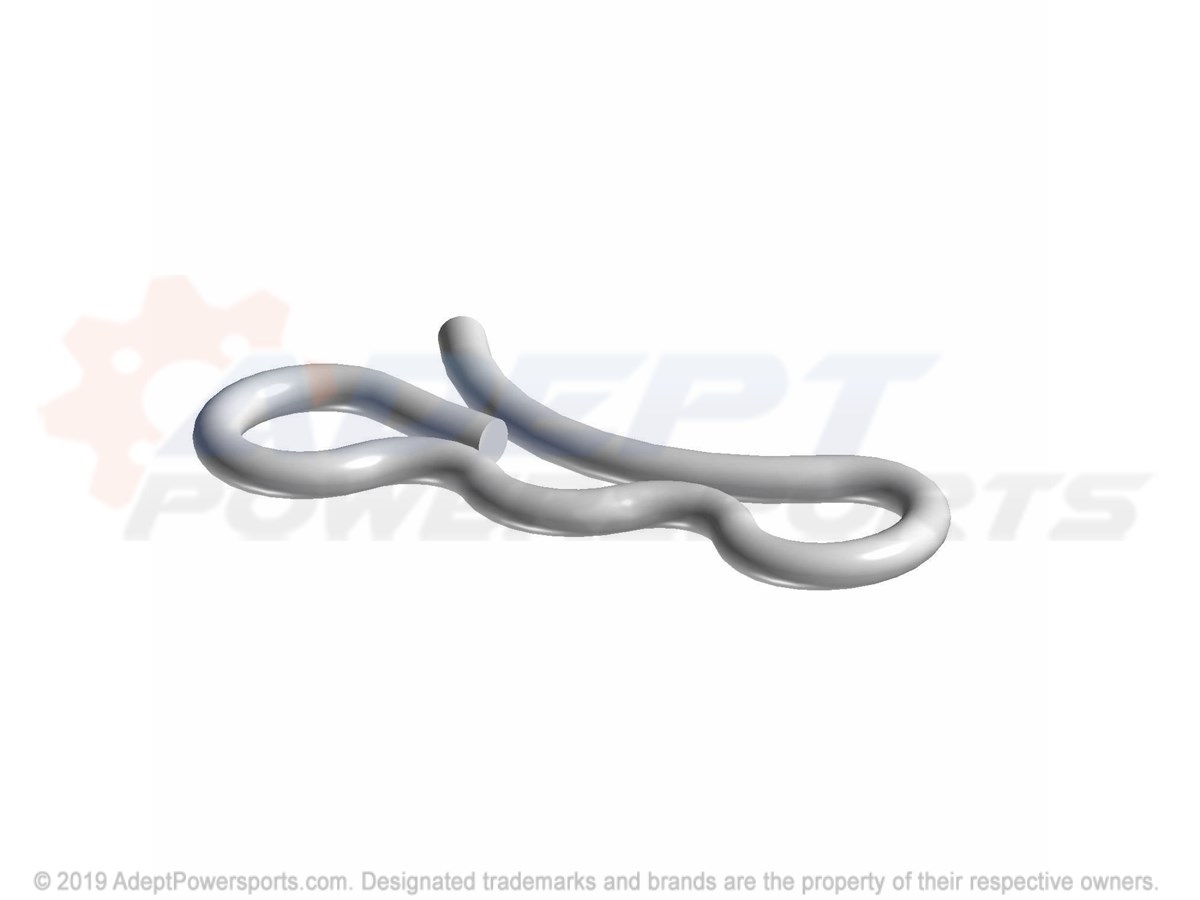

Polaris 7662195 Clip-Pin, 8Mm

CLIP-PIN, 8MM

Part #: 7662195 Required per assembly: 1
Currently Not Available
11
Polaris 7518800 Scr-Hxfl-M8x1.25X30 8.8 Zpc

SCR-HXFL-M8X1.25X30 8.8 ZPC

Part #: 7518800 Required per assembly: 2
Currently Not Available
12

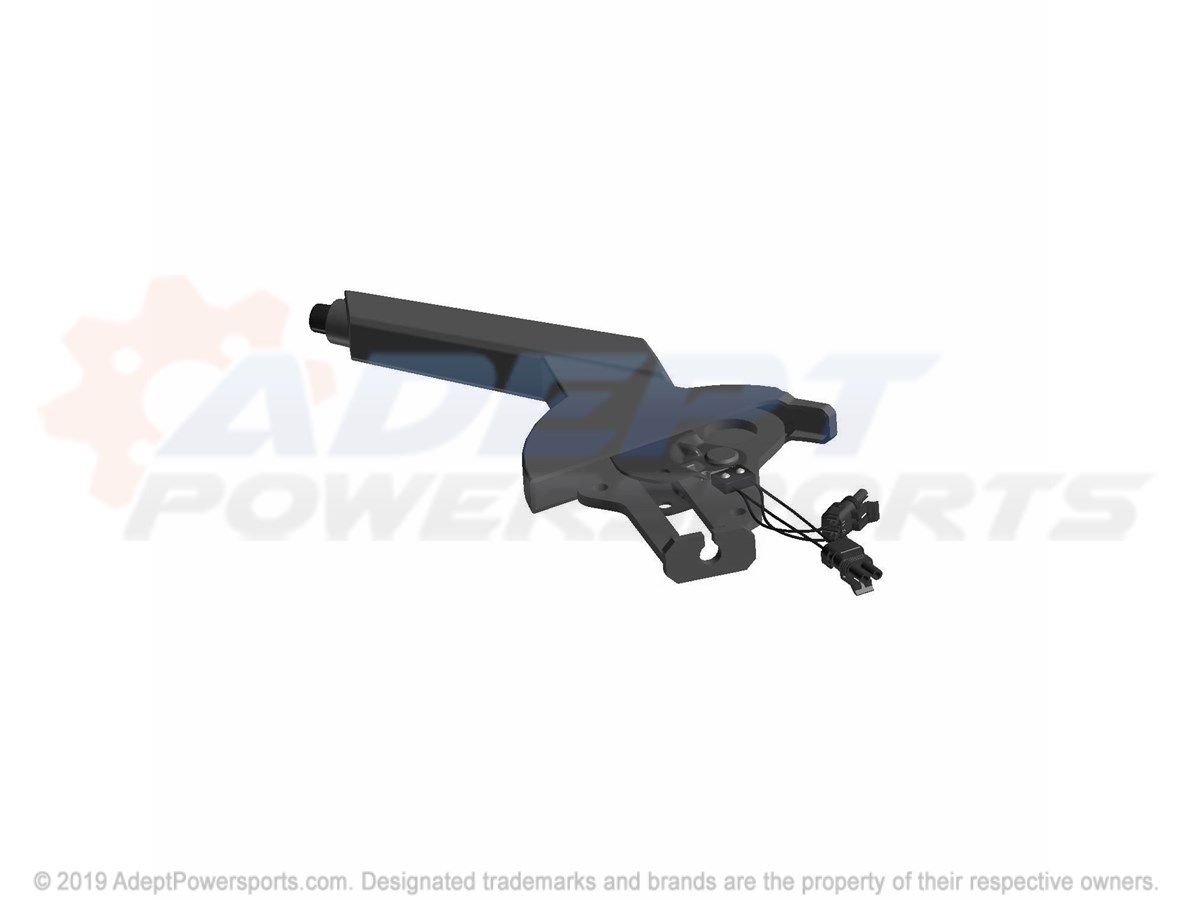

Polaris 1911952 Asm-Lever, E, Brake

ASM-LEVER, E, BRAKE

Part #: 1911952 Required per assembly: 1
Currently Not Available
12

SWITCH, PARK, BRAKE, SERVICE

Part #: 1911443 Required per assembly: 1
Currently Not Available
