Secondary Clutch replacement parts for 2019 Polaris RZR 1000S4 (R04)

OEM Parts Polaris 2019 Polaris RZR 1000S4 (R04) Secondary Clutch

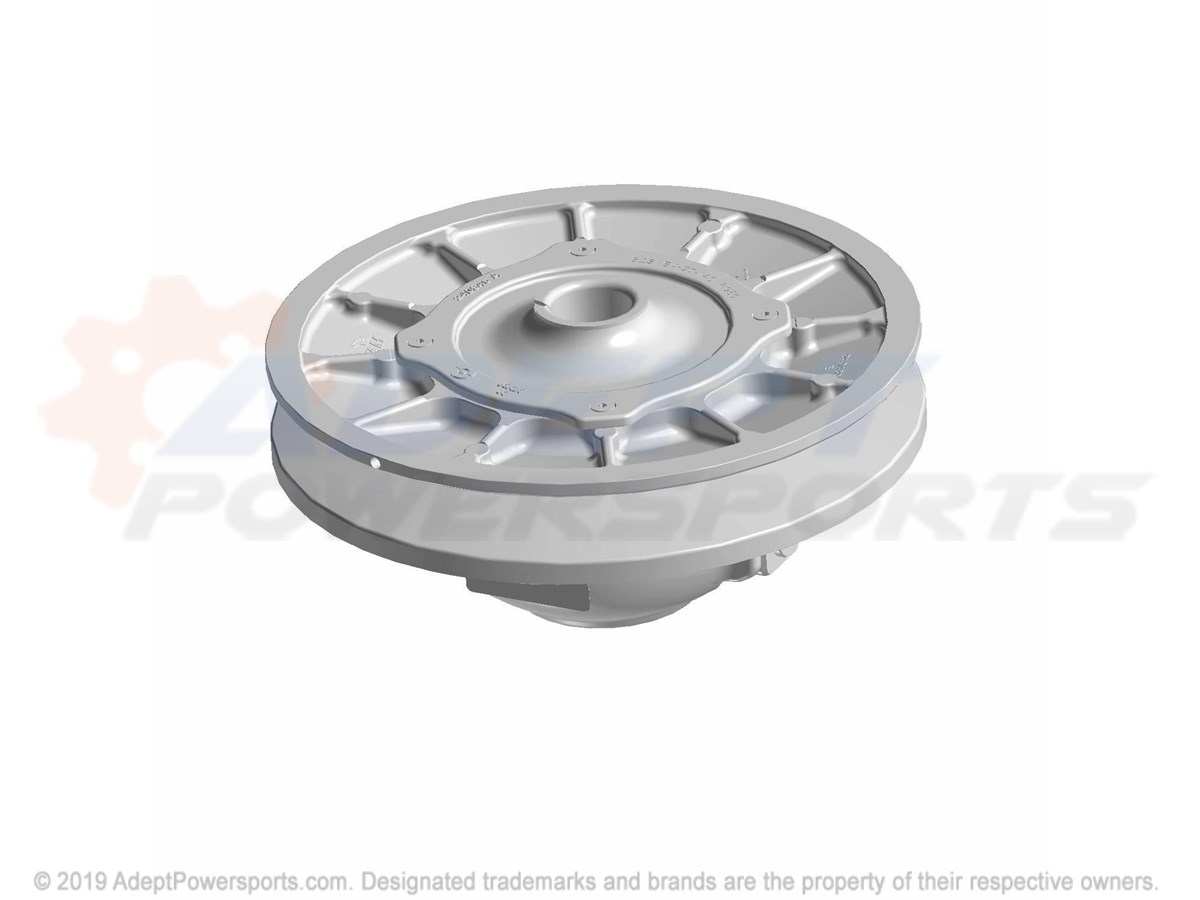

SECONDARY CLUTCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRIVEN, 30MM, BTD Part #: 1323650 Required per assembly: 1 Note: INCL 2-11 Currently Not Available
2	BUSHING-CLUTCH, 4140, TOPHAT Part #: 3235999 Required per assembly: 1 Currently Not Available
3	BRNG-BALL, ANGULAR, OIL, 30X55X23 Part #: 3514925 Required per assembly: 1 Currently Not Available
4	PIN, ROLLER Part #: 3234201 Required per assembly: 2 Currently Not Available
5	SLIDER-BTD, 9.58X28.83X13.97, ST Part #: 3514926 Required per assembly: 2 Currently Not Available
6	PIN, SPRING, SLOTTED Part #: 3234202 Required per assembly: 2 Currently Not Available
7	E-RING, RETAINING, (1322551) Part #: 7710523 Required per assembly: 2 Note: E-Ring, Retaining Currently Not Available
8	WASHER, THRUST, (1322551) Part #: 7556226 Required per assembly: 2 Note: Washer, Thrust Currently Not Available
9	ROLLER-BTD, 9.58X28.83X13.97, CE Part #: 3514929 Required per assembly: 2 Currently Not Available
10	SPIDER-BTD, 25T, MACH Part #: 5140135 Required per assembly: 1 Currently Not Available
11	SCREW-HELIX PATCH Part #: 3234754 Required per assembly: 4 Currently Not Available
12	SPG-118-190, COMP, 2.00, OD Part #: 7044506 Required per assembly: 1 Currently Not Available
13	ASM-CAM, TIED, 62S, BA30-.140 Part #: 3236418 Required per assembly: 1 Currently Not Available
14	BELT-DRIVE, 10.5, CD Part #: 3211196 Required per assembly: 1 Currently Not Available
15	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 1 Currently Not Available
