OEM Parts Polaris 2019 Polaris RZR 1000S4 (R04) Front Shock Mounting

2019 Polaris RZR 1000S4 (R04) Z19VCE99AM - Front Shock Mounting

FRONT SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1501329 Retainer-Spring

RETAINER-SPRING

Part #: 1501329 Required per assembly: 2
Currently Not Available
2

SHOCK-FRONT, RZR, S, PIGGYBK

Part #: 7043893 Required per assembly: 1
Currently Not Available
3
Polaris 7044145 Shock-Front, Rzr, S, Piggybk

SHOCK-FRONT, RZR, S, PIGGYBK

Part #: 7044145 Required per assembly: 1
Currently Not Available
4

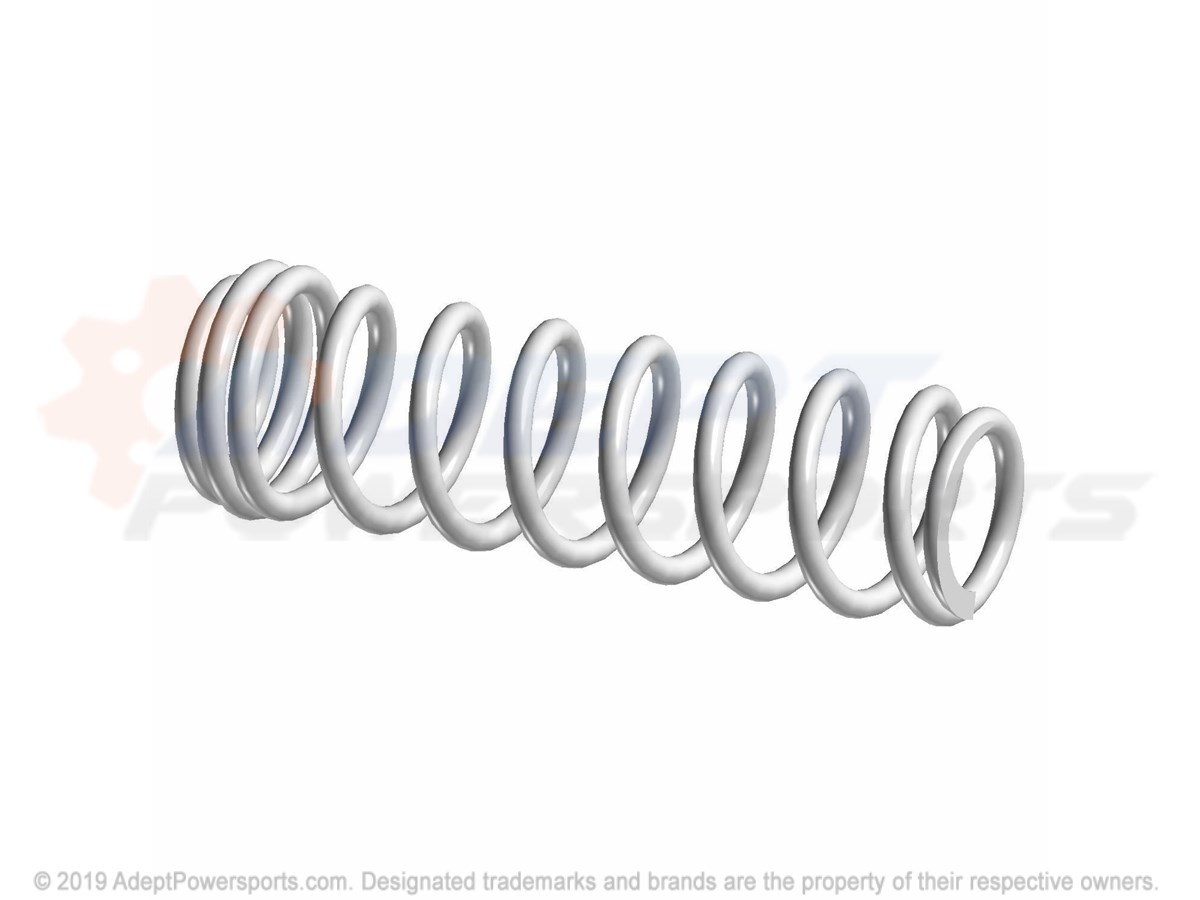

Polaris 7044259-133 Spr-215#, 12.5Fl, 2.3-2.3Id, Wht

SPR-215#, 12.5FL, 2.3-2.3ID, WHT

Part #: 7044259-133 Required per assembly: 2
Currently Not Available
5
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
6
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
