Front Stabilizer Bar replacement parts for 2019 Polaris RZR 1000S4 (R04)

OEM Parts Polaris 2019 Polaris RZR 1000S4 (R04) Front Stabilizer Bar

FRONT STABILIZER BAR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

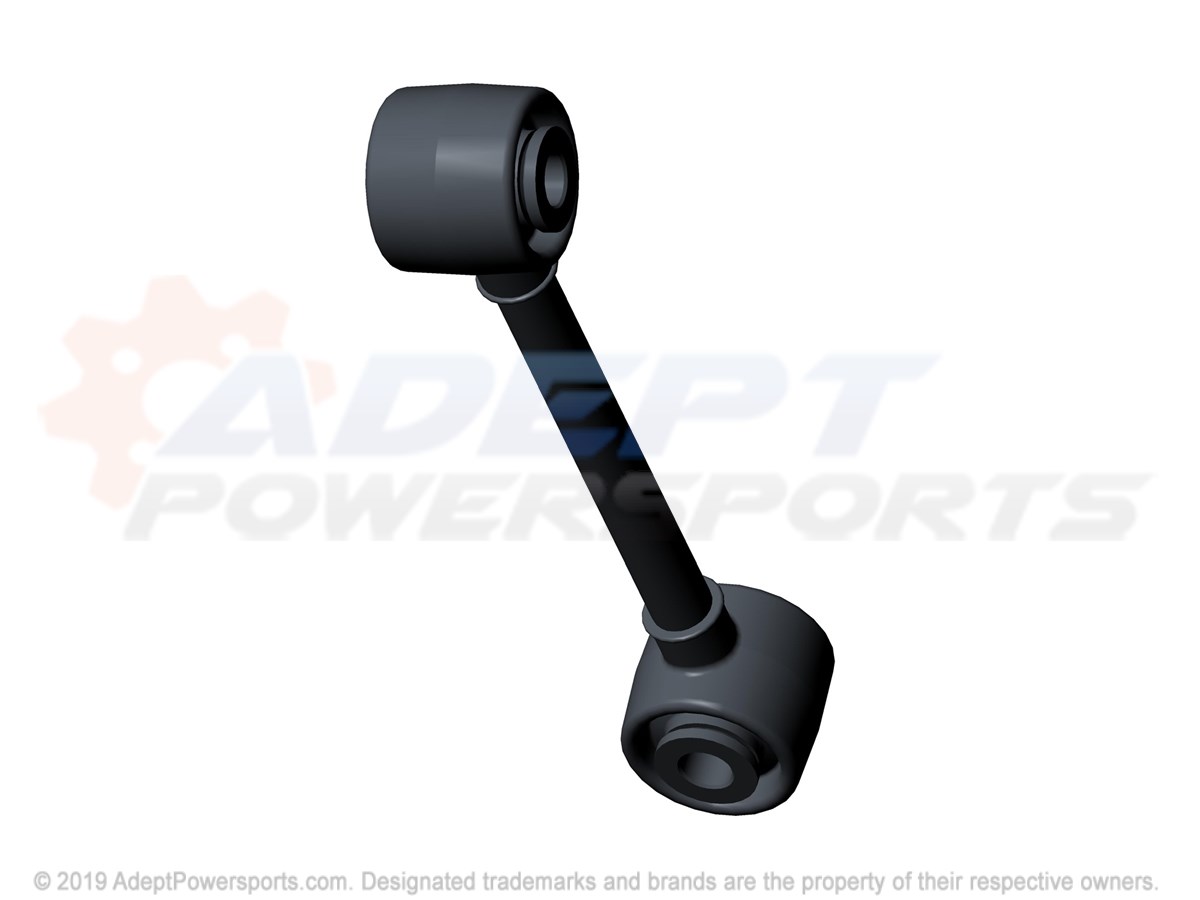

1	ASM-LINK, STABILIZER, BAR, 157MM Part #: 1543852 Required per assembly: 2 Currently Not Available

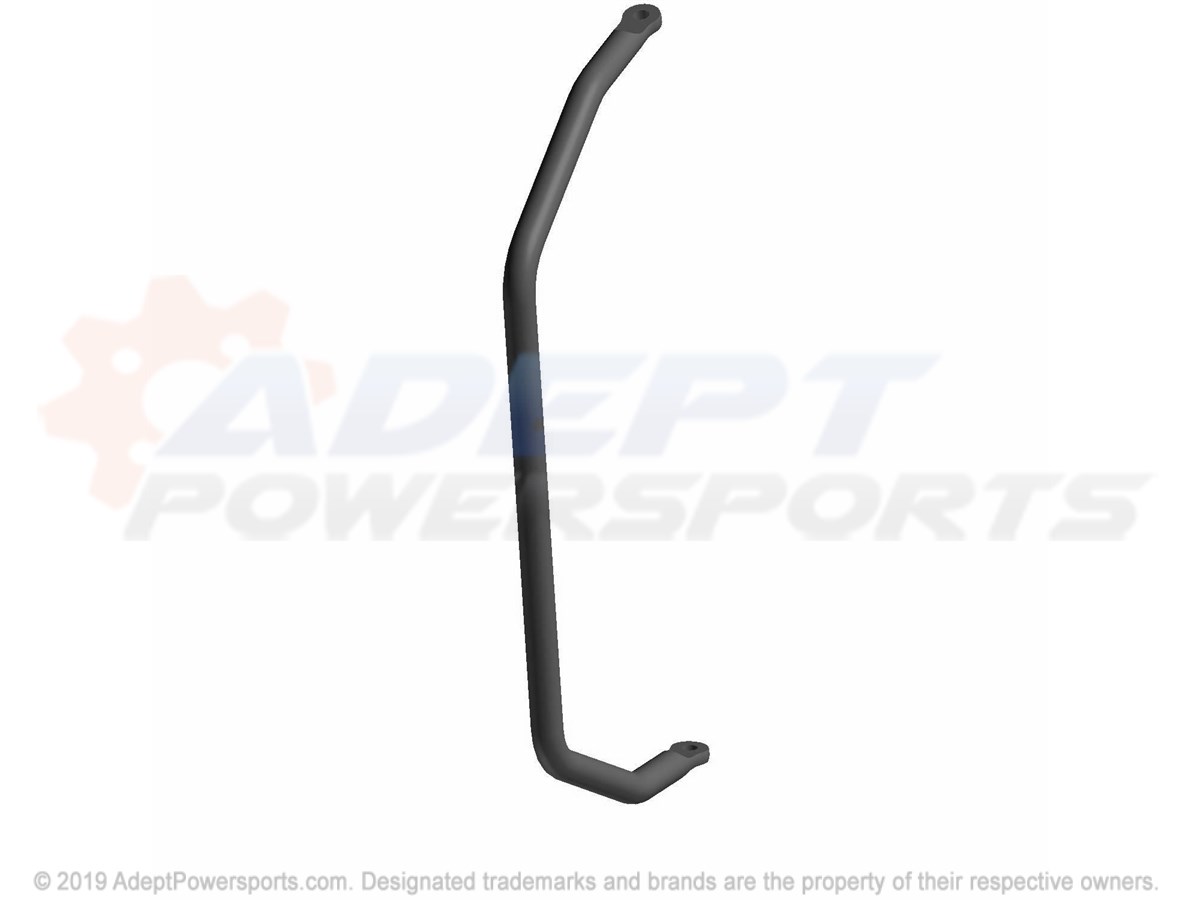

2	TUBE-STABILIZER Part #: 5338117 Required per assembly: 1 Currently Not Available

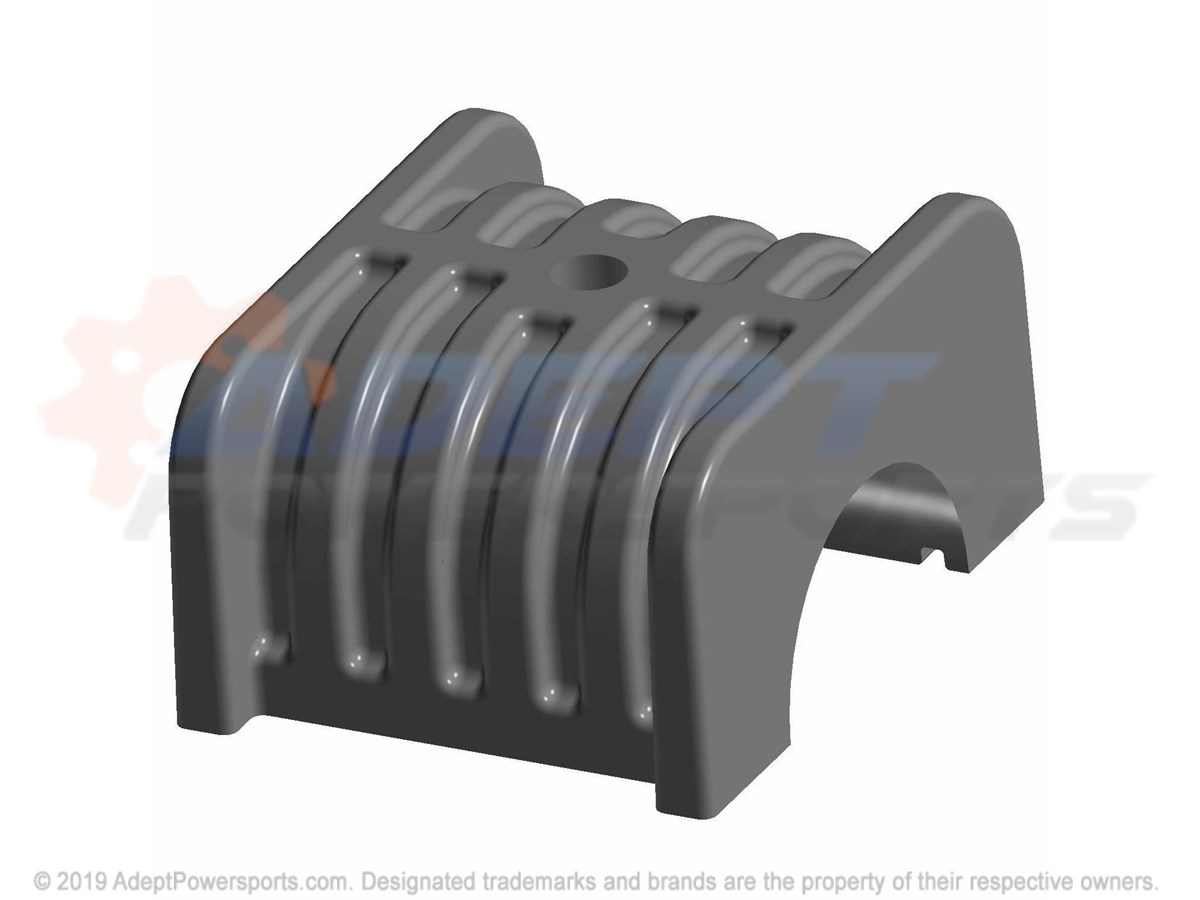

3	BUSHING-SWAY BAR Part #: 5452274 Required per assembly: 4 Currently Not Available
4	BRKT-CAST, SWAY, BAR Part #: 5634604 Required per assembly: 2 Currently Not Available
5	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 2 Note: FITTING, ZERK (90o) Currently Not Available
6	SCR-HXFL-M8X1.25X25 8.8 ZODP30 Part #: 7519243 Required per assembly: 2 Currently Not Available
7	SCR-HXFL-M8X1.25X40 8.8 ZODP30 Part #: 7519267 Required per assembly: 2 Currently Not Available
8	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
9	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
10	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
