OEM Parts Polaris 2019 Polaris RZR 1000S4 (R04) Rear Shock Mounting

2019 Polaris RZR 1000S4 (R04) Z19VCE99AM - Rear Shock Mounting

REAR SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1501329 Retainer-Spring

RETAINER-SPRING

Part #: 1501329 Required per assembly: 2
Currently Not Available
2
Polaris 5438839 Spacer-Spring Nylon 2"

SPACER-SPRING NYLON 2"

Part #: 5438839 Required per assembly: 2
Currently Not Available
3
Polaris 7043897 Shock-Rear, 2, Resvr, Piggyback

SHOCK-REAR, 2, RESVR, PIGGYBACK

Part #: 7043897 Required per assembly: 1
Currently Not Available
4
Polaris 7044258 Shock-Rear, 2"Resvr, Piggyback

SHOCK-REAR, 2"RESVR, PIGGYBACK

Part #: 7044258 Required per assembly: 1
Currently Not Available
5

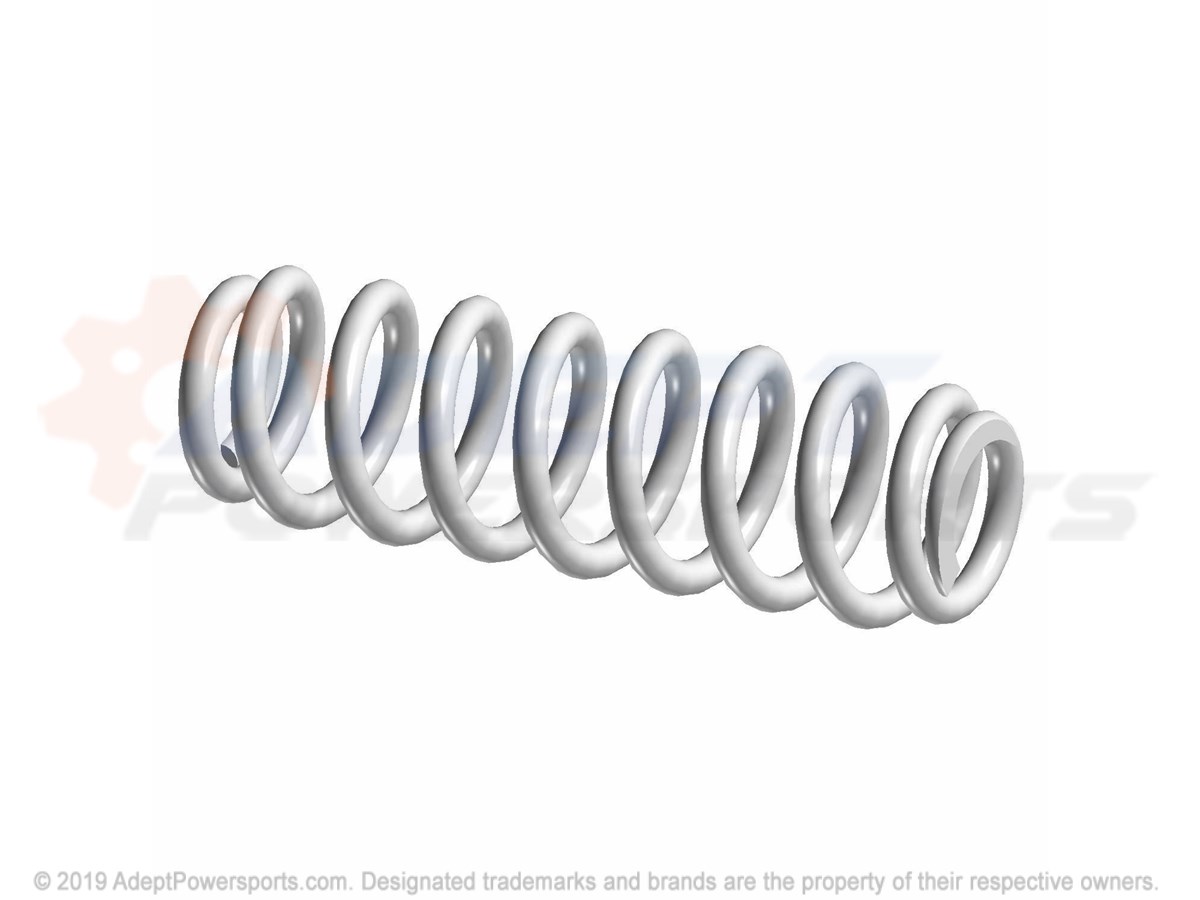

Polaris 7044260-133 Spr-400#, 13.5Fl, 2.3-2.3Id, Wht

SPR-400#, 13.5FL, 2.3-2.3ID, WHT

Part #: 7044260-133 Required per assembly: 2
Currently Not Available
6

SPR-360#, 3.07FL, 2.3-2.3ID, WHT

Part #: 7044296-133 Required per assembly: 2
Currently Not Available
7
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
8
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
