Rear Shock replacement parts for 2019 Polaris RZR 1000S4 (R04)

OEM Parts Polaris 2019 Polaris RZR 1000S4 (R04) Rear Shock

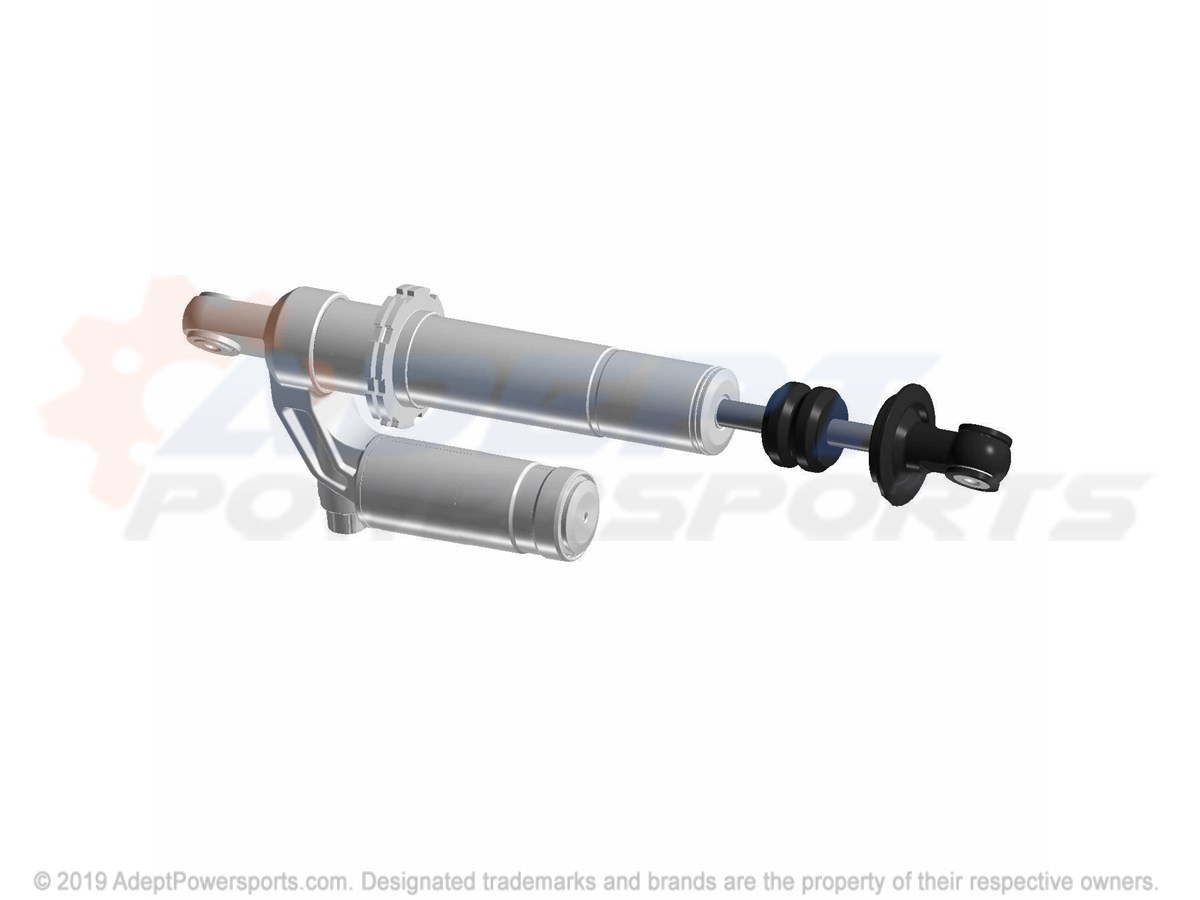

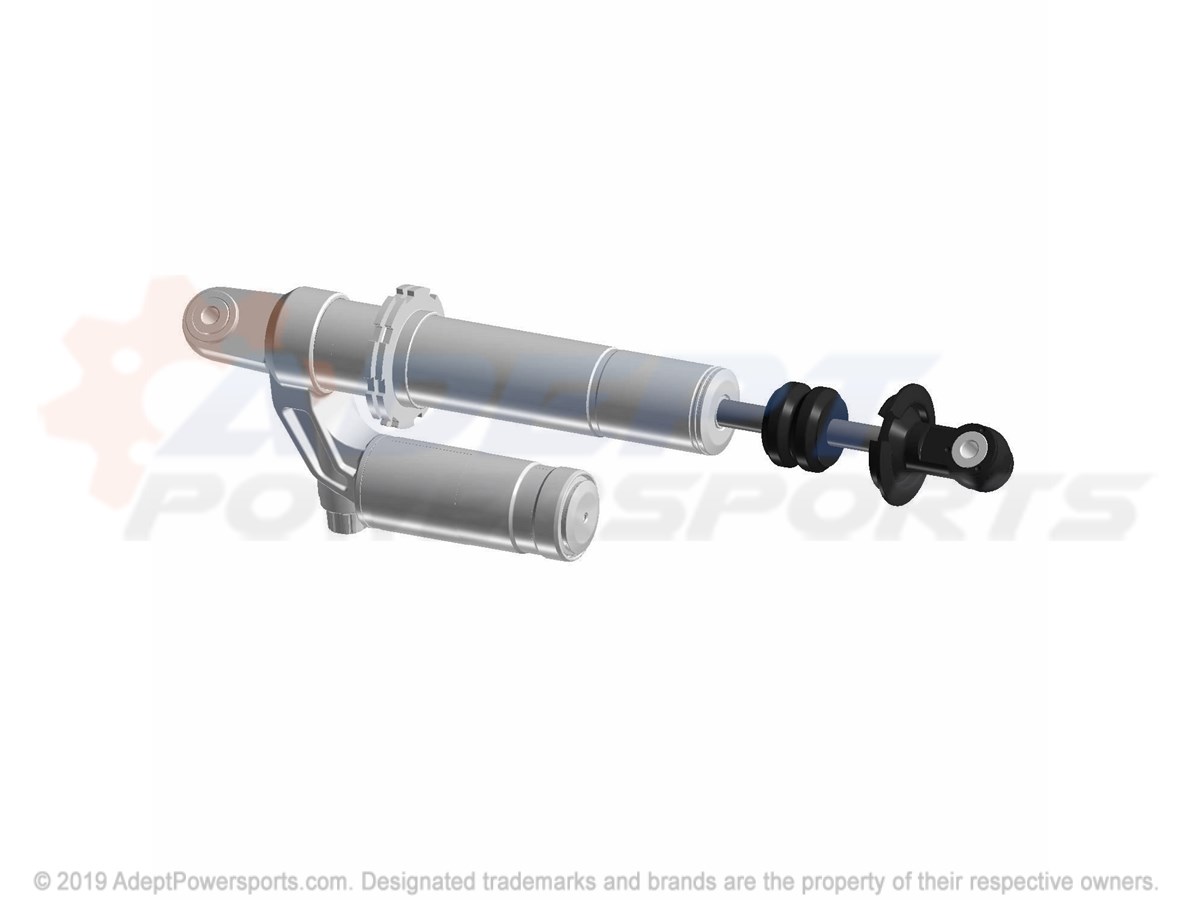

REAR SHOCK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SHOCK-REAR, 2, RESVR, PIGGYBACK Part #: 7043897 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	SHOCK-REAR, 2"RESVR, PIGGYBACK Part #: 7044258 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	BUSHING, EYELET, 014-20-002 Part #: 1501010 Required per assembly: 2 Currently Not Available
3	NUT, LOCK Part #: 1500472 Required per assembly: 1 Currently Not Available
4	SCREW #4 SS PAN 018-01-036 Part #: 1501011 Required per assembly: 1 Currently Not Available
5	DECAL, PERF, SERIES, 024-00-283 Part #: 1501012 Required per assembly: 1 Currently Not Available
6	DECAL, RES, 024-00-292 Part #: 1501013 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 1500623 Required per assembly: 1 Currently Not Available
8	O-RING Part #: 1500510 Required per assembly: 1 Currently Not Available
9	SEAL, WEATHER, 036-02-076 Part #: 1501014 Required per assembly: 4 Currently Not Available
10	RING, RETAINING Part #: 1500236 Required per assembly: 1 Currently Not Available
11	RING, RET., WIRE, 038-01-022 Part #: 1501015 Required per assembly: 1 Currently Not Available
12	CAP, BODY, PB, 206-75-102 Part #: 1501016 Required per assembly: 1 Currently Not Available
12	CAP, BODY, PB, 206-75-106 Part #: 1501017 Required per assembly: 1 Currently Not Available
13	BODY, 1.834X10.5, 207-14-050 Part #: 1501018 Required per assembly: 1 Currently Not Available
14	KNOB, LOW, SPEED, 210-35-090-0 Part #: 1501019 Required per assembly: 2 Currently Not Available
15	EYELET, PART:, SLEEVE, .397, ID, X, .875, OD, X, 1.181, TLG Part #: 1501087 Required per assembly: 1 Currently Not Available
16	EYELET, SHAFT, 214-33-500-2 Part #: 1501089 Required per assembly: 4 Currently Not Available
17	EYELET, PART:, SPACER, .876, ID, X, 1.25, OD, X, .150, TLG Part #: 1501088 Required per assembly: 1 Currently Not Available
18	RESERVOIR, 5"THD, 227-41-050-4 Part #: 1501023 Required per assembly: 1 Currently Not Available
19	SHAFT, .62X11.4TLG, 229-60-114 Part #: 1501024 Required per assembly: 1 Currently Not Available
20	SPACER, SHAFT, NYL, 233-00-128 Part #: 1501025 Required per assembly: 1 Currently Not Available
21	RING, PRELOAD, BACK Part #: 1500872 Required per assembly: 1 Currently Not Available
22	RING, PRELOAD Part #: 1500873 Required per assembly: 1 Currently Not Available
23	SCREW, ASM, BLK, (800-10-008) Part #: 1501341 Required per assembly: 1 Currently Not Available
24	ASM., PISTON, FLOAT, 805-00-073 Part #: 1501026 Required per assembly: 1 Currently Not Available
25	PISTON (222-26-001) Part #: 1500870 Required per assembly: 1 Currently Not Available
26	ASM. BEARING (812-07-046) Part #: 1500940 Required per assembly: 1 Currently Not Available
27	ASM-BEARING CAP (812-11-020) Part #: 1500835 Required per assembly: 1 Currently Not Available
28	ASM., END, CAP, RES, 813-00-086 Part #: 1501027 Required per assembly: 1 Currently Not Available
29	ASSEMBLY, DAMPENING, ADJUST, LSC Part #: 1501006 Required per assembly: 1 Currently Not Available
30	BUMPER, B/O, SHAFT, 008-02-025 Part #: 1501028 Required per assembly: 1 Currently Not Available
