Seat - R13uh88/Uh9e All Options replacement parts for 2013 Polaris RANGER 900 XP ALL OPTIONS

OEM Parts Polaris 2013 Polaris RANGER 900 XP ALL OPTIONS R13UH88/UH9E Seat - R13uh88/Uh9e All Options

Seat - R13UH88/UH9E All Options Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

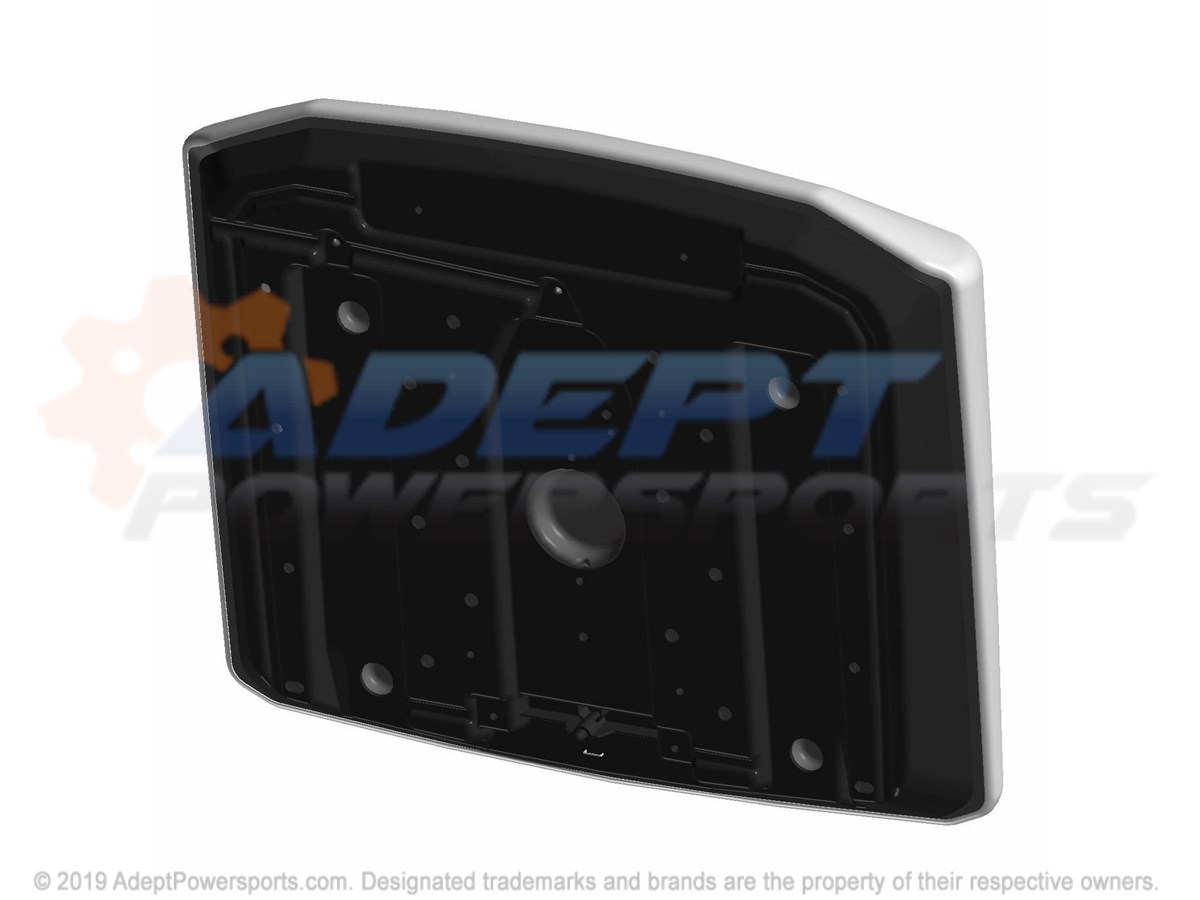

1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK, [AC][AR][EAR] Part #: 2684965-070 Required per assembly: 1 Note: AG Currently Not Available
1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/WHITE/ORANGE, [EAO] Part #: 2685566 Required per assembly: 1 Note: AO Currently Not Available

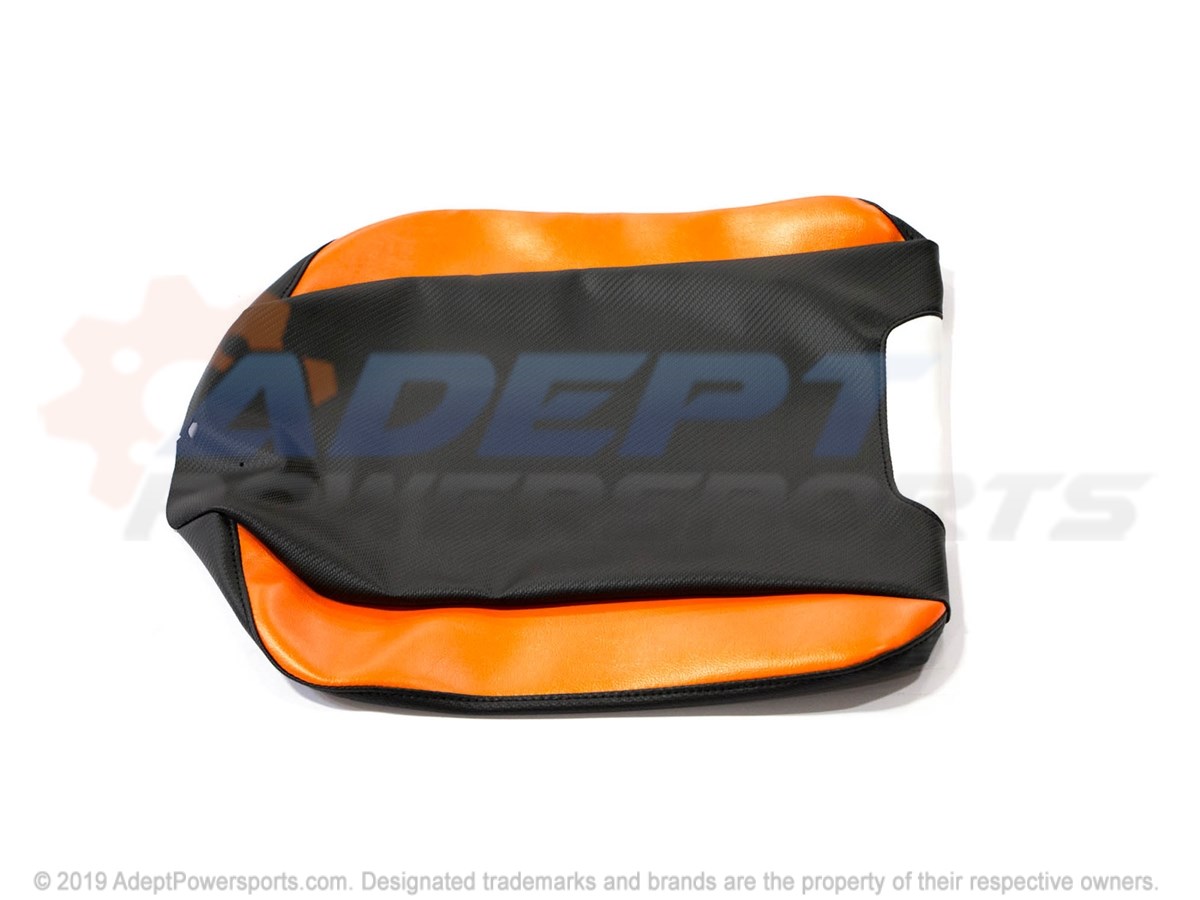

1	COVERING, BOTTOM, 60, BLACK/WHITE/ORANGE, [EAO] Part #: 2685570 Required per assembly: 1 Note: AO Currently Not Available
1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/BRONZE Part #: 2685533 Required per assembly: 1 Note: AQ Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/BRONZE Part #: 2685537 Required per assembly: 1 Note: AQ Currently Not Available
1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685141 Required per assembly: 1 Note: AZ Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/S., RED, [EAZ] Part #: 2685350 Required per assembly: 1 Note: AZ Currently Not Available
1	ASSEMBLY, SEAT, BOTTOM, 60, BLACK/D., MARSH Part #: 2685600 Required per assembly: 1 Note: EAB Currently Not Available
1	COVERING, BOTTOM, 60, BLACK/D., MARSH Part #: 2685604 Required per assembly: 1 Note: EAB Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK, [AC][AR][EAR] Part #: 2684966-070 Required per assembly: 1 Note: AG Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/WHITE/ORANGE, [EAO] Part #: 2685568 Required per assembly: 1 Note: AO Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/WHITE/ORANGE, [EAO] Part #: 2685572 Required per assembly: 1 Note: AO Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/BRONZE Part #: 2685535 Required per assembly: 1 Note: AQ Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/BRONZE Part #: 2685539 Required per assembly: 1 Note: AQ Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685143 Required per assembly: 1 Note: AZ Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/S., RED, [EAZ] Part #: 2685360 Required per assembly: 1 Note: AZ Currently Not Available
2	ASSEMBLY, SEAT, BOTTOM, 40, BLACK/D., MARSH Part #: 2685602 Required per assembly: 1 Note: EAB Currently Not Available
2	COVERING, BOTTOM, 40, BLACK/D., MARSH Part #: 2685606 Required per assembly: 1 Note: EAB Currently Not Available

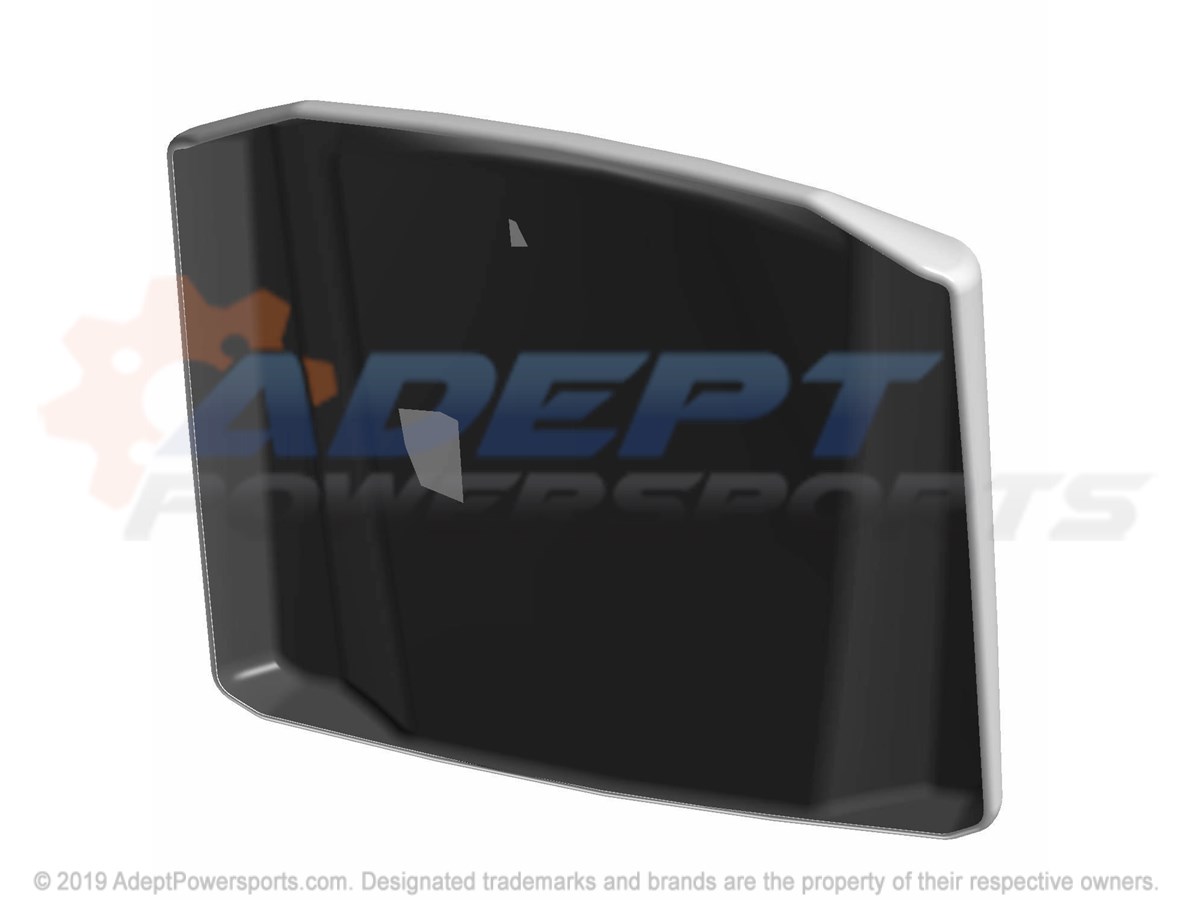

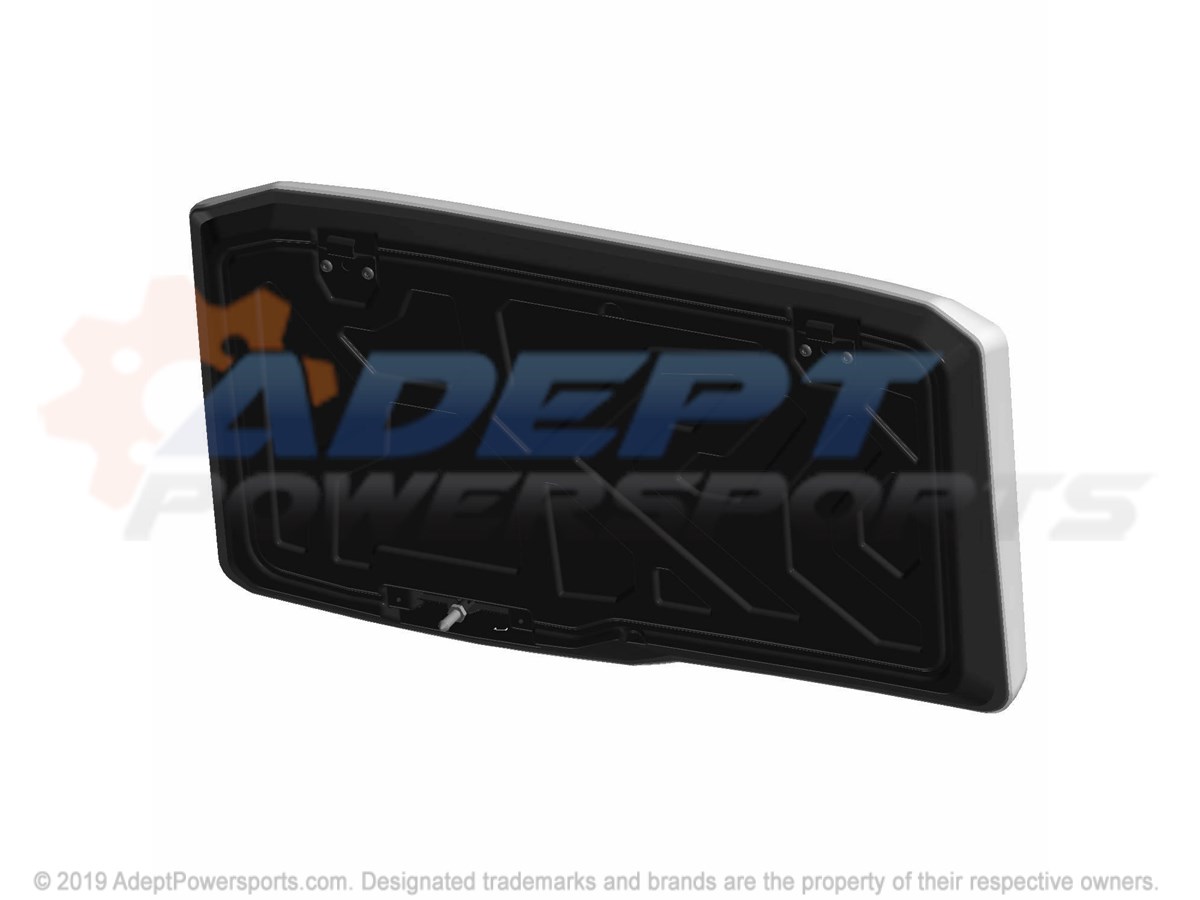

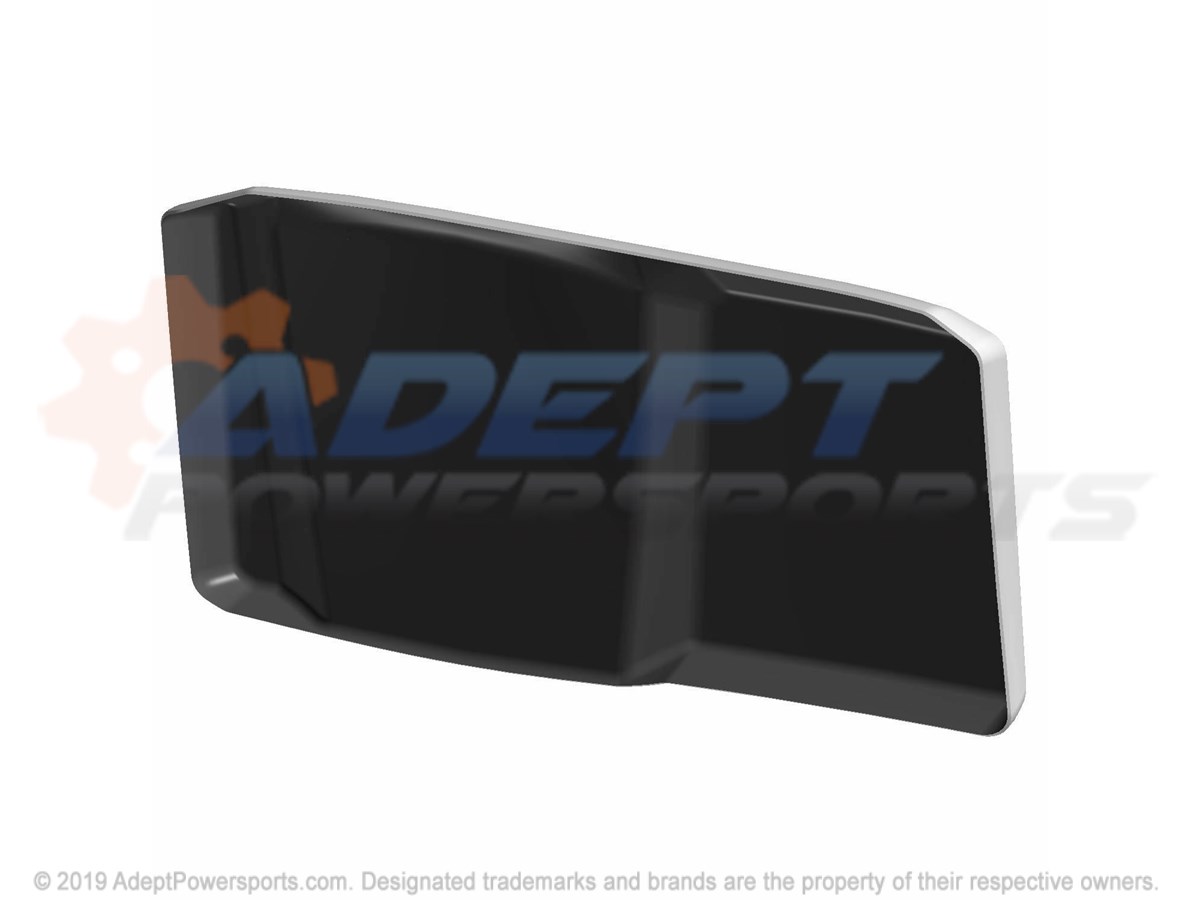

3	ASSEMBLY, SEAT, BACK, 60, BLACK, [AC][AR][EAR] Part #: 2684967-070 Required per assembly: 1 Note: AG Currently Not Available
3	ASSEMBLY, SEAT, BACK, 60, BLACK/WHITE/ORANGE, [EAO] Part #: 2685565 Required per assembly: 1 Note: AO Currently Not Available
3	COVERING, BACK, 60, BLACK/WHITE/ORANGE, [EAO] Part #: 2685569 Required per assembly: 1 Note: AO Currently Not Available
3	ASSEMBLY, SEAT, BACK, 60, BLACK/BRONZE Part #: 2685532 Required per assembly: 1 Note: AQ Currently Not Available
3	COVERING, BACK, 60, BLACK/BRONZE Part #: 2685536 Required per assembly: 1 Note: AQ Currently Not Available
3	ASSEMBLY, SEAT, BACK, 60, BLACK/S., RED, [EAZ] Part #: 2685140 Required per assembly: 1 Note: AZ Currently Not Available
3	COVERING, BACK, 60, BLACK/S., RED, [EAZ] Part #: 2685345 Required per assembly: 1 Note: AZ Currently Not Available
3	ASSEMBLY, SEAT, BACK, 60, BLACK/D., MARSH Part #: 2685599 Required per assembly: 1 Note: EAB Currently Not Available
3	COVERING, BACK, 60, BLACK/D., MARSH Part #: 2685603 Required per assembly: 1 Note: EAB Currently Not Available

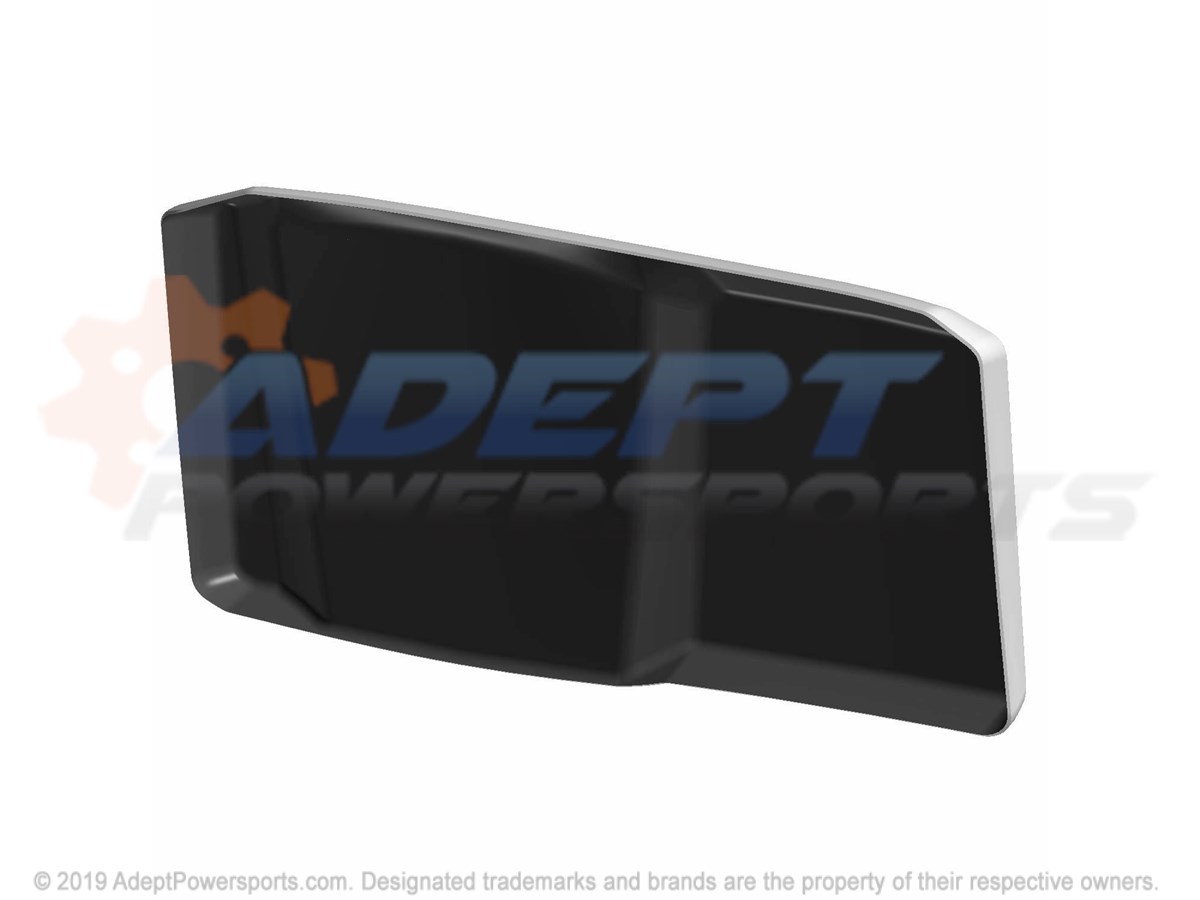

4	ASSEMBLY, SEAT, BACK, 40, BLACK, [AC][AR][EAR] Part #: 2684968-070 Required per assembly: 1 Note: AG Currently Not Available
4	ASSEMBLY, SEAT, BACK, 40, BLACK/WHITE/ORANGE, [EAO] Part #: 2685567 Required per assembly: 1 Note: AO Currently Not Available
4	COVERING, BACK, 40, BLACK/WHITE/ORANGE, [EAO] Part #: 2685571 Required per assembly: 1 Note: AO Currently Not Available
4	ASSEMBLY, SEAT, BACK, 40, BLACK/BRONZE Part #: 2685534 Required per assembly: 1 Note: AQ Currently Not Available
4	COVERING, BACK, 40, BLACK/BRONZE Part #: 2685538 Required per assembly: 1 Note: AQ Currently Not Available
4	ASSEMBLY, SEAT, BACK, 40, BLACK/S., RED, [EAZ] Part #: 2685142 Required per assembly: 1 Note: AZ Currently Not Available
4	COVERING, BACK, 40, BLACK/S., RED, [EAZ] Part #: 2685355 Required per assembly: 1 Note: AZ Currently Not Available
4	ASSEMBLY, SEAT, BACK, 40, BLACK/D., MARSH Part #: 2685601 Required per assembly: 1 Note: EAB Currently Not Available
4	COVERING, BACK, 40, BLACK/D., MARSH Part #: 2685605 Required per assembly: 1 Note: EAB Currently Not Available
5	GROMMET Part #: 5439179 Required per assembly: 2 Currently Not Available
6	PIN, SEAT, LATCH Part #: 5910404 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7519045 Required per assembly: 12 Currently Not Available

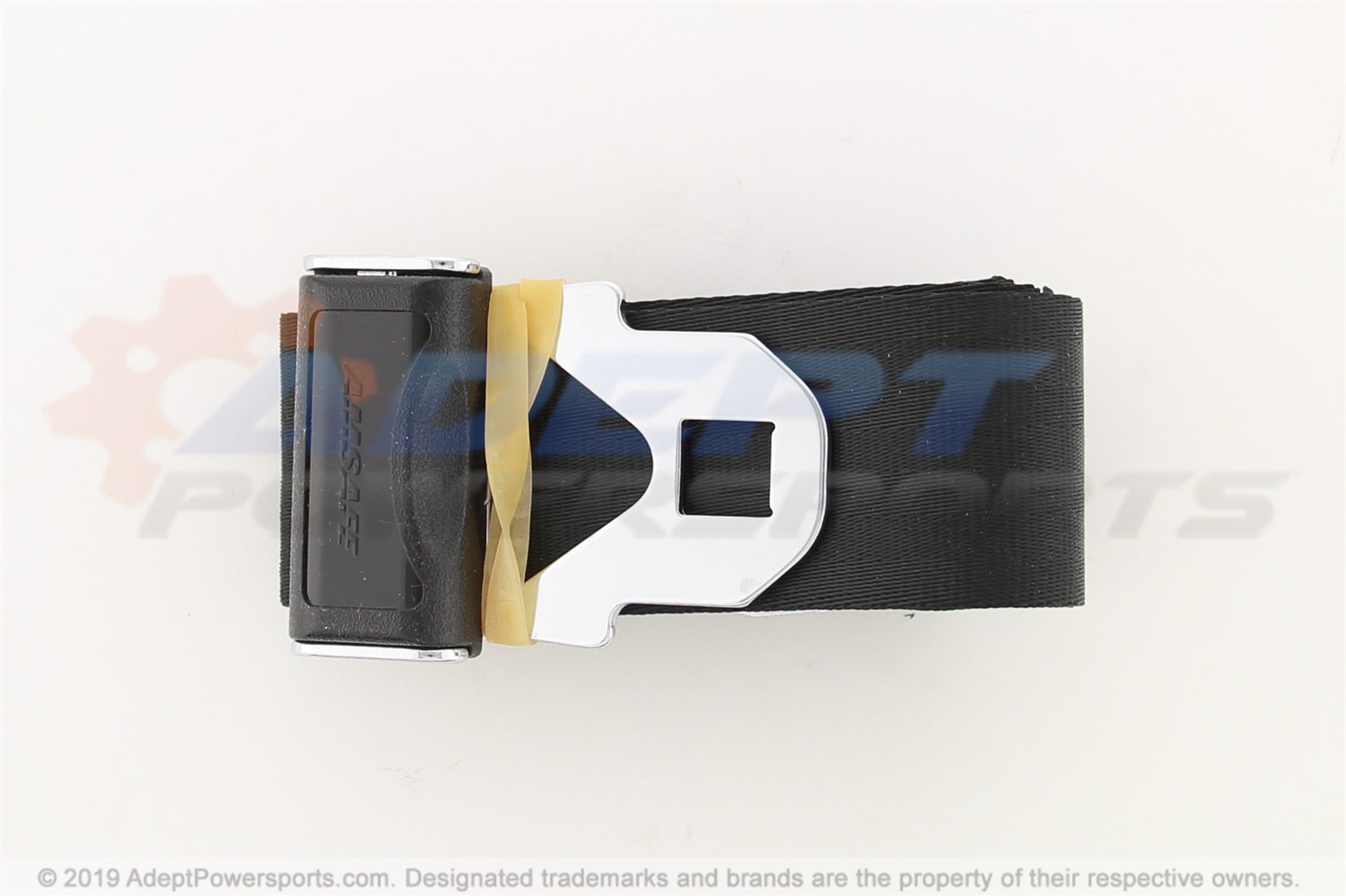

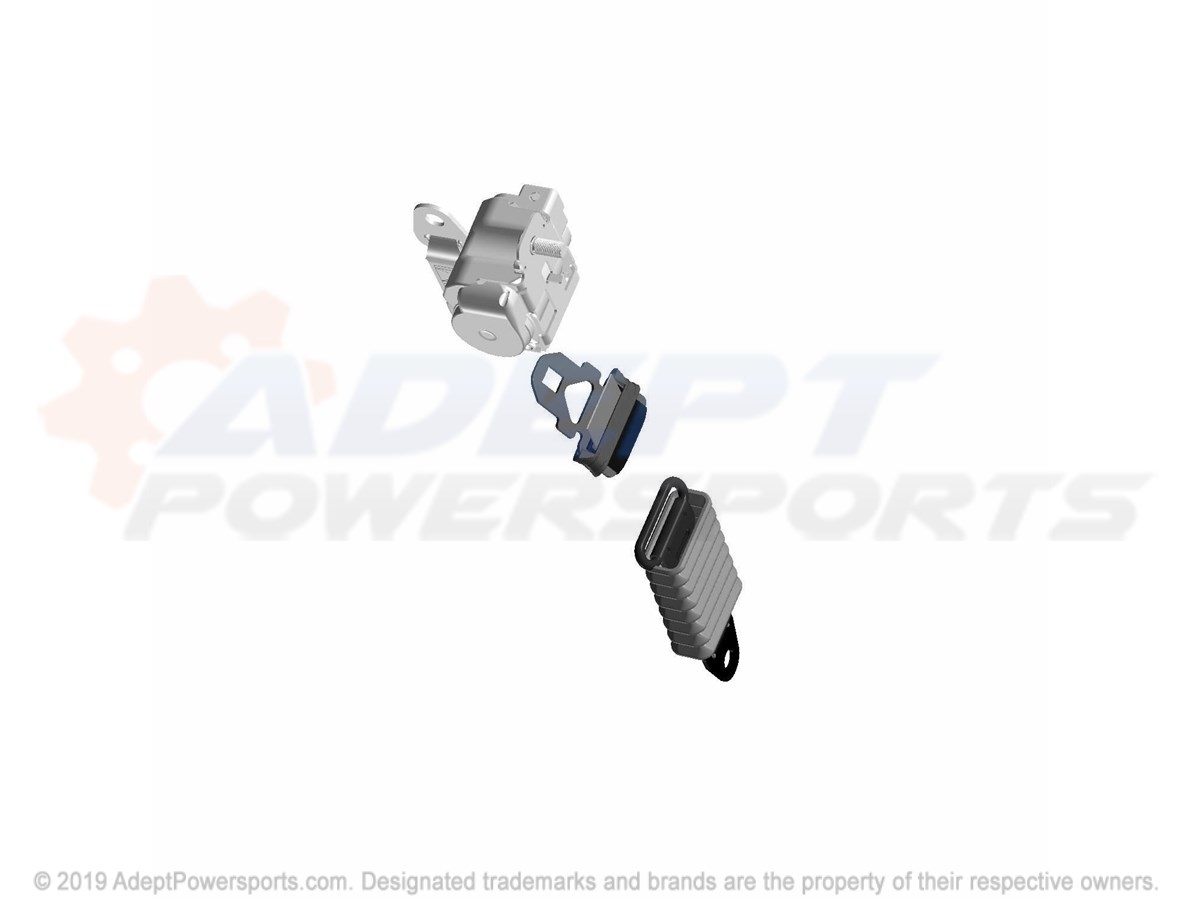

8	ASSEMBLY, SEAT, BELT, 3, POINT Part #: 2634235 Required per assembly: 2 Currently Not Available
9	ASSEMBLY, SEAT, BELT, CENTER Part #: 2634236 Required per assembly: 1 Currently Not Available

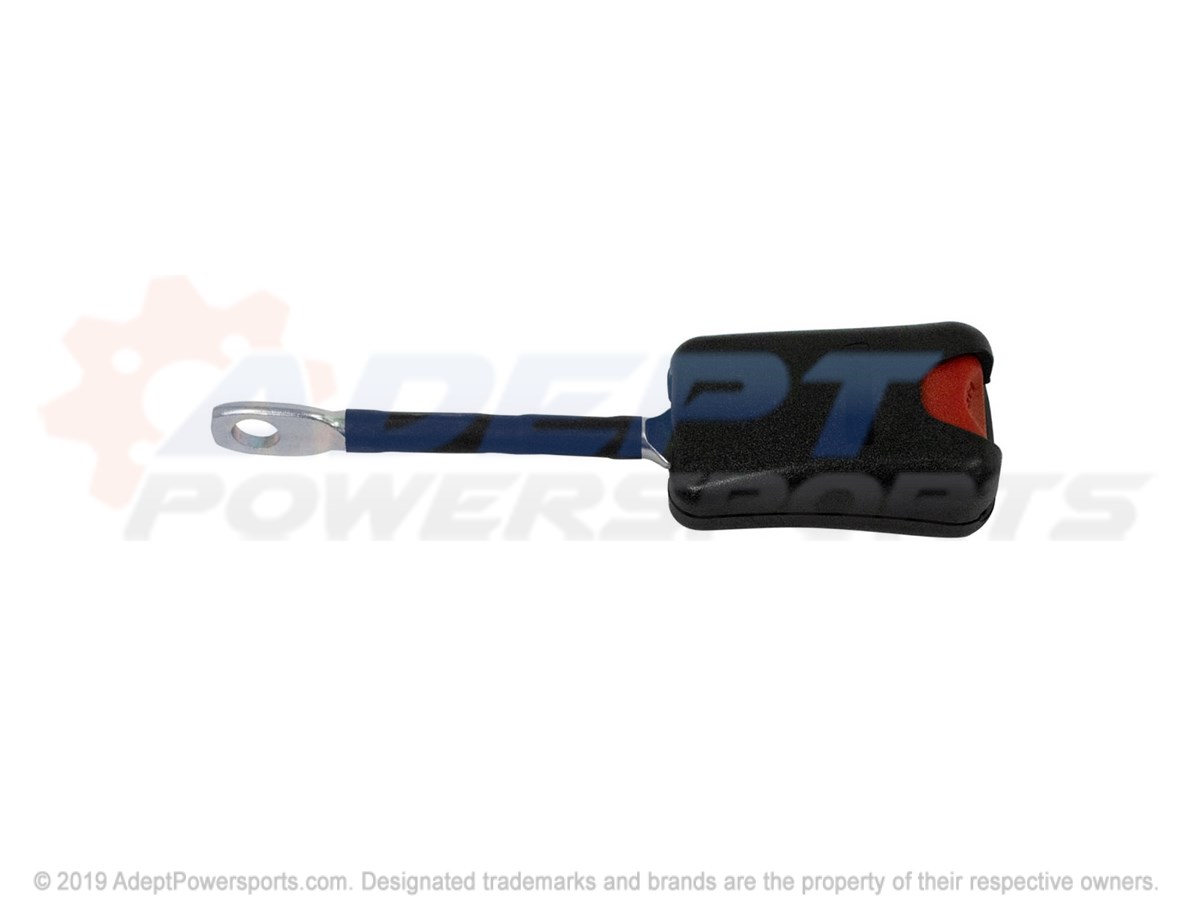

10	ASSEMBLY, LATCH, SEAT, BELT Part #: 2634237 Required per assembly: 3 Currently Not Available
11	WASHER-SEATBELT RUBBER Part #: 5813829 Required per assembly: 8 Currently Not Available
12	SCREW Part #: 7519770 Required per assembly: 8 Currently Not Available
13	NUT, FLANGE, NYLOK Part #: 7547441 Required per assembly: 10 Currently Not Available
14	SCREW Part #: 7519072 Required per assembly: 2 Currently Not Available
15	BRACKET, SEAT, HINGE, DOUBLE Part #: 5256837 Required per assembly: 1 Currently Not Available
16	BRACKET, SEAT, HINGE Part #: 5256836 Required per assembly: 2 Currently Not Available
